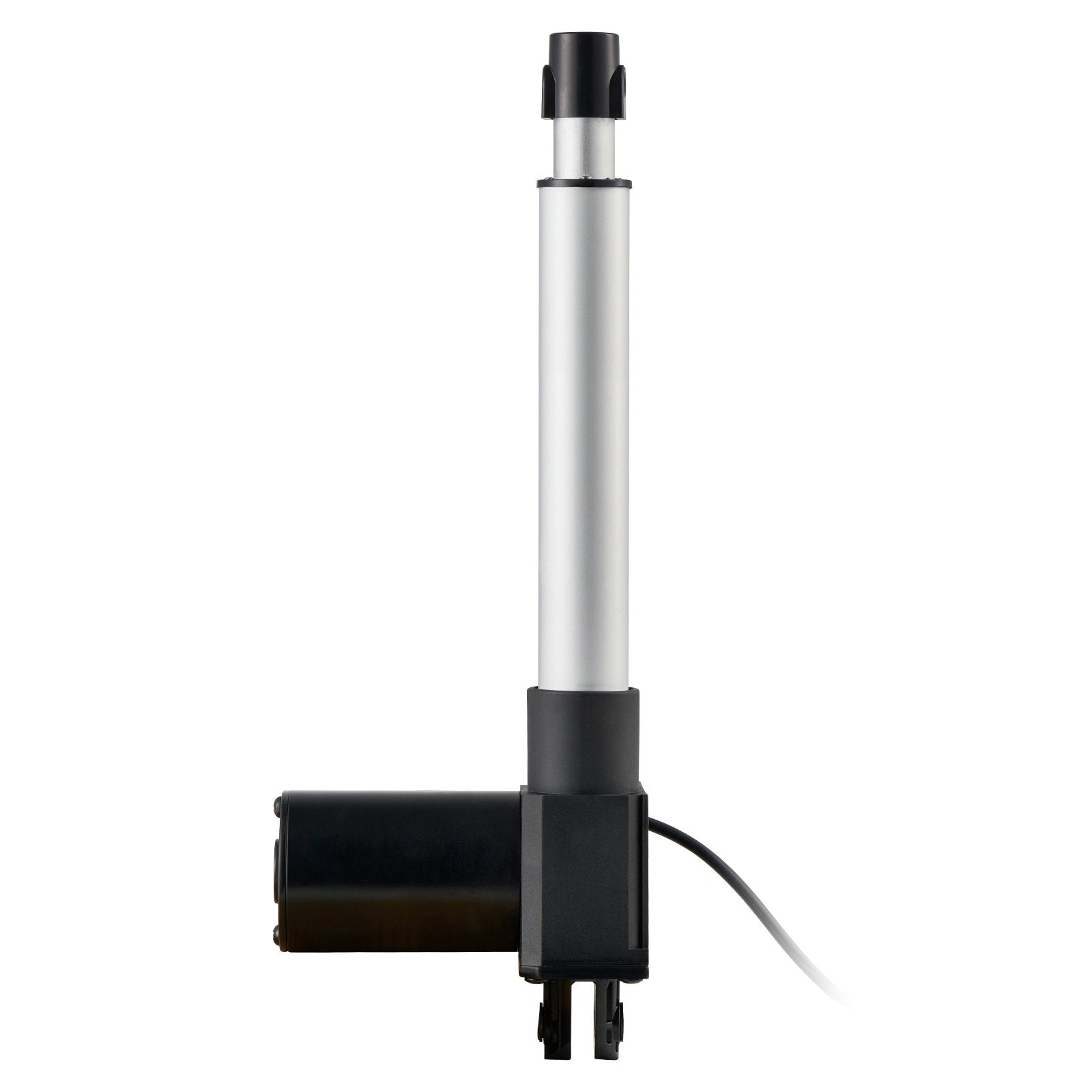

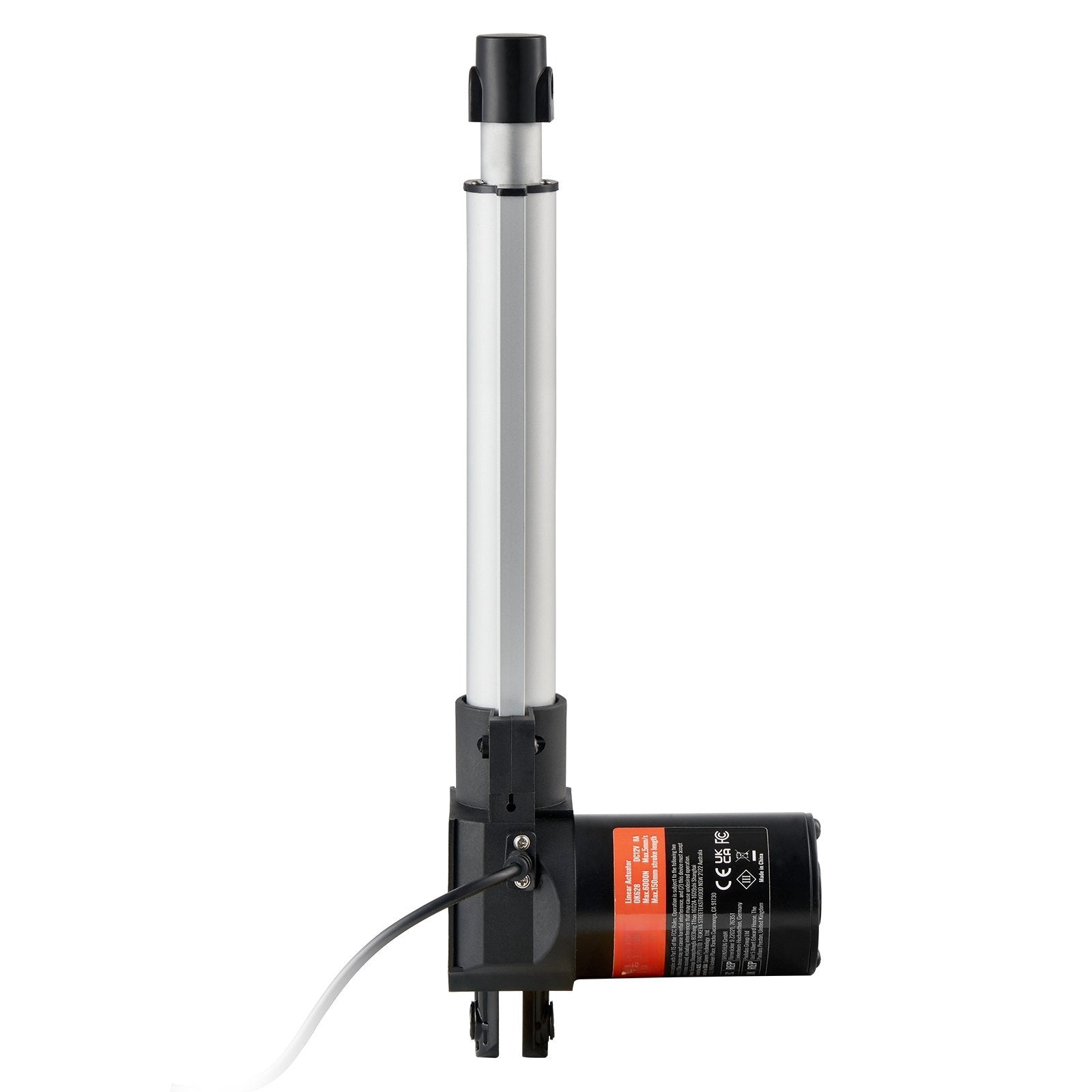

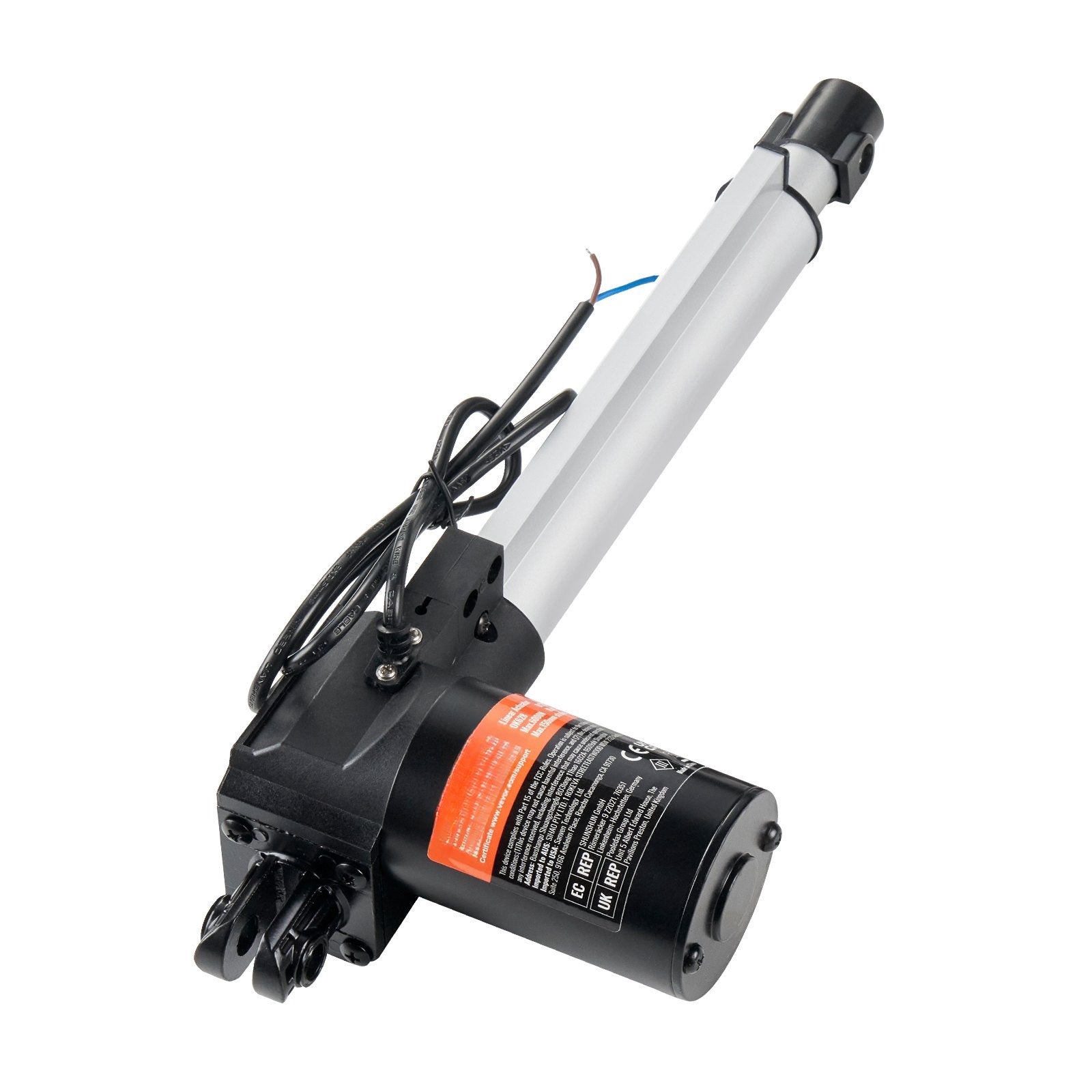

12V Linear Actuator 6000N, 8-Inch Stroke, IP44

12V linear actuator delivers controlled 8-inch (200 mm) stroke movement for heavy-duty lifting, positioning, and automation where consistent force matters. Built with an aluminum-alloy body and all-metal transmission, it supports up to 6000N (1320 lbf) while keeping operating noise at ≤50 dB. With IP44 protection against dust and light splashes, it’s suited to general industrial and household automation projects that need dependable linear motion and straightforward installation.

• Delivers up to 6000N / 1320 lbf actuation force for lifting, pushing, and positioning tasks


• Moves at 5 mm/s (0.19 in/s) for stable, controllable travel in automation and mechanisms


• Runs quietly at ≤50 dB to suit furniture adjustment, equipment covers, and enclosed spaces


• Resists dust and light splashes with IP44 protection for workshop, garage, and general-use setups

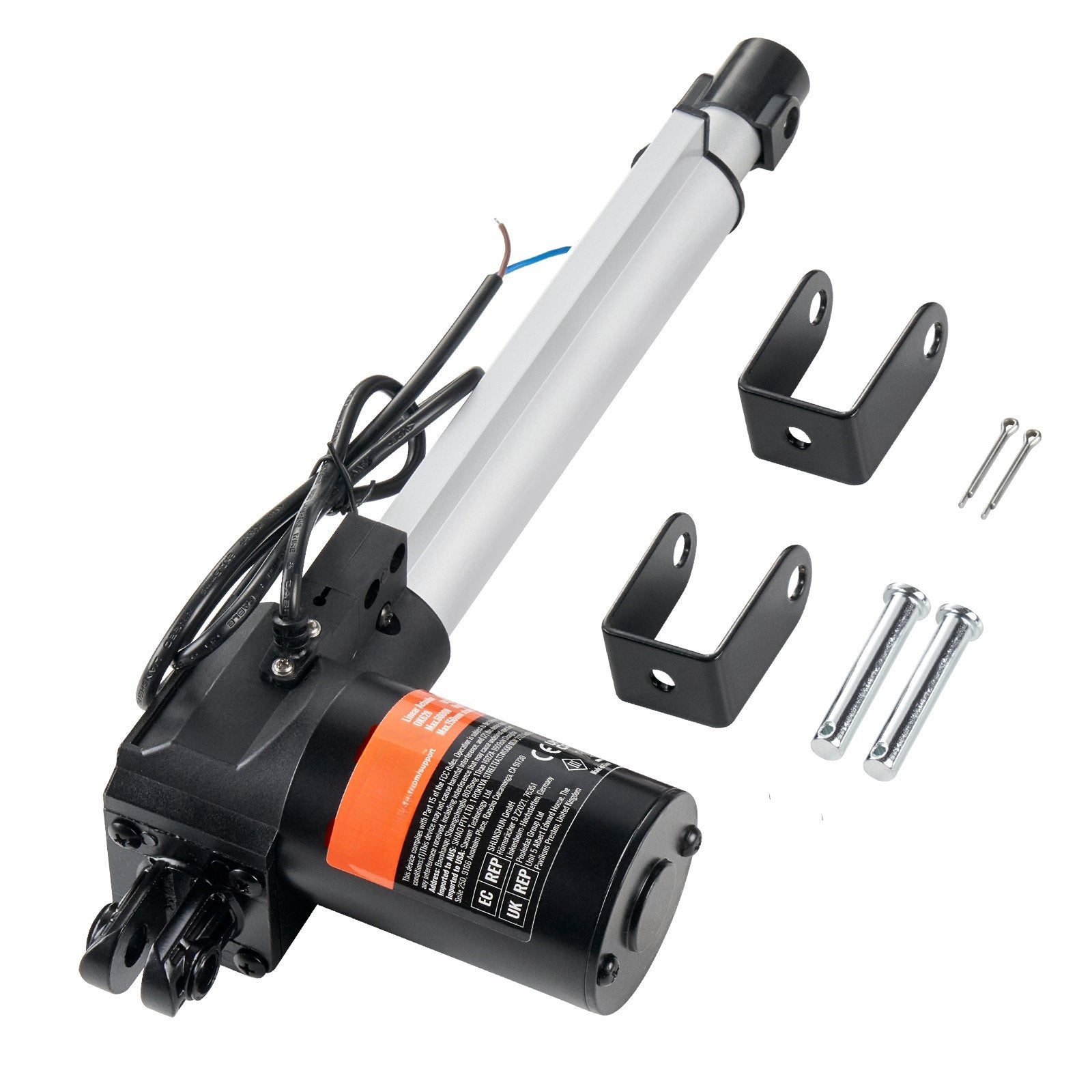

• Simplifies setup with included accessories; supports DC 12V systems up to 8A draw

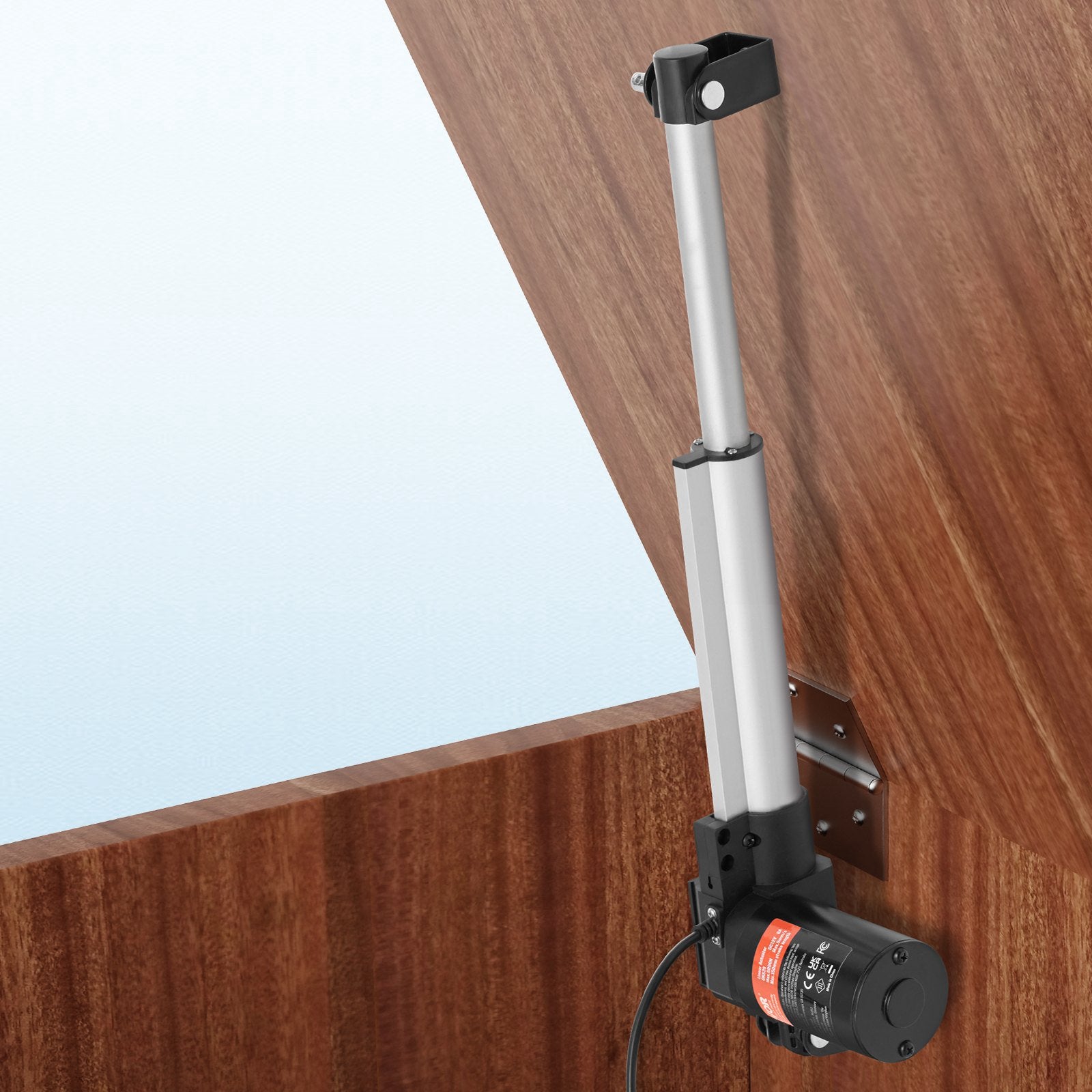

Use this heavy-duty linear motion actuator to upgrade shop builds, adjustable furniture, hatches, lids, lift platforms, and mechanical equipment that require steady linear travel. The reinforced structure and metal gearing are designed for repeated high-load cycles, while the 10% duty cycle helps protect the motor during operation. For best results, match your power supply to DC 12V and plan for up to 8A current draw; avoid water ingress into the motor housing. Grab yours today and start automating with confidence.

• Rated voltage: DC 12V


• Max force: 6000N (1320 lbf)


• Stroke length: 8 in / 200 mm


• Travel speed: 0.19 in/s / 5 mm/s


• Noise level: ≤50 dB


• Protection class: IP44


• Rated current: <8A


• Duty cycle: 10%


• Retracted length: 16.14 in / 410 mm


• Extended length: 24.14 in / 610 mm


• Product size: 16.14 x 3.14 x 5.74 in / 410 x 80 x 146 mm


• Net weight: 4.67 lb / 2.12 kg (incl. accessories)


• Main material: Aluminum alloy
