24V Linear Actuator Kit, 10-Inch Stroke, 1000N, IP44

24V linear actuator kit delivers smooth, reliable push/pull motion for automating doors, windows, lift platforms, and adjustable furniture with consistent 1000N thrust. Built for medium-duty automation, it combines quiet operation (≤50 dB) with IP44-rated protection for everyday dust and light splashes. Designed for quick integration into home projects and industrial equipment, the aluminum-alloy actuator supports stable travel at 25 mm/s while keeping wiring and installation straightforward.

• Delivers 1000N (220 lb) actuation force for lifting, opening, and positioning medium-duty loads


• Runs quietly at ≤50 dB to suit furniture adjustment, motorized doors/windows, and automation systems


• Protects with IP44-rated housing for dusty areas and light splashing water (avoid water entering motor)

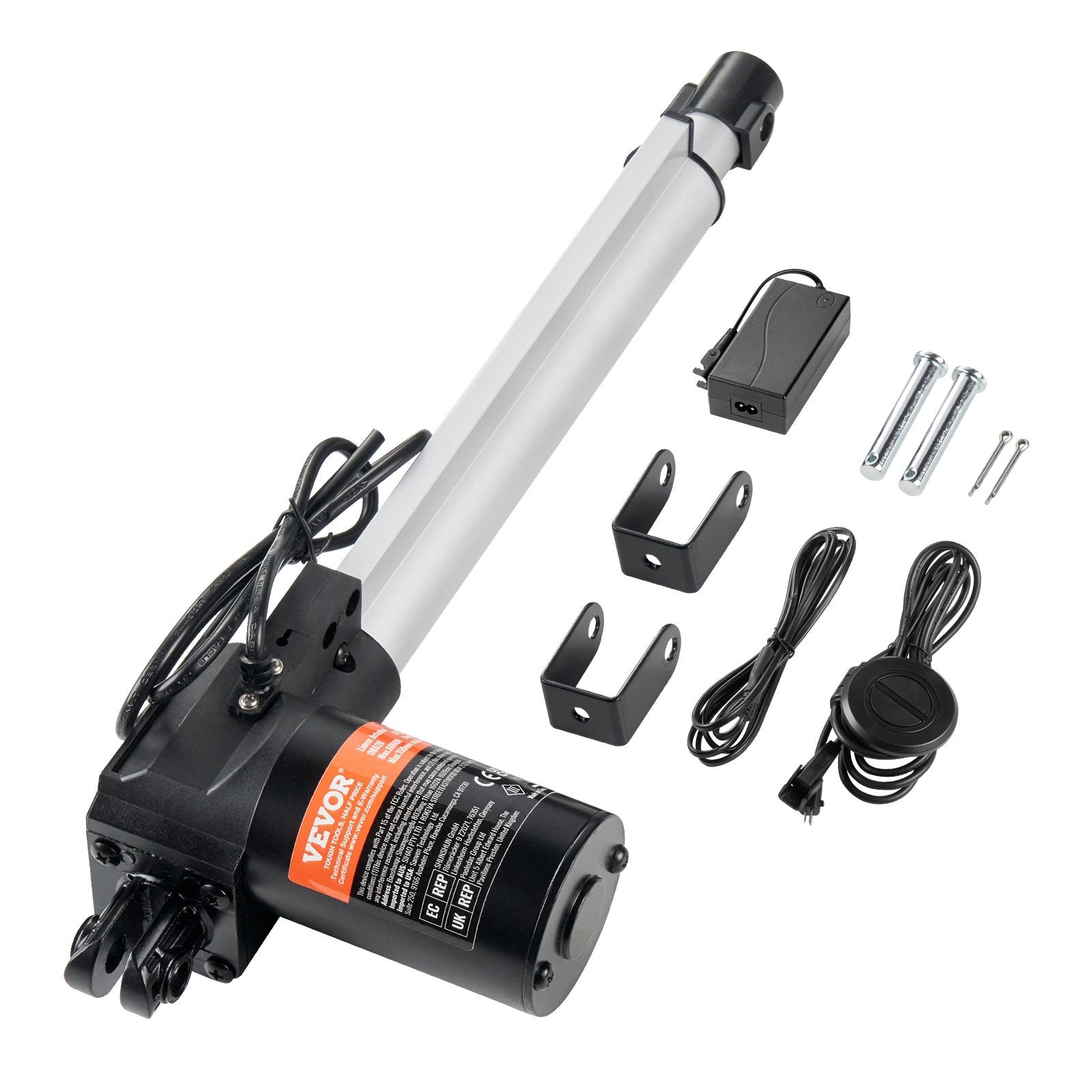

• Includes a complete kit for faster assembly and easier integration into mechanical and transport equipment


• Optimizes performance with a 10% duty cycle; highest efficiency near 75% of max force

Upgrade manual mechanisms to controlled linear motion with a compact actuator built for repeatable performance and everyday environments. The 10-inch stroke and steady travel speed help you dial in precise positioning for enclosures, vents, platforms, and custom automation builds. Pair it with your control setup and mount it securely to keep movement smooth and aligned over time. If you need dependable thrust, low noise, and practical protection in one package, grab yours today.

• Stroke length: 10 in / 250 mm


• Travel speed: 0.98 in/s / 25 mm/s


• Max load / actuation force: 1000N (220 lb)


• Protection class: IP44


• Noise level: ≤50 dB


• Input: AC 100–240V, 50/60Hz, 1.5A


• Rated current: <3A


• Duty cycle: 10%


• Retracted length: 18.11 in / 460 mm


• Extended length: 28.11 in / 710 mm


• Product dimensions: 18.11 x 3.14 x 5.74 in / 460 x 80 x 146 mm


• Net weight (with accessories): 5.93 lb / 2.69 kg


• Main material: aluminum alloy
