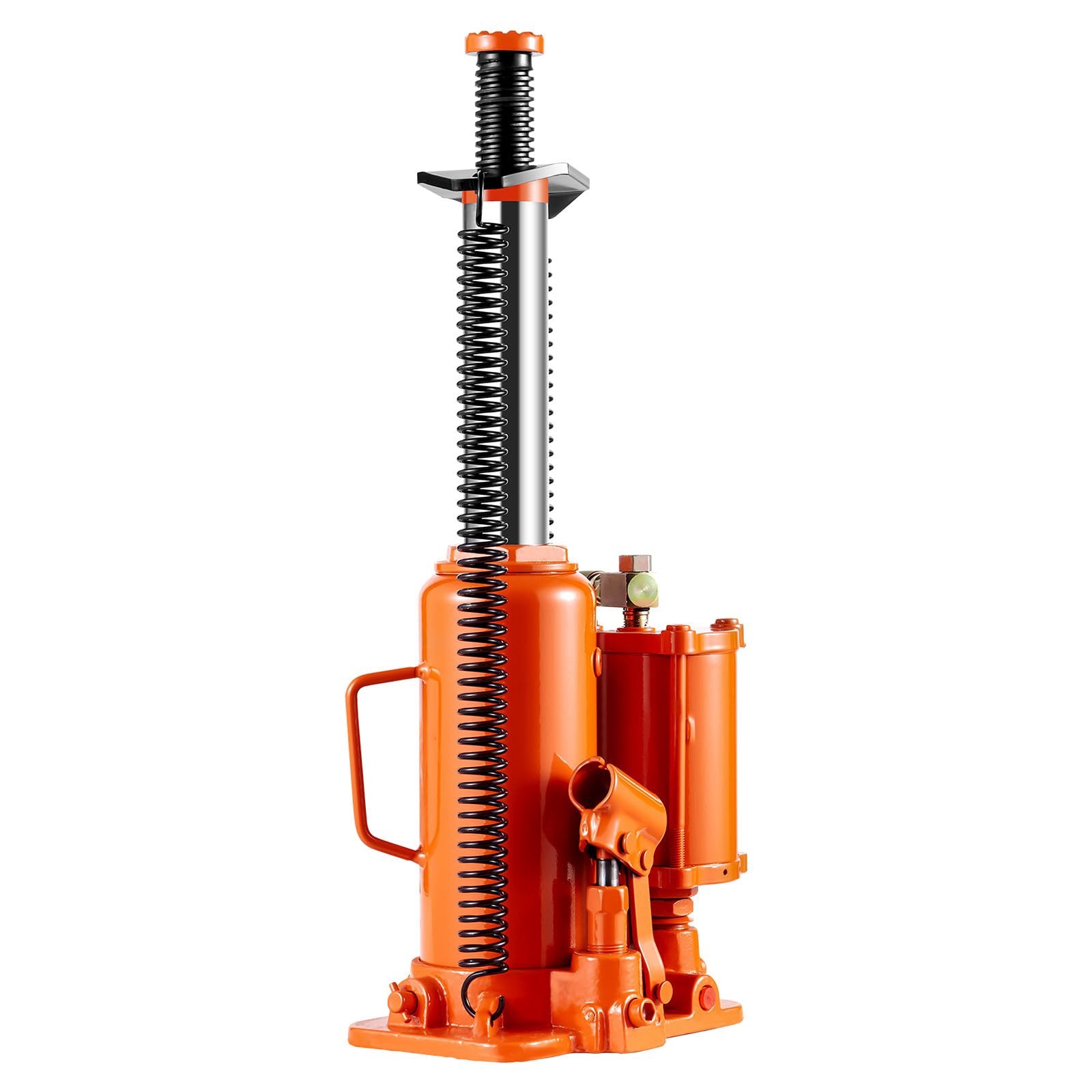

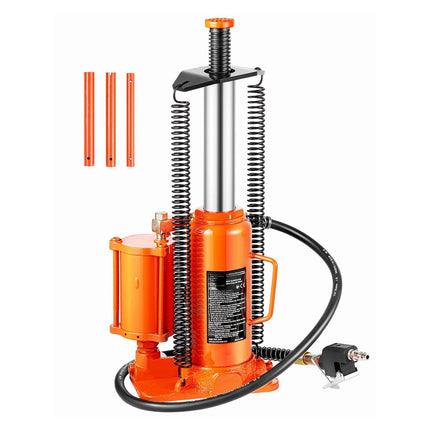

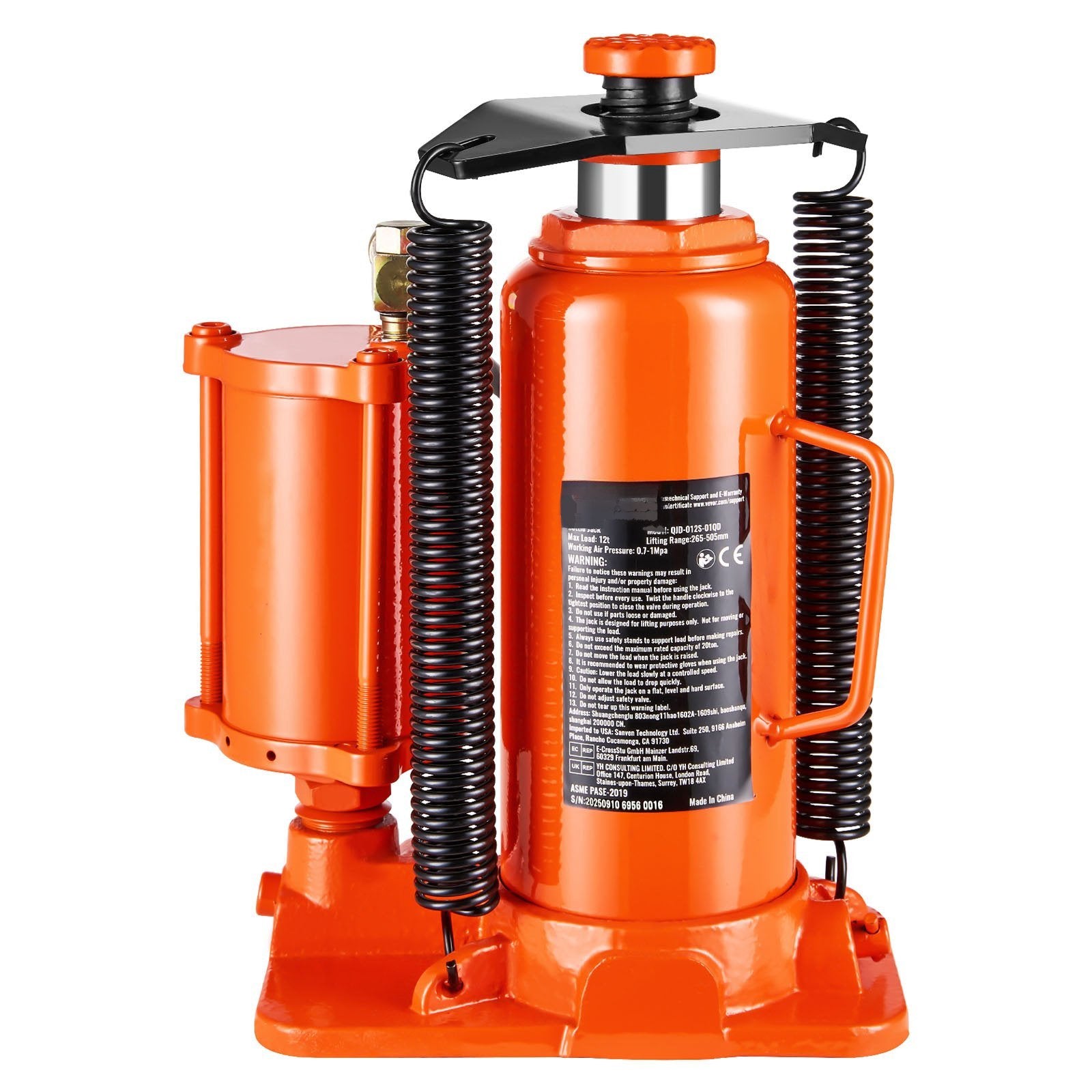

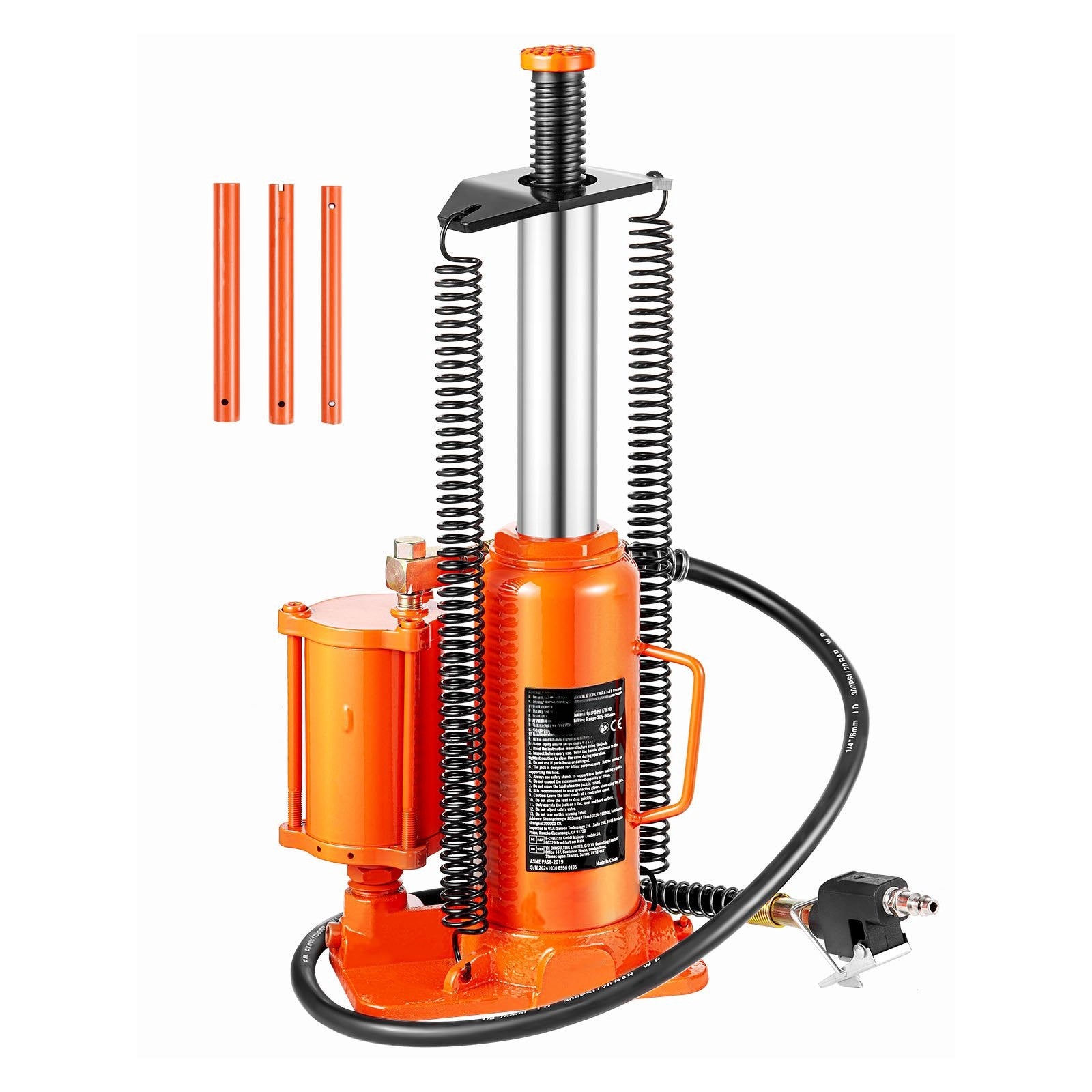

Air Hydraulic Bottle Jack, 12 Ton, 265–505 mm Lift

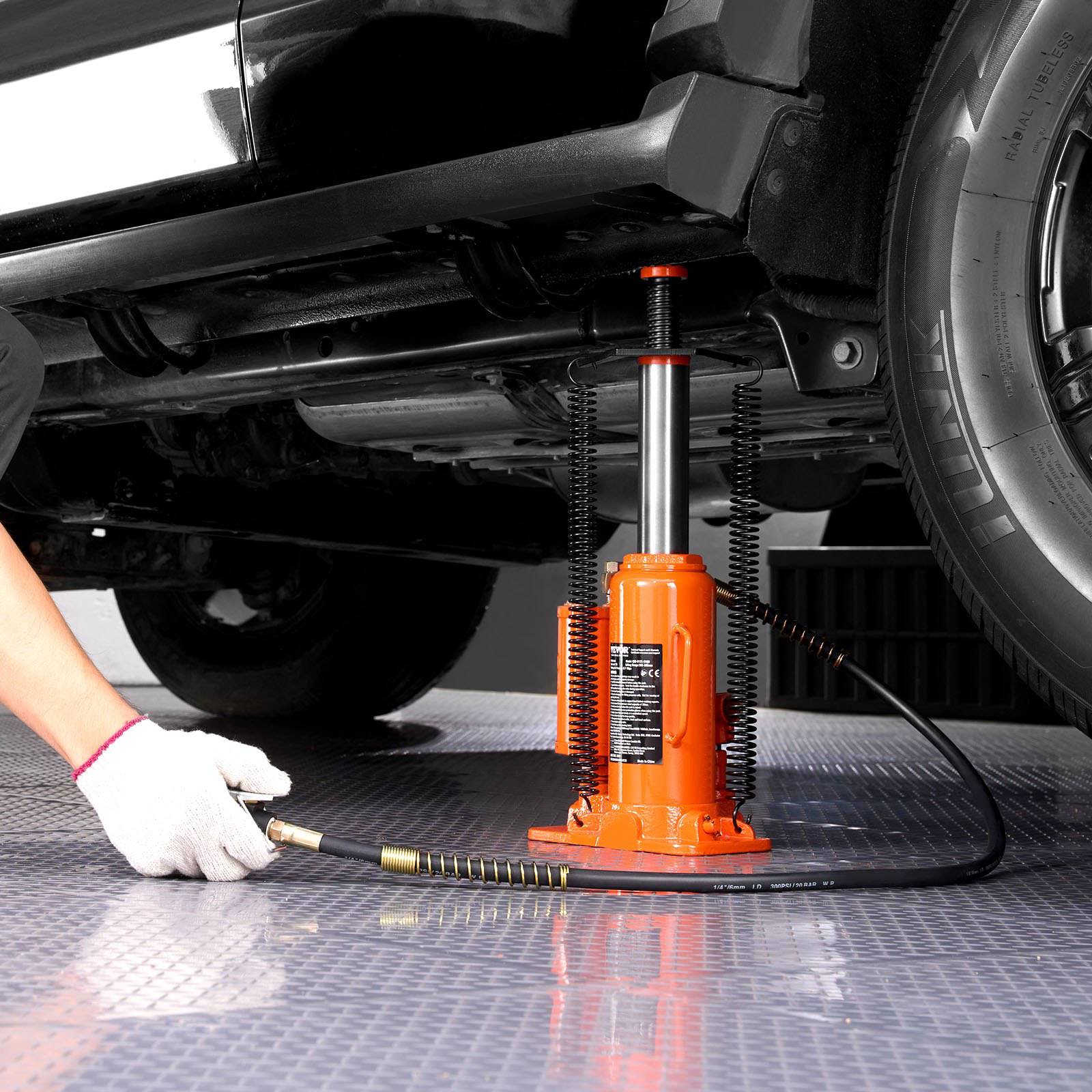

12 ton air hydraulic bottle jack delivers fast, low-effort lifting for SUVs, pickups, and trucks—ideal for tire changes, inspections, and shop or roadside repairs. Switch between pneumatic power via quick-connect air fitting and manual hand pumping when air isn’t available. Built with a welded, heavy-duty body and an anti-slip saddle, it provides stable contact and controlled lifting across a medium height range.

• Delivers 12-ton (26,455 lb) lifting power for trucks, SUVs, pickups, and heavy equipment


• Switches between air-powered lift and manual hand pump to keep you working anywhere


• Reaches 265–505 mm lift range with a 60 mm screw extension for precise height setup


• Improves stability with an anti-slip saddle and solid cast iron/carbon steel construction


• Protects components with sealed cylinder design, overload valve, leak-resistant fill port, and dual return springs

Built for demanding auto repair and equipment service, this pneumatic/hydraulic bottle jack combines quick lift speed with reliable control. The EU-type quick connector supports straightforward hookup to a compatible air supply, while the manual mode covers you for field work and low-access situations. Keep it in your garage, service truck, or workshop for routine maintenance and heavier lifting tasks. Grab yours today and be ready for the next job.

• Max capacity: 12 ton / 26,455 lb


• Lifting range: 265–505 mm (10.43–19.88 in)


• Screw extension: 60 mm (2.4 in)


• Working pressure: 0.5 MPa


• Quick connector: EU type


• Product size: 210 × 150 × 265 mm (8.3 × 5.9 × 10.4 in)


• Net weight: 11.6 kg (25.6 lb)


• Materials: cast iron body, carbon steel components, aluminum alloy cylinder
