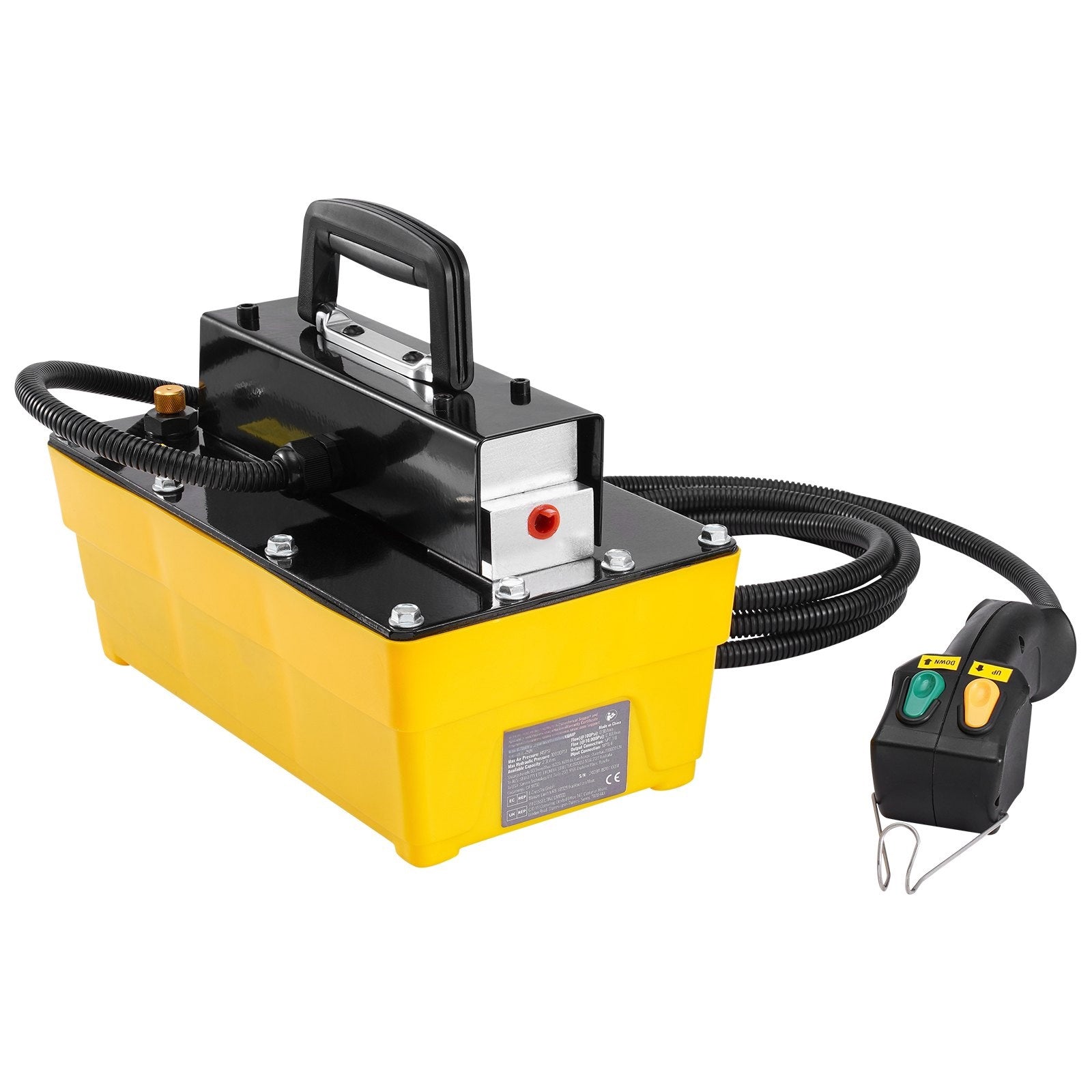

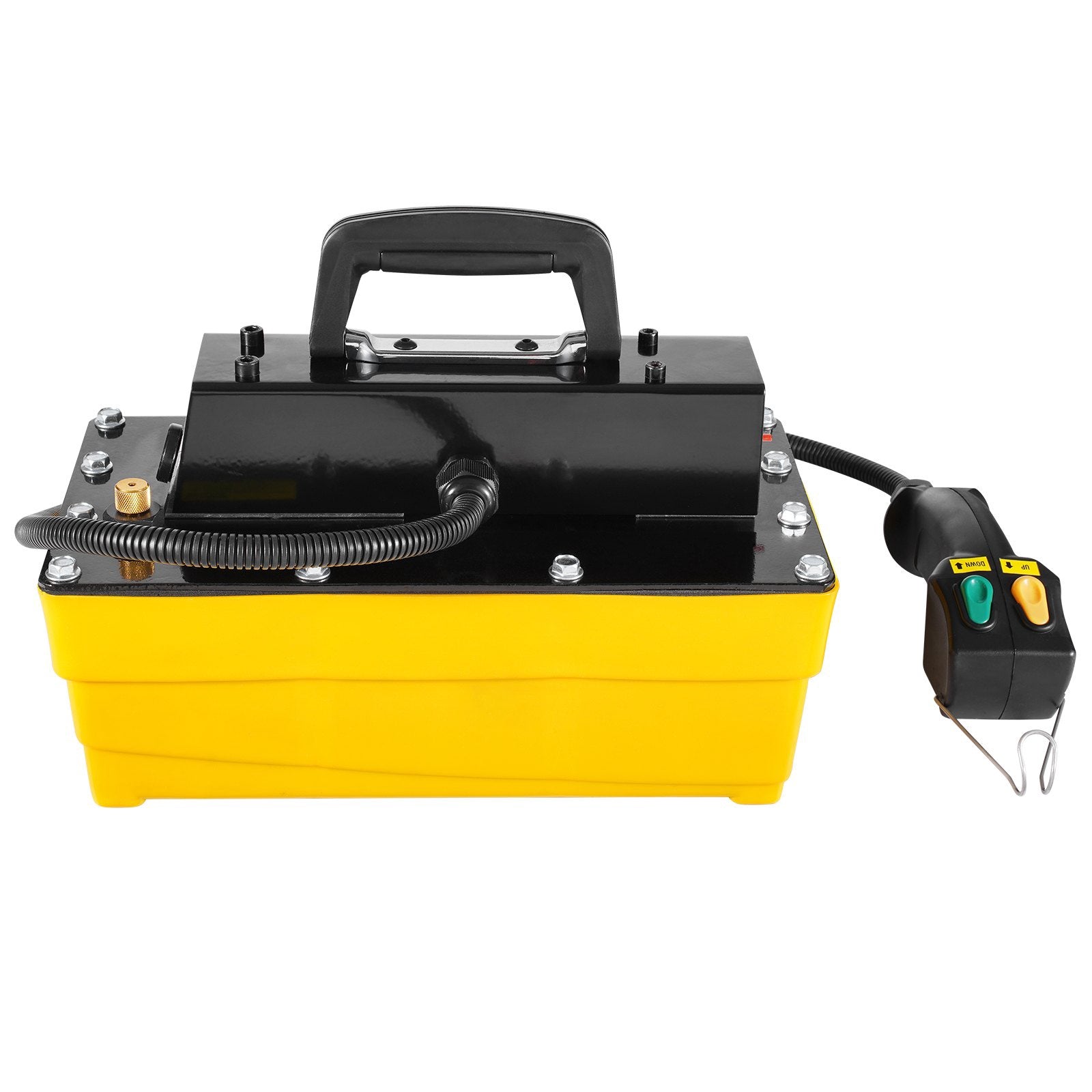

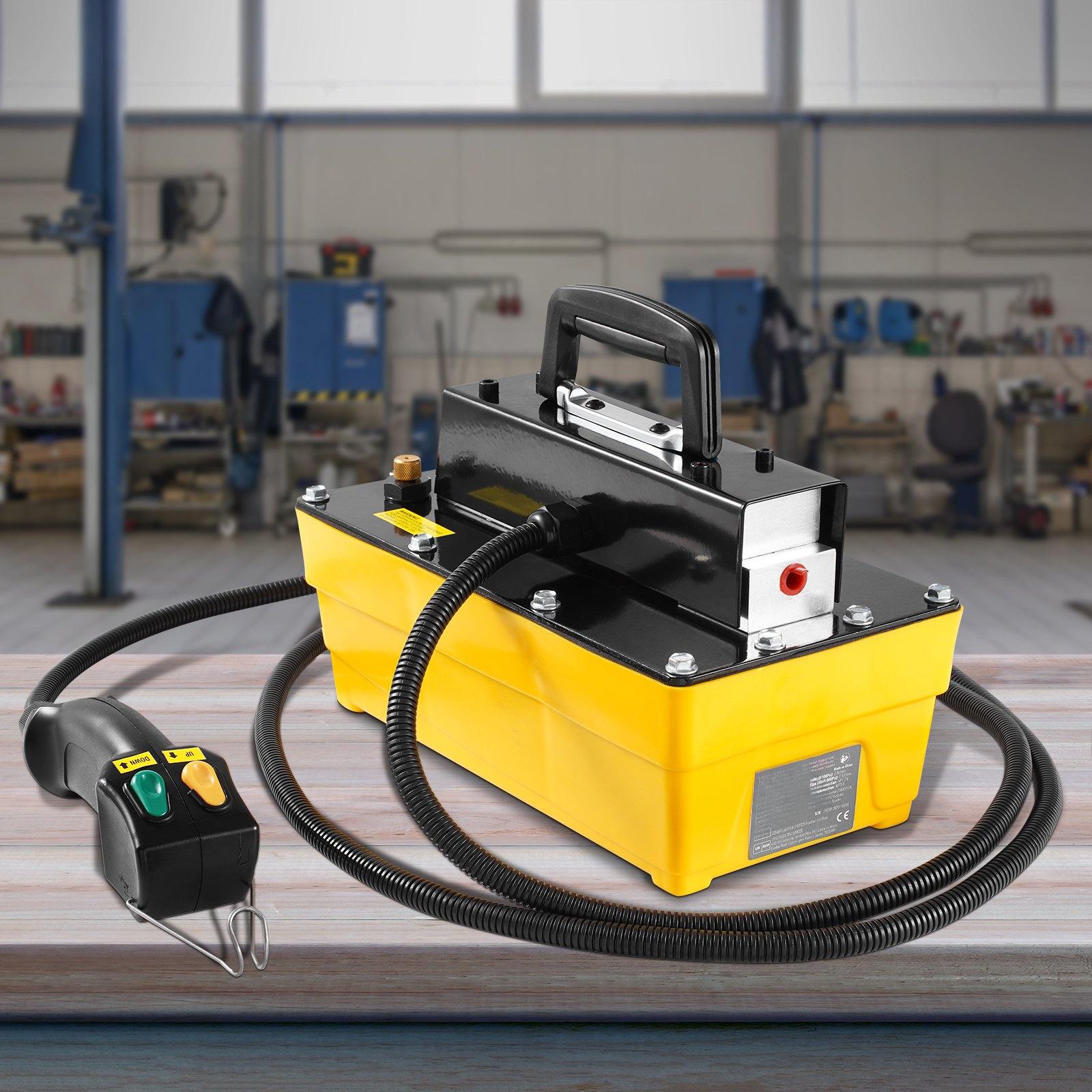

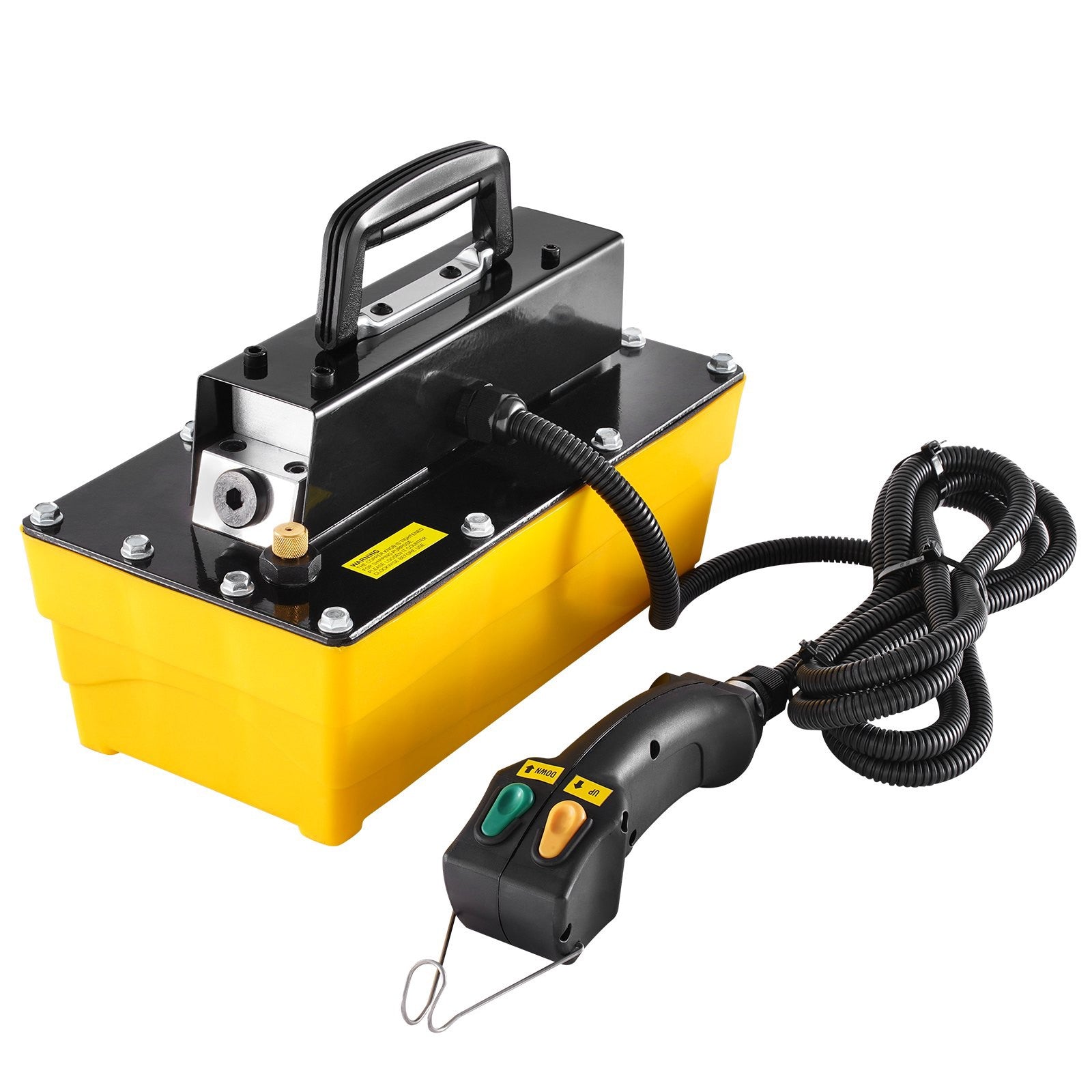

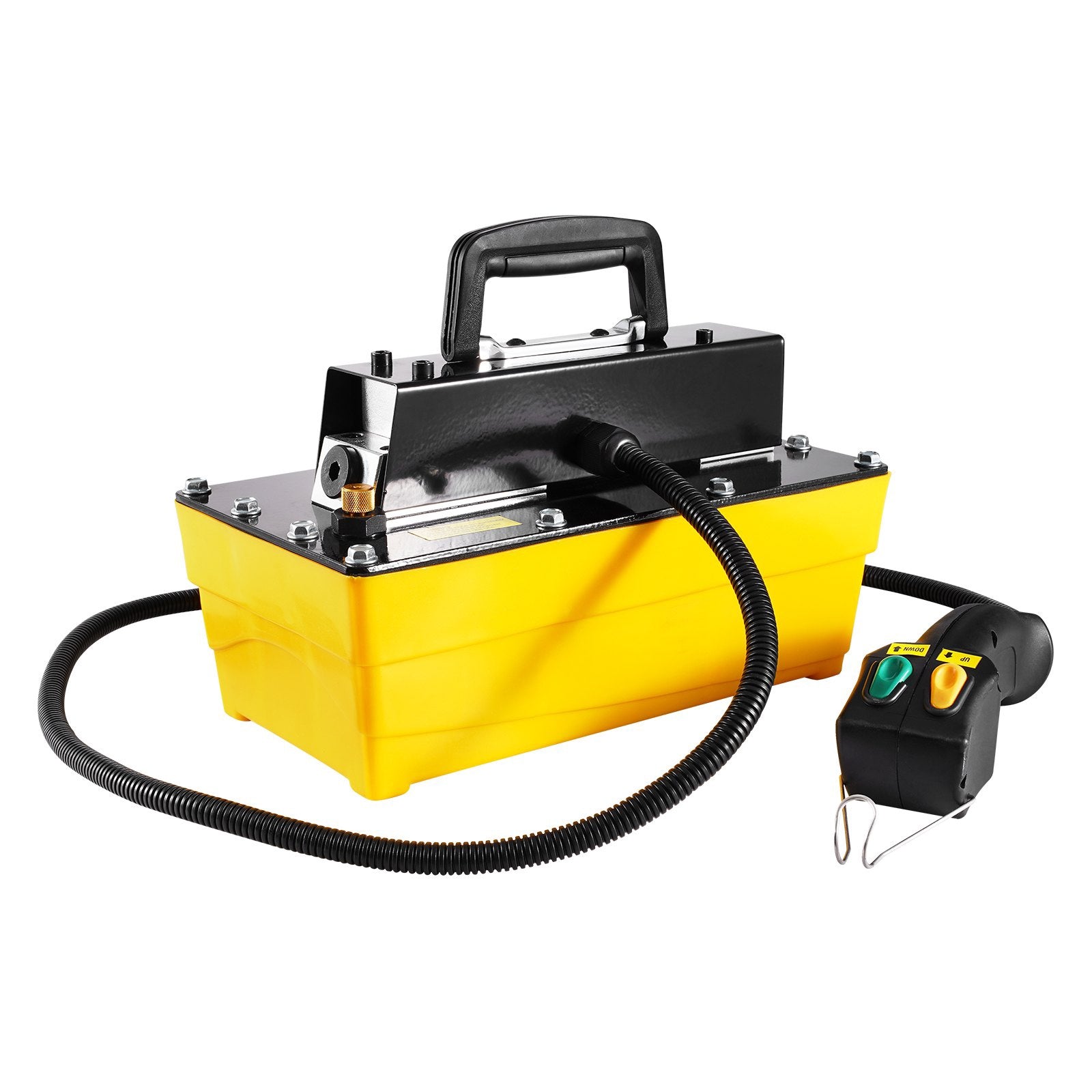

Air Hydraulic Pump 10,000 PSI, 2.3L Tank, Remote

10,000 PSI air hydraulic pump delivers high-pressure hydraulic power for faster lifting, pressing, bending, and straightening with less manual effort. Designed for frame machines, hydraulic presses, and workshop tools, it runs on standard shop air and connects via common NPT fittings for quick integration. A 2.3 L reservoir reduces refill stops, while the remote control actuator helps you operate from a safer, more comfortable position.

• Delivers up to 10,000 PSI output for demanding press, lift, cut, and assembly jobs


• Operates with 110–145 PSI input air and 340 L/min airflow for consistent performance


• Includes a 3 m (9.84 ft) remote control actuator for safer, easier operation


• Connects via NPT 1/4 in air inlet and NPT 3/8 in oil outlet to standard pneumatic setups


• Protects components with a built-in relief valve and a tough, jobsite-ready housing

Keep your workflow moving with an air-over-hydraulic pump built for everyday shop demands and heavy-duty cycles. The factory-filled 2.3 L tank helps cut setup time so you can get to work quickly, and the stable design supports controlled, predictable operation under load. Whether you’re powering a frame machine or a hydraulic press, this pump is an efficient upgrade for pushing more force with less downtime. Grab yours today and set up in minutes.

• Maximum output pressure: 10,000 PSI (689 bar)


• Input air pressure: 110–145 PSI


• Reservoir capacity: 2.3 L / 0.61 gal (factory-filled hydraulic oil)


• Air inlet: NPT 1/4 in (13.7 mm)


• Oil outlet: NPT 3/8 in (16.66 mm)


• Air flow rate: 340 L/min


• Hydraulic flow rate: 0.8 L/min (no load) / 0.16 L/min (load)


• Remote length: 3 m / 9.84 ft


• Dimensions: 12.40 x 6.77 x 7.87 in (315 x 172 x 200 mm)


• Net weight: 18.74 lb / 8.5 kg
