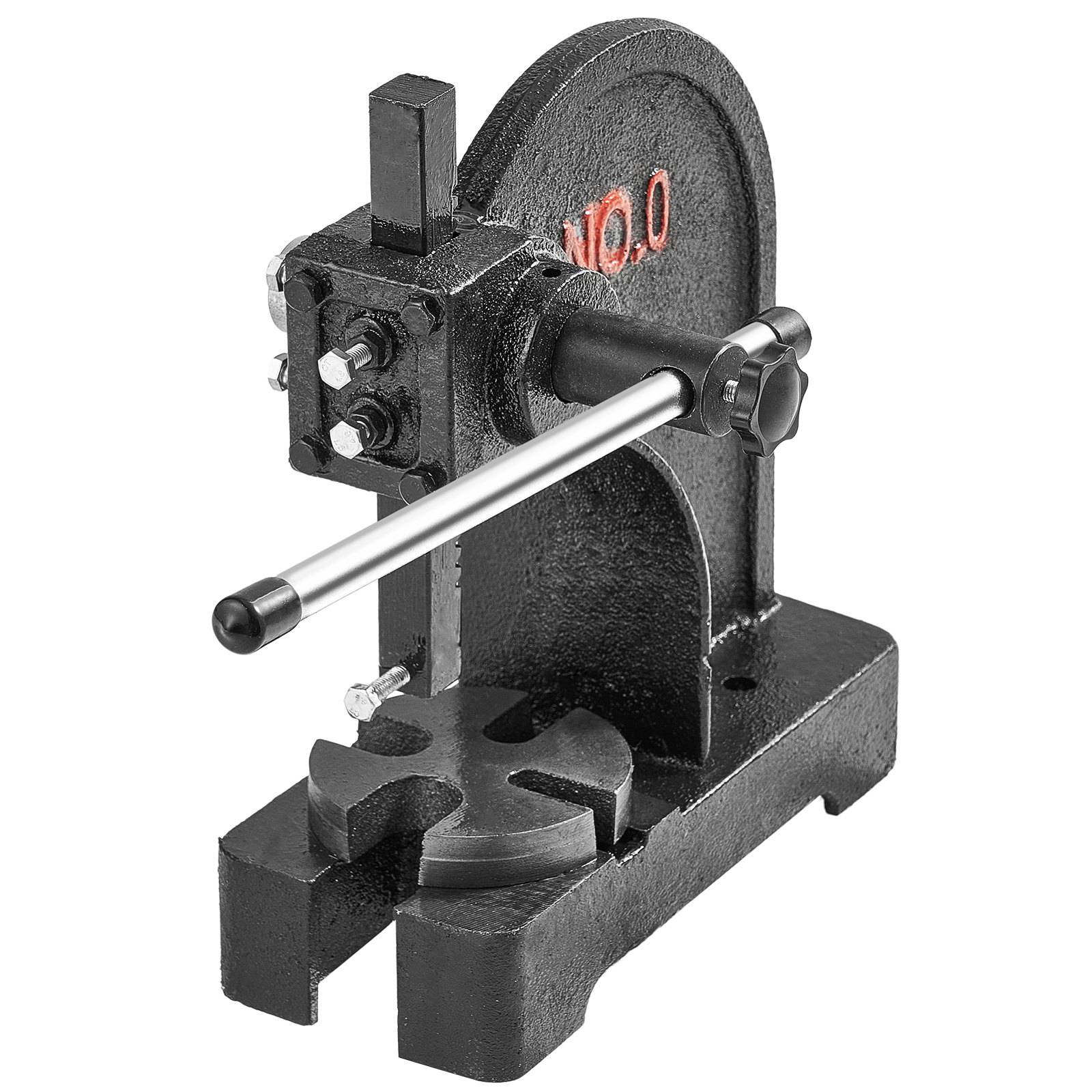

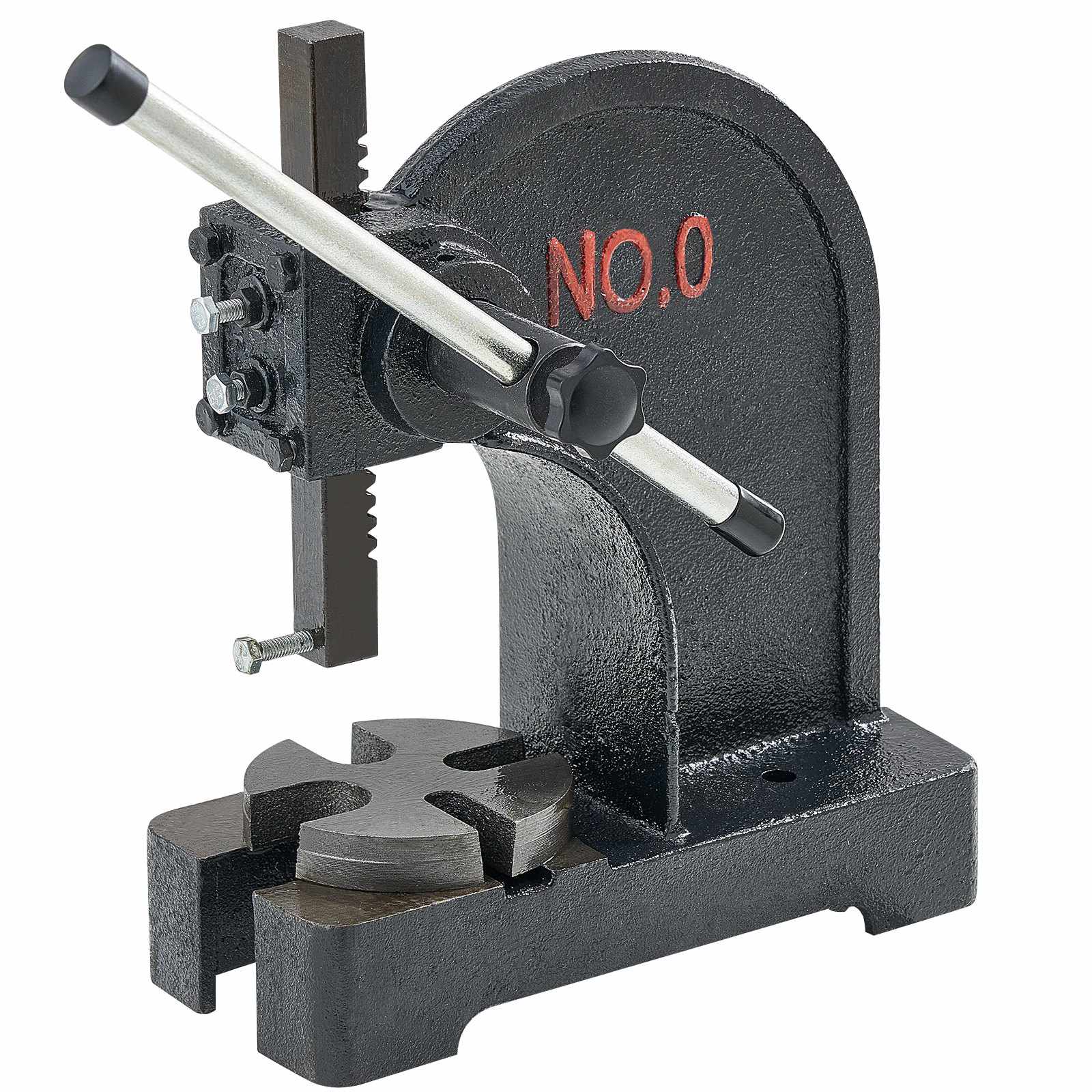

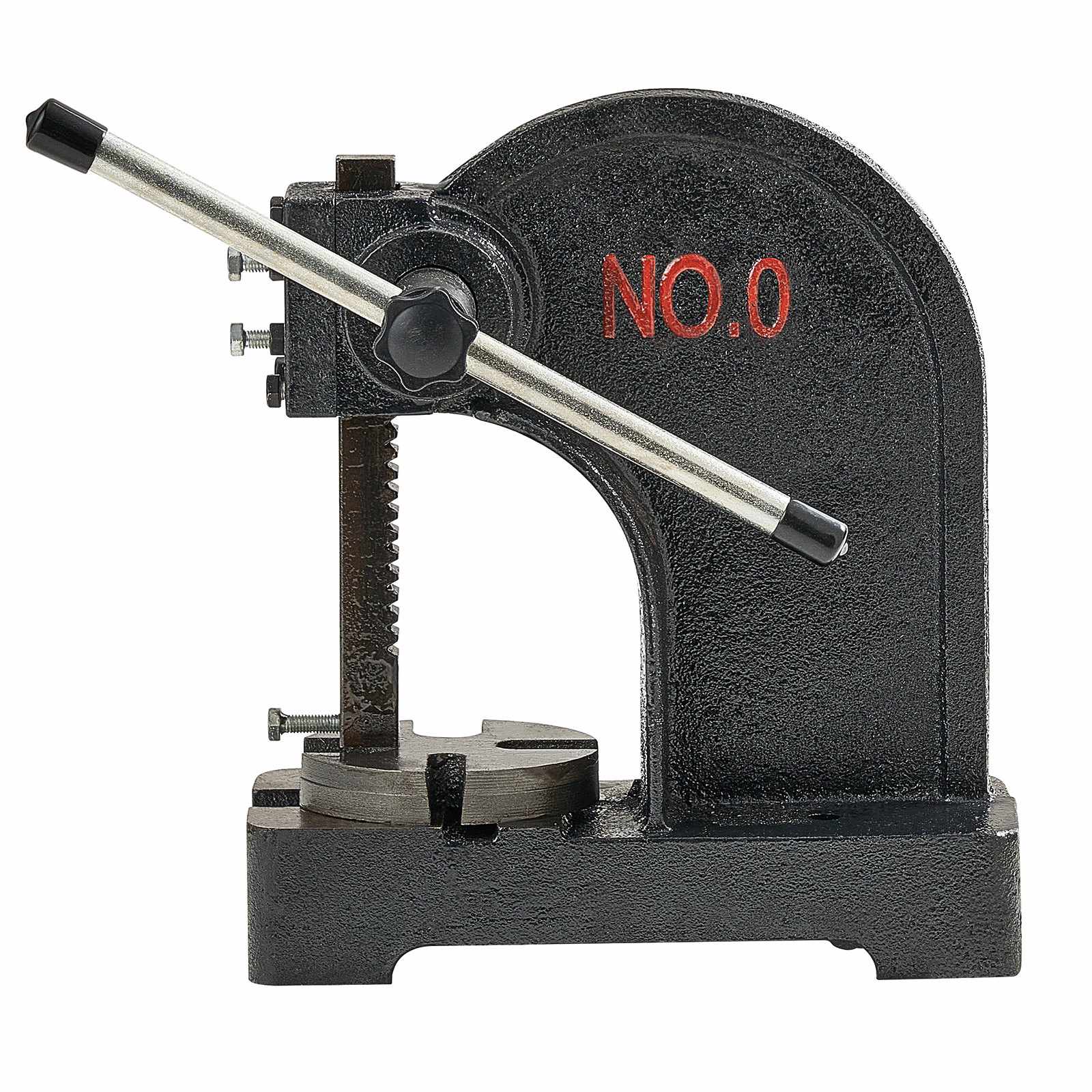

Arbor Press 0.5 Ton, Cast Iron Desktop, 4.7 In Stroke

Manual arbor press delivers controlled 0.5-ton pressing force for precise stamping, riveting, and forming on a stable desktop footprint. Built from high-strength cast iron with a thickened base, it’s designed to reduce wobble and improve repeatability on small shop tasks like leather stamping, jewelry work, aluminum forming, and craft production. An adjustable long handle boosts leverage for smoother operation, while a 4.6" max working height and generous throat depth help fit more projects under the ram.

• Delivers 0.5-ton pressure capacity for controlled forming, bending, stretching, and pressing tasks

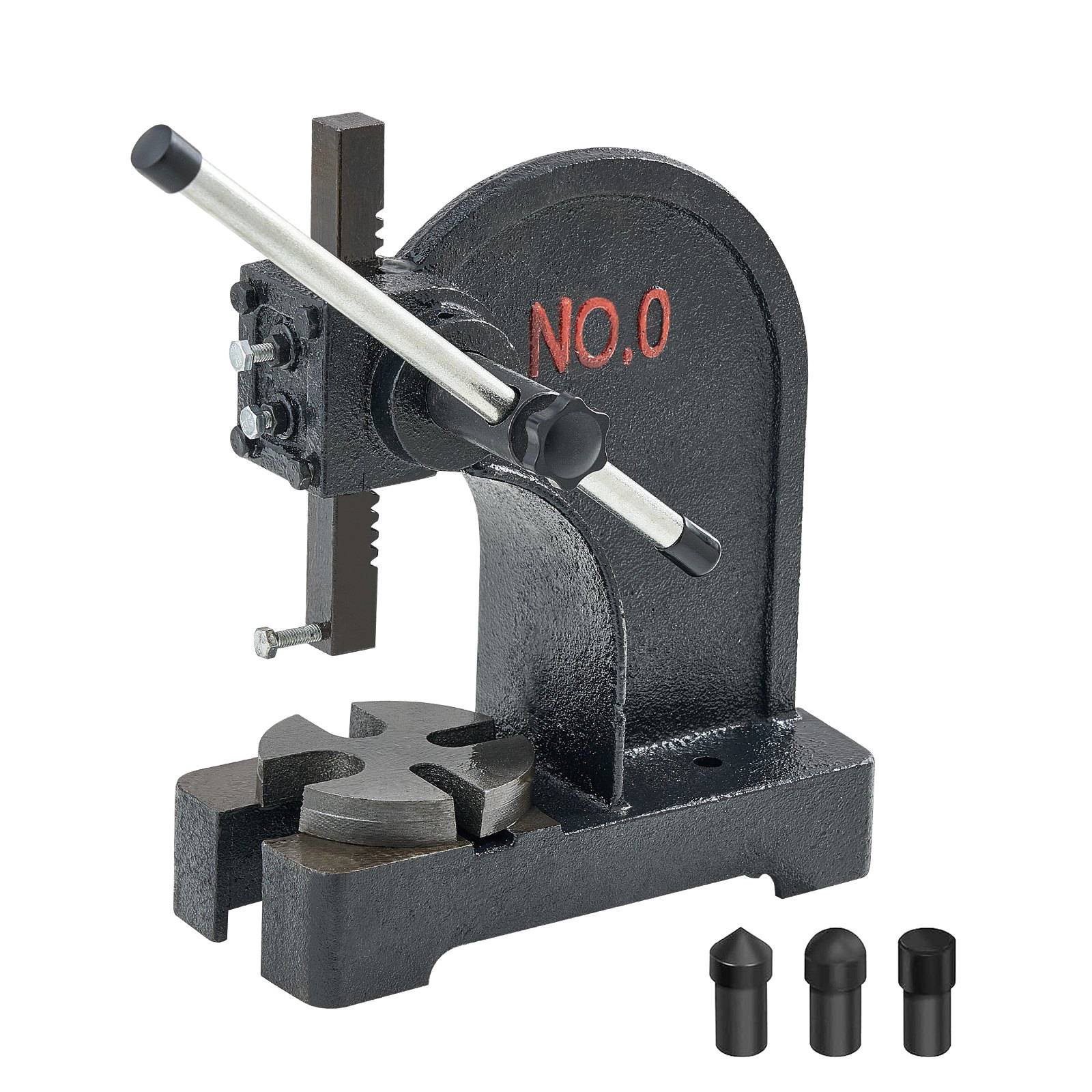

• Includes 3 drifts (flat, pointed, round) plus a 0.4" ram bore for quick tool changes and varied jobs


• Adjusts handle position to increase leverage, lock in place, and reduce slipping during repeated presses


• Supports accurate setups with a 3.5" four-hole steel anvil plate to secure different shapes and sizes


• Resists wear with uniform rack gears and an anti-rust coated cast-iron frame for long service life

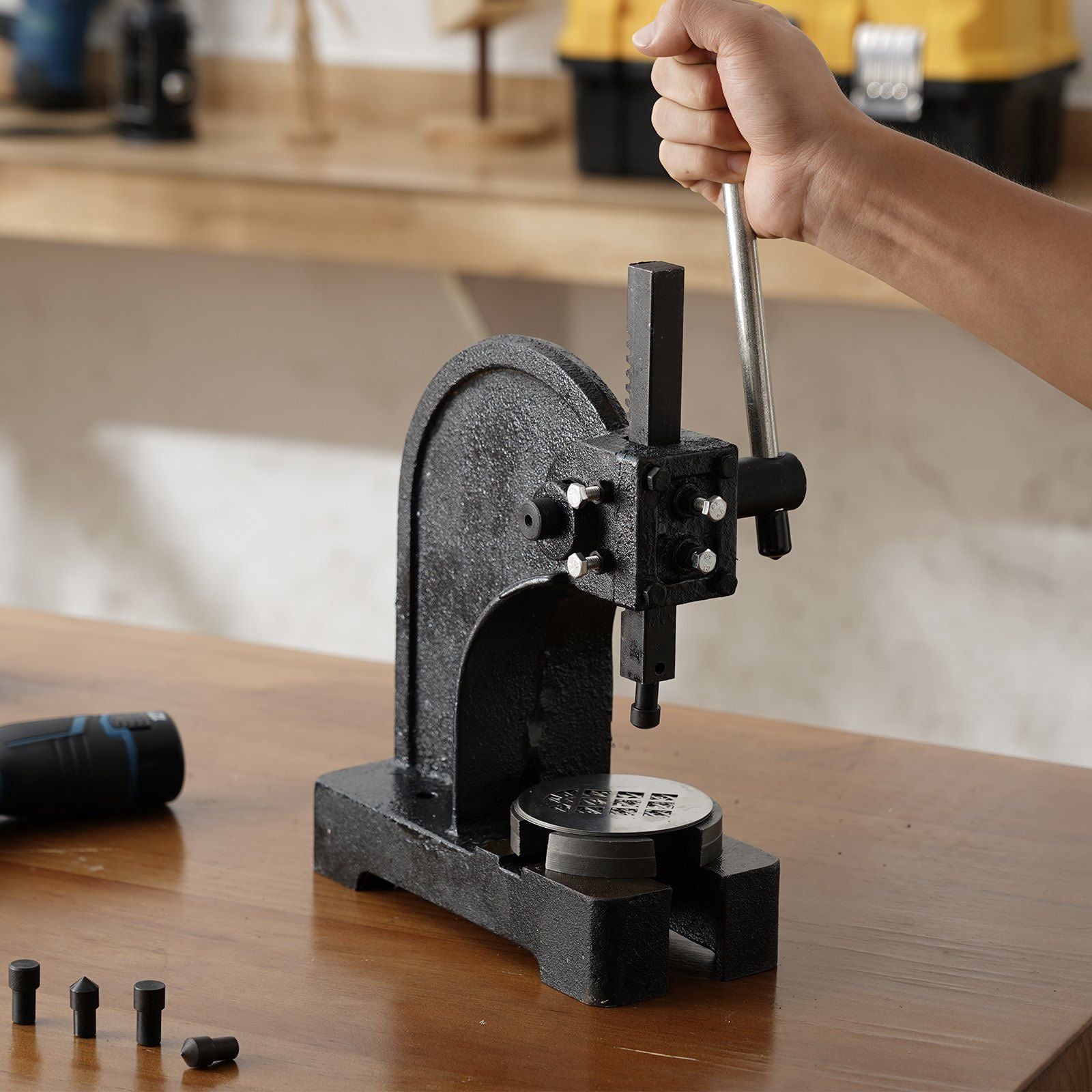

Set up cleaner presses and more consistent results without powering up a larger machine. This compact hand press is suited to light production and hobby-to-pro workflows—ID card production, handicrafts, leather projects, small metalwork, and general shop pressing. The polished anvil plate helps keep handling safe, while the stable base keeps your work aligned as you apply force. If you need a reliable, space-saving press for everyday precision tasks, grab yours today and keep your bench ready for the next job.

• Pressure capacity: 0.5 ton


• Maximum height: 4.6 in


• Max working stroke: 4.7 in / 119 mm


• Anvil plate size: 3.5 in / 90 mm (four-hole steel)


• Throat depth: 3.2 in / 81 mm


• Ram length: 7.1 in / 180 mm


• Ram bore: 0.4 in / 10 mm


• Material: cast iron


• Net weight: 16.53 lb / 7.5 kg


• Product size: 9.3 x 6.3 x 10.4 in / 235 x 160 x 263 mm
