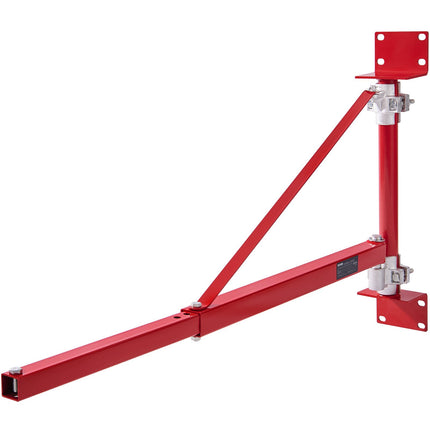

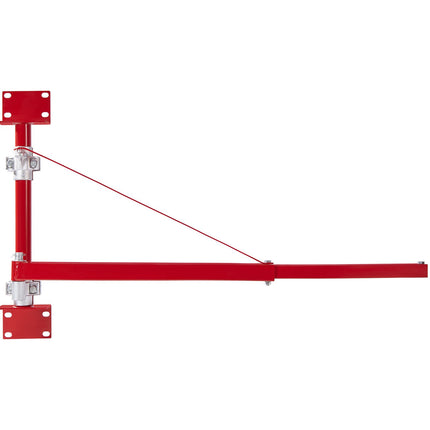

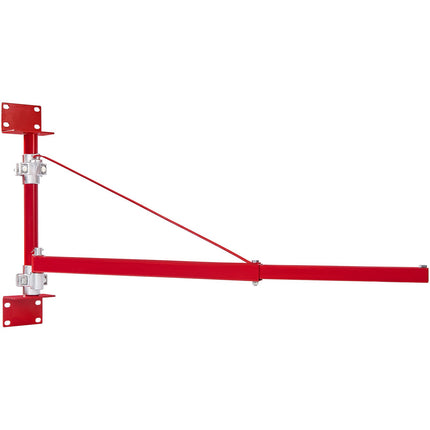

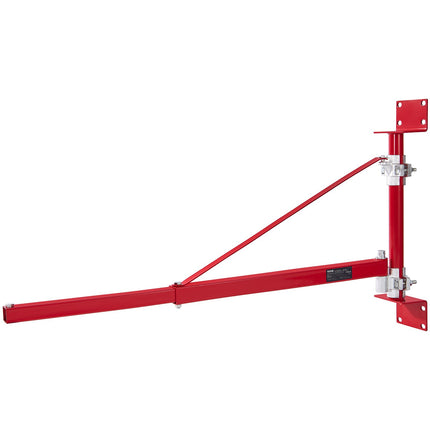

Electric Hoist Support Swing Arm, 600 kg, 180 Degree Swivel

Electric hoist support arm stabilizes heavy lifts up to 600 kg, giving you a safer, wider working reach for workshops, garages, and scaffold setups. Built from carbon steel with a reinforced triangular frame, this swing arm holder reduces sway while positioning loads where you need them. The 180° swivel range helps minimize repeated repositioning, improving control when lifting equipment, materials, and tools with compatible electric hoists or winches.

• Delivers up to 600 kg capacity on the large square tube for confident lifting and positioning.


• Supports up to 300 kg on the extended small square tube for controlled reach and balance.


• Enables 180° swivel adjustment to cover more work area without moving your setup.


• Reduces sway with a triangular carbon-steel frame, thickened plate design, and secure latches.


• Installs quickly with straightforward assembly for shop, warehouse, renovation, or repair use.

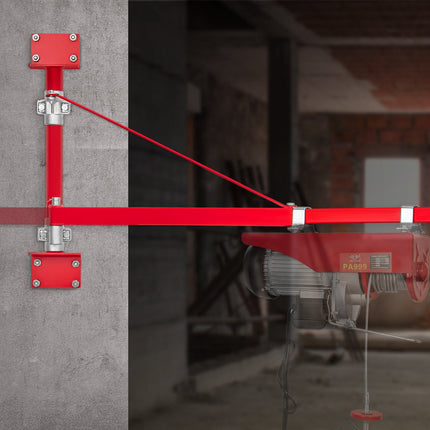

When lifting tasks demand stability and efficient reach, this swing arm hoist frame helps you work faster with fewer resets. The reinforced structure and moisture-resistant coating are suited for busy indoor spaces where tools and materials need dependable handling. Use it as a scaffold hoist lifting arm or workshop winch hoist arm to move loads into position with smoother control and less hassle. Grab yours today and set up a more capable lifting station.

• Max load (swing arm large square tube): 600 kg / 1322.78 lbs


• Max load (extended small square tube): 300 kg / 661.39 lbs


• Rotation angle: 180°


• Material: Carbon steel


• Extension tube length: 365 ± 6 mm (14.37 ± 0.24 in)


• Overall size (extension tube extended): 1300 × 170 × 800 mm (51.18 × 6.69 × 31.5 in)


• Product weight: 18.2 kg (40.12 lbs)
