Engine Stand 1500 lb, 360 Rotating, Folding 5-Caster

Engine stand 1500 lb capacity keeps heavy engines stable and accessible, so you can rotate the block for faster, safer maintenance. A reinforced H-shaped base reduces wobble while the 360° adjustable head positions the engine at the angle you need. Built from steel with a cast iron body and corrosion-resistant coated finish, it’s designed for frequent shop use. Five swivel casters—four with brakes—let you roll, lock, and work where space allows.

• Delivers 1500 lb / 680 kg load capacity for confident engine support during rebuilds and service


• Stabilizes with an H-shaped base to reduce tipping and shaking compared with traditional bases


• Rotates 360° with an adjustable head and 4 adjustable arms to access every side of the engine


• Rolls smoothly on 5 swivel casters; lock position with 4 brakes for controlled, secure work

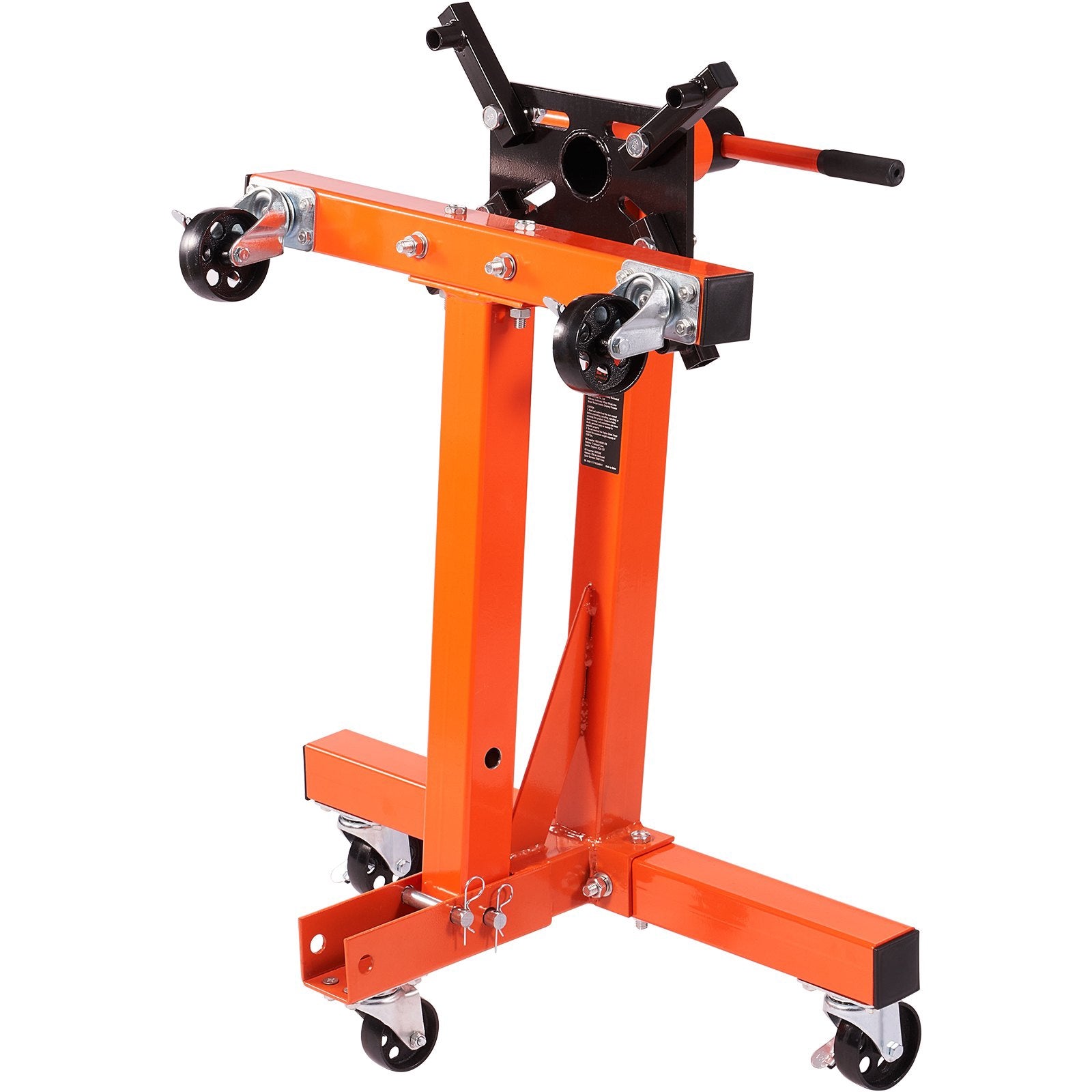

• Folds down to 14.8 in / 375 mm wide for compact garage or workshop storage

Set up a cleaner, more efficient workflow for engine swaps, rebuilds, and long-duration projects. The long hex-head mounting bolts help keep the engine block clamped tightly, while the rotatable head makes it easier to align, torque, and inspect components without constant repositioning. When the job is done, fold the stand to reclaim floor space and keep your shop organized. Grab yours today and keep your next maintenance job moving.

• Max load capacity: 1500 lb (680 kg)


• Rotation: 360° adjustable head


• Base style: H-shaped


• Casters: 5 swivel wheels, 4 with brakes


• Arms: 4 adjustable mounting arms


• Handle length: 20 in (508 mm)


• Material: Steel; cast iron body; coated finish for corrosion resistance


• Product dimensions: 29.5 × 33.5 × 35.4 in (750 × 850 × 900 mm)


• Net weight: 62.2 lb (28.2 kg)


• Folded width: 14.8 in (375 mm)
