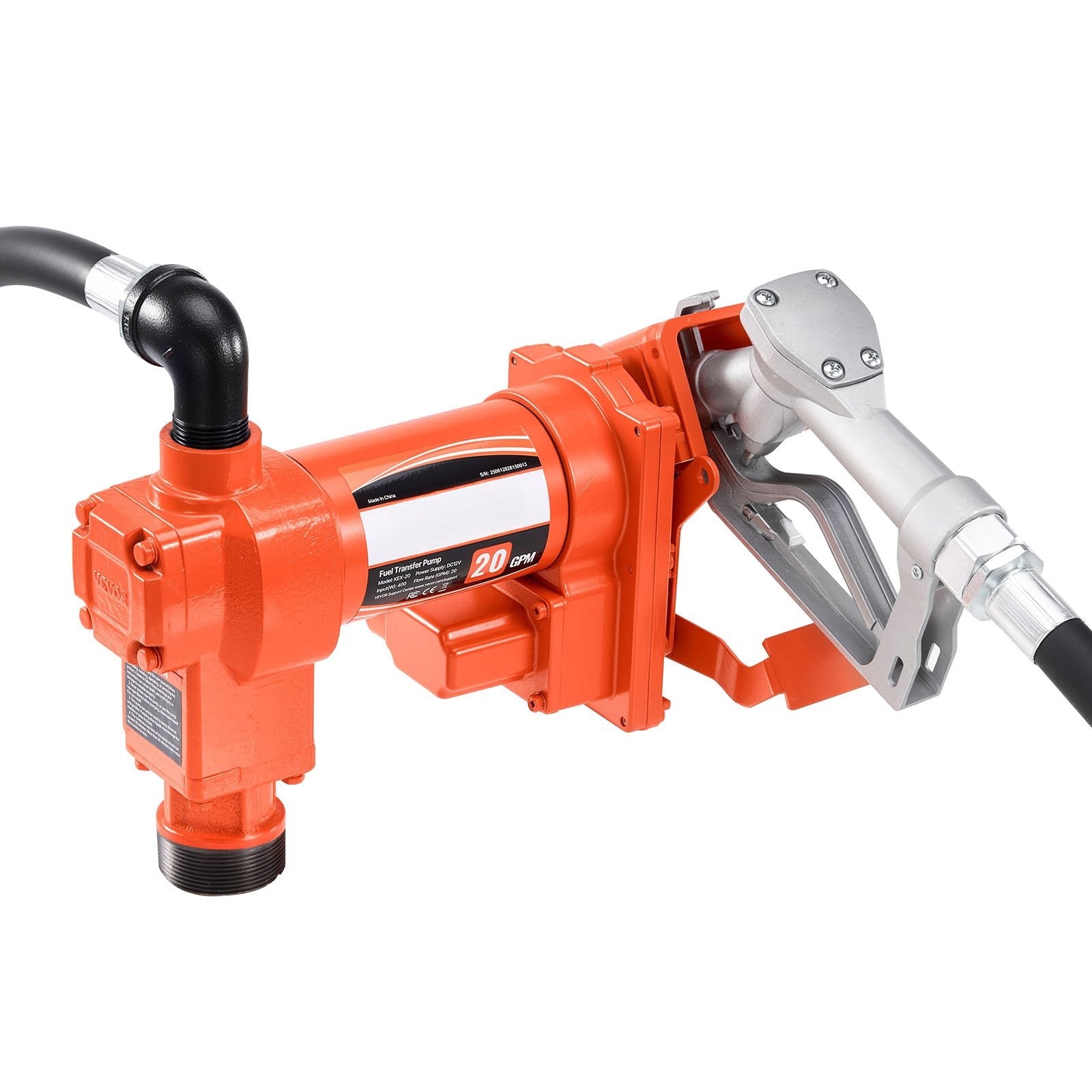

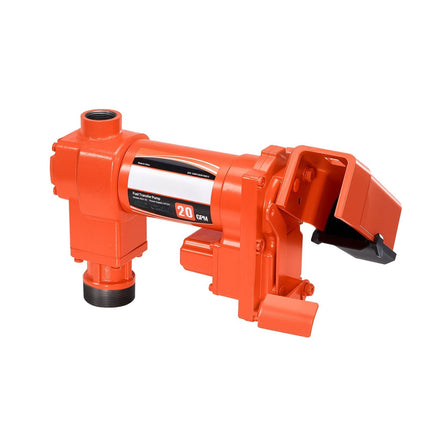

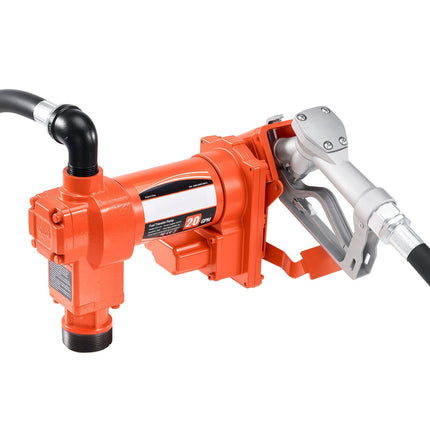

Fuel Transfer Pump 12V, 20 GPM, Manual Nozzle, Hose

12V fuel transfer pump delivers fast, controlled fueling for farm, fleet, and workshop tanks with up to 20 GPM (76 L/min) flow. Built for common fuels including gasoline, diesel, and kerosene, it pairs a 1/4 HP (186W) DC motor with strong head lift and suction lift for reliable transfer from drums, storage tanks, or mobile setups. Manual nozzle control and an integrated drip-catch box help keep fueling cleaner and more manageable.

• Delivers up to 20 GPM (76 L/min) flow for quicker tank fills and transfers


• Handles gasoline, diesel, kerosene, ethanol-methanol blends, and biodiesel


• Includes a manual aluminum nozzle for precise on/off control and reduced splash


• Prevents drips with an integrated oil catch box and on-body nozzle storage


• Protects the motor with thermal overload protection for safer extended use

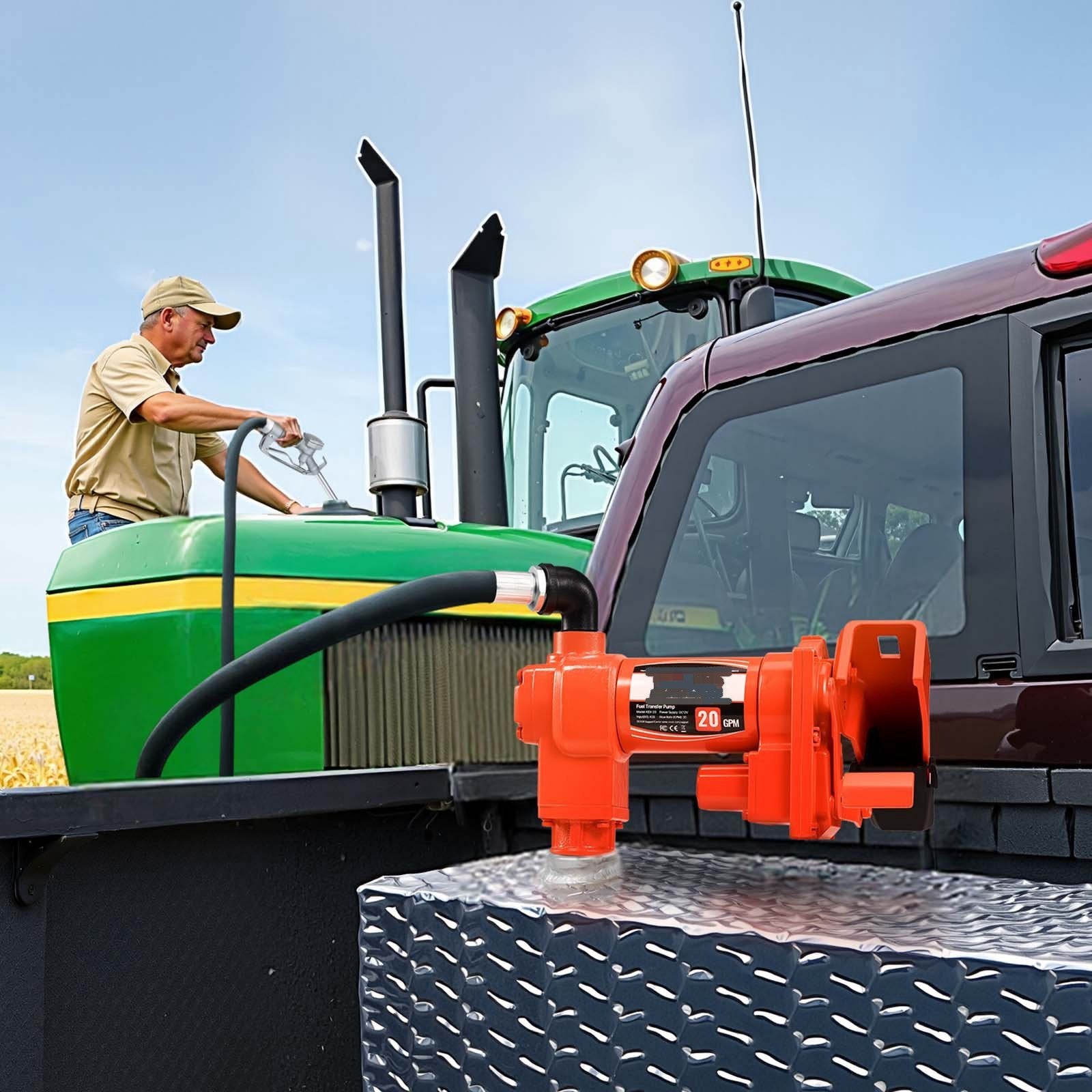

Designed for demanding daily fueling, this 12V DC transfer setup combines heavy-duty cast iron construction with an electrophoresis finish to resist rust and wear. The 13.1 ft discharge hose gives you reach around vehicles and equipment, while the adjustable suction pipe helps fit different tank depths. Ideal for tractors, generators, construction equipment, and on-site refueling where AC power isn’t available. Grab yours today and set up a cleaner, faster fueling station wherever you work.

• Power: 12V DC, 186W (1/4 HP)


• Max flow rate: 20 GPM (76 L/min)


• Motor speed: 2000 r/min


• Head lift: ≥ 26.2 ft (8 m)


• Suction lift: ≥ 9.8 ft (3 m)


• Inlet/Outlet diameter: 1 in


• Outlet hose length: 13.1 ft (4 m)


• Inlet hose length (adjustable suction pipe): 20.87–37.79 in (0.53–0.96 m)


• Materials: Aluminum alloy / cast iron; aluminum manual nozzle


• Dimensions: 13 x 8.86 x 9.65 in (330 x 225 x 245 mm)


• Net weight: 35.82 lb (16.25 kg)

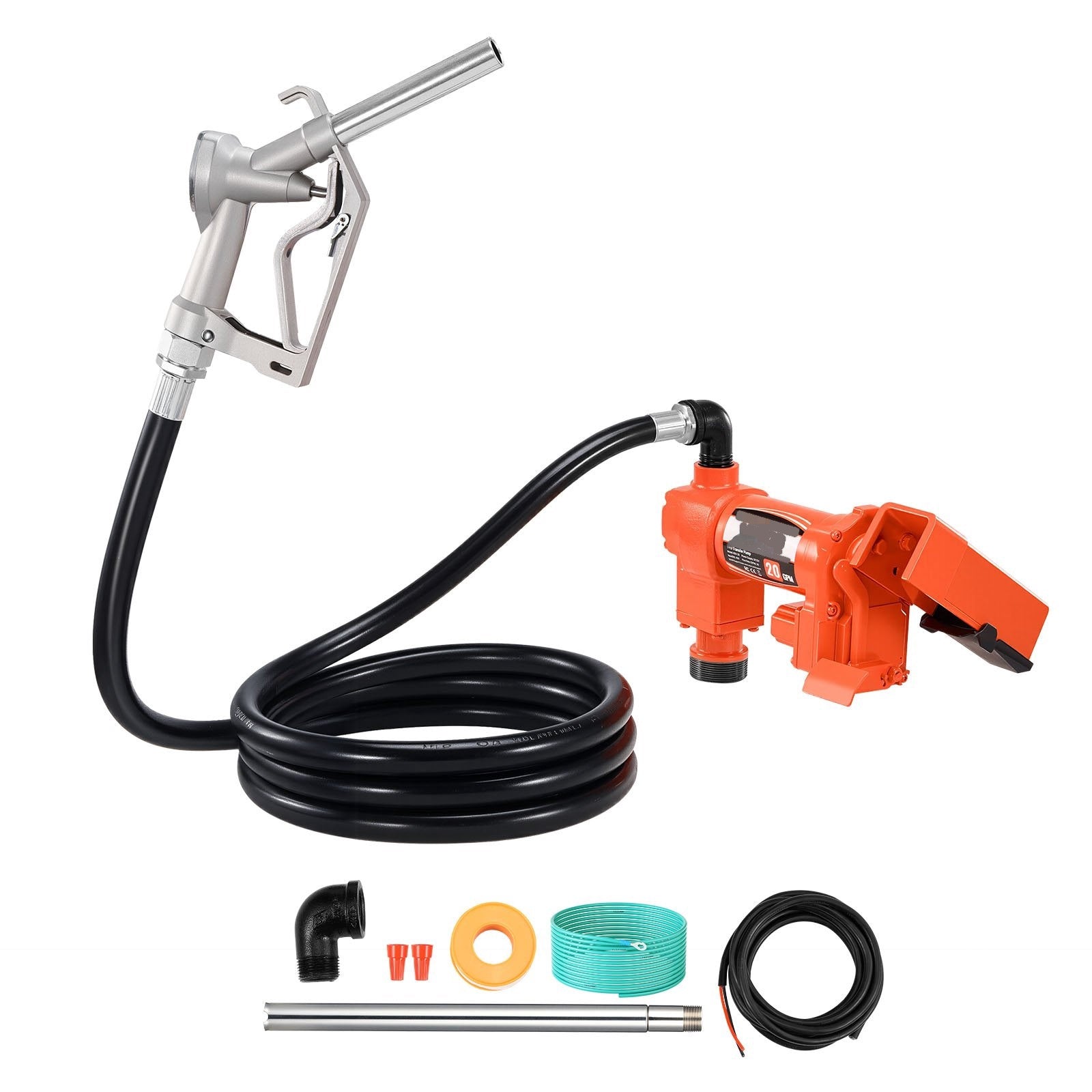

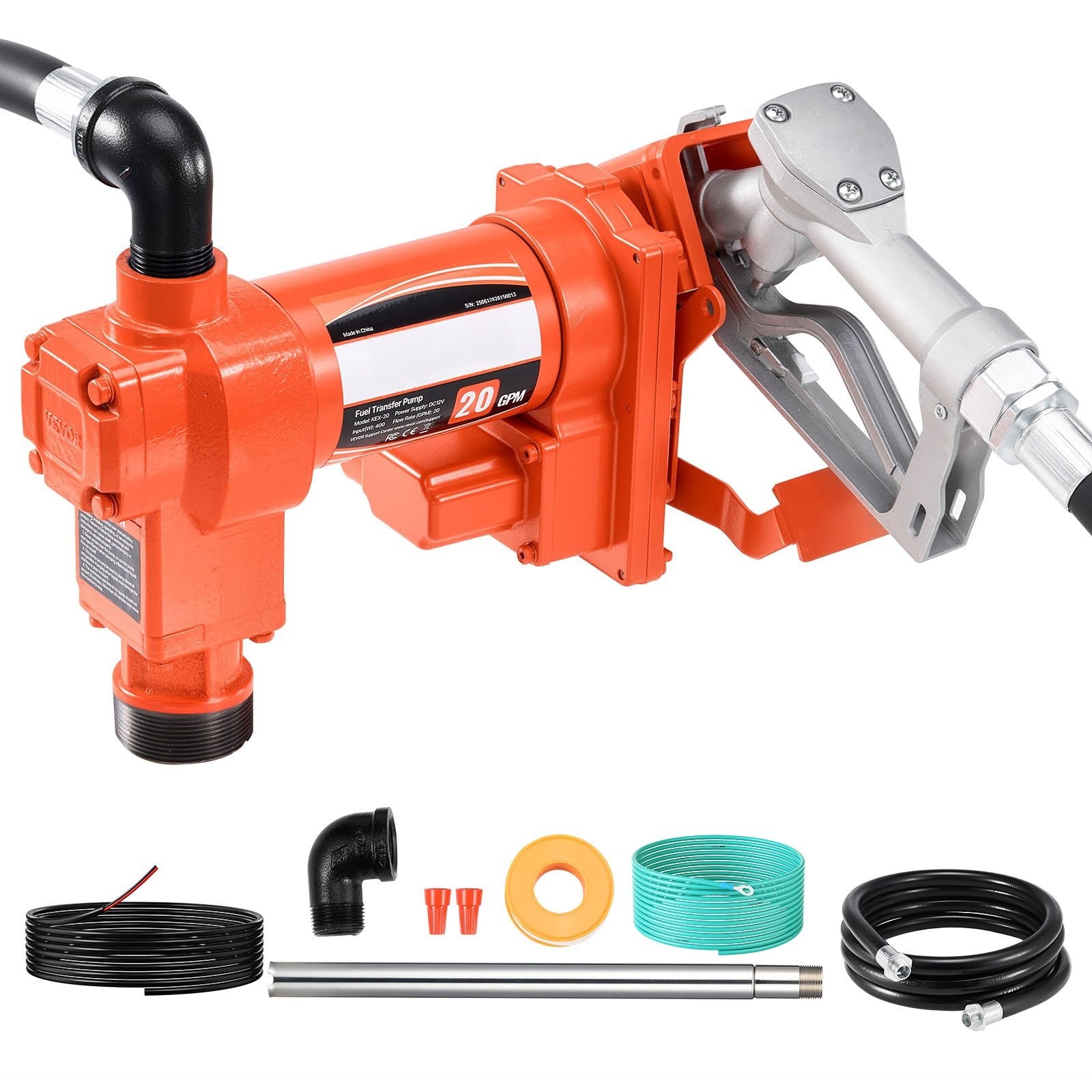

• In the box: Pump, manual nozzle, discharge hose, adjustable suction pipe, connector, PTFE tape
