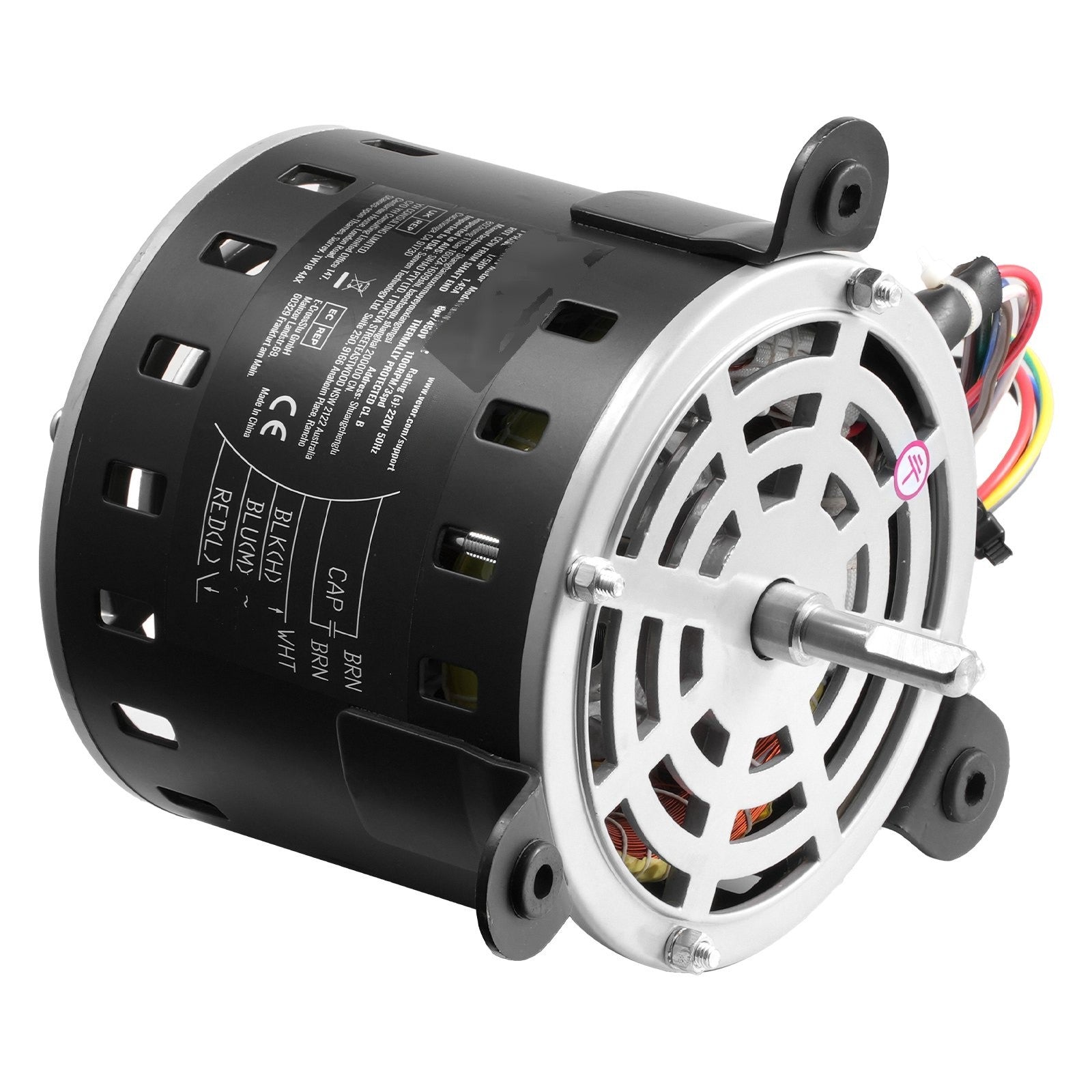

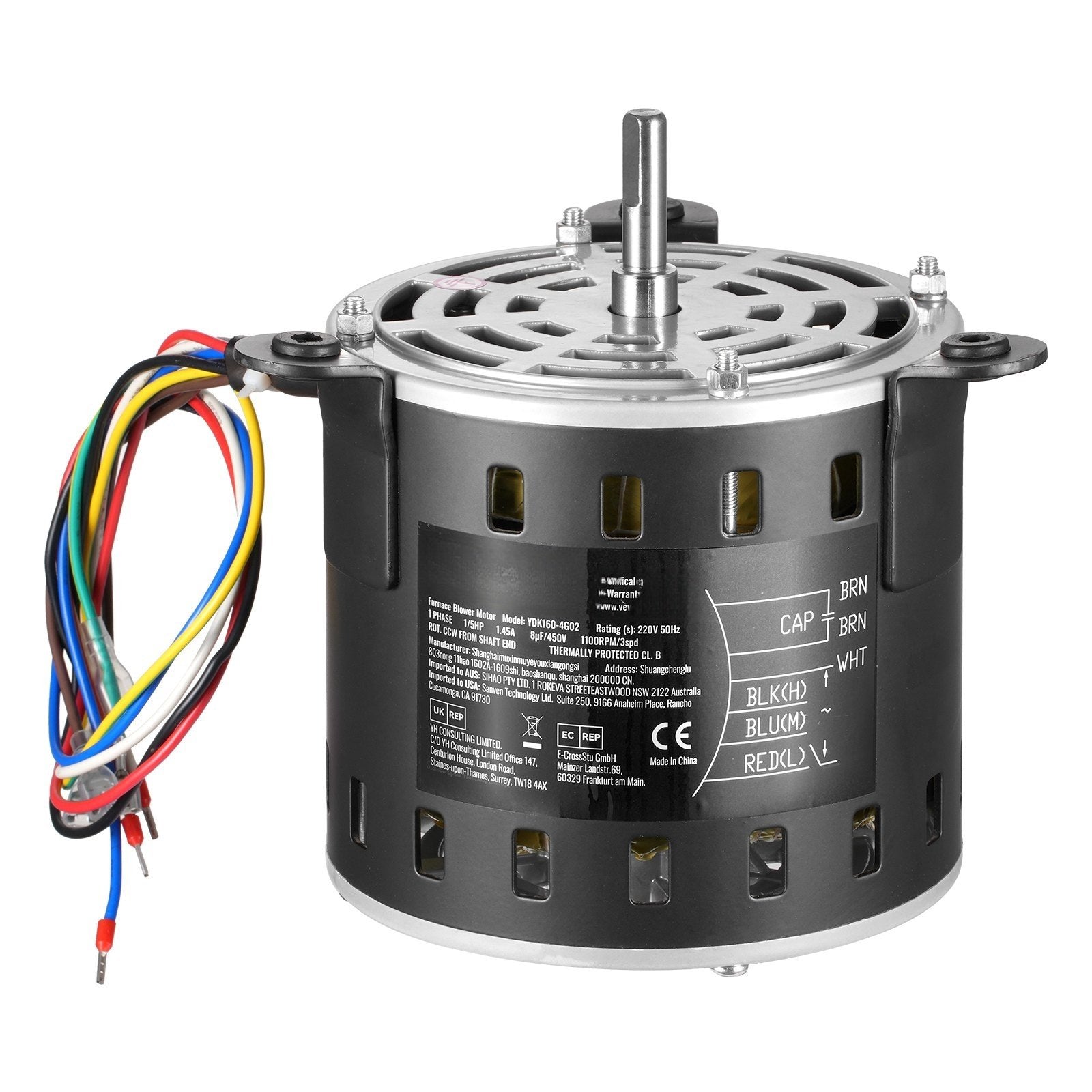

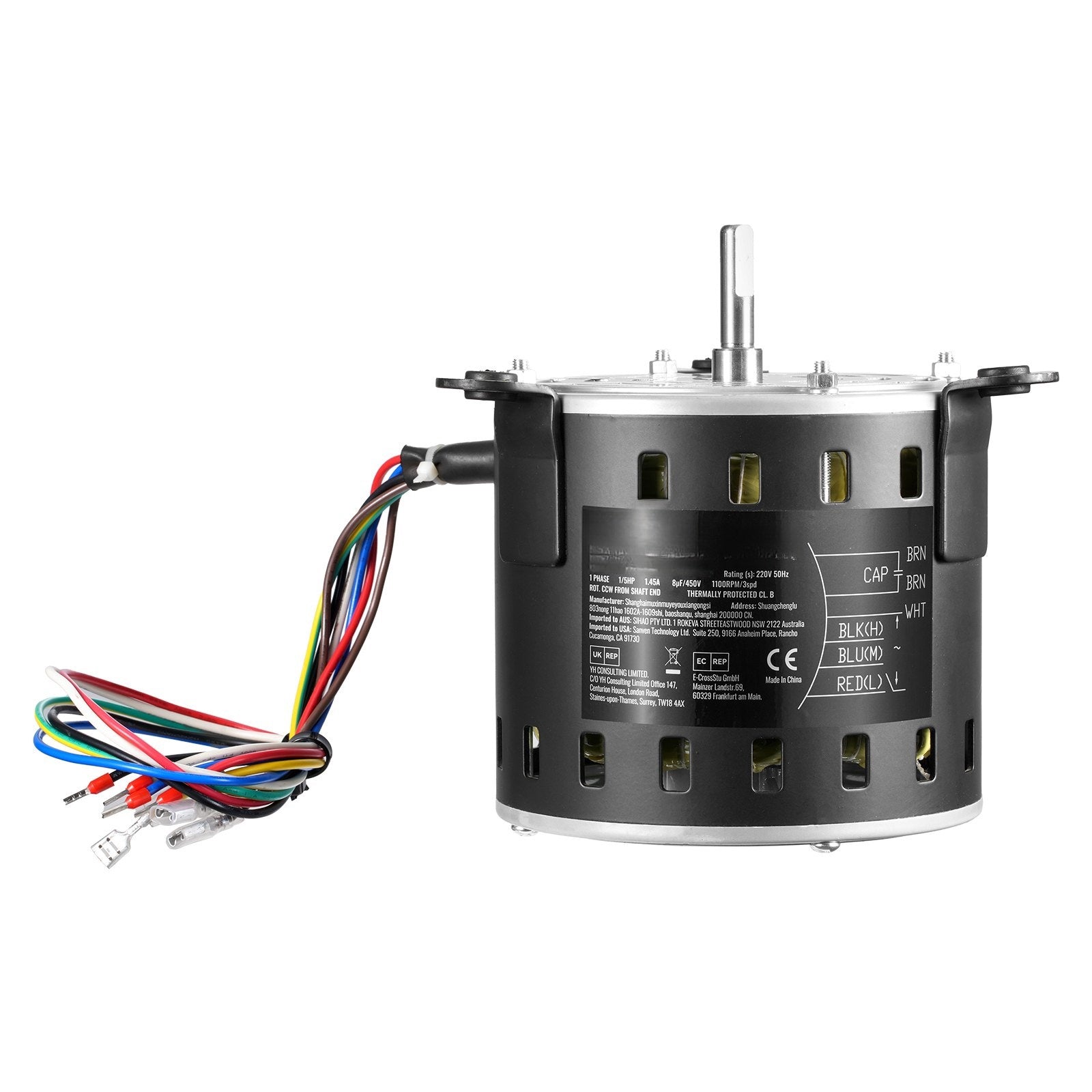

Furnace Blower Motor 1/5 HP, 220V, 3-Speed, Capacitor

1/5 HP furnace blower motor restores steady airflow in HVAC systems with a 3-speed 220V design for flexible performance. Built for direct-drive residential and light commercial furnaces, air handlers, and ducted ventilation setups, it helps keep warm or cool air moving efficiently. Metal housing supports long service life, and the included run capacitor simplifies replacement when an old or mismatched capacitor causes hard starts or overheating.

• Delivers 3 selectable speeds (1100/900/700 RPM) to match airflow needs and system demand

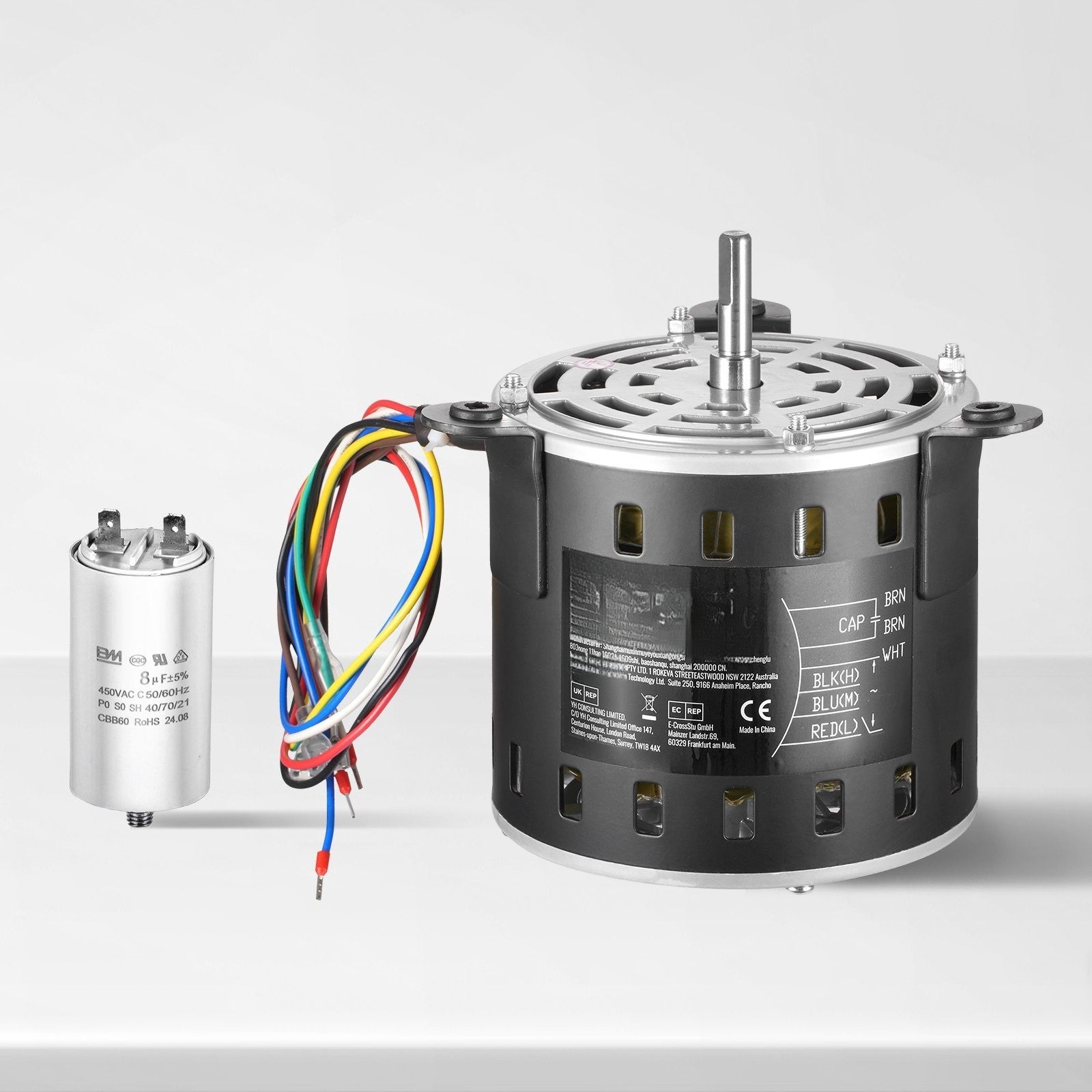

• Includes a CBB60 8µF/450V capacitor to streamline replacement and reduce start-up issues


• Fits direct-drive blower applications in indoor furnaces, air handlers, and packaged HVAC systems


• Simplifies installation with CCW rotation (from shaft end) and a 10 mm shaft for common blower setups


• Protects components with a corrosion-resistant metal housing for dependable operation

When a blower motor wears out, airflow drops fast—leading to uneven temperatures and added strain on your HVAC system. This 220V single-phase replacement motor is designed for quick, straightforward swaps with key dimensions and rotation direction specified up front, so you can confirm compatibility before purchase. Keep a spare on hand for maintenance, repairs, or renovations in residential and light commercial spaces. Grab yours today and get your air handler or furnace back to consistent circulation.

• Power: 1/5 HP


• Voltage/Frequency: AC 220V, 50Hz


• Current (FLA): 1.45 A


• Speed: 3-speed (1100/900/700 RPM)


• Rotation: CCW from shaft end


• Shaft diameter: 10 mm (0.39 in)


• Shaft length: 20 mm (0.78 in)


• Mounting diameter: Ø170 mm


• Capacitor: CBB60, 8 µF / 450V (included)


• Dimensions: 7.0 x 6.8 x 7.1 in (179 x 172.5 x 181 mm)


• Net weight: 11.6 lb (5.28 kg)
