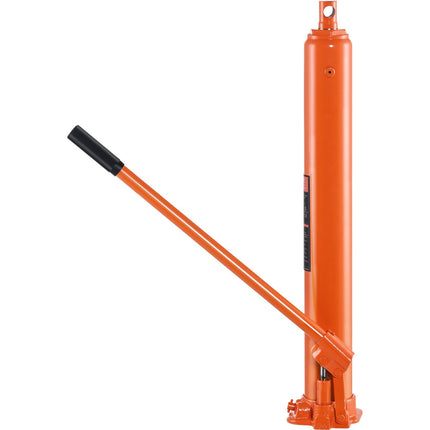

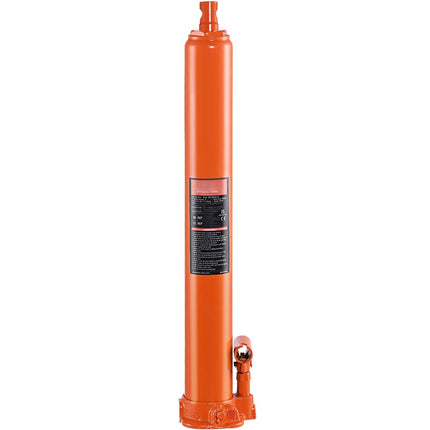

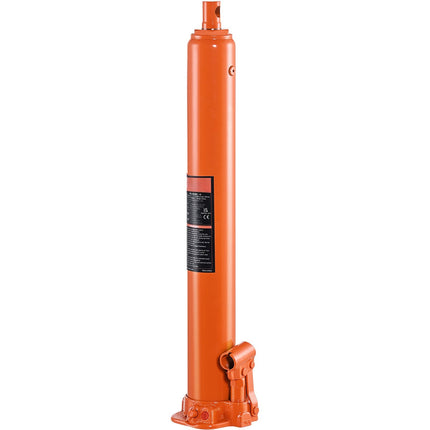

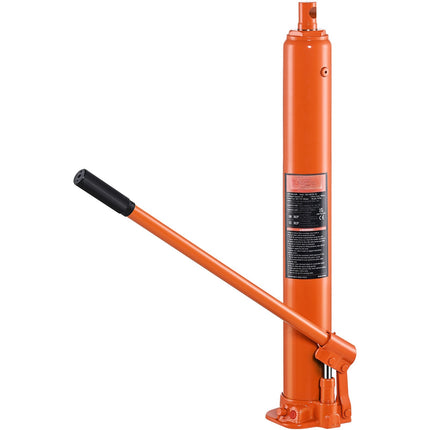

Hydraulic Long Ram Jack, 4 Ton Engine Hoist Cylinder

Hydraulic long ram jack delivers controlled, high-lift power for engine hoists and shop cranes, helping you raise heavy loads with less effort and more stability. With a 4-ton (8800 lb) capacity and a wide lift range, it’s built for workshops, garages, farm equipment work, and maintenance jobs where a dependable hydraulic ram cylinder matters. Durable steel construction and safety-valve protection support smoother lifting and safer lowering.

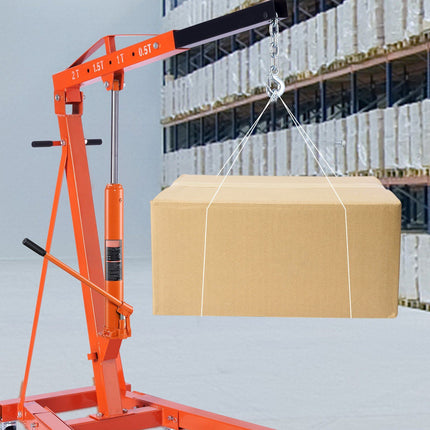

• Delivers 4-ton/8800 lb lifting force for engine lift hoists, garage cranes, and shop setups


• Controls lowering with a slow-release function for safer, more precise load handling


• Resists wear with #45 steel body and hard chrome-plated surface on key components


• Protects against overloads with integrated oil bypass and overload valves


• Fits more crane bases with a thickened, enlarged flat base for stable placement

Designed as a versatile engine hoist cylinder, this single-piston hydraulic ram supports demanding lifts while keeping operation straightforward. The large-diameter hydraulic cylinder helps reduce oil pressure requirements, limiting internal wear over time. A comfortable rubber-grip handle improves control during pumping, while the Y-shaped seal ring and plunger design helps reduce slow descent and oil bypass for steadier holding. Upgrade your crane or hoist setup with a rugged hydraulic ram pump that’s ready for daily use—grab yours today.

• Load capacity: 4 T / 8800 lb


• Height range: 24.1–43.78 in (612–1112 mm)


• Lifting stroke: 19.7 in / 500 mm


• Piston rod outer diameter: 1.1 in / 28 mm


• Product size: 24.1 × 4.6 × 4.1 in (612 × 117 × 104 mm)


• Net weight: 18.76 lb / 8.51 kg


• Material/finish: #45 steel, hard chrome-plated surface


• Base type: Flat base
