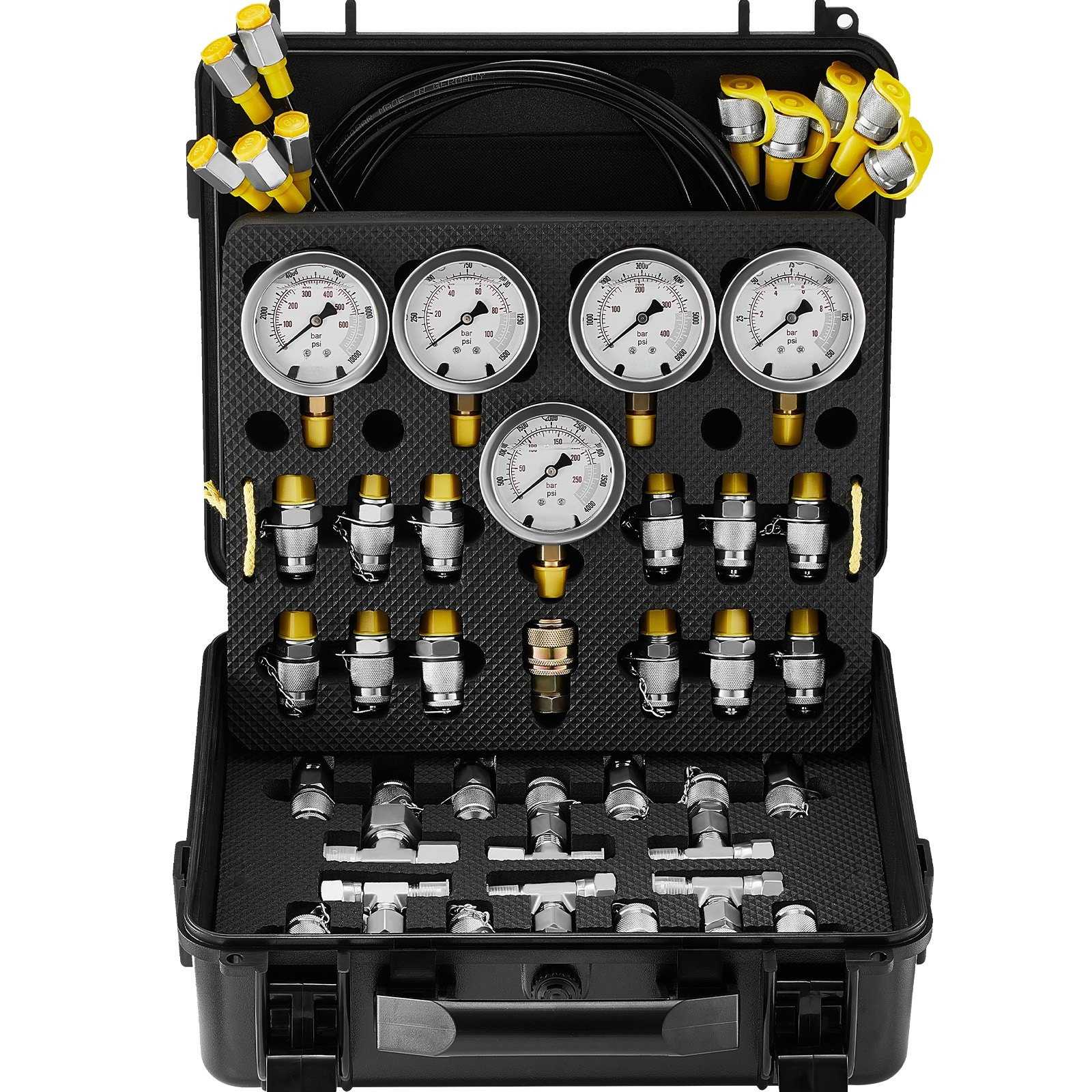

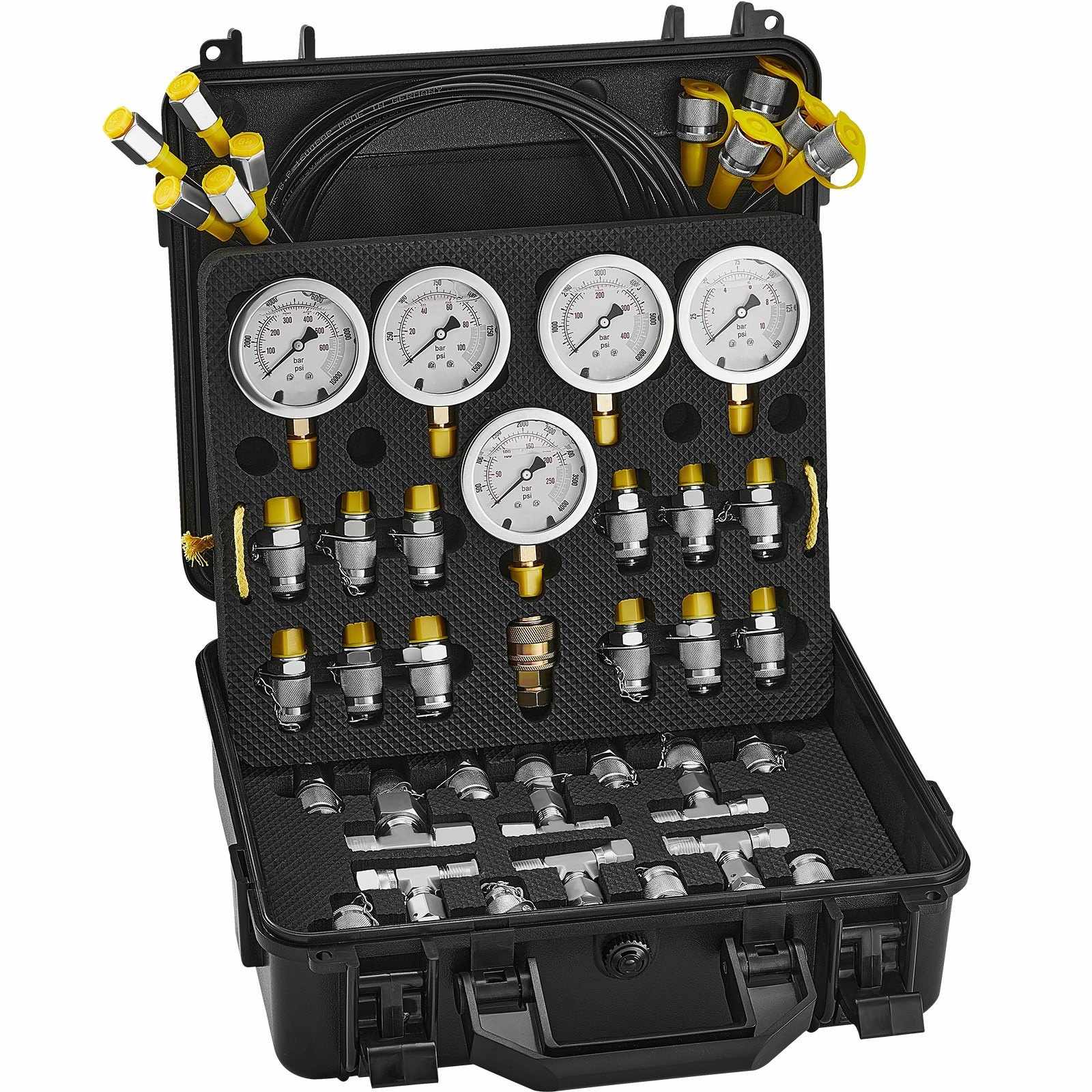

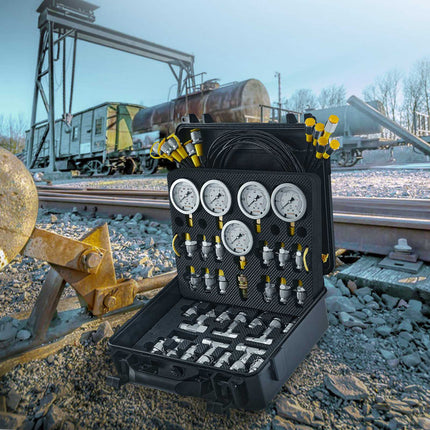

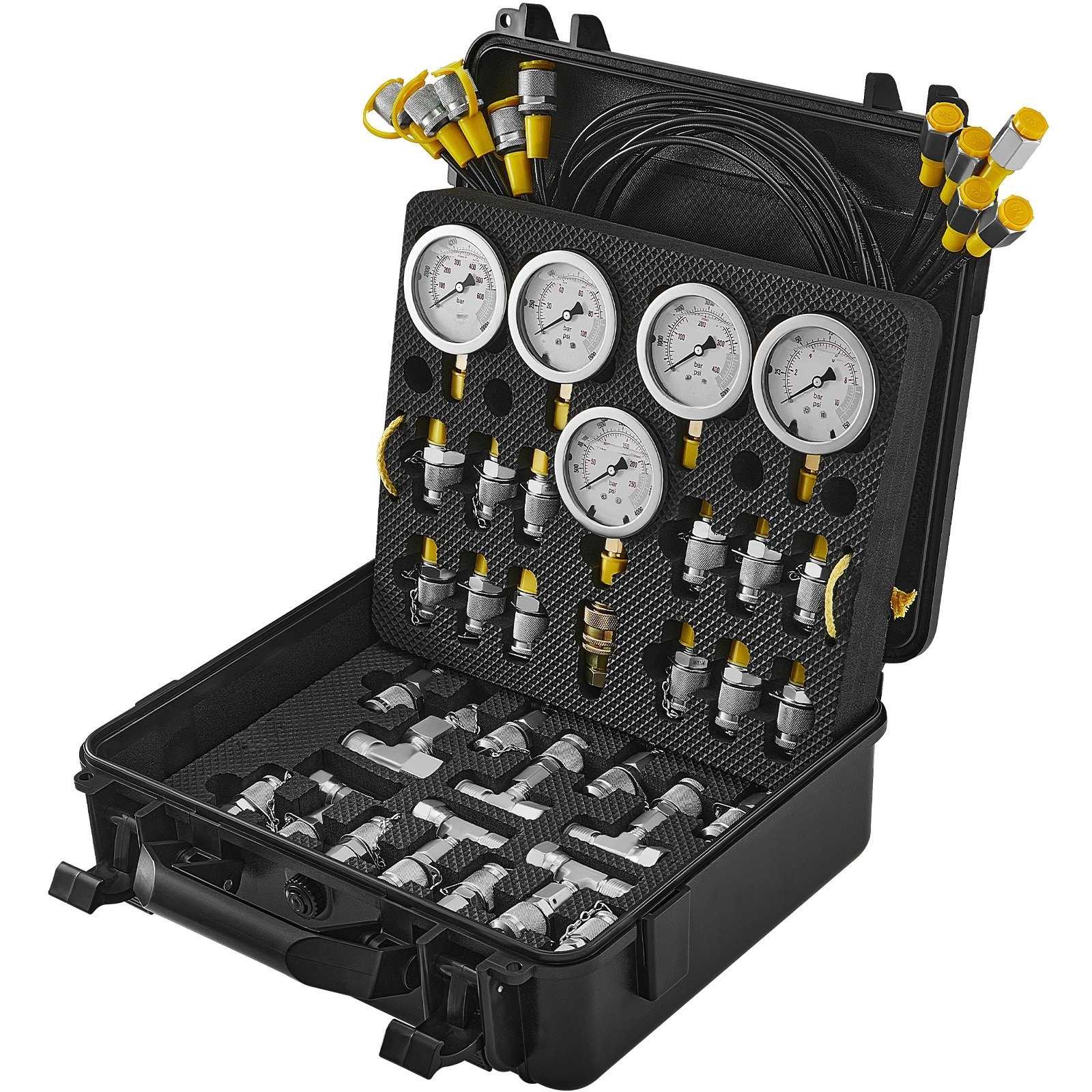

Hydraulic Pressure Test Kit, 5 Gauges, 600 Bar, Case

Hydraulic pressure test kit helps you diagnose leaks, weak pumps, and faulty valves fast with clear, dual-scale readings across 10/100/250/400/600 bar. Built for excavators, tractors, hydraulic presses, and heavy machinery, this set combines five stainless-steel gauges, multiple couplings, tees, and long test hoses so you can check system pressure at different ports without guesswork.

• Delivers fast diagnostics with 5 dual-scale gauges (PSI/Bar) covering 10–600 bar for low to high-pressure hydraulic systems


• Includes 13 couplings + 14 tee connectors to match common thread standards for excavators, tractors, and industrial equipment


• Supports accurate readings with glycerin-filled dial sealing to reduce internal friction and help maintain pointer stability


• Extends reach with 5 test hoses (5.2 ft/1.6 m) for placing gauges where you can see them safely


• Organizes gear in a compact ABS carrying case with desiccants to help keep components dry during storage

Stop swapping parts blindly—verify hydraulic pressure at the source and pinpoint restrictions, pressure loss, or relief-valve issues with the right range for the job. The aluminum alloy and 304 stainless-steel build is designed for workshop and field use, while protected thread joints help reduce damage during repeated connections. Keep it in the truck or shop for routine maintenance and troubleshooting across construction, mining, shipping, and equipment service. Grab yours today and test with confidence on your next repair.

• Pressure ranges: 0–10 bar (0–150 PSI), 0–100 bar (0–1500 PSI), 0–250 bar (0–4000 PSI), 0–400 bar (0–6000 PSI), 0–600 bar (0–10000 PSI)


• Gauge quantity: 5


• Hoses: 5 pcs, 5.2 ft / 1.6 m each


• Couplings (13): ZG1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10x1.25, M14x1.5, M10x1, M16x1.5, M12x1.5, NPT1/4, Carter quick connector


• Tee connectors: 14 pcs


• Materials: Aluminum alloy 6061, 304 stainless steel


• Case/material: ABS plastic carrying case


• Product dimensions: 12.8 x 12.0 x 4.5 in (325 x 305 x 115 mm)


• Net weight: 14.9 lb / 6.75 kg
