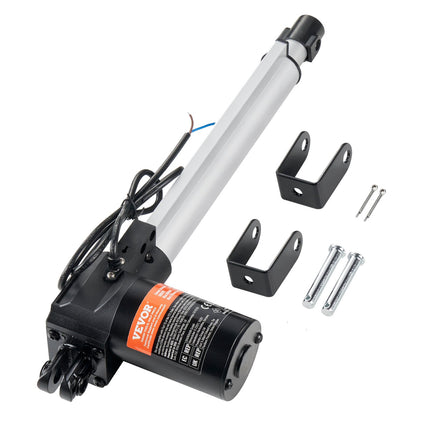

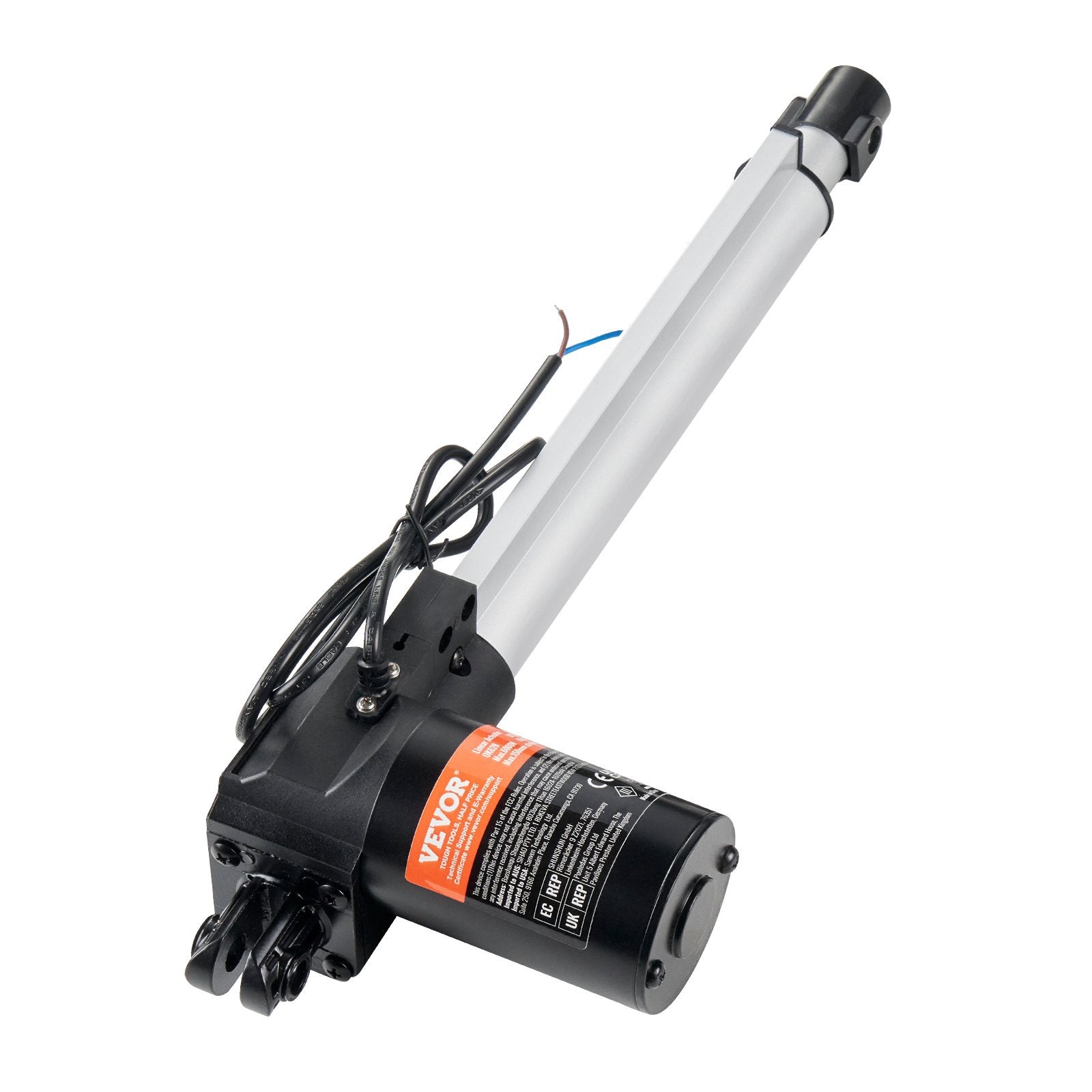

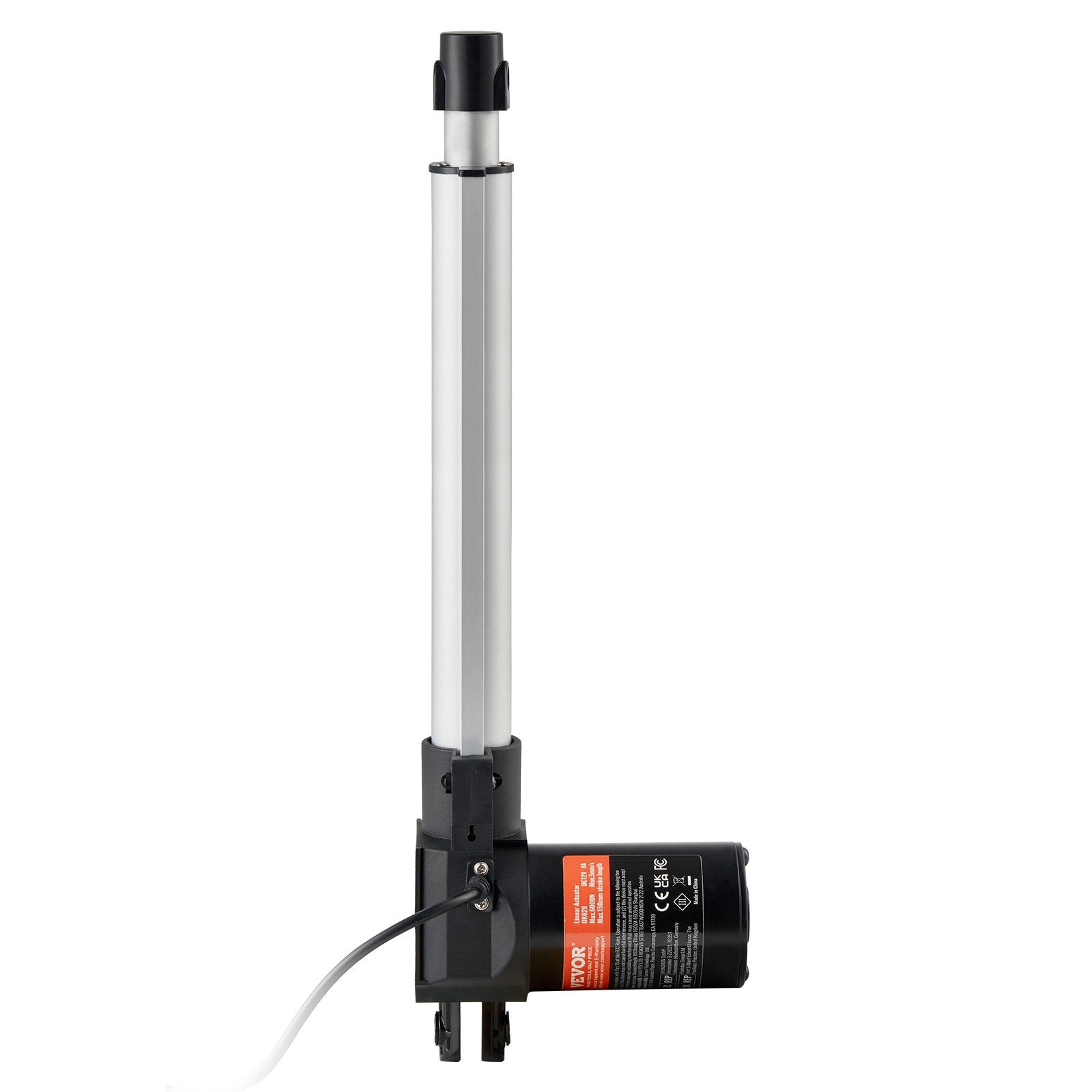

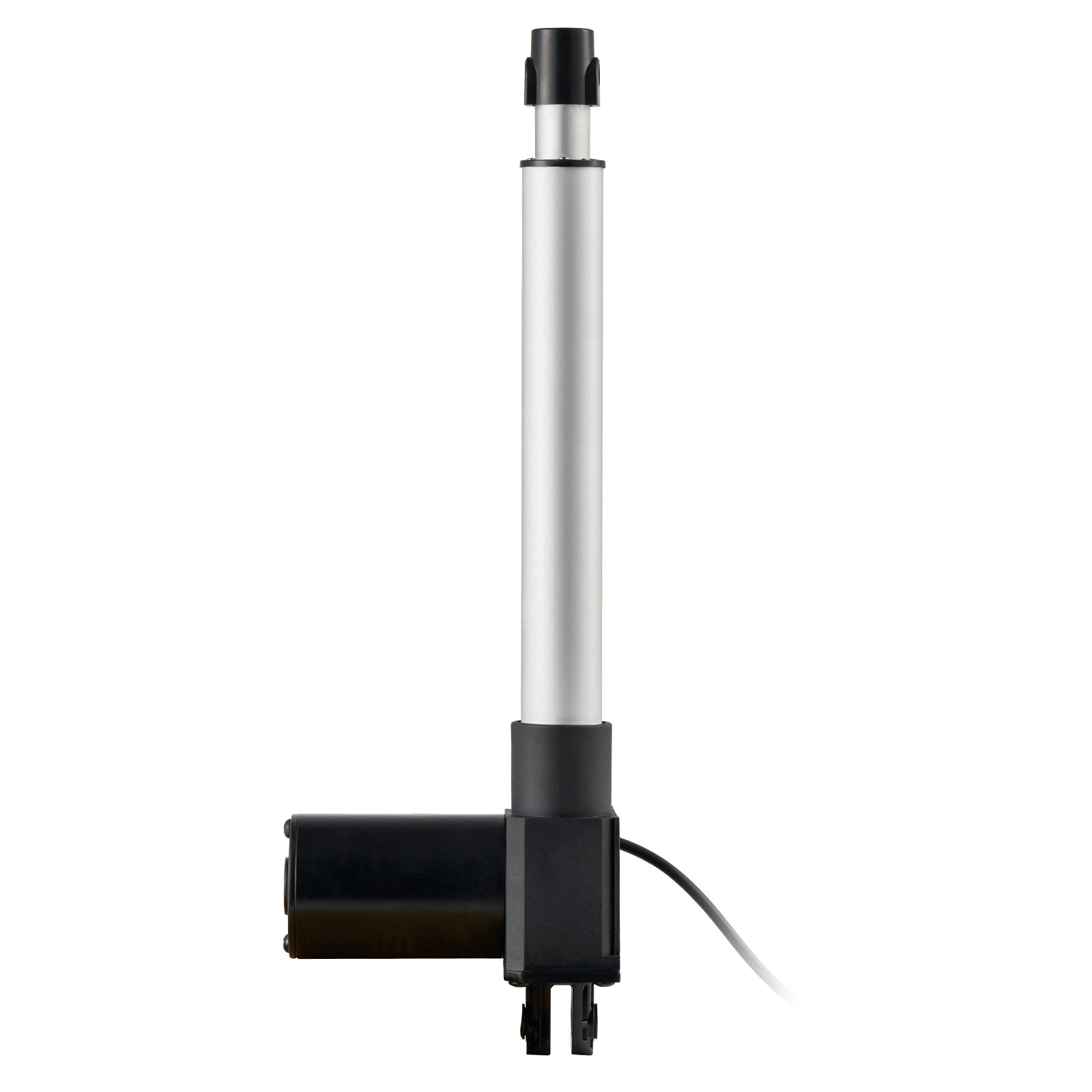

Linear Actuator 12V, 10-Inch Stroke, 6000N, IP44

12V linear actuator delivers powerful, controlled lifting and positioning for automation projects, with a 6000N (1320 lbf) max force and a steady 5 mm/s travel speed. Built with an aluminum alloy body and an all-metal transmission, it’s designed for high-load industrial and home applications where reliability matters. IP44 protection helps handle dust and light splashing in typical workshops, garages, and equipment enclosures.

• Delivers up to 6000N / 1320 lbf actuation force for heavy-duty lift, push, and pull tasks


• Runs quietly at ≤50 dB for furniture adjustment, automation systems, and mechanical equipment


• Handles dust and light splashes with IP44 protection (avoid water entering the motor)


• Supports stable motion with 10" / 250 mm stroke and 0.19 in/s (5 mm/s) travel speed


• Simplifies installs with DC 12V operation and included accessories (net weight 2.23 kg)

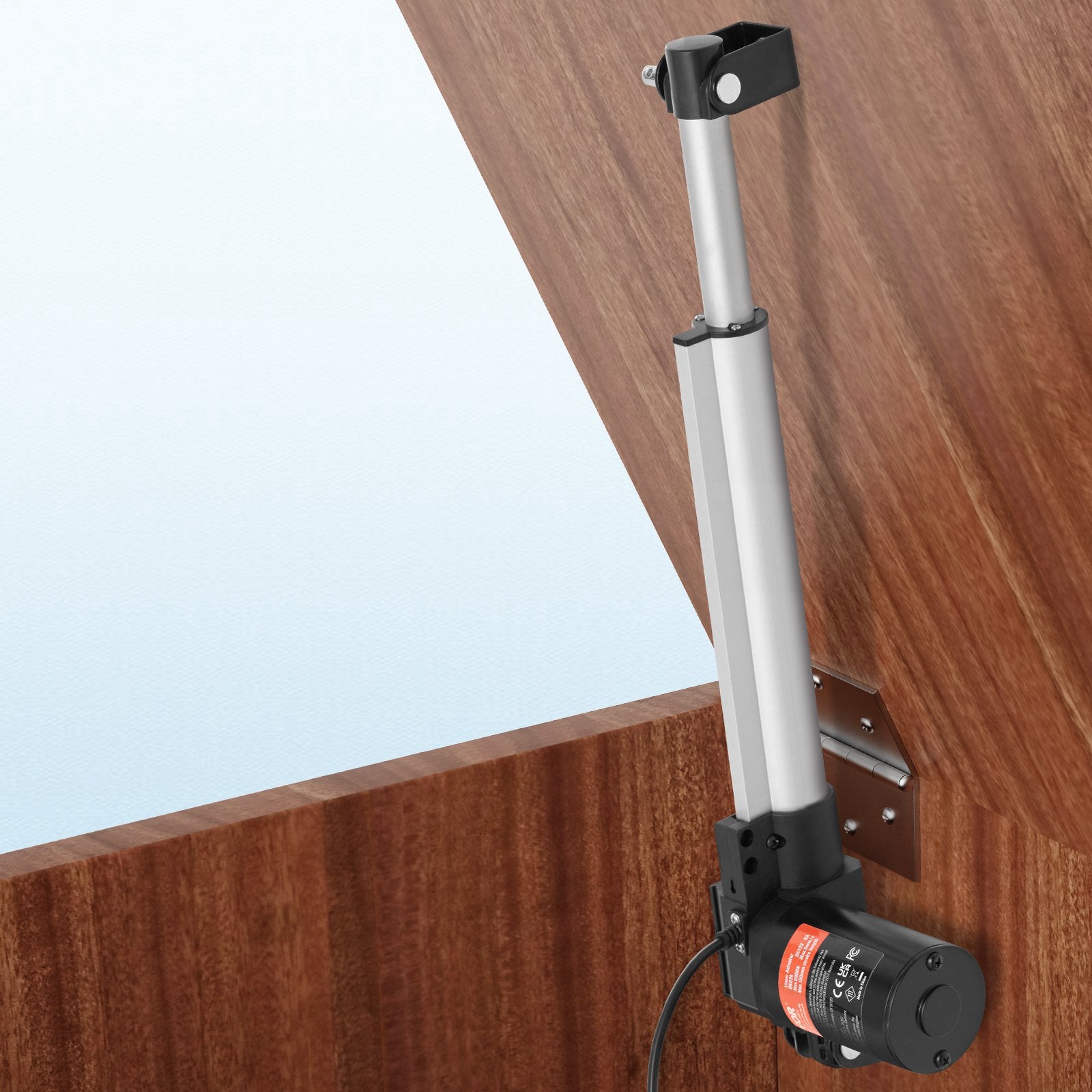

Upgrade your setup with a heavy-duty actuator built for repeatable linear motion under load—ideal for lifting systems, adjustable mechanisms, transport equipment, and workshop automation. The reinforced construction helps reduce wear in long-term use, while the measured speed supports precise positioning rather than sudden movement. Use with a suitable 12V DC power supply and control (not specified) and keep within the 10% duty cycle for consistent performance. Grab yours today and power your next automation build with confidence.

• Rated voltage: DC 12V


• Maximum load/actuation force: 6000N (1320 lbf)


• Stroke length: 10 in / 250 mm


• Travel speed: 0.19 in/s (5 mm/s)


• Rated current: < 8A


• Duty cycle: 10%


• Protection class: IP44


• Noise level: ≤50 dB


• Material: Aluminum alloy


• Dimensions (retracted): 18.11 x 3.14 x 5.74 in (460 x 80 x 146 mm)


• Extended length: 28.11 in (710 mm)


• Net weight (with accessories): 4.91 lb / 2.23 kg
