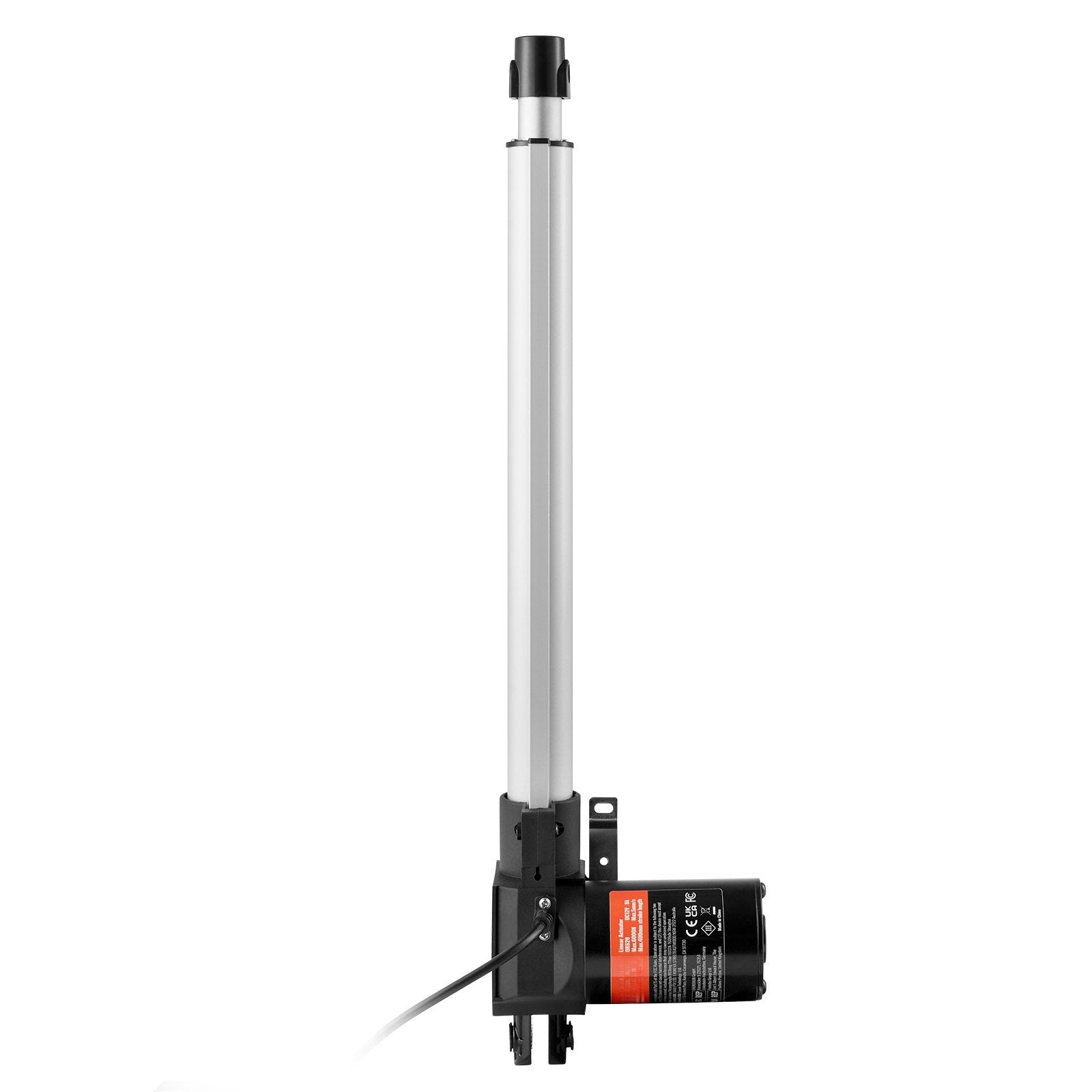

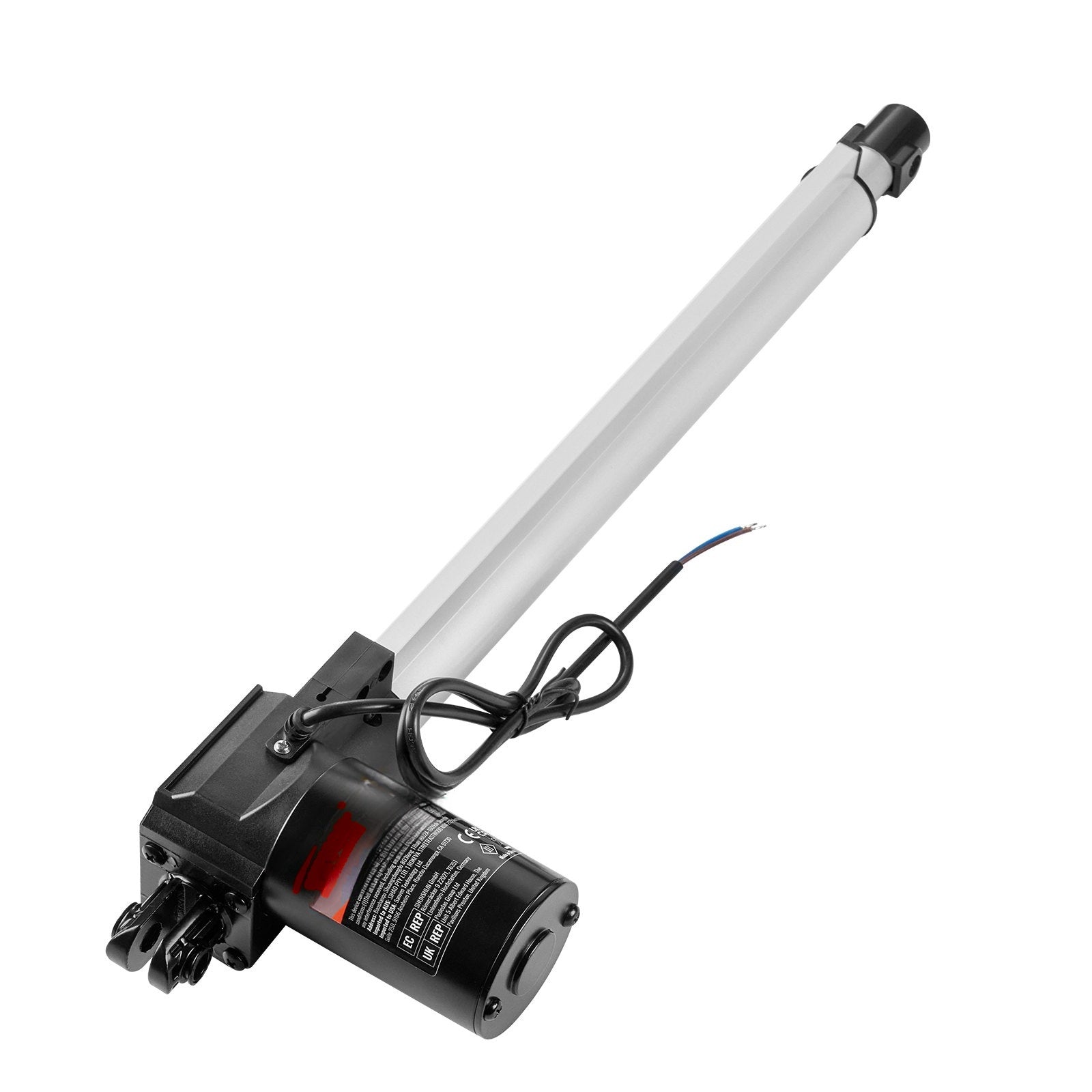

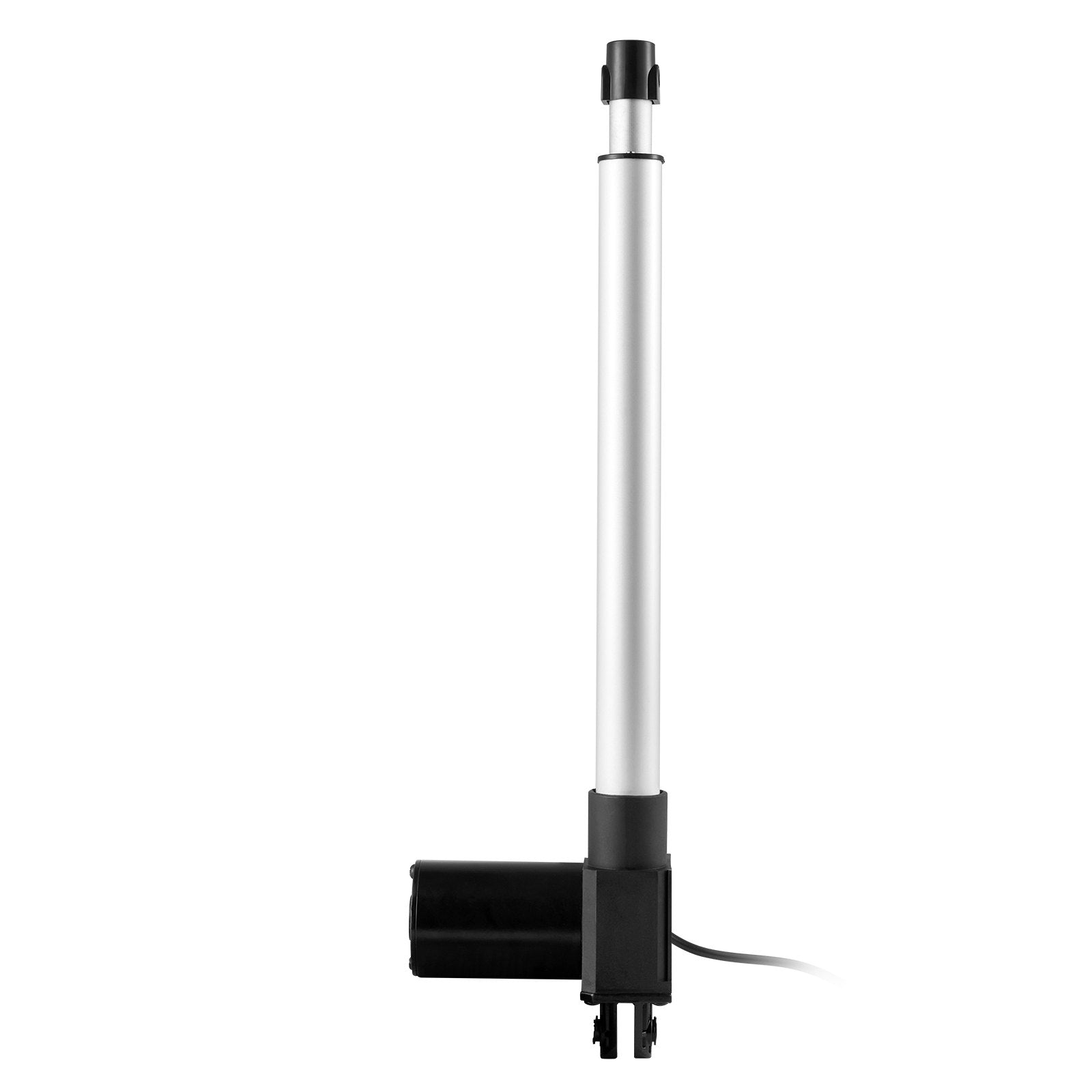

Linear Actuator 12V, 14 in Stroke, 6000N IP44

12V linear actuator delivers controlled heavy-load lifting and positioning for automation projects where reliability matters. With a 14 in (350 mm) stroke and 6000N (1320 lbf) actuation force, it’s built for industrial equipment, furniture adjustment, and DIY motion systems. The all-metal transmission and aluminum alloy body support long service life, while IP44 protection helps handle dust and light splashes in typical indoor and workshop environments.

• Delivers up to 6000N / 1320 lbf thrust for heavy-duty lifting and linear motion tasks


• Moves smoothly at 5 mm/s (0.19 in/s) for controlled positioning and safer automation


• Runs quietly at ≤50 dB for home setups, furniture lifts, and enclosed workspaces


• Handles dusty, splash-prone areas with IP44 protection (prevent water from entering motor)


• Supports 12V DC systems with <8A draw for vehicles, solar, off-grid, and control boxes

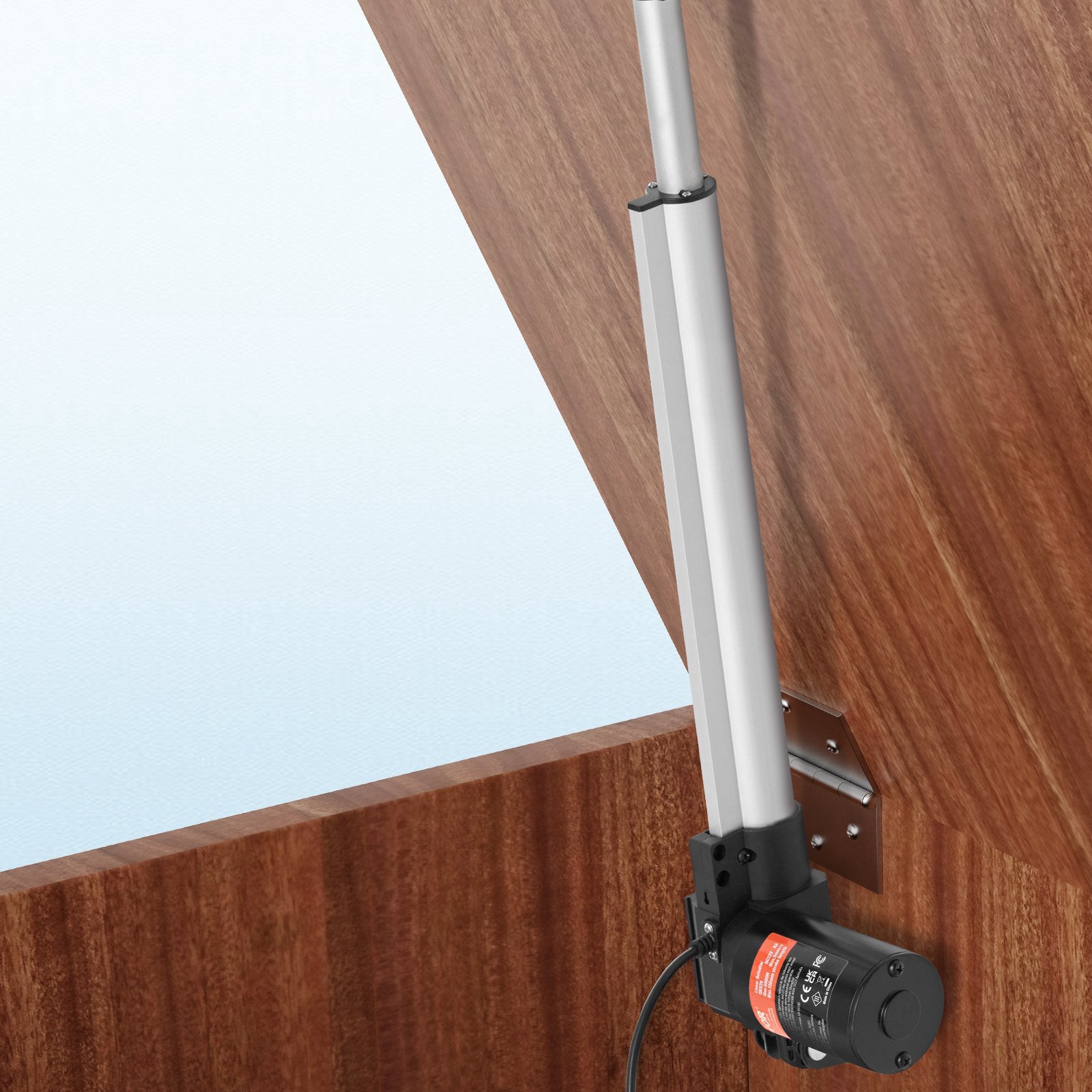

Use this DC 12V actuator to motorize lids, hatches, panels, adjustable tables, mechanical equipment, and transport-related builds. The reinforced structure is designed for high load cycles, and the compact form factor fits many retrofit and new-install applications. For best results, match your controller and power supply to the rated current, and plan mounting points for the retracted and extended lengths. Grab yours today and start upgrading your automation with consistent, repeatable motion.

• Rated voltage: DC 12V


• Maximum force: 6000N (1320 lbf)


• Stroke length: 14 in / 350 mm


• Travel speed: 0.19 in/s / 5 mm/s


• Noise level: ≤50 dB


• Rated current: <8A


• Duty cycle: 10%


• Protection class: IP44


• Retracted length: 22.04 in / 560 mm


• Extended length: 36.04 in / 910 mm


• Product size: 22.04 x 3.14 x 5.74 in (560 x 80 x 146 mm)

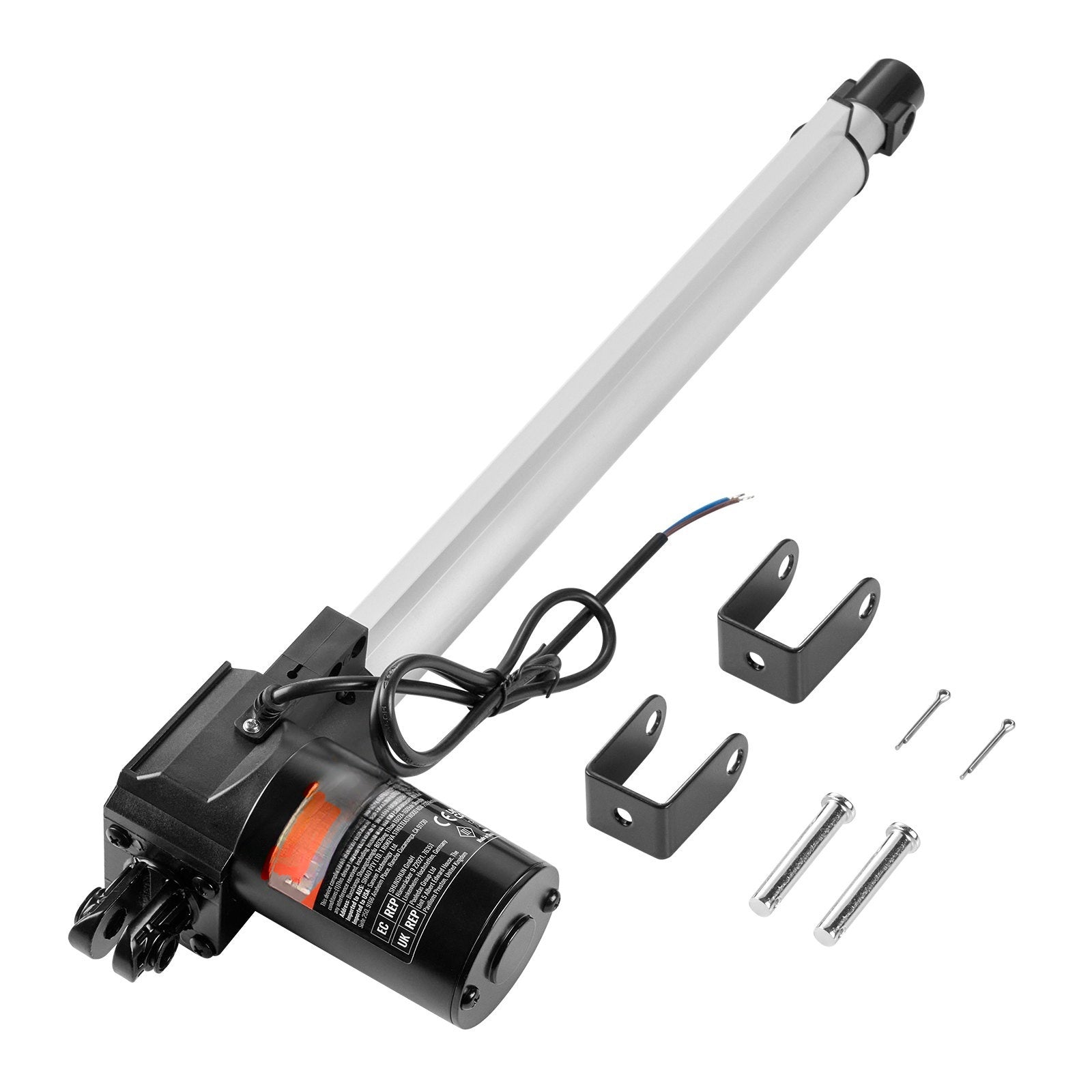

• Net weight (with accessories): 5.35 lb / 2.43 kg


• Main material: Aluminum alloy
