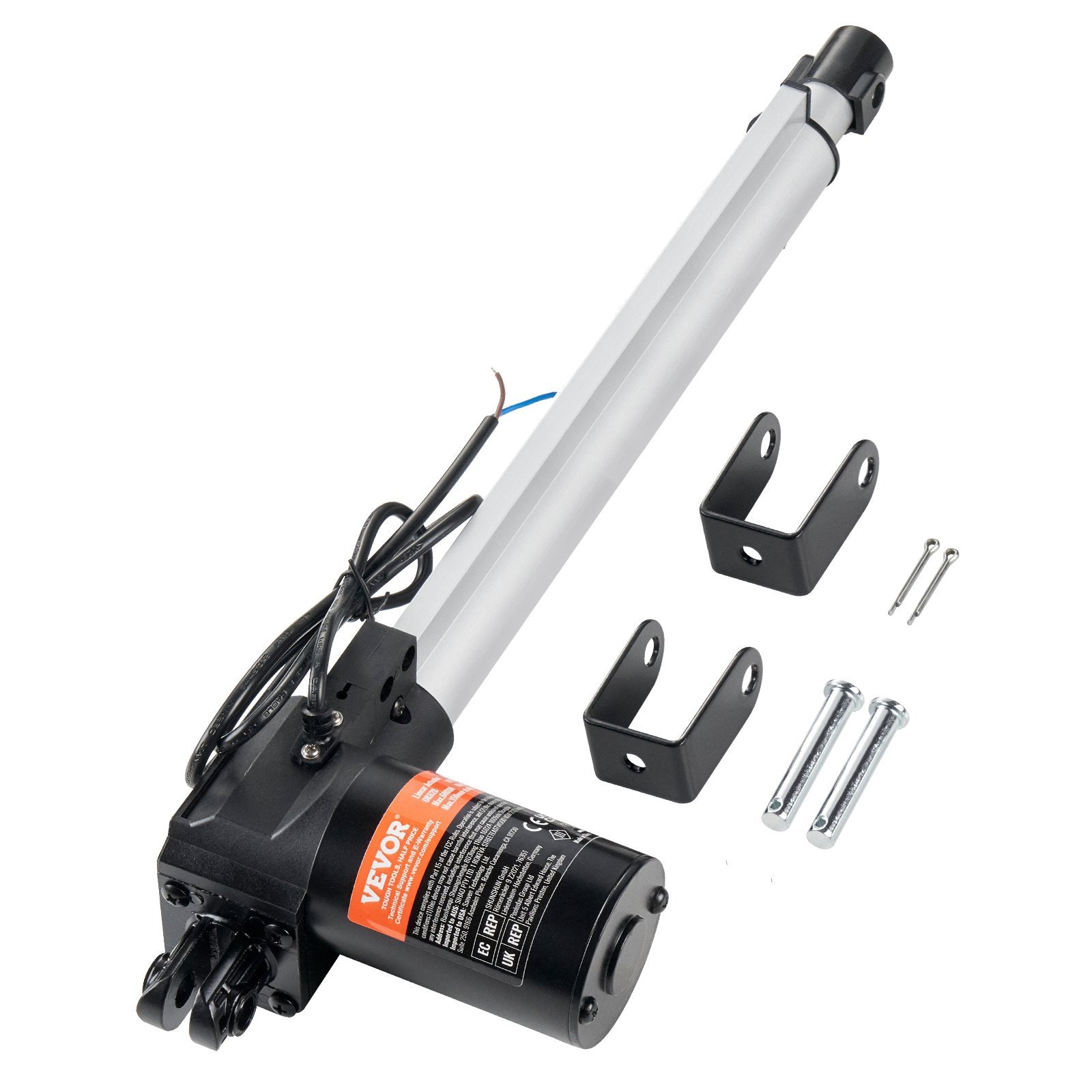

Linear Actuator 12V, 300mm Stroke, 6000N, IP44

12V linear actuator 6000N delivers high-force push/pull motion for reliable lifting, tilting, and automation where manual adjustment slows you down. Built with an aluminum-alloy body and all-metal transmission, it’s designed for demanding equipment, furniture mechanisms, and industrial projects. IP44-rated protection helps it handle dusty areas and light splashes, while low noise (≤50 dB) keeps operation suitable for indoor setups.

• Delivers 6000N (1320 lbf) actuation force for heavy-duty lifting and linear motion control


• Moves at 5 mm/s (0.19 in/s) for controlled, steady travel on automation and adjustment tasks


• Handles dusty/light-splash environments with IP44 protection (prevent water entering motor)


• Runs quietly at ≤50 dB to suit furniture lifts, enclosures, and home workshop builds


• Supports 12V DC systems with <8A draw and 10% duty cycle for predictable operation

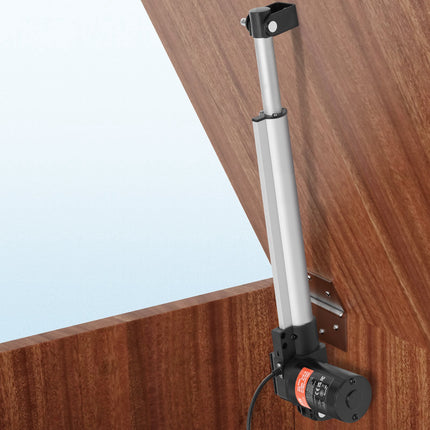

Use this actuator to automate hatches, lids, tool cabinets, adjustable furniture, equipment guards, and custom mechanical projects where consistent linear movement matters. The reinforced structure and metal gearing are built for repeat cycles under load, helping reduce wobble and downtime compared with lighter actuators. Confirm your available mounting space using the retracted and extended lengths, and size your power supply to match the current requirements. Grab yours today and start turning manual adjustments into push-button motion.

• Rated voltage: DC 12V


• Max force: 6000N / 1320 lbf


• Stroke length: 12 in / 300 mm


• Travel speed: 0.19 in/s / 5 mm/s


• Retracted length: 20.07 in / 510 mm


• Extended length: 32.07 in / 810 mm


• Rated current: <8A


• Duty cycle: 10%


• Noise level: ≤50 dB


• Protection rating: IP44


• Main material: Aluminum alloy


• Product dimensions: 20.07 × 3.14 × 5.74 in / 510 × 80 × 146 mm


• Net weight: 5.11 lb / 2.32 kg (including accessories)
