Manual Push Beam Trolley 1 Ton, Adjustable 2.5–7 in

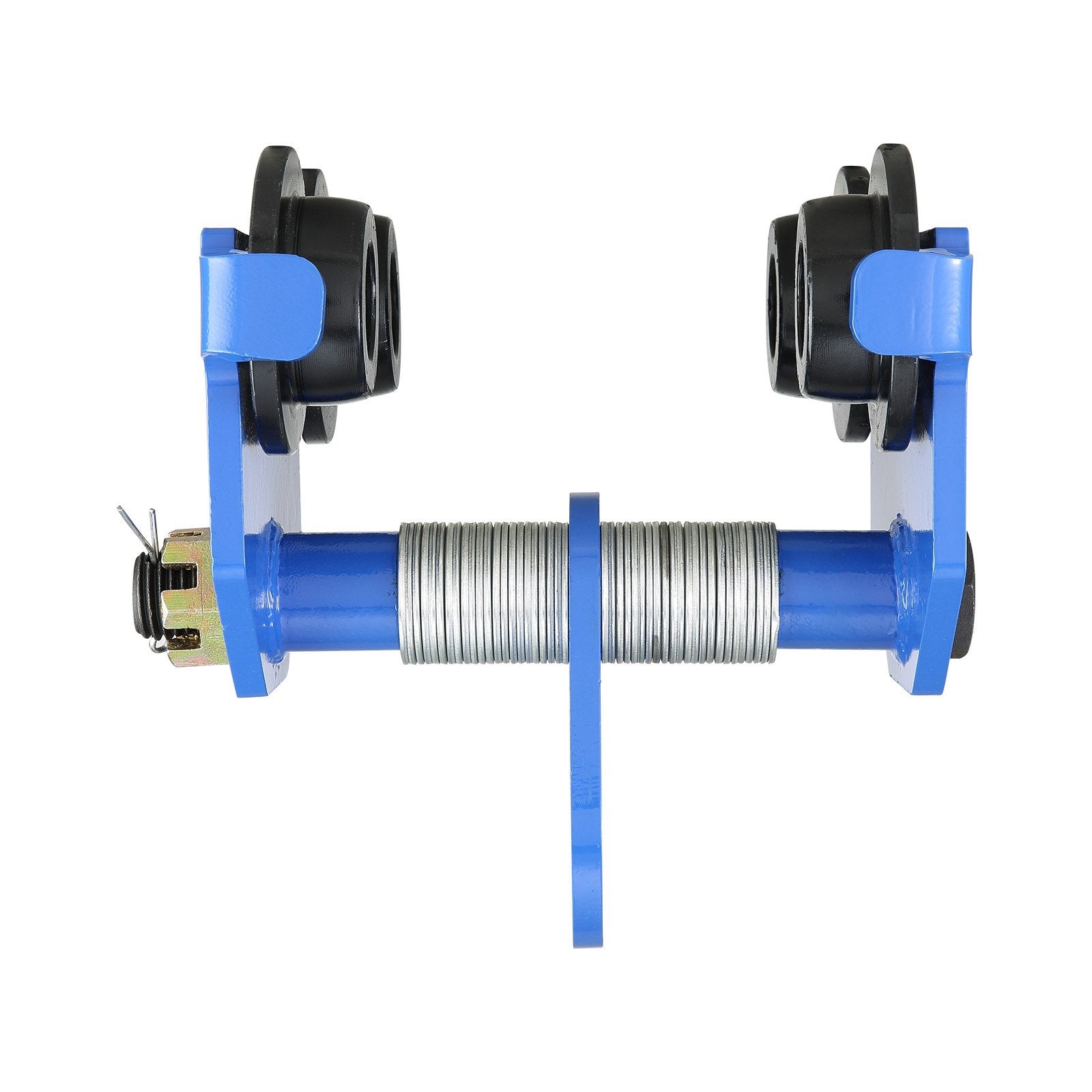

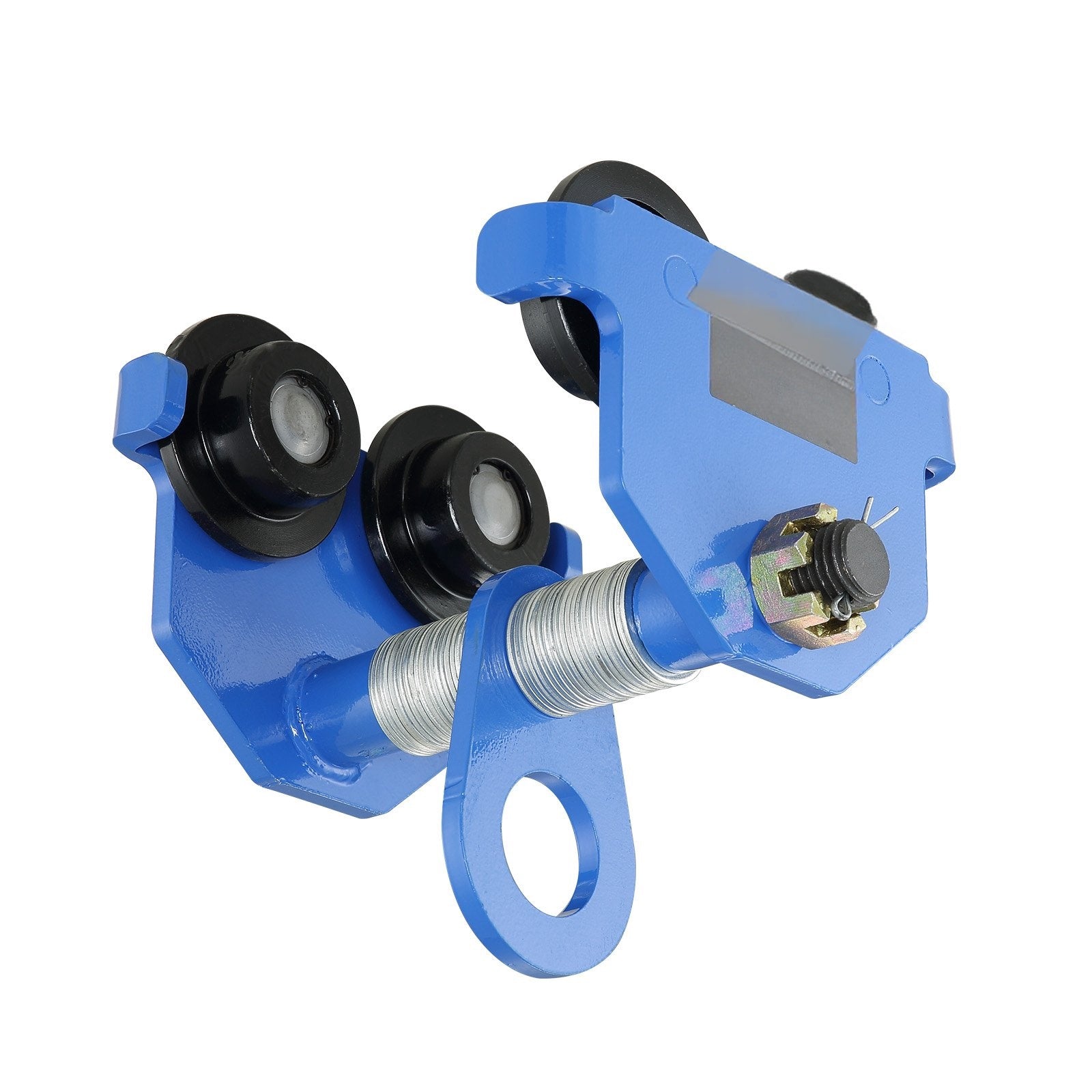

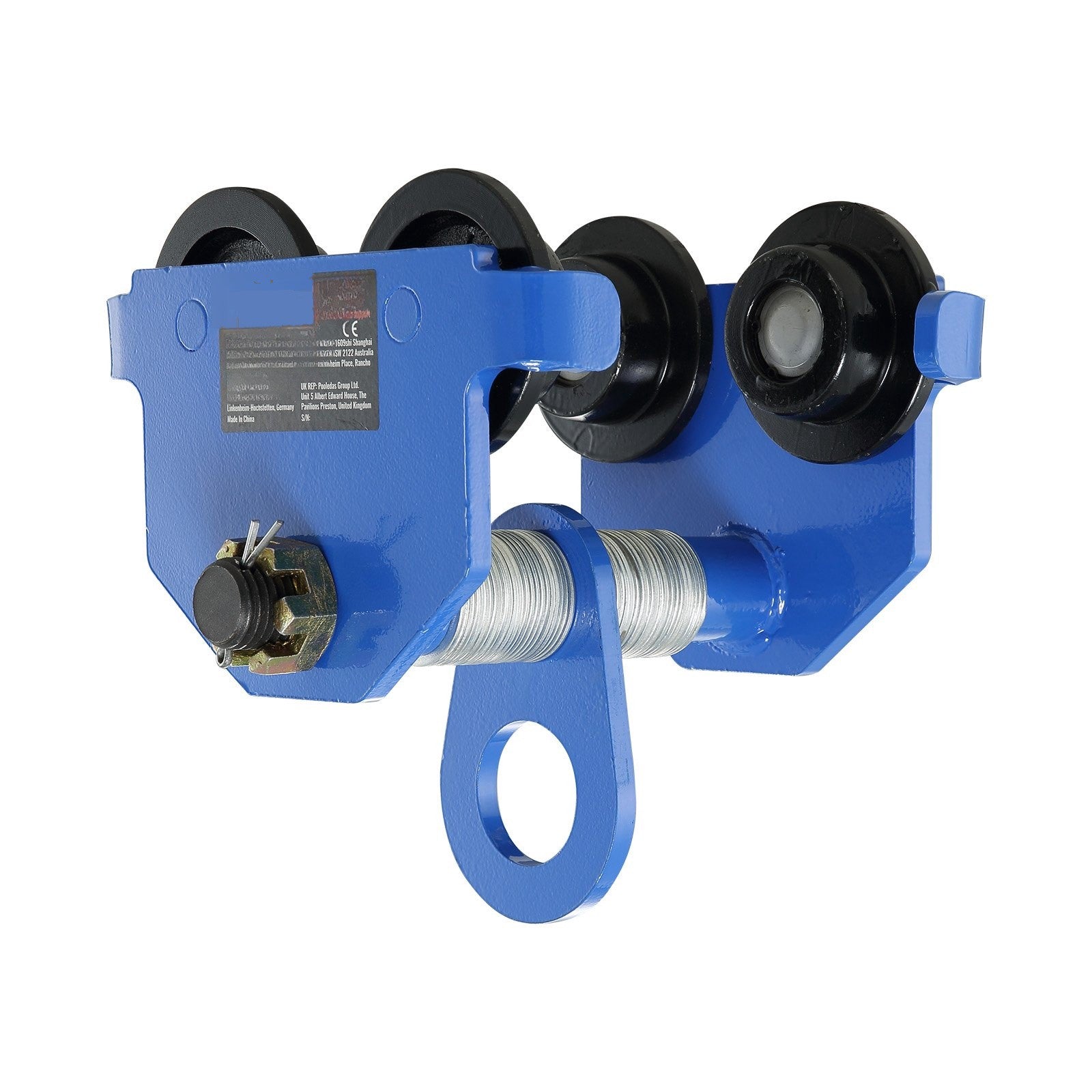

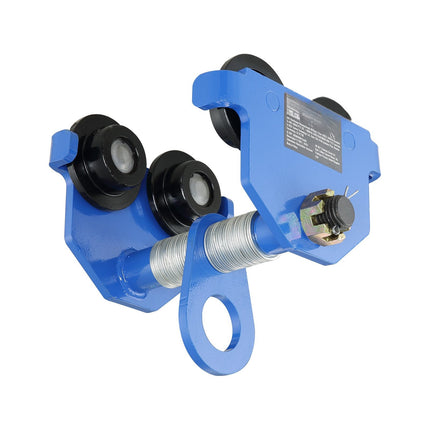

Manual beam trolley delivers smooth, controlled load positioning on I-beams and H-beams, helping you move heavy equipment with less effort. Built from heavy-duty alloy steel with dual-wheel tracking, it supports up to 2200 lb (1 ton) for workshop, garage hoist, warehouse, and construction lifting tasks. The adjustable flange width range fits straight or curved beams, while sealed bearings help reduce drag for steadier travel.

• Fits I-beam/H-beam flanges from 2.5–7 in (63.5–177.8 mm) using included 2 mm washers for a snug, stable setup


• Delivers up to 2200 lb / 1 ton load capacity for positioning hoists, chain blocks, and suspended gear


• Rolls smoothly with dual-axle wheels and sealed bearings to help reduce friction and improve tracking


• Adds safety with a hex nut, collision bumper, and anti-drop wire pin to help resist loosening during use


• Installs fast by measuring flange width, spacing washers, and locking down—no powered tools required

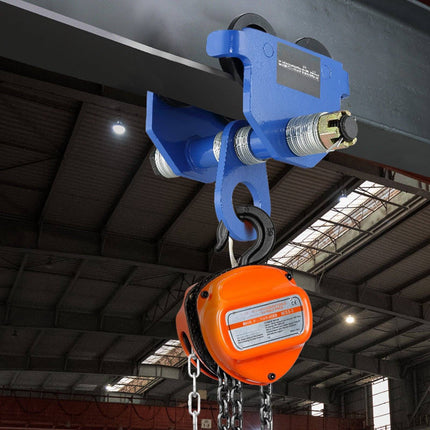

Keep lifts organized and travel predictable when aligning motors, tooling, or materials along an overhead beam. This push beam trolley is designed for frequent repositioning in tight work areas, combining wide adjustment with rugged corrosion-resistant construction for demanding environments. Use it on compatible steel beams where a manual trolley is preferred for simple, reliable movement. Grab yours today and set up a smoother workflow on your next lift.

• Load capacity: 2200 lb (1 ton)


• Adjustable flange width: 2.5–7 in (63.5–177.8 mm)


• Included spacers: 60 washers (2 mm)


• Material: alloy steel


• Product size: 10.03 x 8.66 x 9.44 in (255 x 220 x 240 mm)


• Product weight: 16 lb (7.26 kg)
