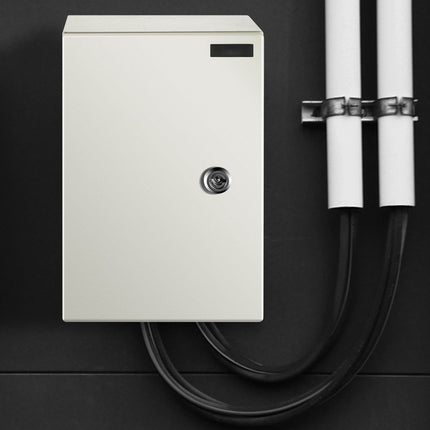

NEMA 4X Steel Electrical Enclosure 30x20x15cm IP66

Productformulier

CHF 111.00  CHF 100.00

Tijdelijk niet leverbaar

    Veilig betalen met

    • Twint
    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    Vragen over dit artikel?

    Productinformatie

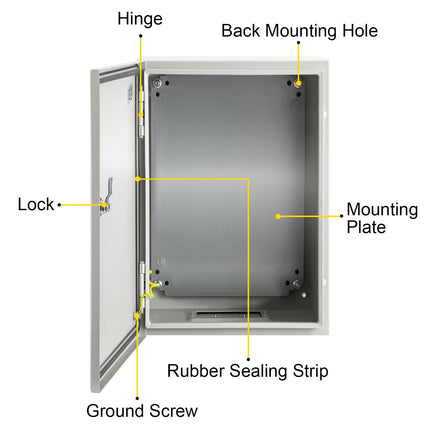

    NEMA 4X steel enclosure protects electrical components from water, dust, and impacts while keeping wiring organized indoors or outdoors. Built from 1.5 mm cold-rolled carbon steel with a powder-coated finish, this lockable electrical junction box is designed to meet IP66 sealing requirements for harsh environments. A hinged door, reinforced lock, and pre-installed grounding screws support safer, cleaner installs in factories, job sites, garages, and residential applications.




    • Delivers IP66-rated sealing to help block water, dust, and dirt in outdoor/industrial setups

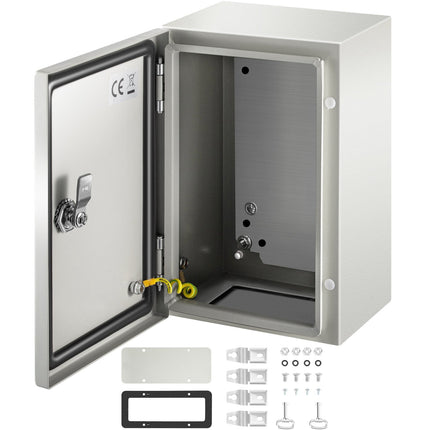

    • Includes detachable 2 mm galvanized mounting plate for fast component layout and wiring

    • Secures access with reinforced hinged door and lockable latch to reduce tampering

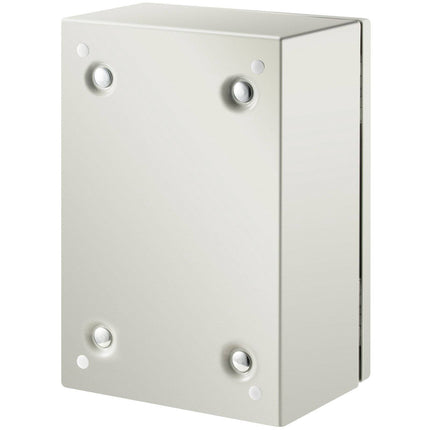

    • Mounts easily using four rear wall-mount holes for stable, flush installation

    • Protects cables with smooth cutouts, bottom entry design, and pre-installed grounding screws



    When downtime isn’t an option, choose an enclosure that’s built for real-world exposure. The precision-cut, welded steel body adds rigidity, while the foam sealing strip supports reliable closure for wet, dusty, or high-traffic areas. Use it as a weather-resistant control box, electrical cabinet, or junction enclosure for switches, breakers, terminals, and automation gear. Keep your installation cleaner, safer, and easier to service—grab yours today and get your next build ready for the elements.



    Specifications

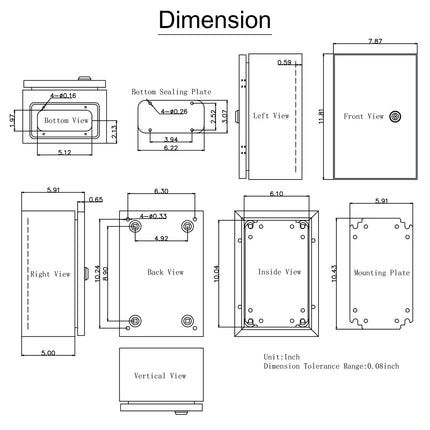

    • Outer dimensions (H×W×D): 12 × 8 × 6 in / 30 × 20 × 15 cm

    • Inner dimensions (H×W×D): 11.7 × 7.8 × 4.6 in / 29.7 × 19.7 × 11.65 cm

    • Material: 1.5 mm (0.059 in) cold-rolled carbon steel

    • Mounting plate: 2 mm (0.079 in) detachable galvanized backplate

    • Backplate size: 9.8 × 6 in / 25 × 15 cm

    • Color: Gray White (RAL7035)

    • Protection: Designed to meet IP66 and NEMA 1/2/4/4X/12 specifications

    • Connection type: Hinged door; feature: Lockable

    • Coating: Epoxy polyester powder coating

    • Certifications: CE, RoHS

    • Product weight: 11.24 lb / 5.1 kg
