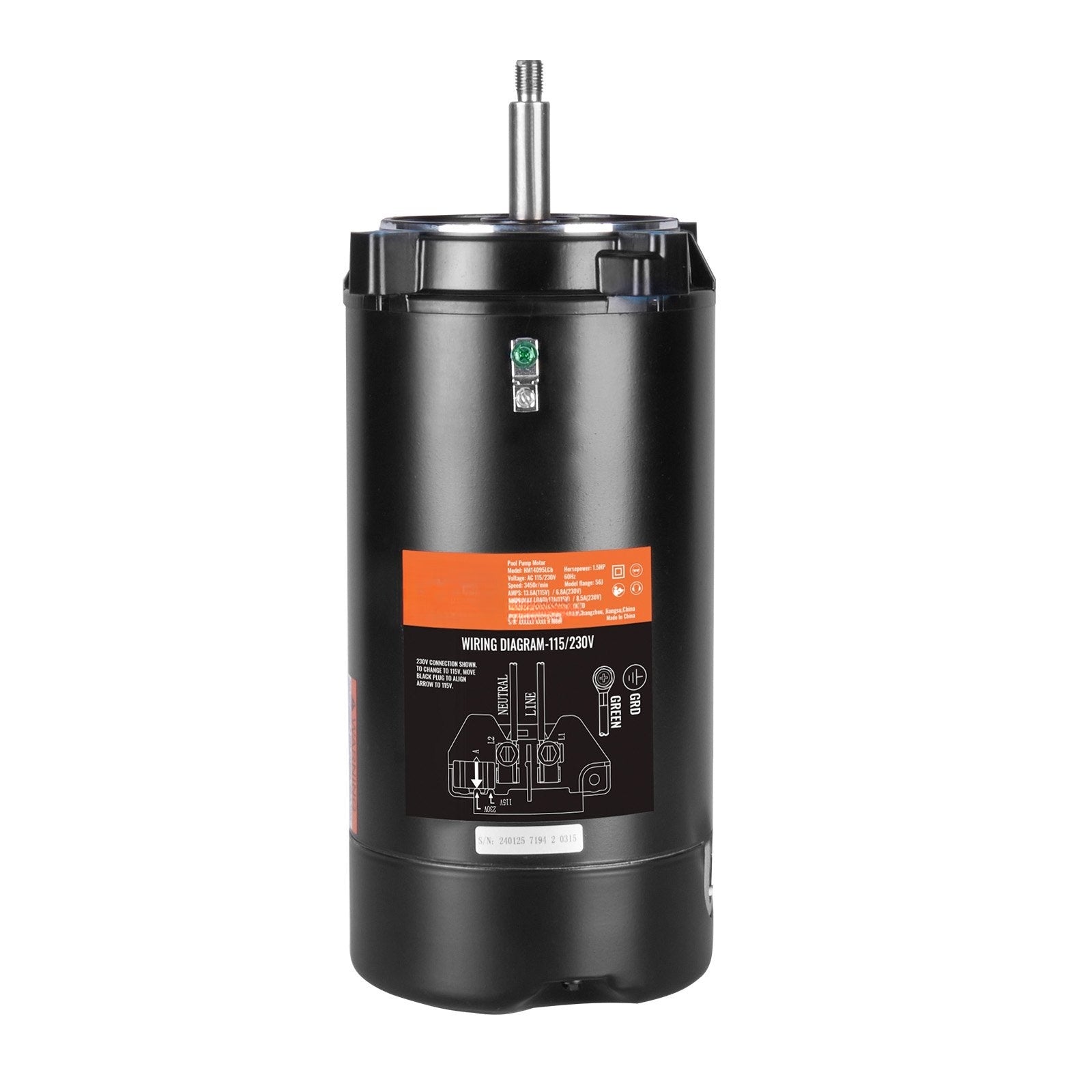

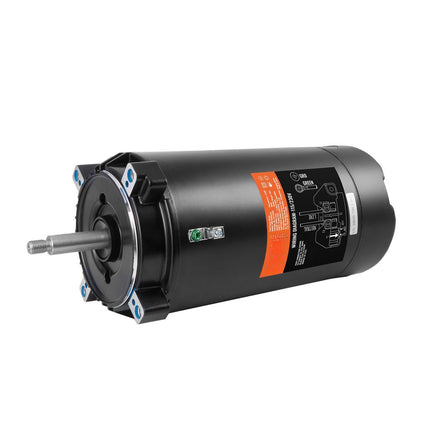

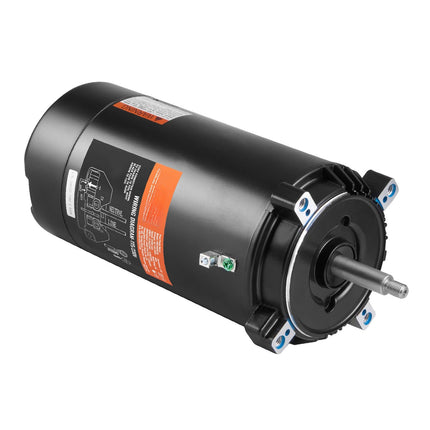

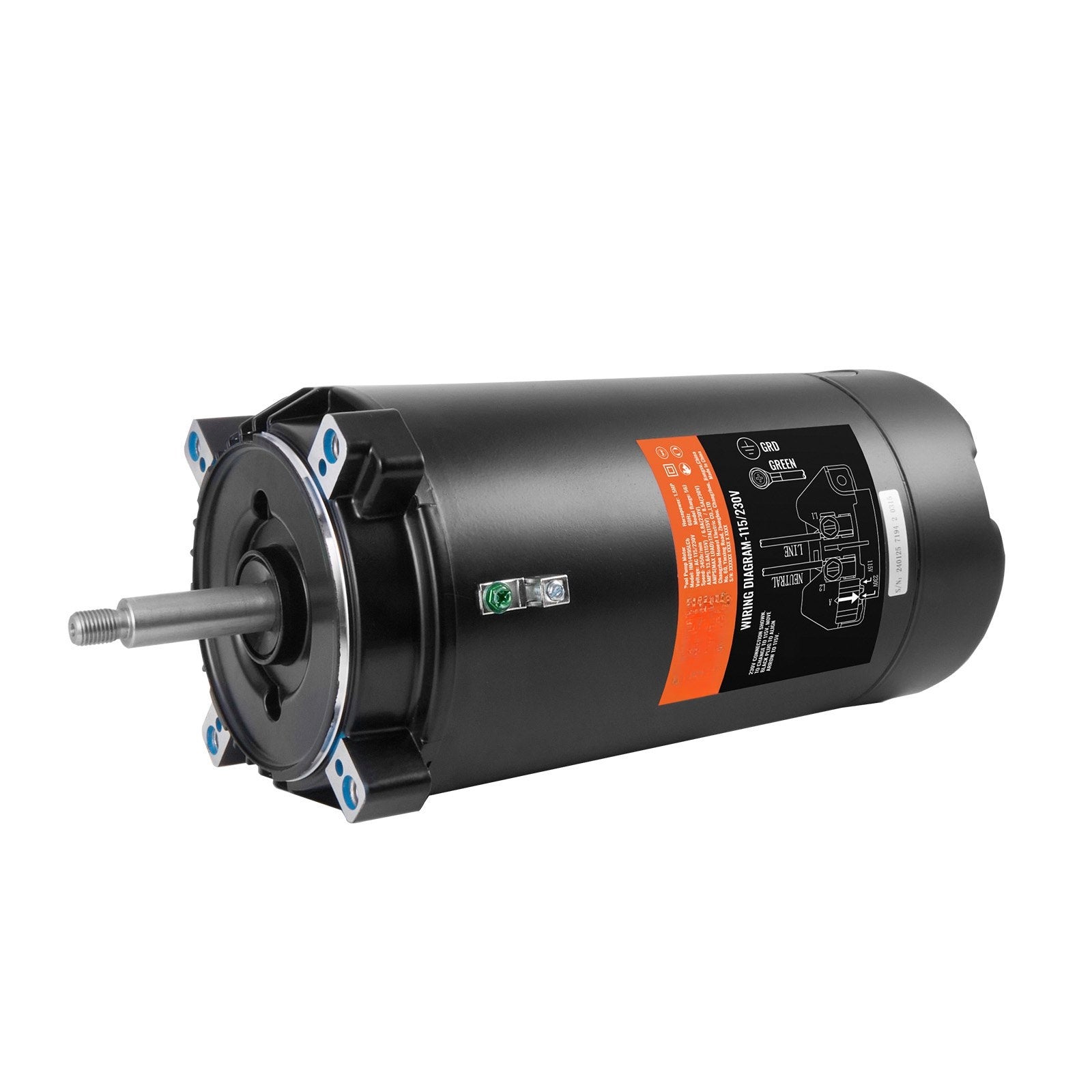

Pool Pump Motor 1.5 HP, 56J, 115/230V, 3450 RPM

1.5 HP pool pump motor replacement restores strong water circulation fast, helping your filtration system move water at 3450 RPM with dependable start-ups and steady runtime. Built for dual-voltage 115/230V setups and a 56J round flange, it’s a practical swap when your existing pump motor runs loud, overheats, or can’t keep pressure. Designed for stable operation with overload protection and corrosion-resistant housing.

• Delivers 3450 RPM performance to keep pool water moving for consistent filtration and turnover


• Fits 56J round flange pump setups with CCW rotation for common pool pump configurations


• Supports 115V or 230V wiring to match many residential and light commercial electrical systems


• Reduces noise with ≤65 dB operation for quieter equipment pads and backyard comfort


• Includes a 90μF/250V capacitor and overload protection to help prevent downtime from heat buildup

When circulation drops, water clarity and chemical balance can slip quickly—swap in a motor built to handle continuous pool duty. This replacement motor pairs a steel housing with ball-bearing construction for smooth rotation and stable output under load. With dual-voltage compatibility and 56J mounting, it’s made to streamline replacement planning and reduce installation headaches. Confirm voltage, frame/flange, and rotation before ordering, then grab yours today and get your pool system back to steady flow.

• Horsepower: 1.5 HP


• Frame/Flange: 56J round flange


• Rotation: CCW


• Speed: 3450 RPM (no-load)


• Frequency: 60 Hz


• Voltage: AC 115V / 230V


• Current: 13.6A (115V) / 6.8A (230V)


• Max load current: 17A (115V) / 8.5A (230V)


• Service factor: 1.3


• Capacitor: 90μF / 250V


• Noise level: ≤65 dB


• Dimensions: 14.6 x 6.5 x 6.5 in (370 x 165 x 165 mm)


• Thread size: 3/8-16 UNC; Output screw: 7/16-20 UNF-2A; Shaft extension: 1.9 in
