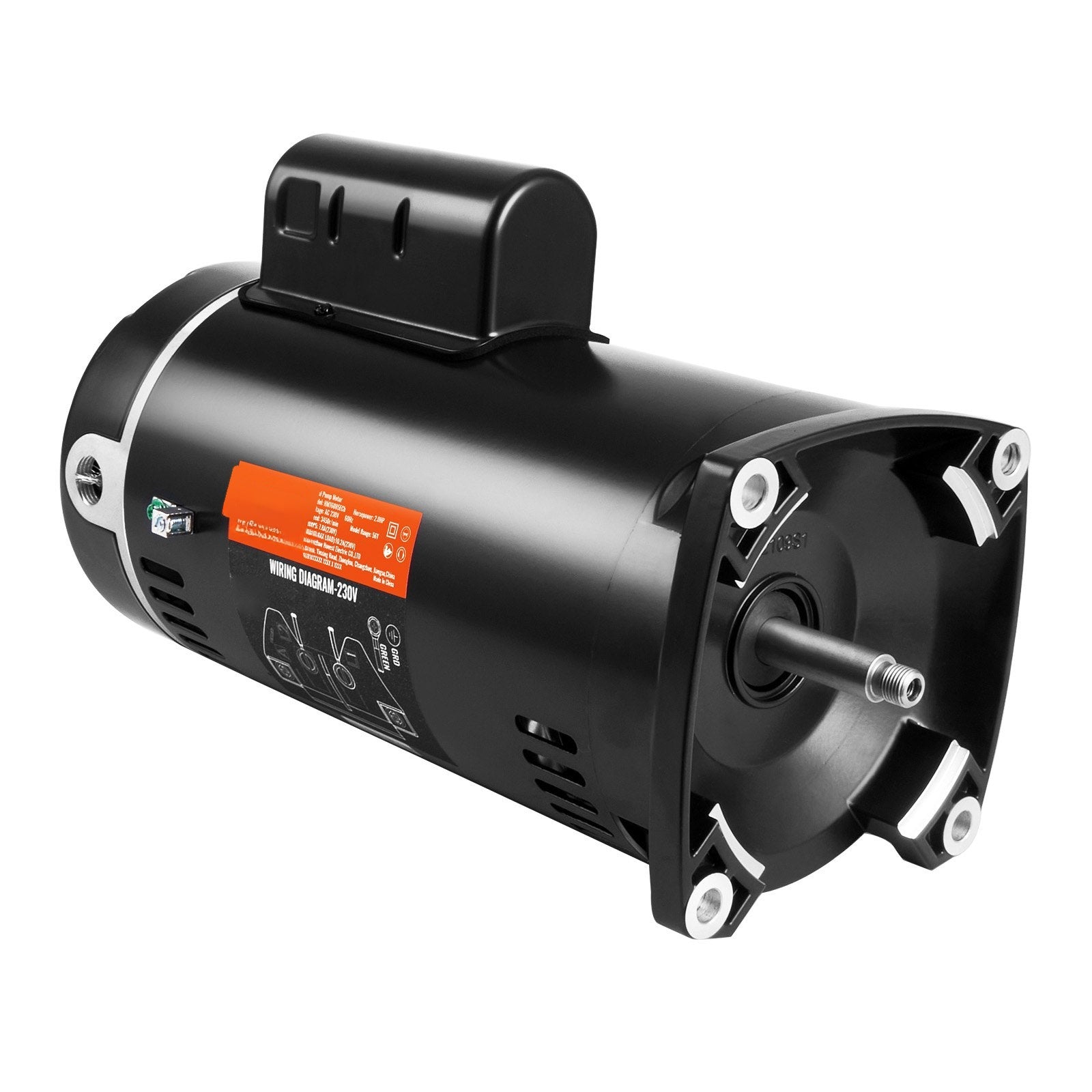

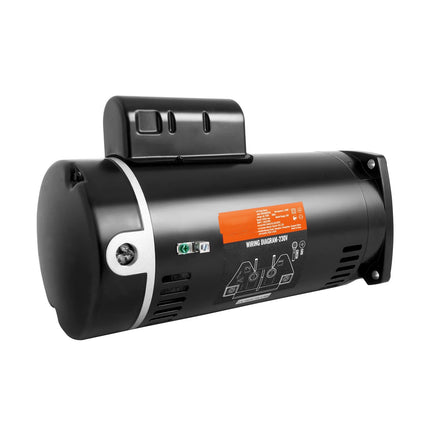

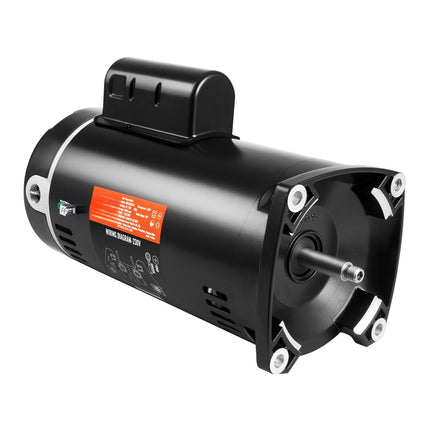

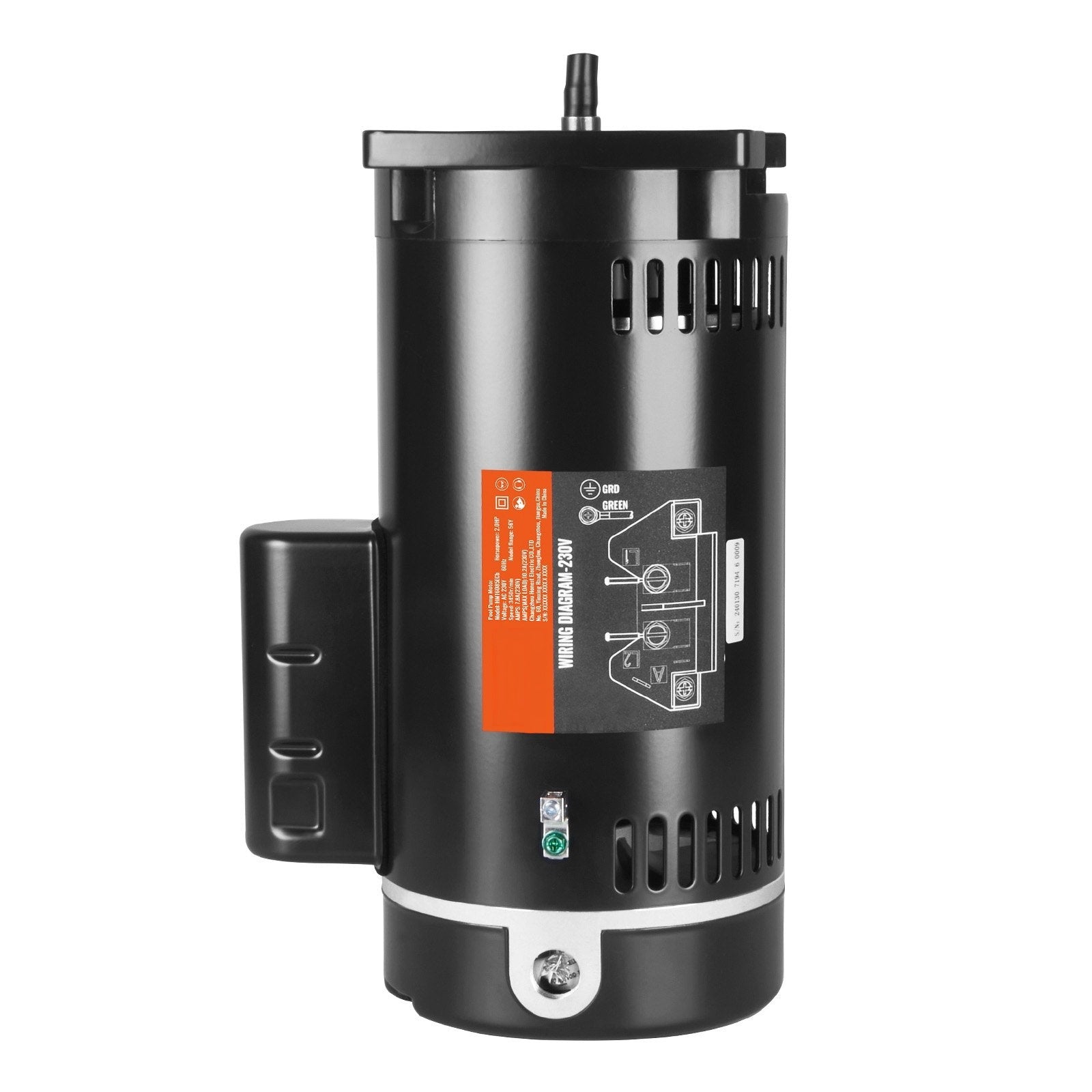

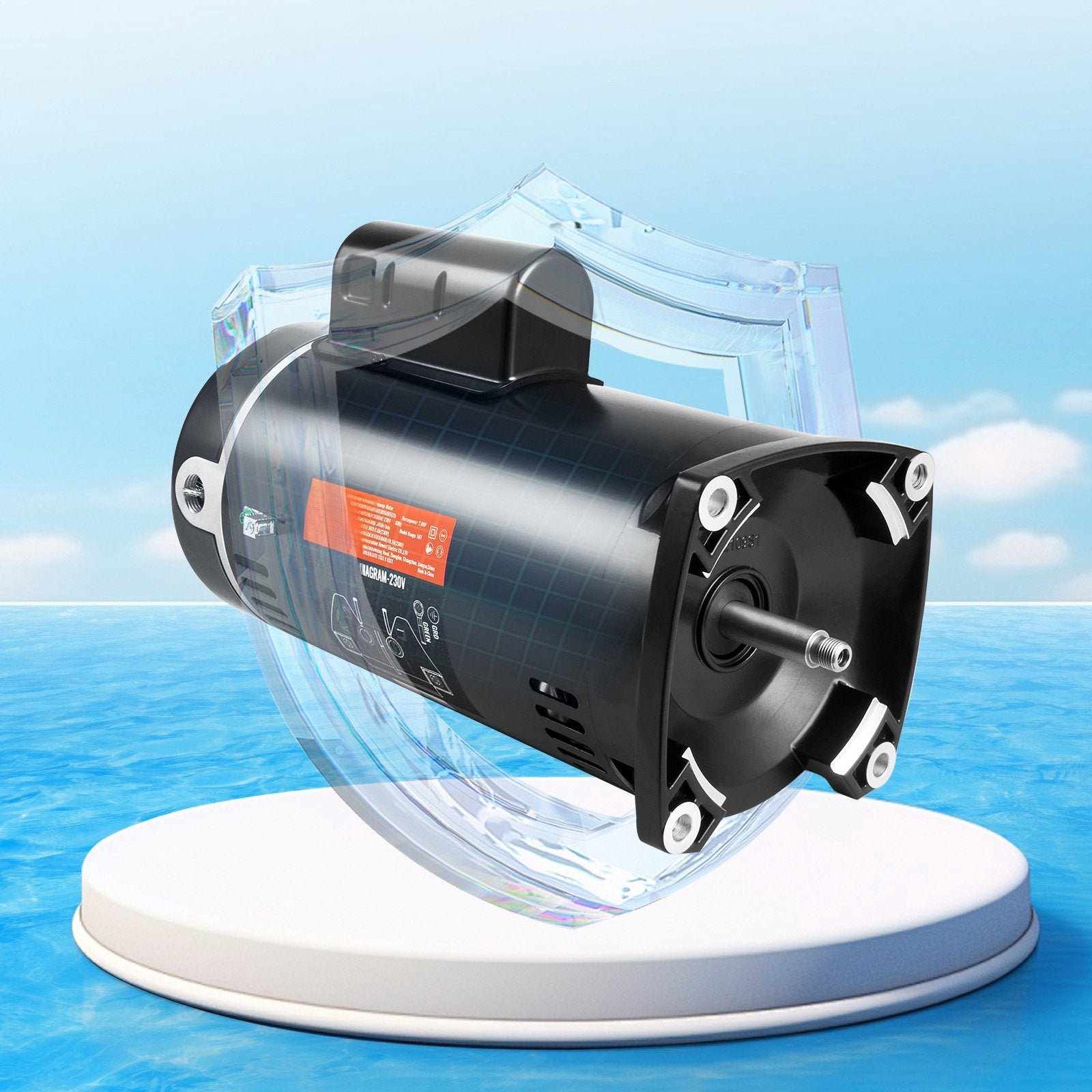

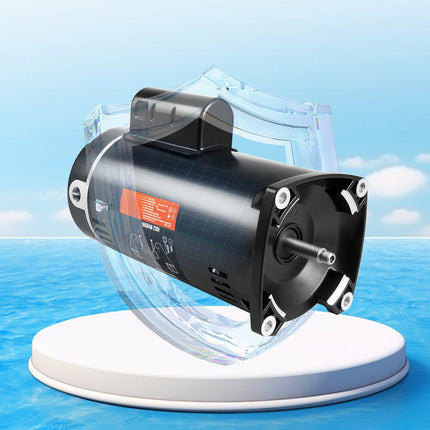

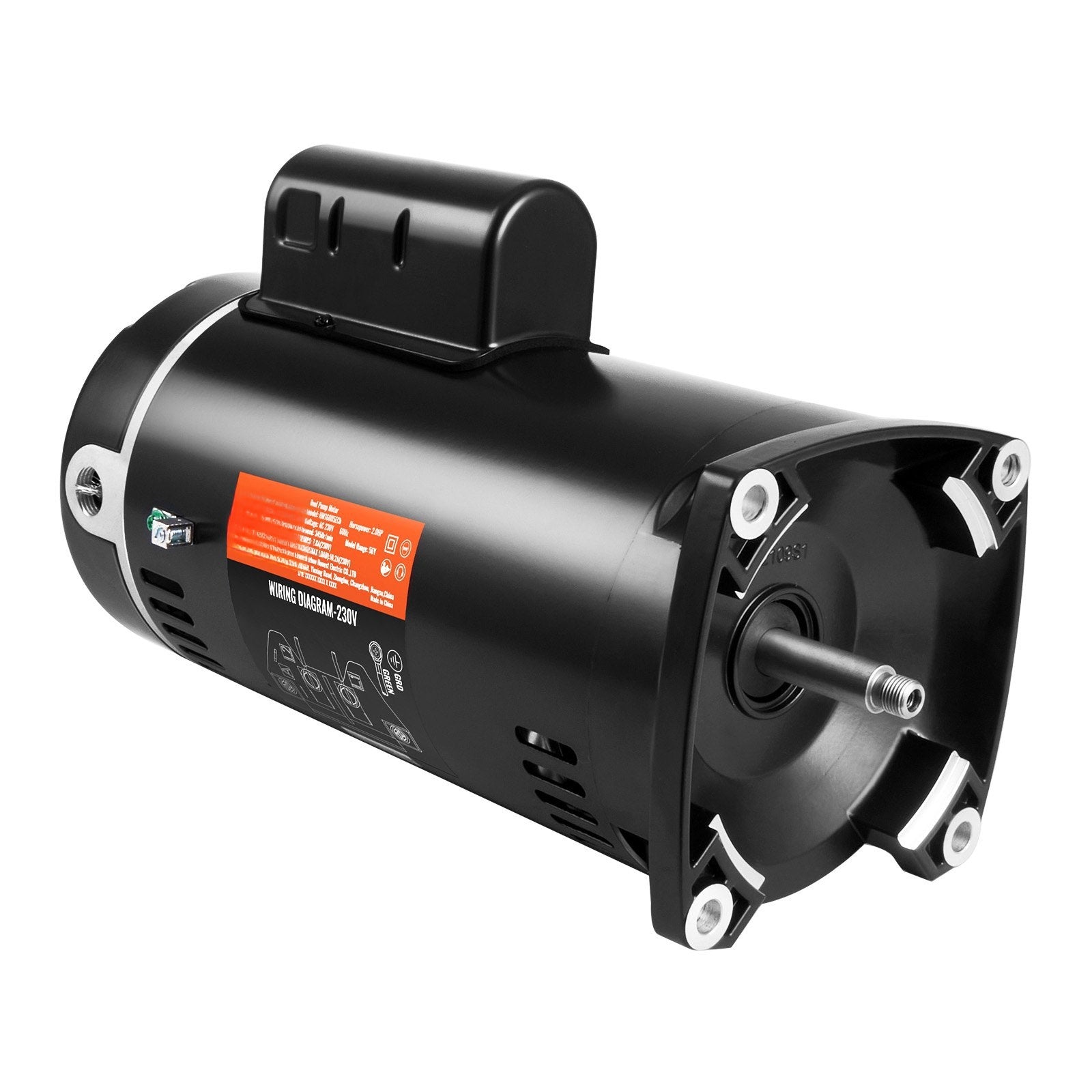

Pool Pump Motor 2 HP, 230V, 56Y Frame, 3450 RPM

2 HP pool pump motor replacement restores strong circulation fast, helping keep your water clear and your system running smoothly. Built for 56Y square flange setups, this 230V motor delivers 3450 RPM for high-flow performance with stable operation and low noise (≤70 dB). Corrosion-resistant housing, ball bearings, and overload protection support dependable daily use in residential or commercial pool systems.

• Delivers 3450 RPM high-speed output for efficient water circulation and stronger pump performance.


• Fits 56Y square flange pool pumps for straightforward replacement on compatible setups.


• Reduces downtime with installation-friendly shaft and thread specs plus an included user manual.


• Protects equipment with overload protection, ball-bearing construction, and corrosion-resistant housing.


• Maintains quieter operation with a rated noise level of ≤70 dB for more comfortable poolside use.

Swap out a weak or failed motor and bring your pool pump back to consistent, reliable operation. This high-efficiency 230V replacement motor is engineered for stable starts, smooth running, and sustained power under load, making it a practical choice for seasonal service calls or proactive maintenance. Confirm your pump’s frame/flange style and electrical requirements before ordering to ensure a clean fit and safe wiring. Grab yours today and get your circulation back on schedule.

• Motor power: 2 HP


• Frame / flange: 56Y square flange


• Voltage / frequency: AC 230V, 60Hz


• Speed: 3450 RPM (no-load)


• Current: 7.8A (rated), 10.2A (max load)


• Service factor: 1.3


• Capacitor: 50μF / 250V


• Rotation: CCW


• Noise level: ≤ 70 dB


• Shaft extension: 0.9 in


• Output screw teeth: 1/2-20UNF-2A


• Mounting thread size: 4-φ10.8mm


• Dimensions: 14.4 x 6.5 x 9.1 in (366 x 165 x 230 mm)


• Net weight: 34.4 lb (15.6 kg)
