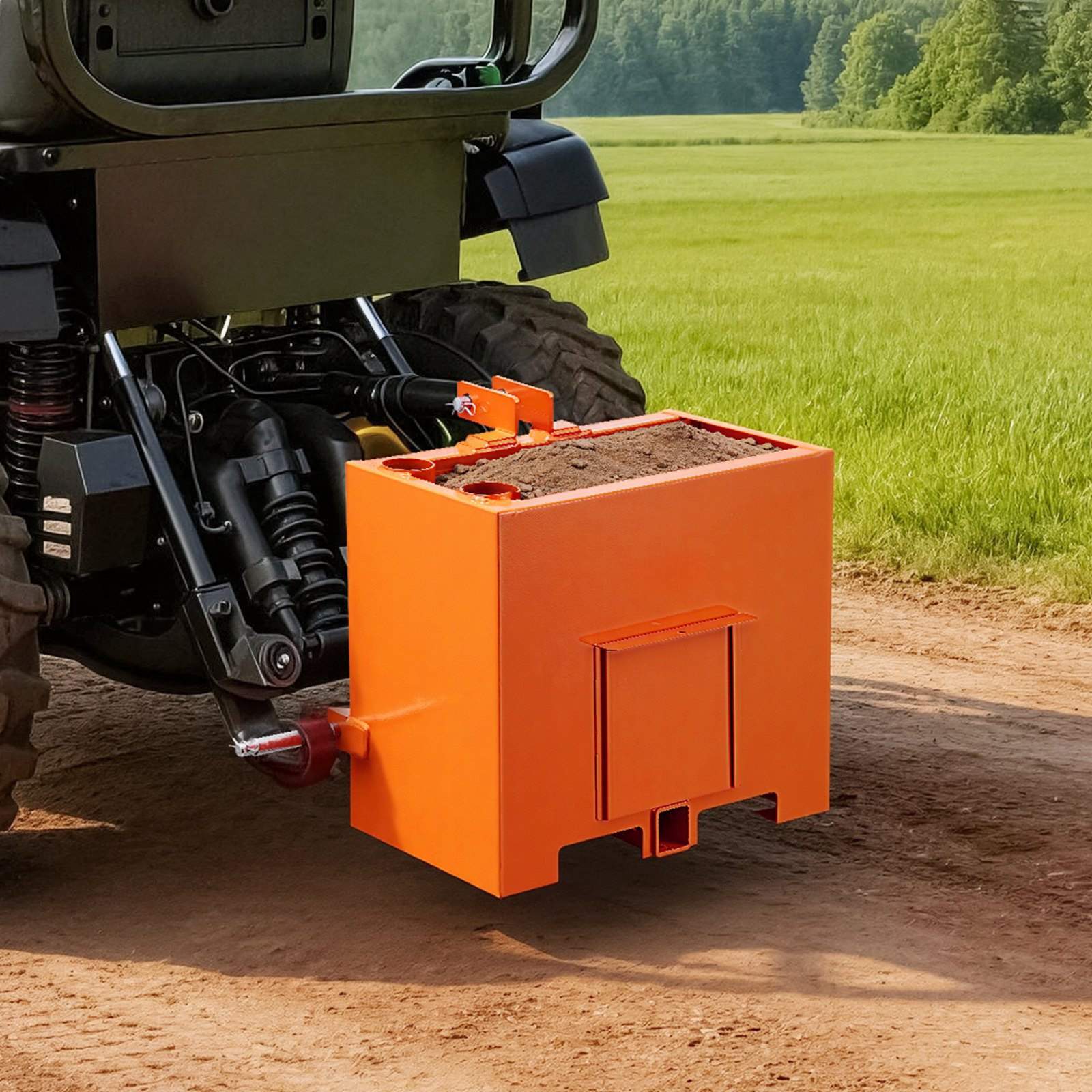

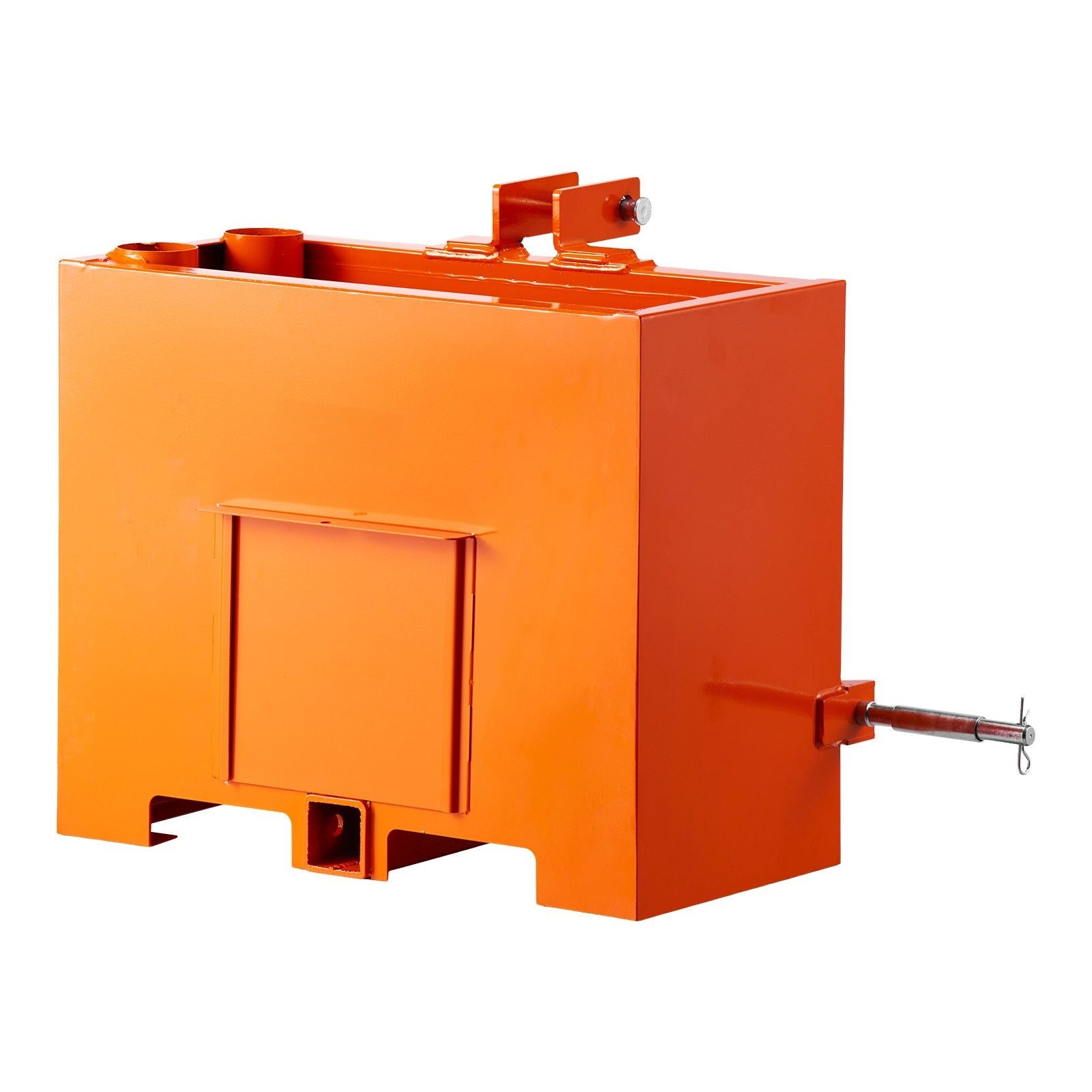

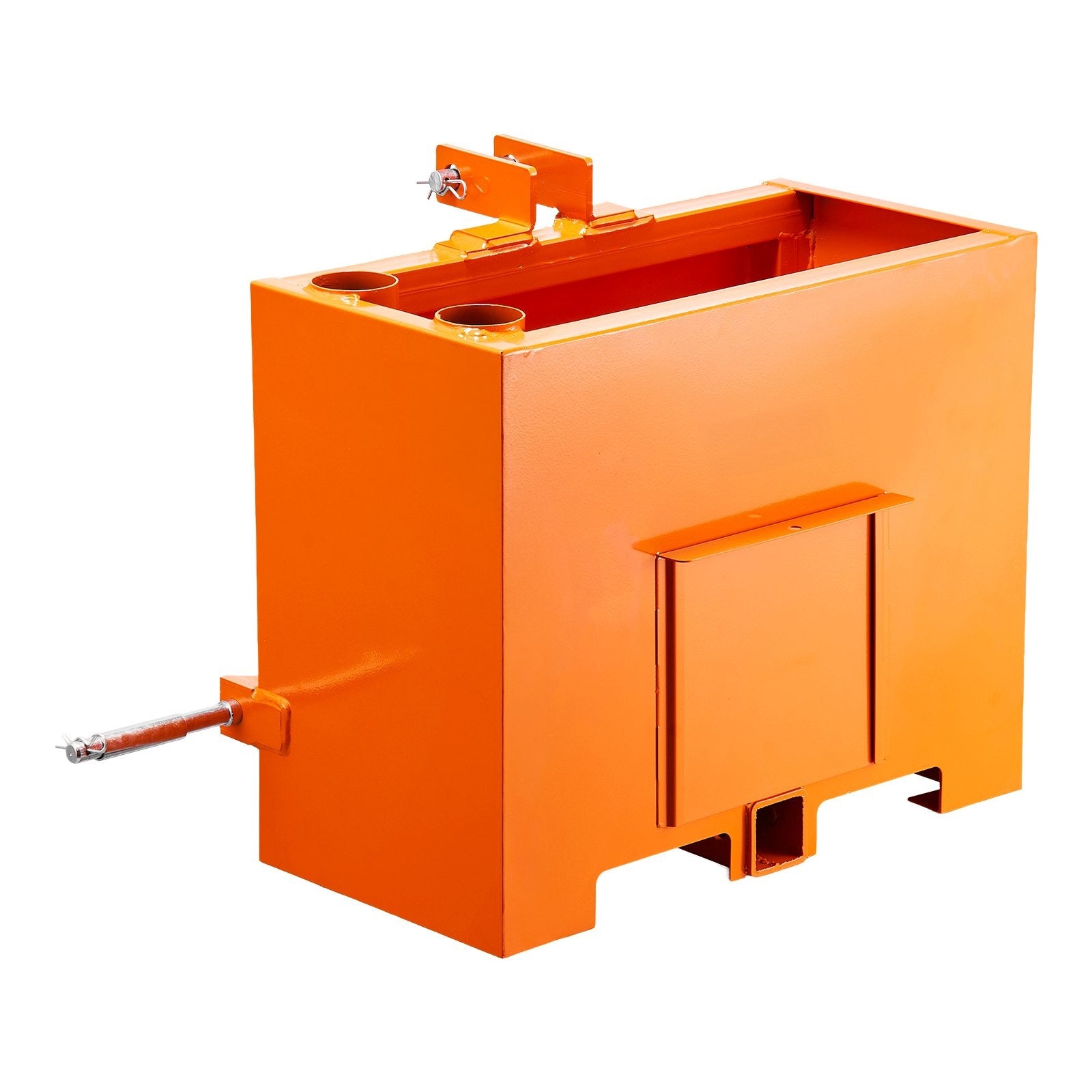

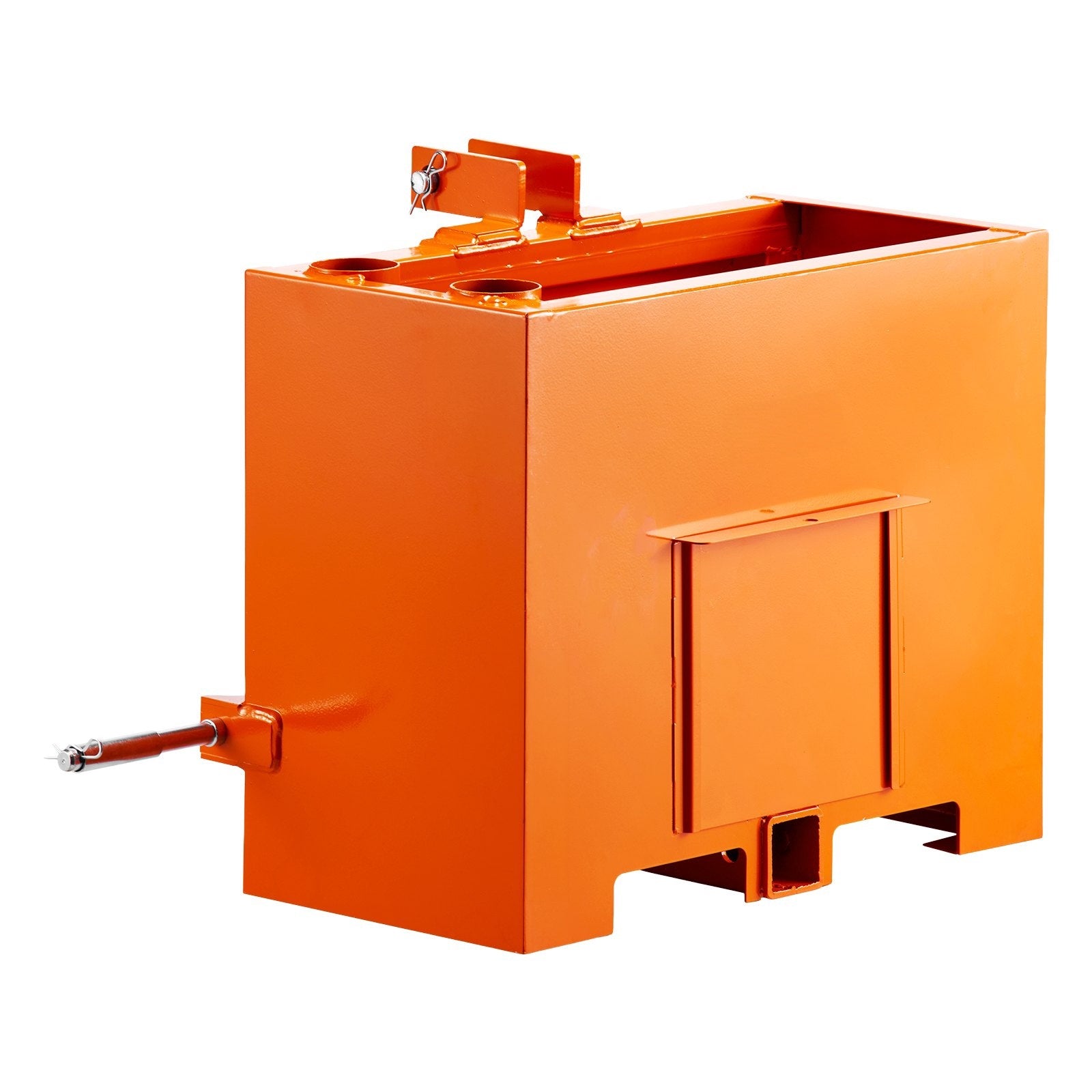

Tractor Ballast Box, Cat 1 3-Point, 800 lb, 2 in Receiver

Tractor ballast box adds rear weight to improve stability and reduce tip-over risk when using a front loader or rear implements. Built from heavy-duty Q235 steel with a rust-resistant coating, this Category 1 3-point hitch ballast box holds up to 800 lb/363 kg of sand, gravel, or similar fill. A sliding door makes weight changes faster, while the integrated tool holder and standard 2" hitch receiver keep towing and tools within easy reach.

• Delivers up to 800 lb/363 kg ballast capacity to improve rear balance during loader work


• Fits Category 1 3-point hitch tractors for quick, stable attachment on common compact tractors


• Includes top pin, side pins, R-clips, and bushings for straightforward installation

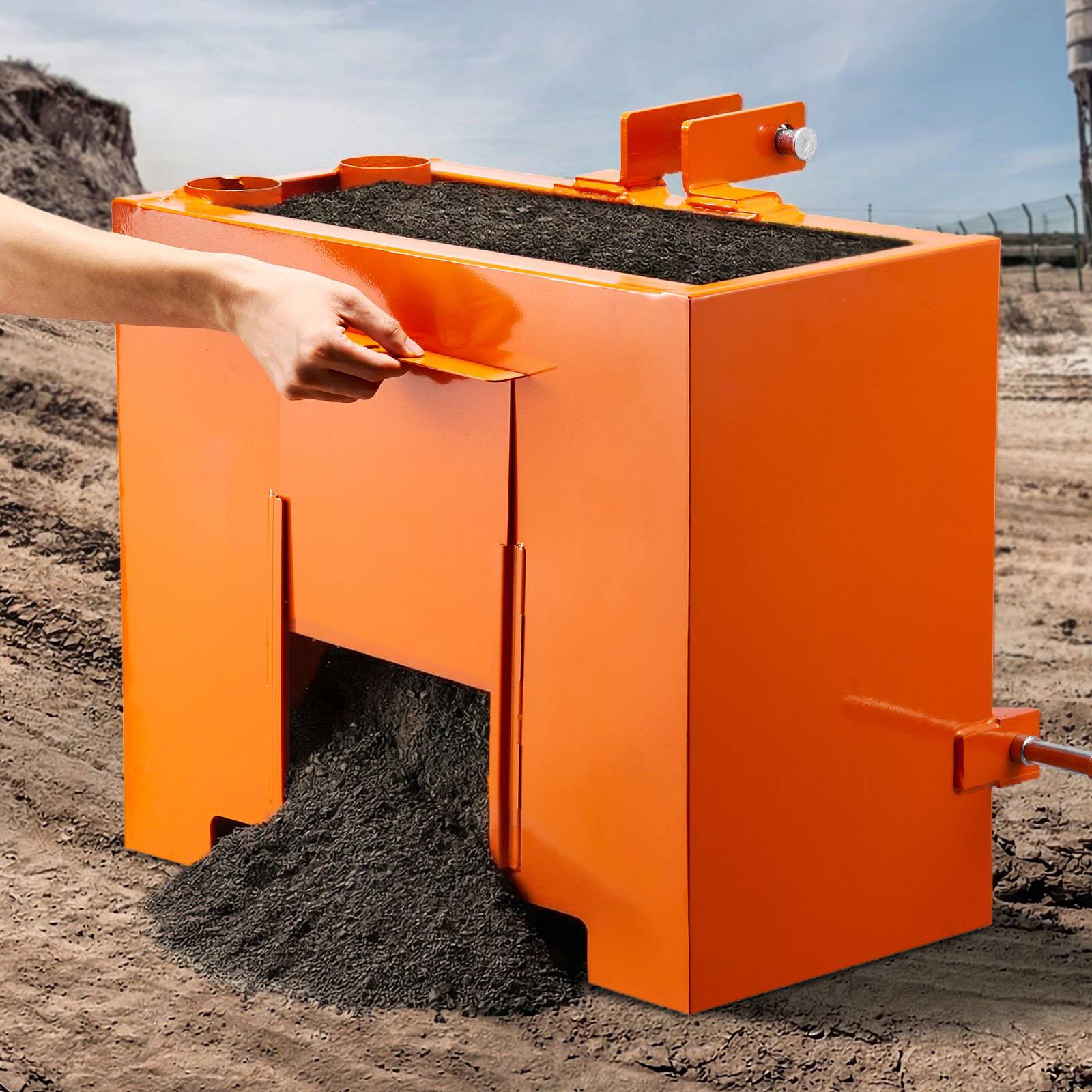

• Simplifies unloading with a sliding door for faster emptying and weight adjustments


• Adds utility with a 2" receiver and tool rack to carry tools or connect small accessories

Set your tractor up for safer, more controlled handling on the farm, driveway, or jobsite. This rear ballast box is designed to be filled with common materials, giving you flexible counterweight for lifting, grading, and routine property maintenance. Reinforced welds and a double-layer protective finish help it hold up to daily use and changing weather. If you need a compact tractor counterweight that also supports light towing and tool storage, grab yours today and keep your equipment better balanced.

• Type: Category 1 3-point hitch tractor ballast box


• Load capacity: 800 lb / 363 kg


• Volume: 3.2 ft³ / 0.09 m³


• Material: Q235 steel


• Color: Orange


• 2" hitch receiver: 55 mm standard receiver


• Hitch ball connection inner width: 2.6 in / 65 mm


• Side pins: Φ18 x 200 mm (Φ0.70 x 7.87 in)


• Top pin: Φ19.6 x 105 mm (Φ0.77 x 4.13 in)


• Sliding door: 240 x 240 x 30 mm (9.44 x 9.44 x 1.18 in)


• Tool holder outer diameter: 70 mm / 2.75 in


• Dimensions without hitch: 600 x 305 x 495 mm (23.62 x 12 x 19.49 in)


• Dimensions with hitch: 615 x 383 x 550 mm (24.21 x 15.07 x 21.65 in)


• Net weight: 26.7 kg / 58.86 lb
