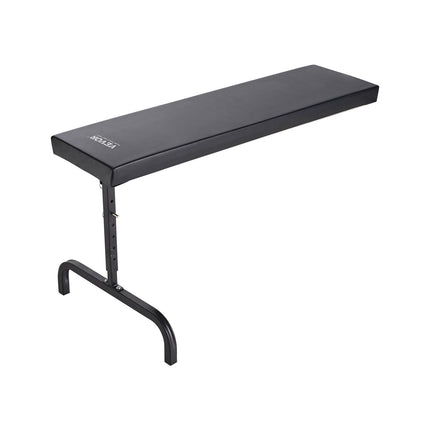

Under-Dash Mechanic Creeper, Adjustable Height, 330 lb

Under dash creeper support gives you stable, elevated access under dashboards and steering wheels while reducing lower-back strain during wiring, HVAC, and pedal work. The 40 in padded platform supports your full back, and the single-side frame leaves room for arms and tools inside the car or truck. With 6 height positions (20.3–27.4 in), it adjusts fast to fit different vehicle heights in home garages and professional shops.

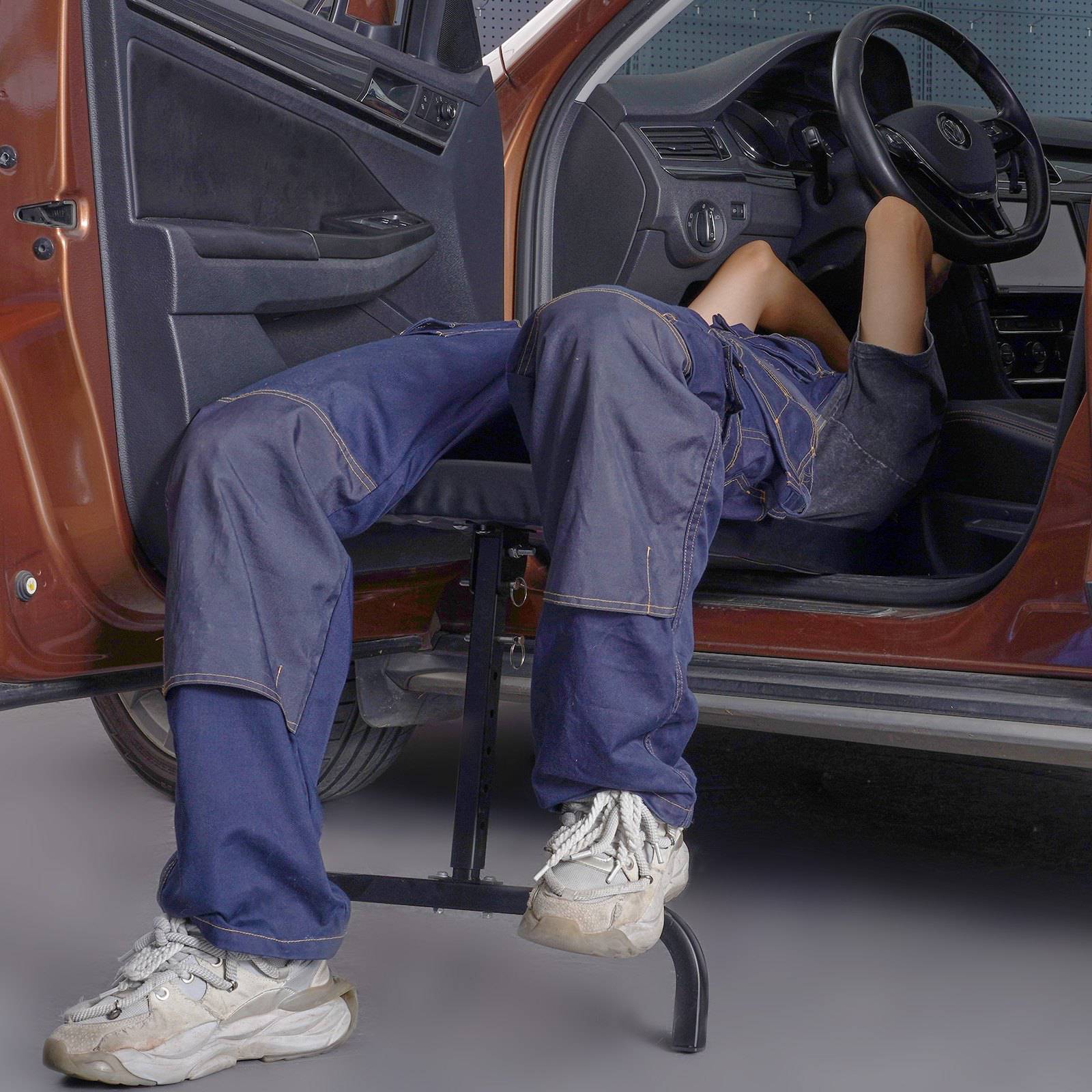

• Delivers elevated under-dash access for easier work on steering columns, wiring, and pedals


• Adjusts to 6 height levels from 20.3–27.4 in using pin-lock holes for quick setup


• Supports up to 330 lb with a rigid Q235B steel frame and welded joints for stability


• Provides full-back comfort with a 40 in vinyl cushion and thick padding that resists sagging

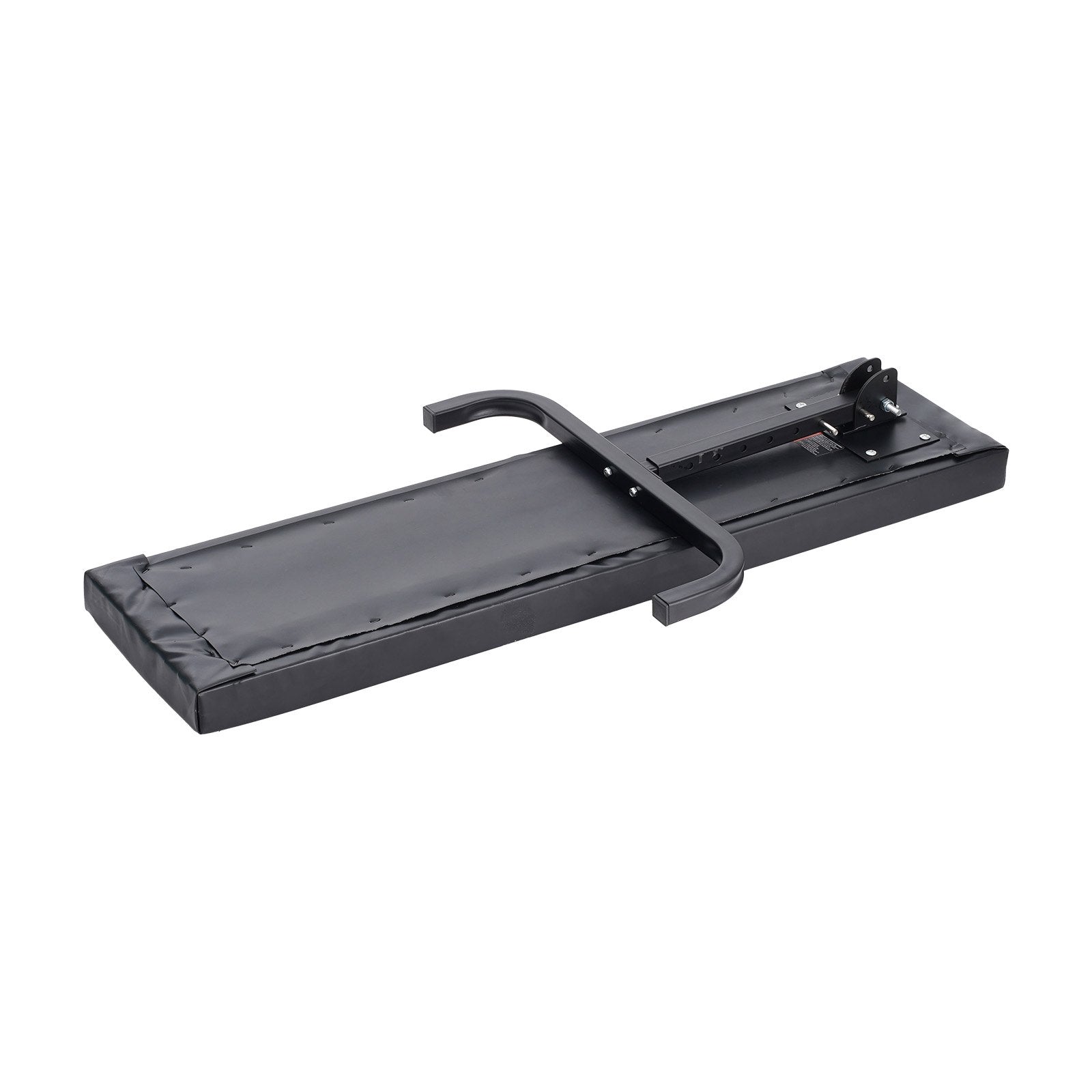

• Folds down fast with a pull-link pin for compact storage under benches or in corners

Make under-dash jobs less cramped and more controlled. This adjustable mechanic creeper helps you stay supported at the right working height, so you can focus on diagnosing and repairing without constantly repositioning. The long, cushioned surface is built for extended sessions, while the foldable stand keeps your space clear when the job is done. Grab yours today to streamline under-dashboard work on cars, SUVs, and light trucks.

• Length: 40 in / 1016 mm


• Height range: 20.3–27.4 in / 515–695 mm (6 positions)


• Max load capacity: 330 lb / 149.7 kg


• Seat cushion size: 39.0 x 10.4 in / 990 x 265 mm


• Product dimensions: 39.0 x 19.3 x 20.3–27.4 in / 990 x 490 x 515–695 mm


• Net weight: 11.0 lb / 5 kg (±3%)


• Main material: Q235B steel


• Height hole spacing: 1.4 in / 36 mm


• Square tube sizes: 20x20 mm (rod), 25x25 mm (seat & base)
