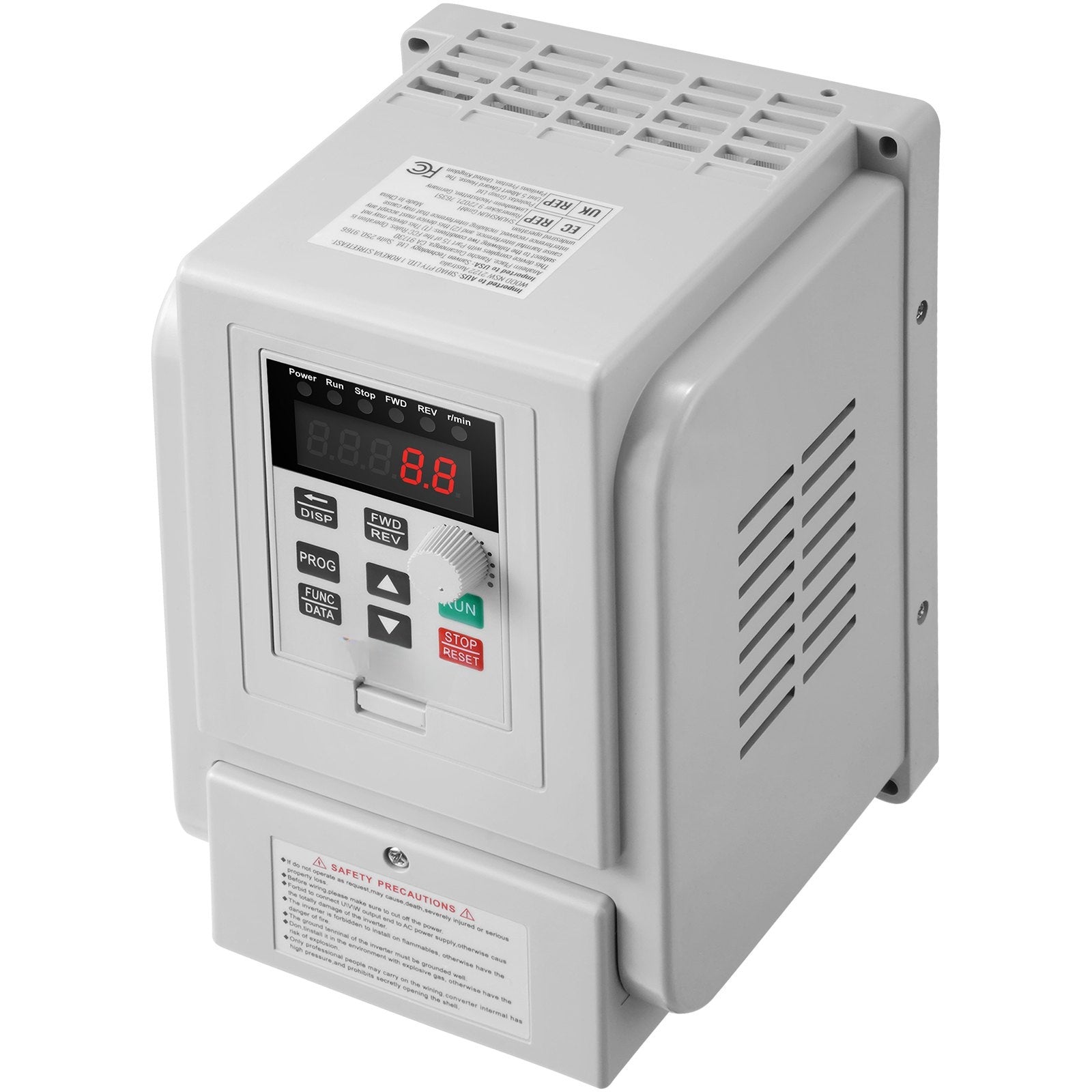

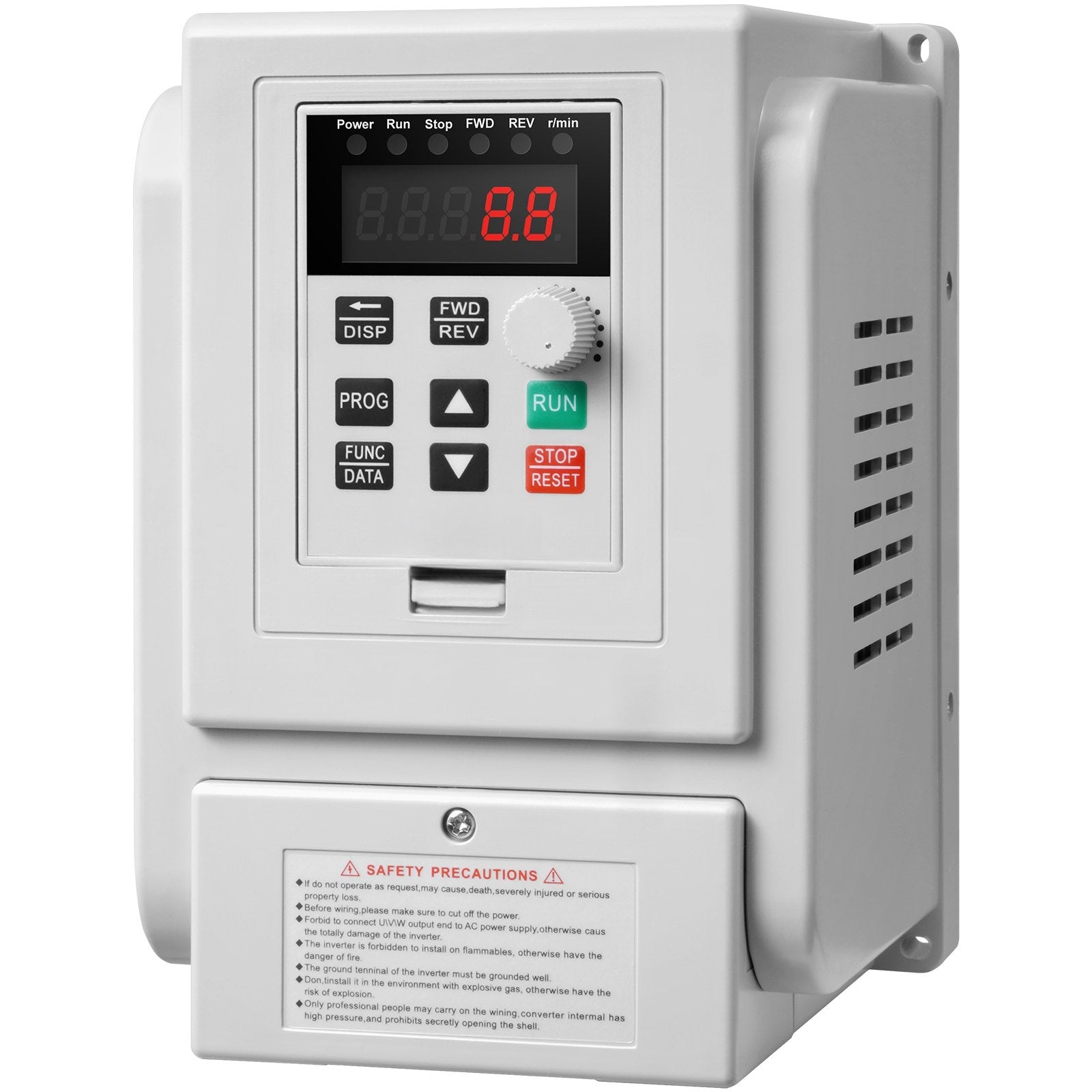

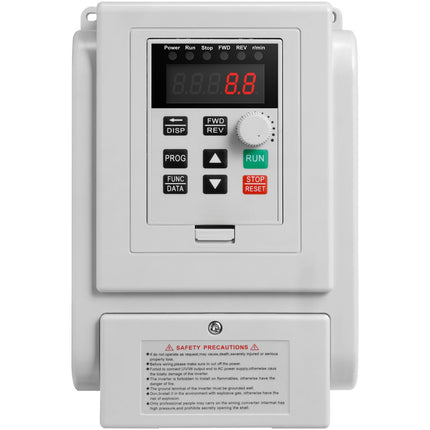

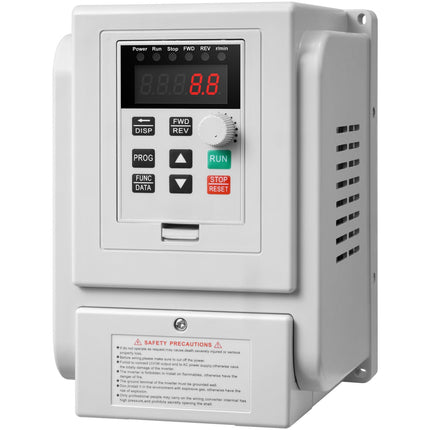

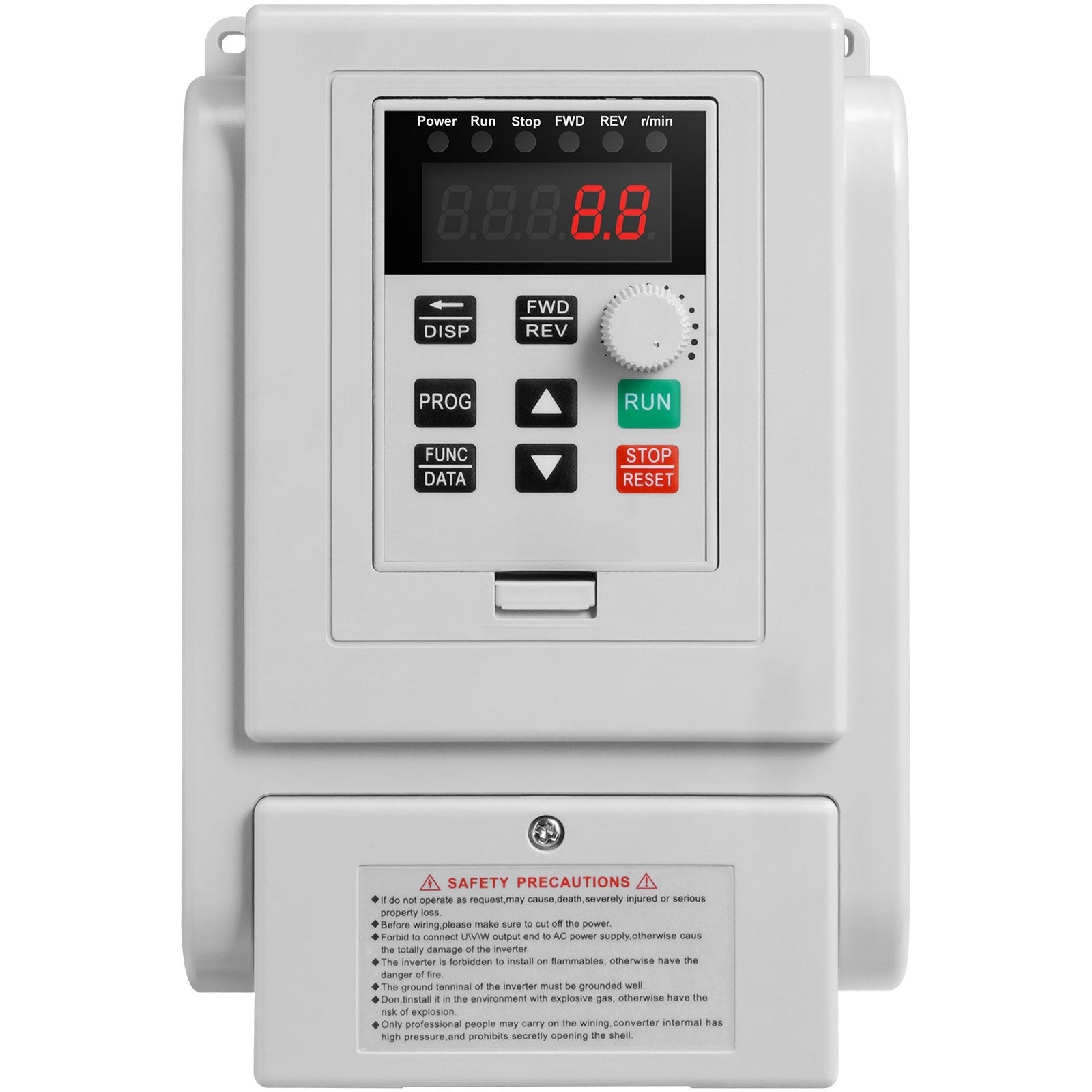

Variable Frequency Drive 2.2kW 3HP, 10A, 3-Phase Output

Variable frequency drive 2.2kW delivers smooth 3-phase motor speed control from a single-phase 220–240V supply, helping reduce startup shock and keep RPM stable. Designed for quick setup, it features a clear display, simple parameter tuning, and a detachable control panel for flexible mounting. Built-in protection and efficient cooling support reliable operation for workshops, retrofit projects, and light industrial machinery where consistent motor control matters.

• Delivers 2.2kW/3HP output with 0–400Hz frequency range for precise speed control


• Converts AC 220–240V single-phase input to AC 220–240V three-phase output for 3-phase motors


• Protects with 10-level safeguards including overcurrent, overload, overvoltage, and phase loss


• Supports easy use via intuitive panel, clear screen, and frequency knob; detachable panel w/ 7.9 in cable


• Cools efficiently with multi-vent housing and built-in fan for extended, low-noise operation

Use this VFD inverter drive to run compressors, lathes, fans, milling machines, and other 3-phase motor equipment with controlled acceleration and deceleration. The triple-proof coated circuit board is built for everyday shop conditions, while the compact, lightweight housing makes mounting and wiring more manageable. Note: external braking resistors are not supported; for heavy loads, choose a higher-power drive to maintain performance. Grab yours today and upgrade your motor control setup.

• Power: 2.2kW (3HP)


• Current: 10A


• Input voltage: AC 220–240V, single phase


• Output voltage: AC 220–240V, three phase


• Input frequency: 50/60Hz


• Output frequency: 0–400Hz


• Operating temperature: 10°C–40°C (50°F–104°F)


• Net weight: 1.2 kg / 2.6 lb (±3%)


• Detachable panel cable length: 7.9 in
