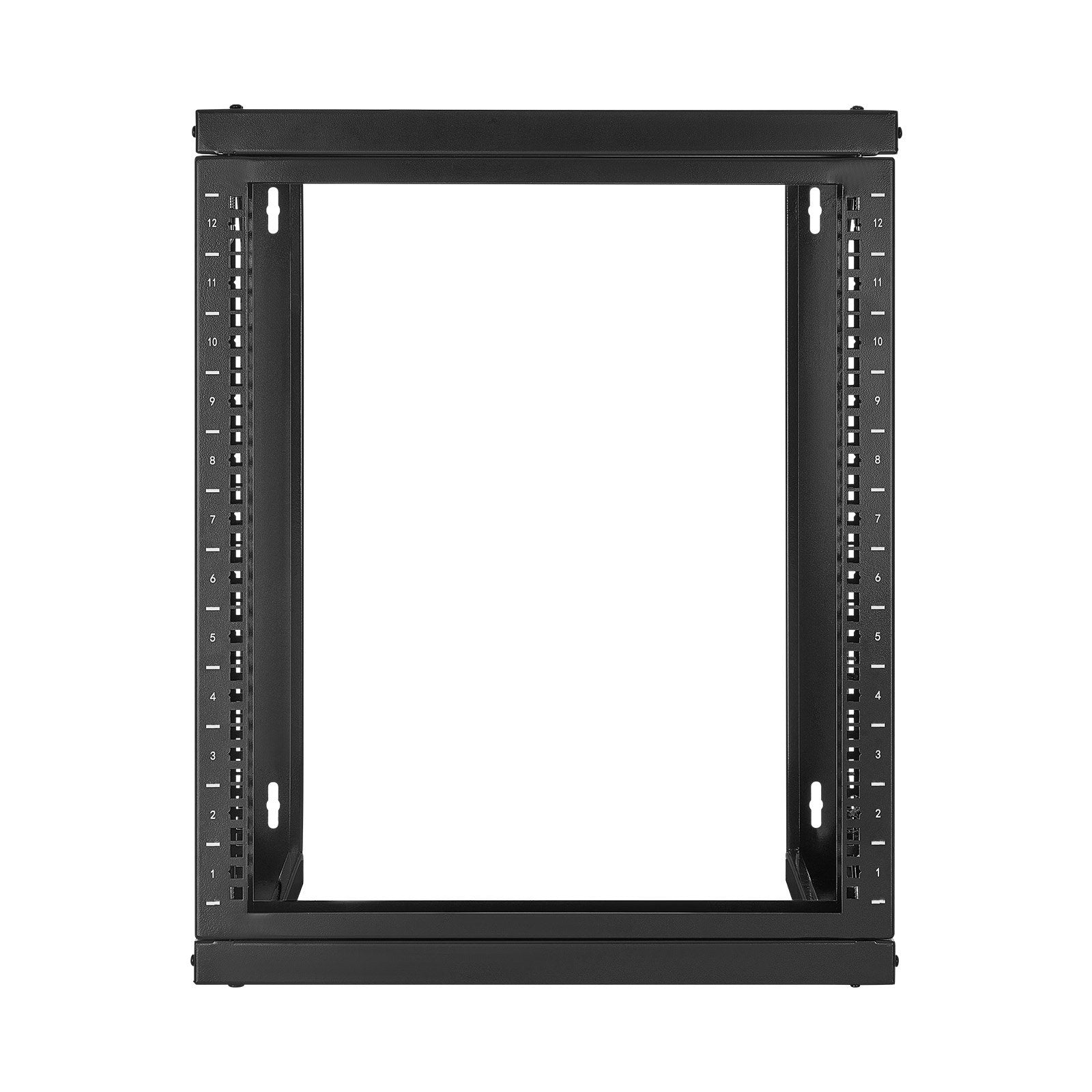

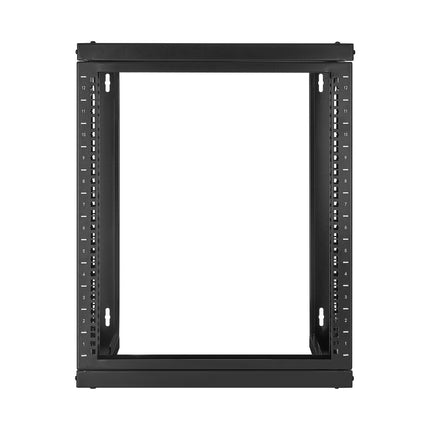

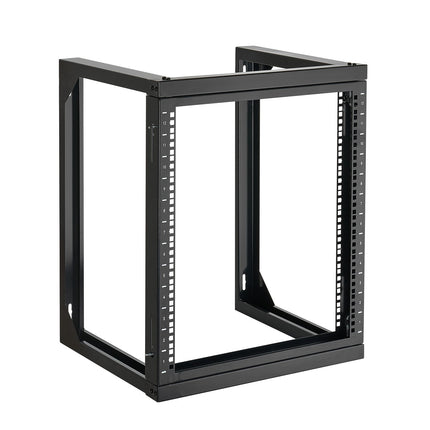

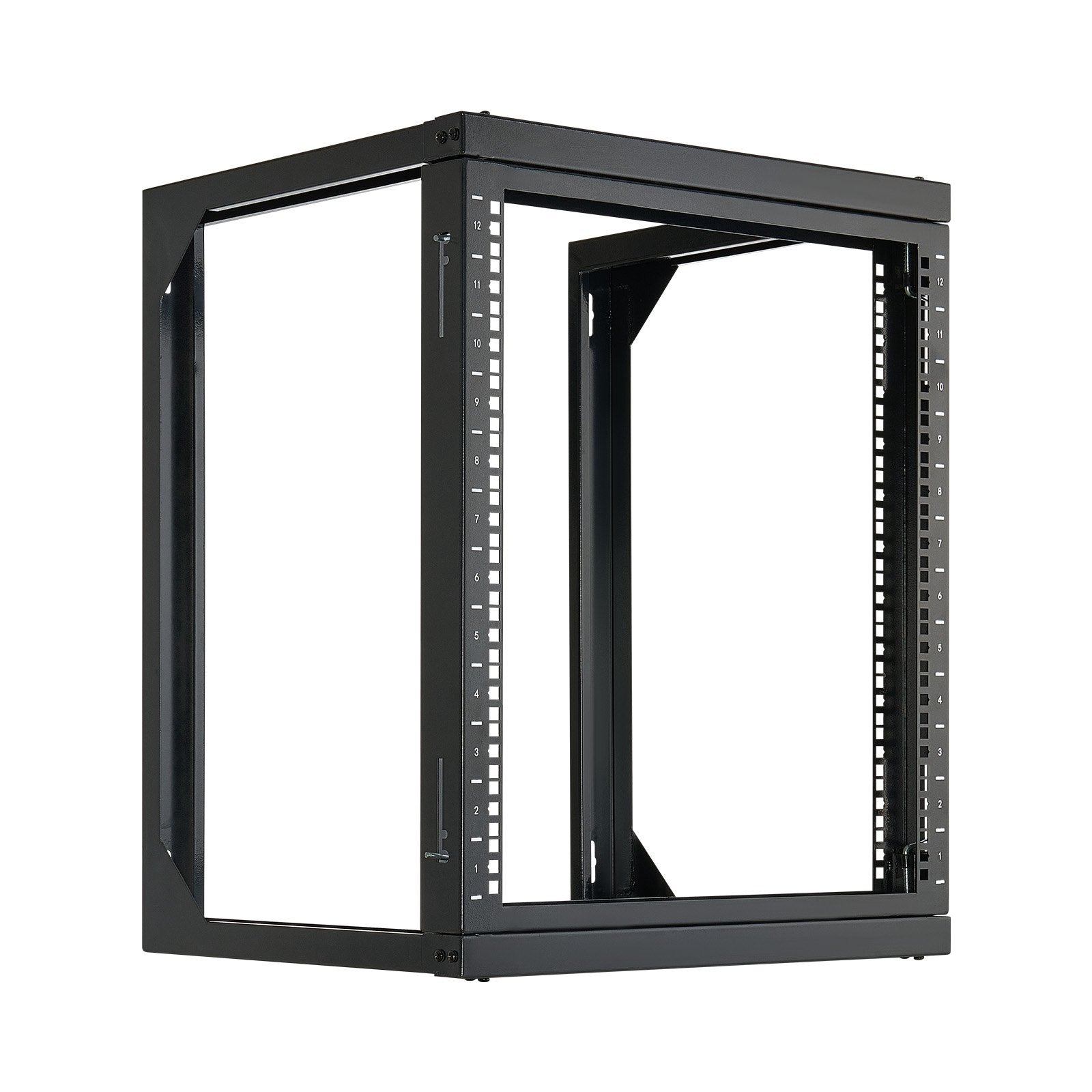

12U Wall Mount Server Rack, 18-Inch Depth, 150 lb, 180-Degree Door

12U wall mount server rack delivers secure, space-saving equipment mounting with 180° swing-door access for faster cable management and maintenance. Built from Q235 carbon steel, this open frame network rack supports up to 150 lb (68.04 kg) for stable installation of standard 19-inch IT and AV gear. Clear measuring marks and multiple mounting hole types help you align rails accurately and fit switches, patch panels, firewalls, and other rackmount devices with less rework.

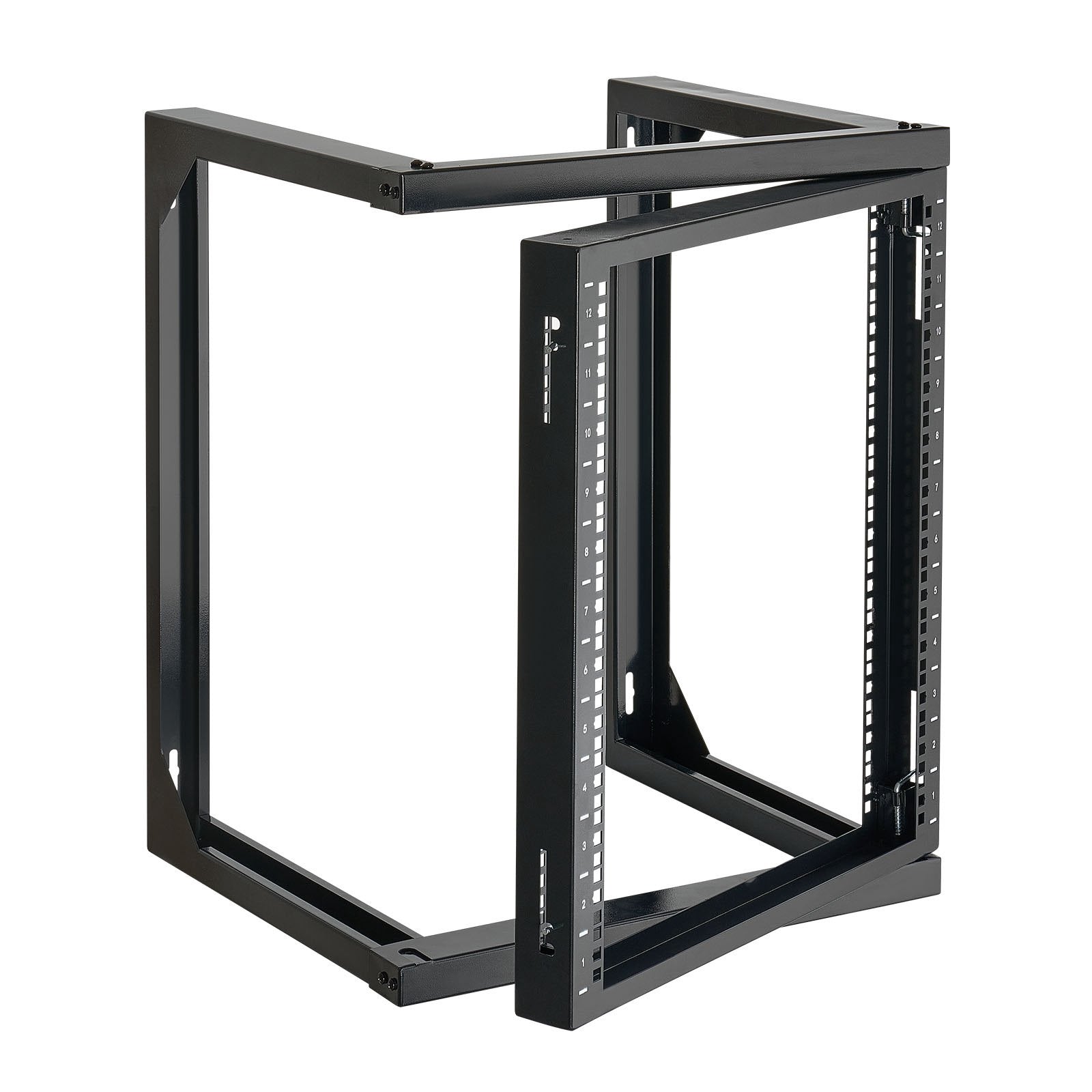

• Delivers 180° gate swing access for easier rear-panel servicing and cable routing


• Supports up to 150 lb/68.04 kg to keep mounted network and AV equipment stable


• Fits standard 19-inch rack equipment in a 12U, 18 in (455 mm) depth wall-mount frame


• Includes screws and cage nuts for direct mounting of servers, switches, and accessories


• Simplifies alignment with clear scale markings plus pre-drilled square, threaded, and wall holes

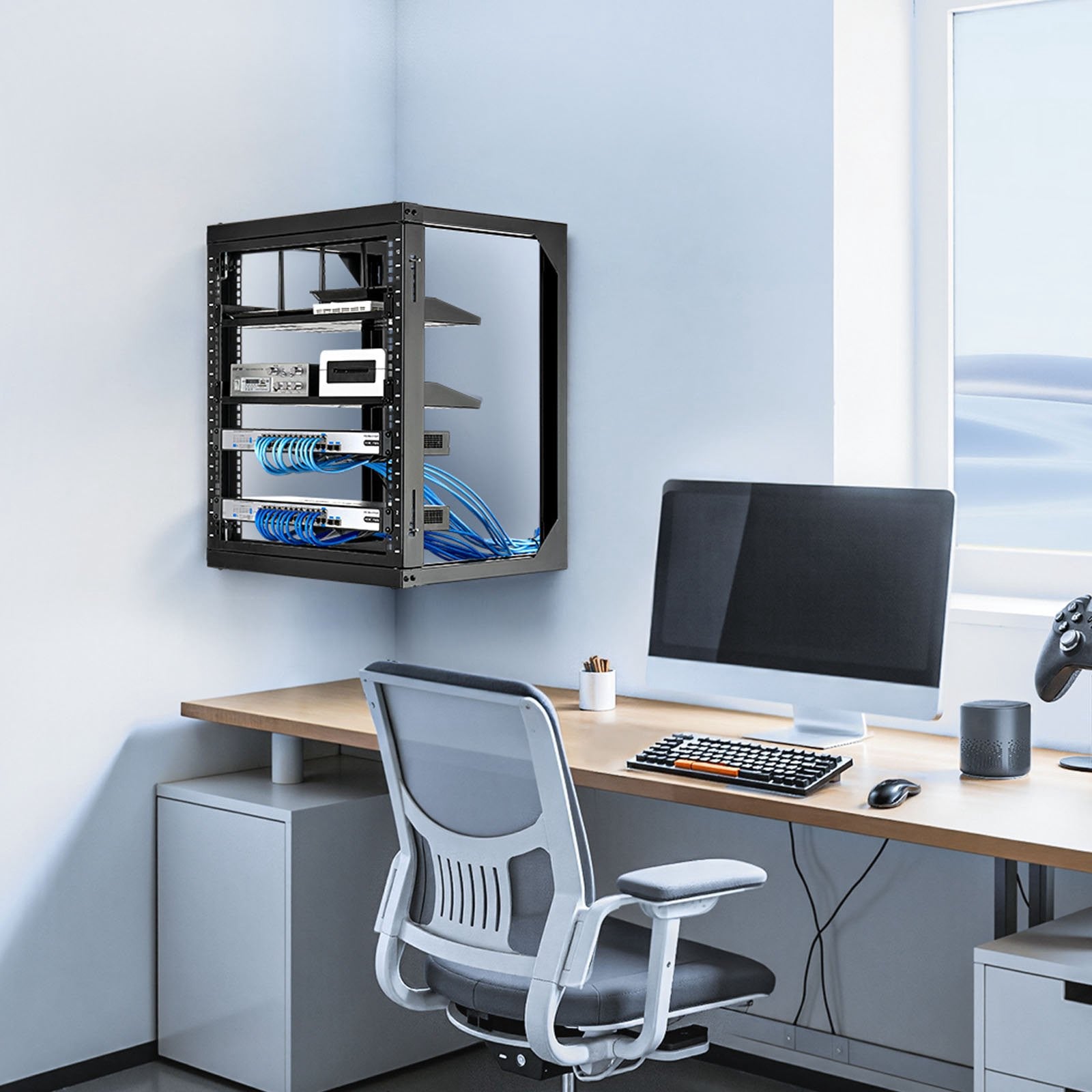

Keep your network rack setup organized while freeing up floor space in offices, closets, studios, and small server rooms. The open frame design improves access and airflow, while the hinged door can be removed during assembly to streamline installation. Add optional 1U or 2U shelves (sold separately) to partition equipment, reduce contact between devices, and maintain a cleaner layout for long-term upgrades. Grab yours today and mount your rackmount hardware with confidence.

• Rack height: 12U


• Max load capacity: 150 lb / 68.04 kg


• Standard mounting width: 20.5 in / 520 mm (for 19-inch equipment)


• Depth: 18 in / 455 mm


• Material: Q235 carbon steel


• Color: Black


• Door swing: 180° hinged, removable during assembly
