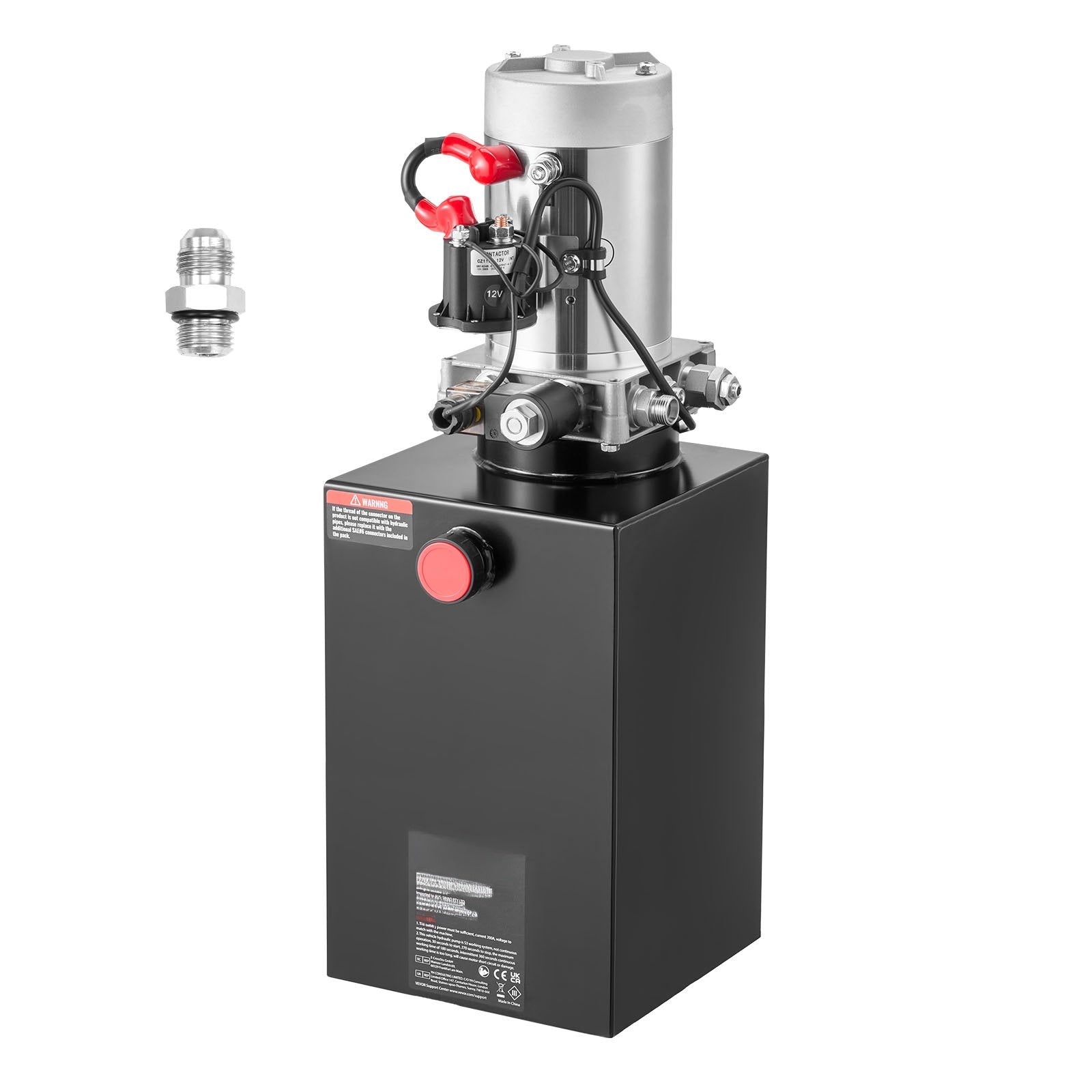

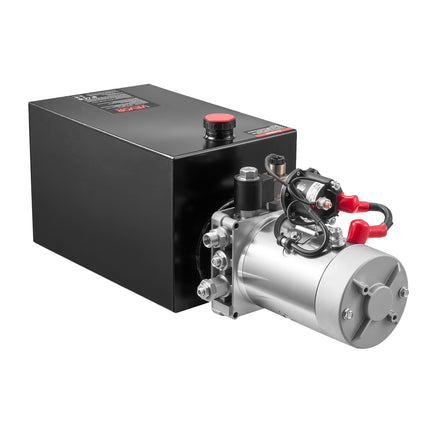

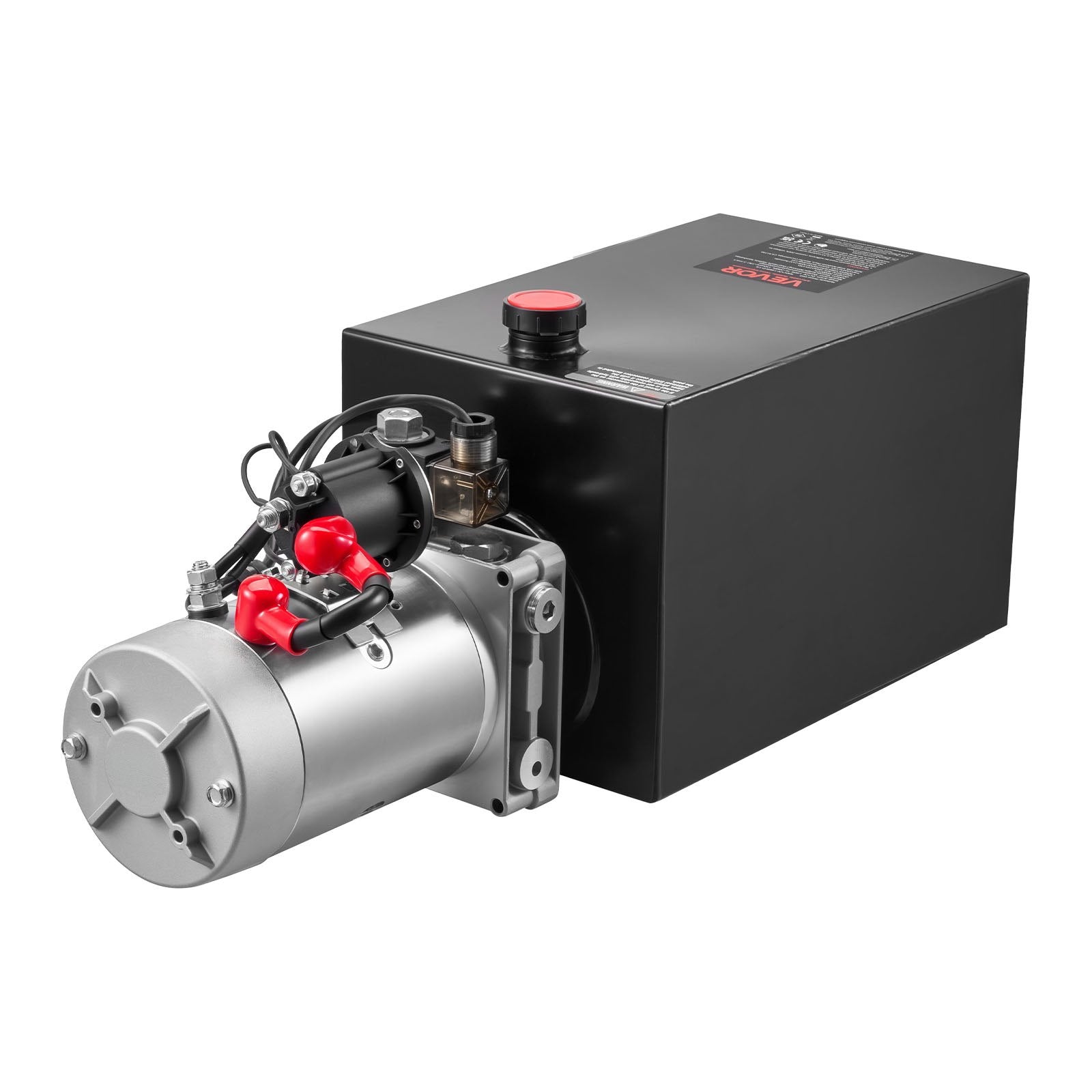

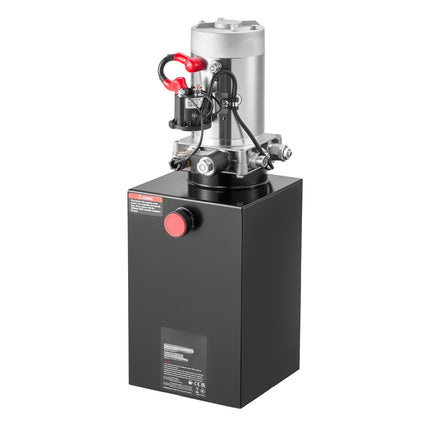

12V Hydraulic Power Unit, 15-Qt Single-Acting Dump Pump

12V hydraulic power unit delivers fast, smooth single-acting lift power for dump trailers and compact hydraulic systems, with a 15-quart metal reservoir for longer run time between refills. Designed for steady lifting and gravity-down lowering, it helps reduce stalling, inconsistent lift speed, and leak-prone setups. Pre-assembled for quicker installation—add hydraulic oil, connect the power leads and standard lines, and put reliable hydraulic force to work on the jobsite or in the shop.

• Delivers 3.4 L/min (0.91 GPM) flow for responsive lift performance in single-acting applications


• Handles up to 22 MPa (3,200 psi) max relief pressure to help protect components from over-pressure


• Includes a 15-quart (3.75 gal) steel reservoir built to resist corrosion and daily impact


• Fits SAE #6 hydraulic fittings for faster hook-up to common dump trailer and lift system lines


• Simplifies install with a pre-assembled unit—add oil, wire to DC 12V, connect hoses, and run

Built for equipment that needs dependable lift without complex controls, this DC electric hydraulic pump supports dump trailers, liftgates, scissor lifts, lift tables, small presses, and conveyor setups. The integrated relief valve helps stabilize operation under load, while the single-acting design keeps lowering simple via gravity. If you’re replacing a worn-out pump or building a compact hydraulic setup, this unit is sized for real work with a durable metal tank and quick-connect compatibility. Grab yours today and get your system lifting smoothly again.

• Function: Single acting (power up, gravity down)


• Voltage: DC 12V


• Power: 1.6 kW


• Flow rate: 0.91 GPM (3.4 L/min)


• Max relief pressure: 22 MPa (3,200 psi)


• Working pressure: 16–20 MPa


• Speed: 2600 r/min


• Reservoir capacity: 15 qt (3.75 gal)


• Fittings: SAE #6


• Dimensions: 23.2 x 8.3 x 9.3 in (590 x 210 x 235 mm)


• Net weight: 32.6 lb (14.8 kg)
