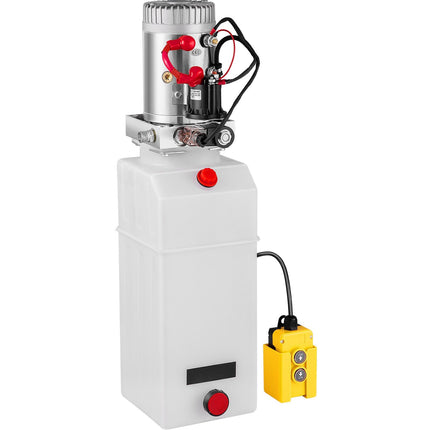

12V Hydraulic Power Unit, Single-Acting, 8-Quart Tank

12V hydraulic power unit delivers fast lift performance for dump trailers and other single-acting hydraulic systems, with power-up/gravity-down control and a pre-assembled design for quicker installs. Built around a DC 12V motor and an 8-quart translucent reservoir, it’s designed for reliable oil output, stable pressure control, and straightforward wiring. Ideal as a replacement hydraulic pump pack for remotely controlled setups where quick start, consistent lifting, and clean fitment matter.

• Delivers power-up/gravity-down operation for single-acting dump trailer and lift applications


• Includes a handheld pendant remote with approx. 15 ft (4.5 m) cord for easy control


• Supports quick starts and steady oil output to speed up lifting cycles


• Protects with an integrated relief/overflow valve to release pressure during overpressure


• Simplifies installation with a fully assembled unit, basic wiring, and included SAE#6 connector

Set up your hydraulic system with a compact 12V DC hydraulic pump pack built for common dump bed, stacker, and small-to-medium lift platform jobs. The translucent 8-quart tank helps you check fluid level at a glance, while the single-acting design keeps operation straightforward for remote-controlled lifts. Whether you’re replacing a worn power pack or building a new 12V hydraulic setup, this unit is designed to fit fast and get back to work with minimal downtime. Grab yours today.

• System type: Single-acting (power up / gravity down)


• Motor: DC 12V


• Motor power: 0.37–5.5 kW


• Rated speed: 2850 r/min


• Reservoir: 8 quart / 8 L translucent plastic tank


• Flow rate: 2 GPM (also listed range 0.562–4.350 GPM / 0.75–5.8 ml/r)


• Relief pressure (A port): 22 MPa / 3200 PSI max (SAE #6)


• Relief pressure (B port): 1500 PSI max (SAE #6)


• Mount: Horizontal


• Remote: Handheld pendant with approx. 15 ft (4.5 m) cord, start solenoid

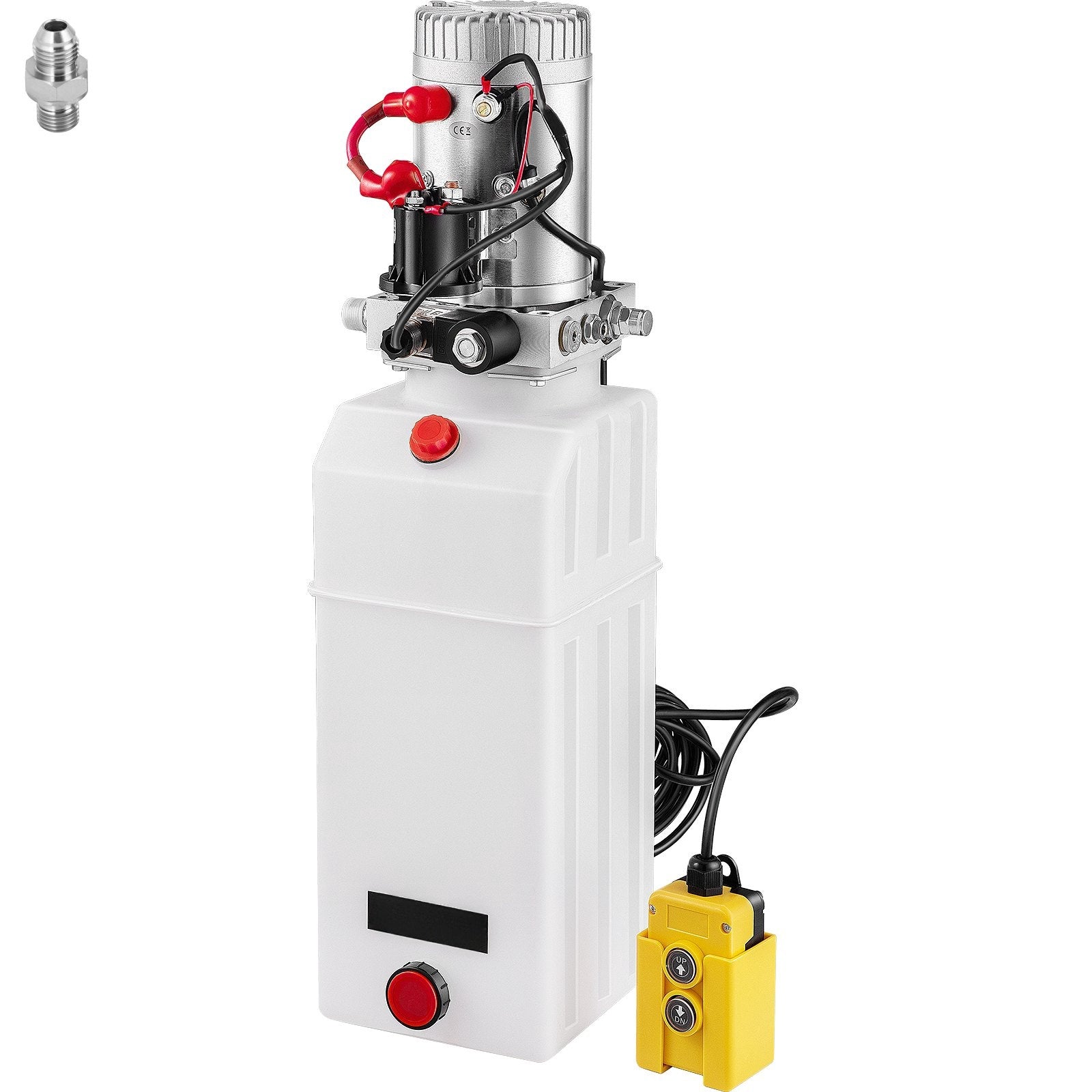

• Ports/connectors: SAE #6 ports; includes 1 additional SAE #6 connector
