12V Linear Actuator, 1000N, 4in Stroke, IP54 Bracket

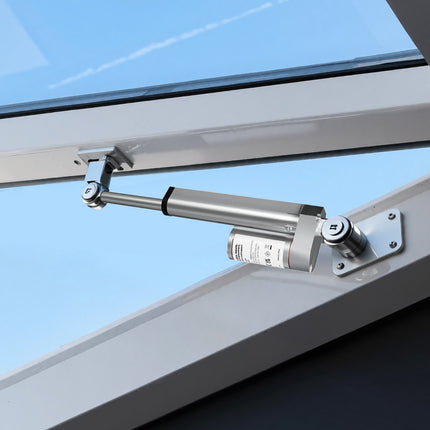

12V linear actuator delivers fast, controlled lift motion for reliable height adjustment in desks, recliners, TV lifts, and window openers. With a 4 in / 101.6 mm stroke and 15 mm/s travel speed, it’s built for frequent cycling while maintaining smooth, steady thrust up to 1000N (225 lb). A durable aluminum alloy housing and IP54 protection help support long indoor service life, and the included mounting bracket simplifies installation.

• Delivers 1000N (225 lb) thrust for steady linear motion in furniture and light automation projects


• Moves at 15 mm/s (0.6 in/s) to speed up frequent lift and height-adjust tasks


• Runs quietly under 50 dB (no-load) for bedrooms, offices, labs, and shared spaces

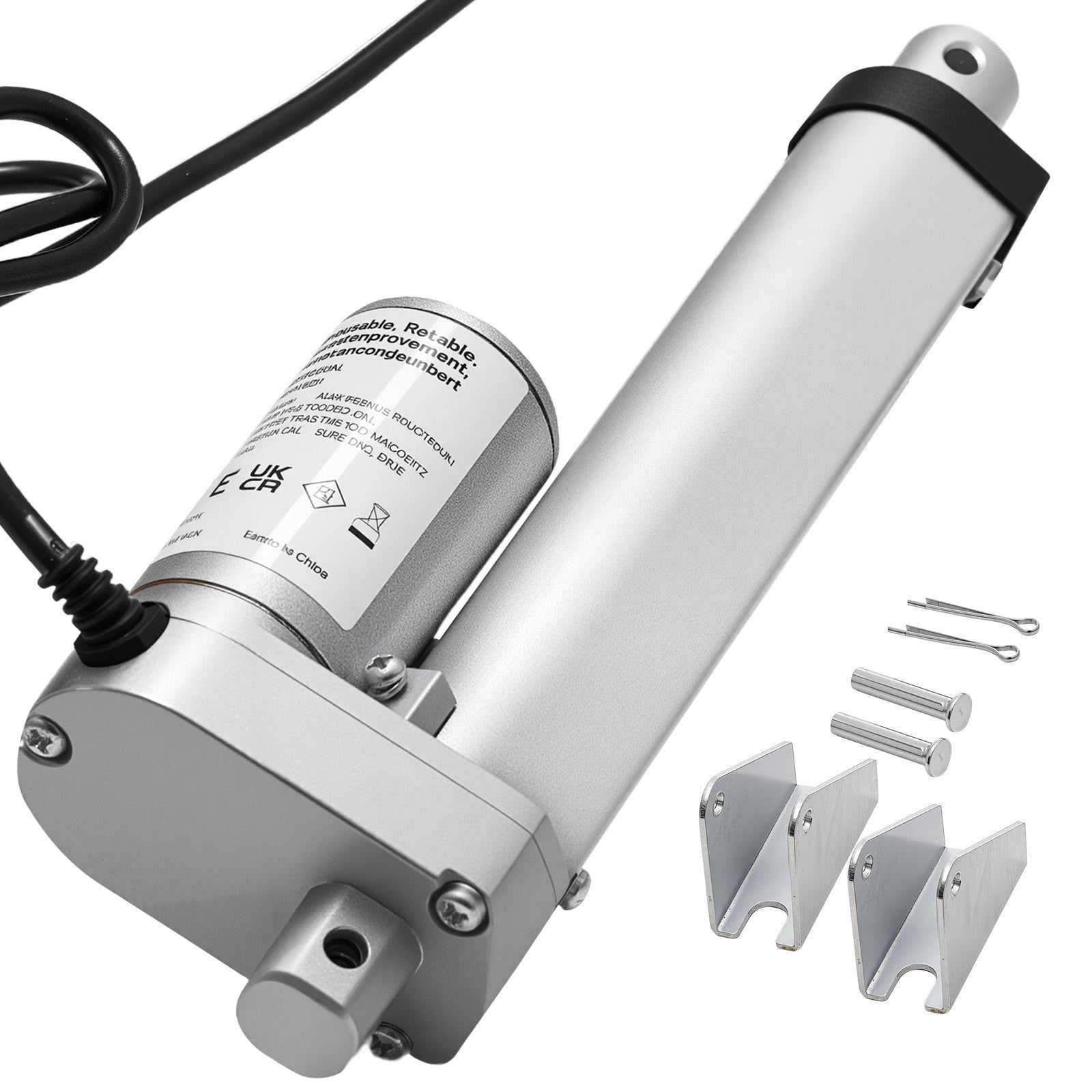

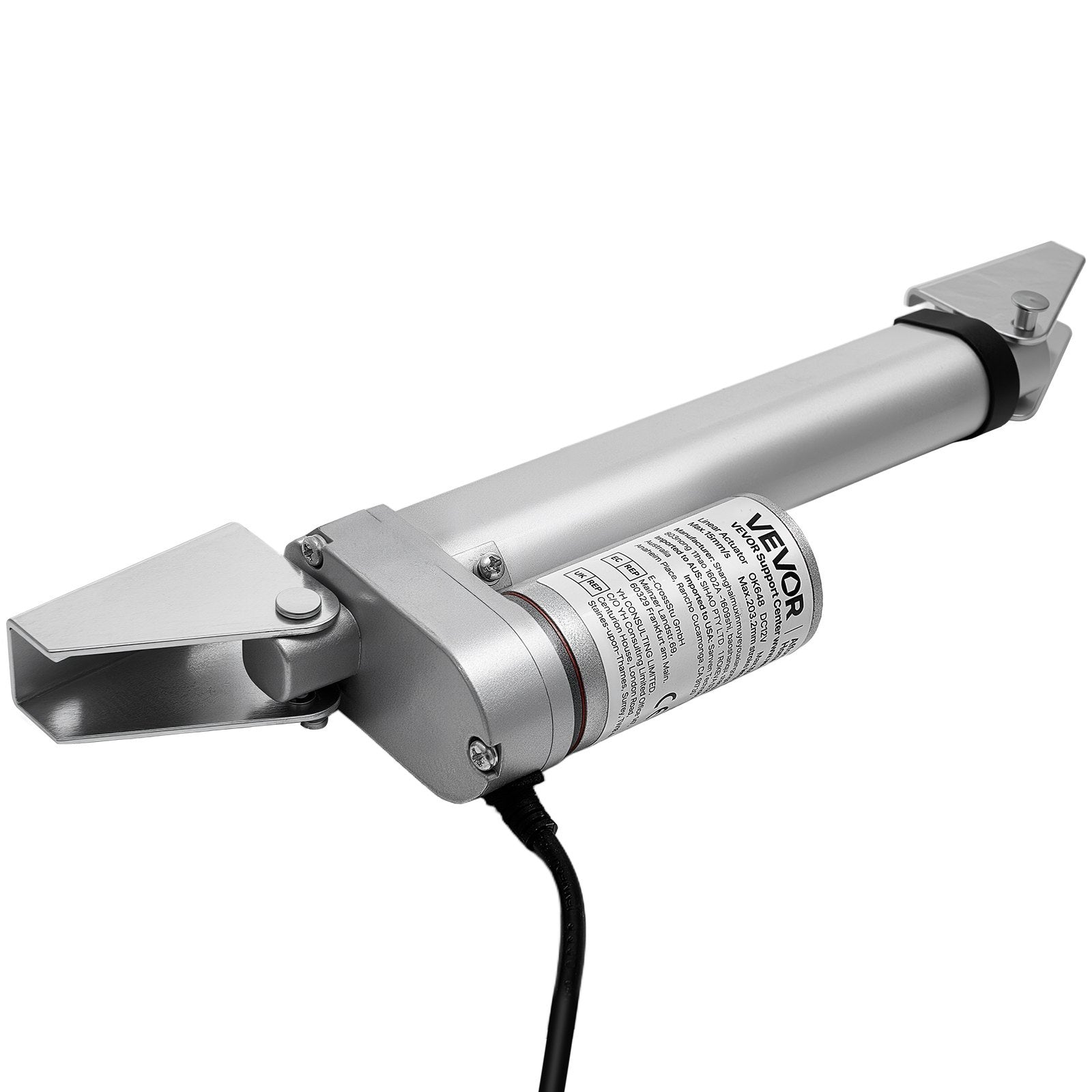

• Includes mounting bracket to simplify setup for lift desks, recliners, and openers


• Protects with IP54-rated housing for dependable indoor use; keep water away from the motor

Upgrade manual adjustments to smooth, repeatable automation with a compact actuator designed for consistent performance and clean installation. The balanced combination of travel speed, thrust, and low-noise operation makes it a practical choice for height-adjustable furniture, lifting tables, electric wheelchair accessories, and window/door mechanisms. Built with an aluminum alloy body and an IP54 protection rating, it’s suited to everyday indoor projects where reliability matters. Grab yours today and get precise linear motion without overcomplicating your build.

• Input voltage: DC 12V


• Max load / thrust: 1000N (225 lb)


• Stroke length: 4 in / 101.6 mm


• Travel speed: 0.6 in/s (15 mm/s)


• Extended length: 12 in / 304.8 mm


• Retracted length: 8 in / 203.2 mm


• Product dimensions: 8.5 x 3 x 1.6 in (216 x 75 x 40 mm)


• Net weight: 2.1 lb (0.973 kg)


• Main material: Aluminum alloy


• IP rating: IP54


• Current draw: 5 A


• Duty cycle: 25%


• No-load noise: < 50 dB
