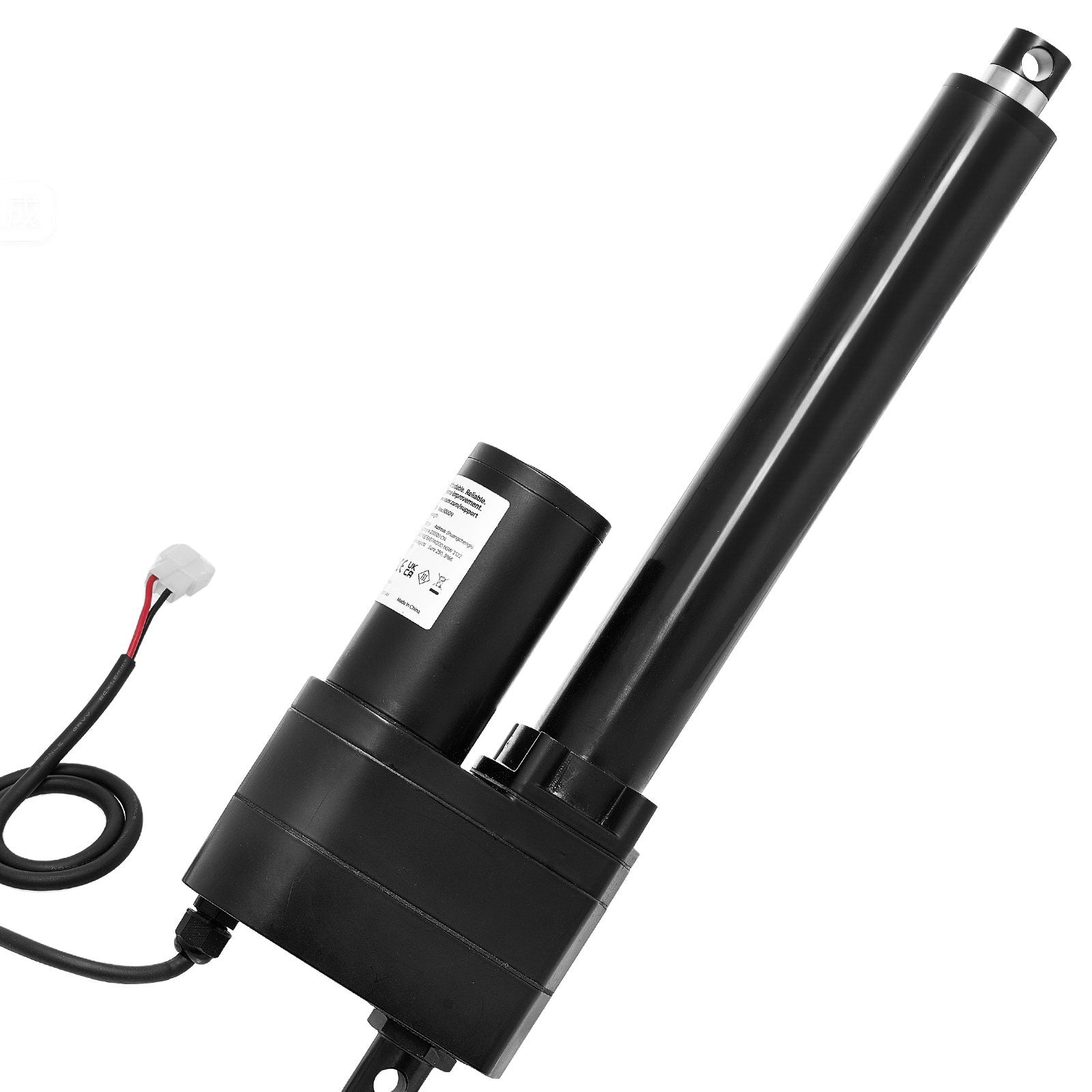

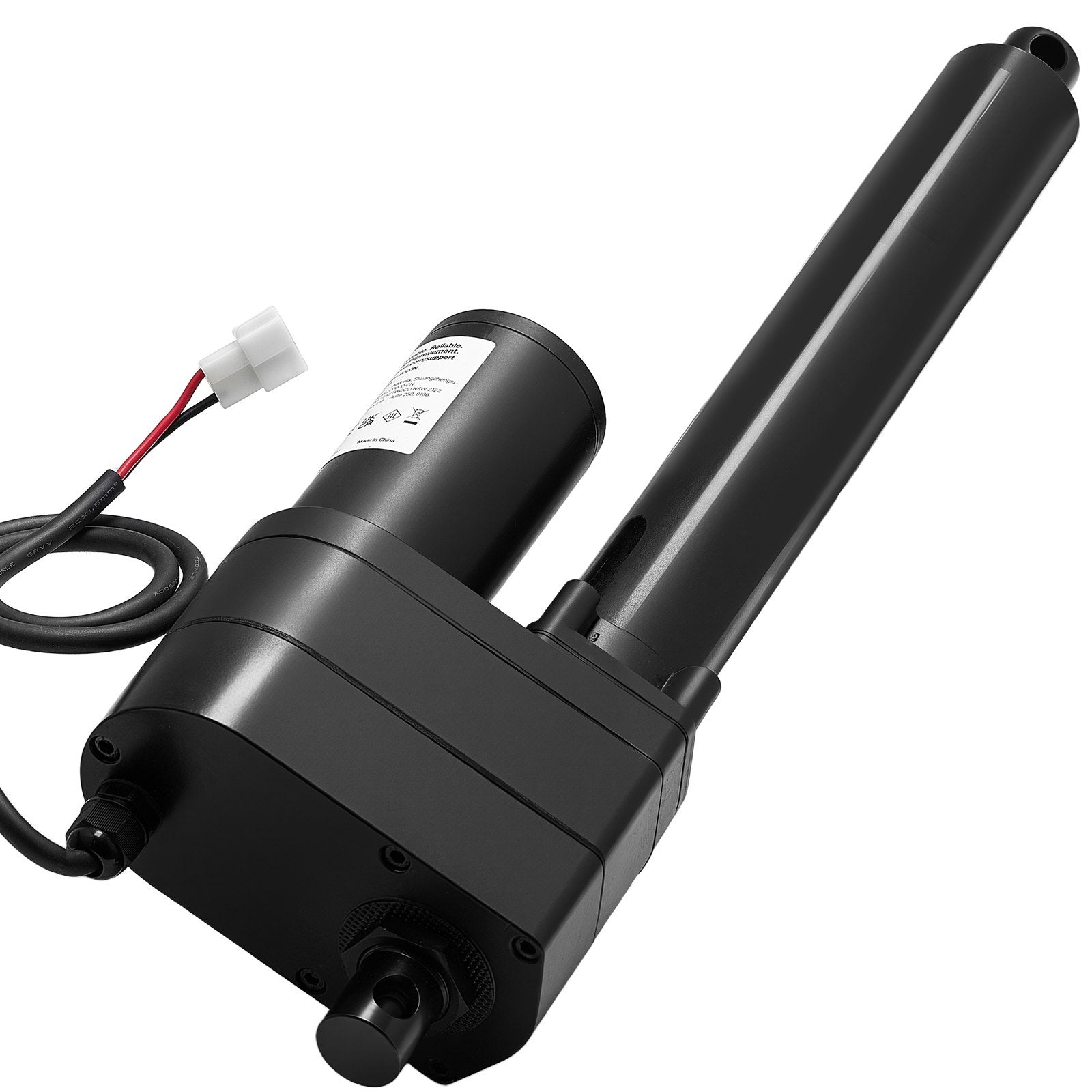

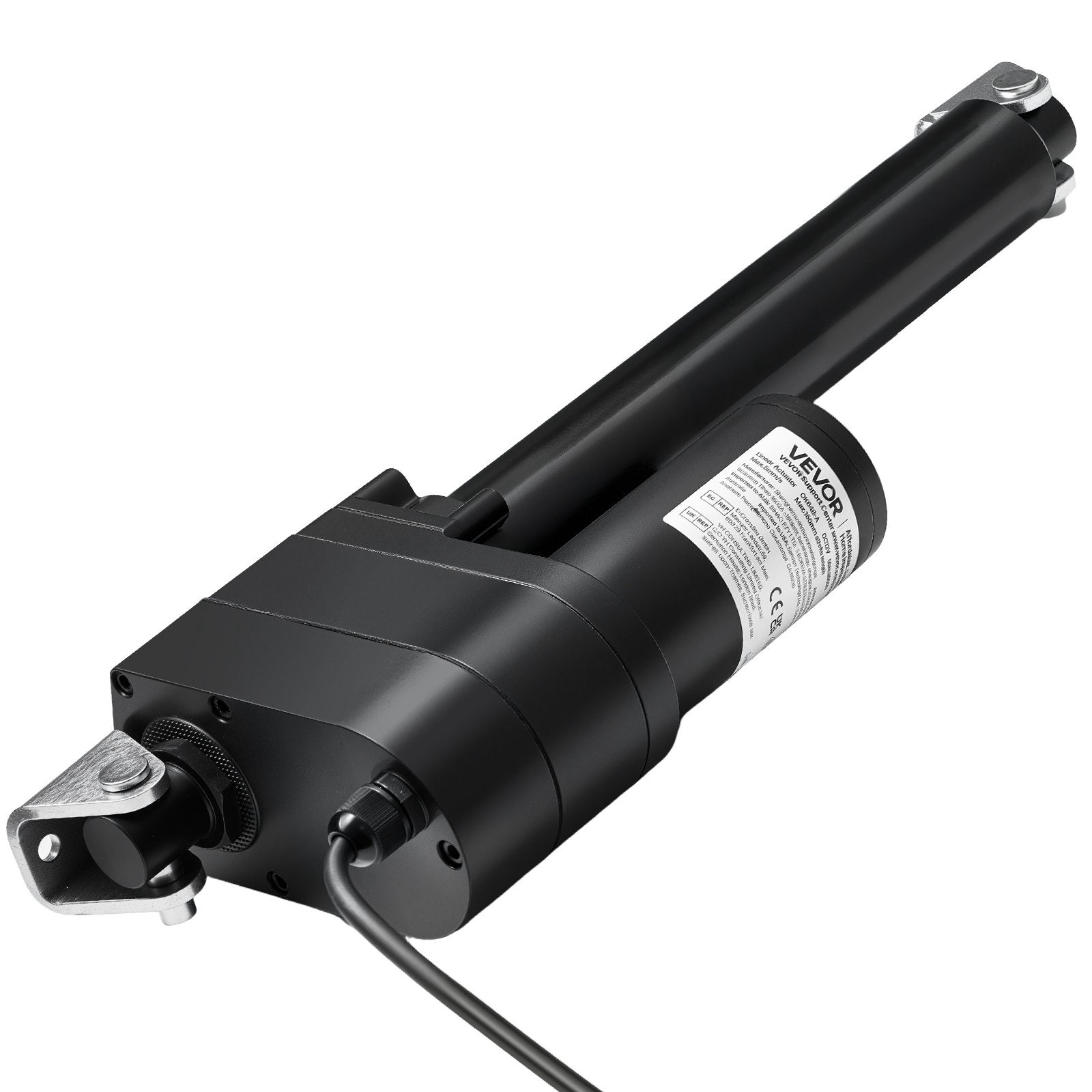

12V Linear Actuator, 200mm Stroke, 9000N, IP65

12V linear actuator delivers up to 9000N thrust to move heavy loads with controlled, reliable linear motion in demanding equipment. Built with an aluminum alloy housing and IP65-rated sealing, it’s suited for industrial automation, lifting platforms, machinery, and marine or transportation systems where dust and water resistance matter. A 200mm stroke and 5mm/s travel speed support steady pushing and pulling for repeatable positioning.

• Delivers 9000N (2023 lbf) thrust for heavy lifting, pushing, and pulling applications


• Resists dust and water with an IP65-rated design for indoor/outdoor job sites


• Moves smoothly at 5 mm/s for controlled positioning and consistent motion cycles

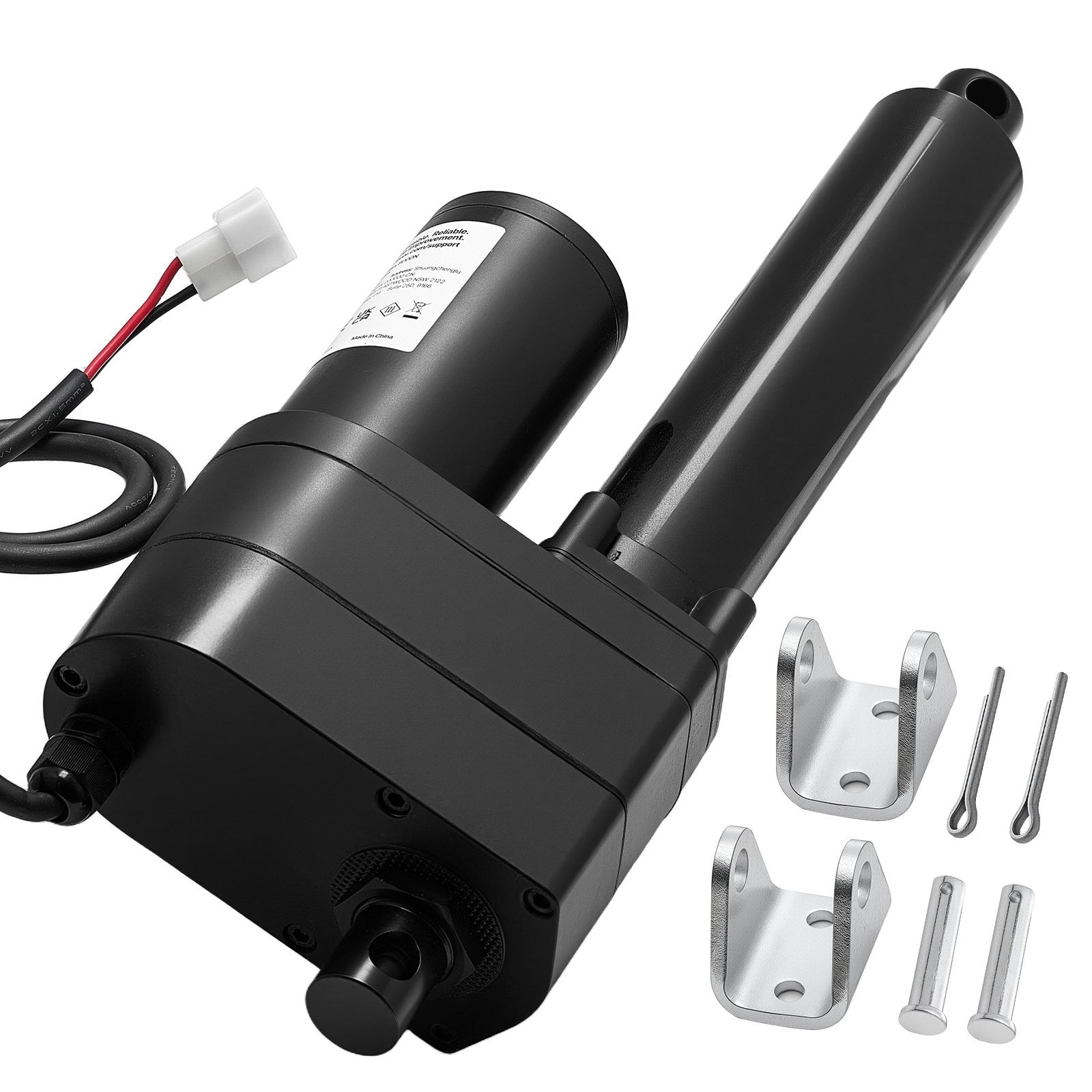

• Includes mounting brackets to simplify installation on frames, platforms, and machinery


• Operates under 65 dB (no-load) for lower-noise automation and equipment upgrades

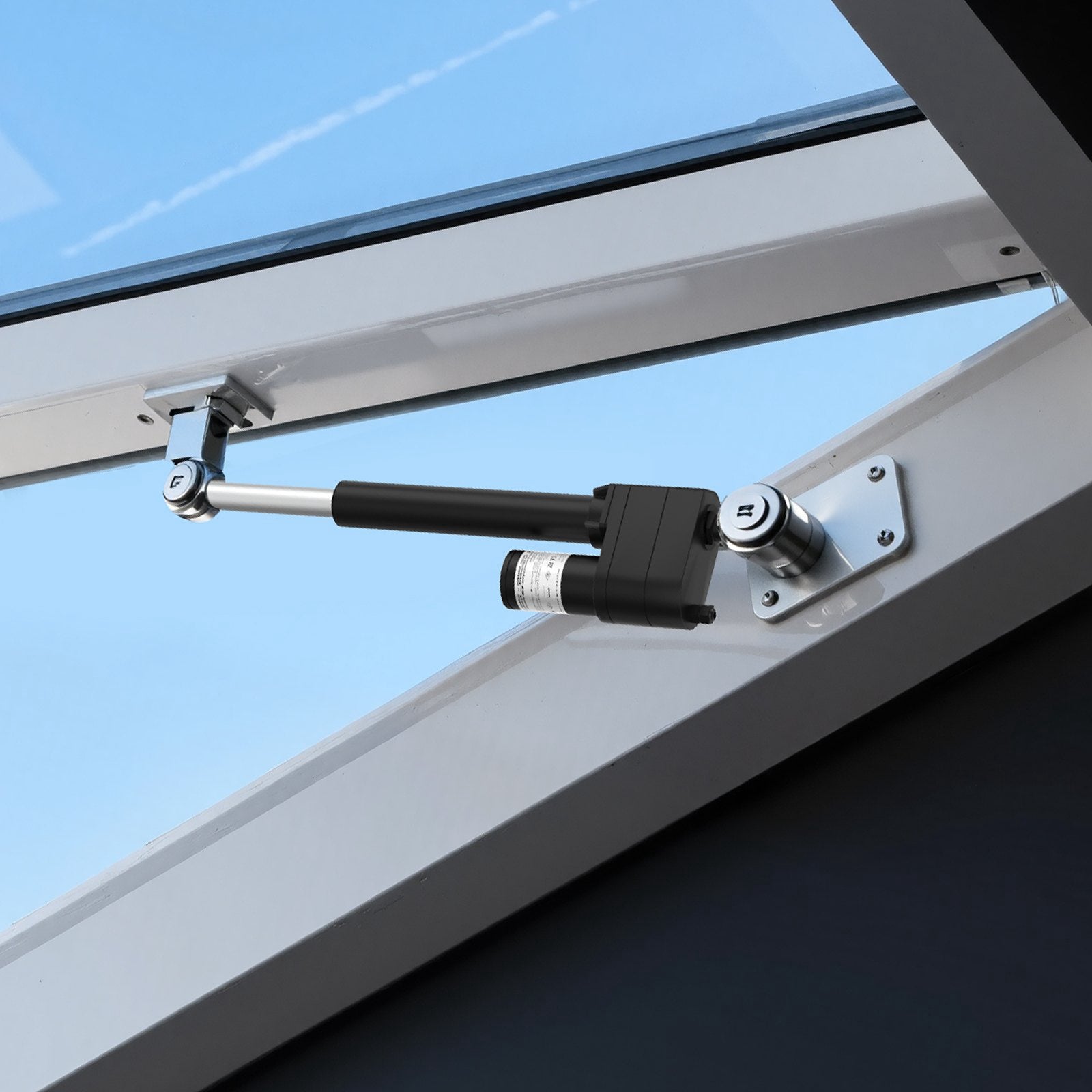

Designed for high-load tasks, this ultra heavy-duty linear motion actuator helps you automate lifts, hatches, doors, platforms, and mechanical linkages where dependable force is required. Use it in warehouses, factories, agricultural equipment, vessels, and custom robotics needing strong DC-powered actuation. For longer service life, avoid prolonged direct outdoor exposure and ensure your 12V system can supply the required current. Upgrade your build with industrial-grade motion control—grab yours today.

• Input voltage: DC 12V


• Max load/thrust: 9000N (2023 lbf)


• Stroke length: 200 mm (7.87 in)


• Travel speed: 5 mm/s (0.2 in/s)


• Retracted length: 452 mm (17.8 in)


• Extended length: 652 mm (25.67 in)


• Current draw: 20 A


• IP rating: IP65


• Main material: Aluminum alloy


• Net weight: 5.719 kg (12.6 lb)


• Product dimensions: 475 × 150 × 75 mm (18.7 × 5.9 × 3.0 in)
