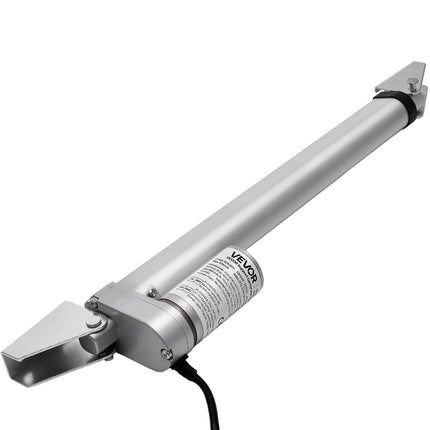

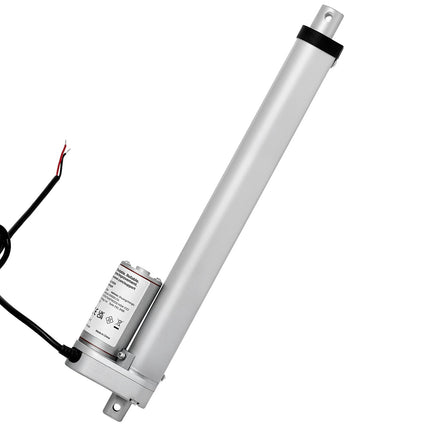

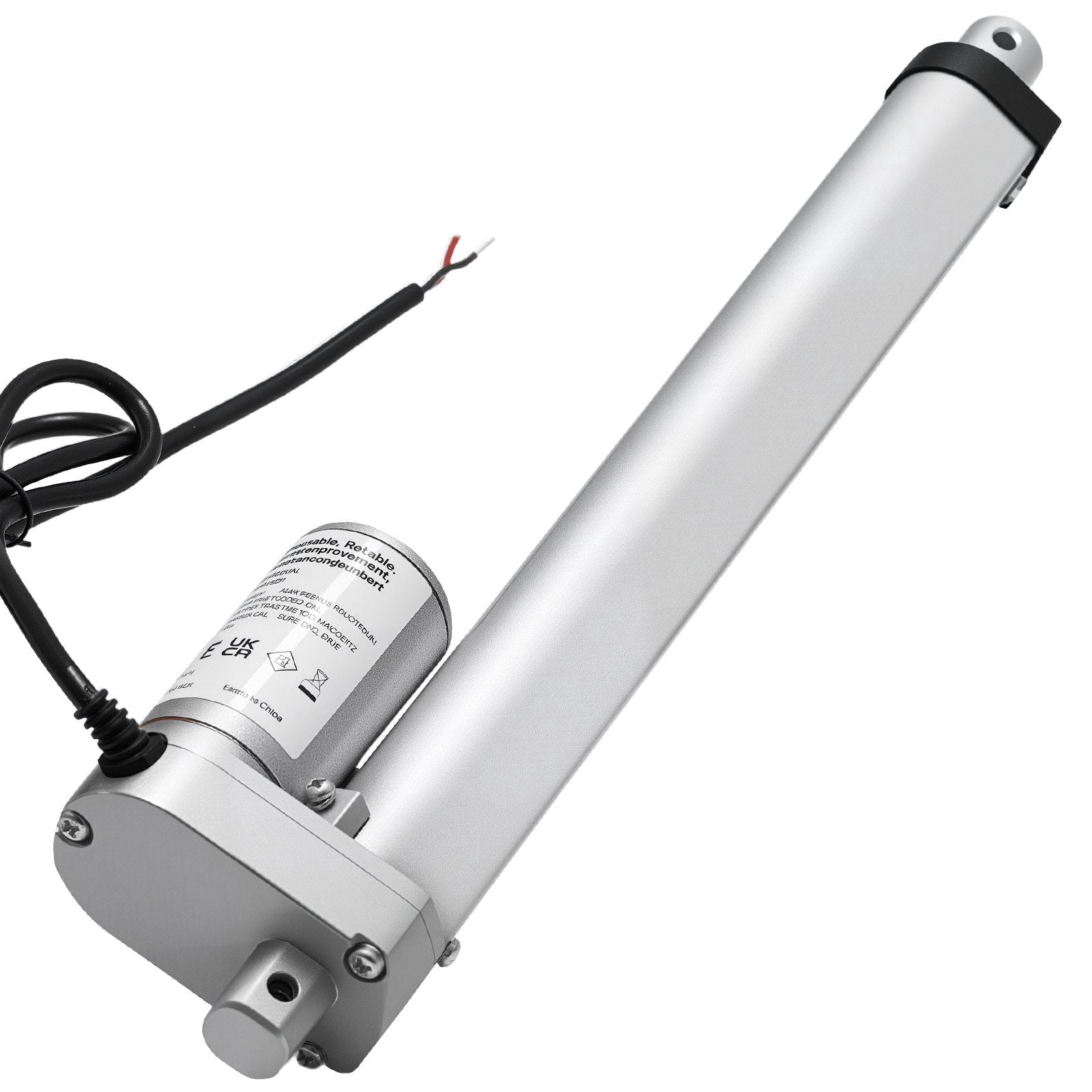

12V Linear Actuator, 250mm Stroke, 1000N, IP54 Bracket

12V linear actuator delivers fast, controlled linear motion for smooth height adjustment and automated lifting in desks, recliners, TV lifts, and window openers. With a 250mm stroke and 15mm/s travel speed, it’s built for frequent adjustments without lag. The aluminum alloy housing and IP54 protection support reliable indoor use, while quiet operation (under 50 dB no-load) keeps bedrooms, offices, and labs comfortable.

• Delivers 1000N (225 lb) max thrust for steady lifting in light industrial and home automation setups


• Moves at 15 mm/s (0.6 in/s) for quicker desk, furniture, and window/door opener adjustments


• Reduces noise with under 50 dB no-load operation for quieter indoor environments


• Protects components with an IP54-rated aluminum alloy body designed for long indoor service life

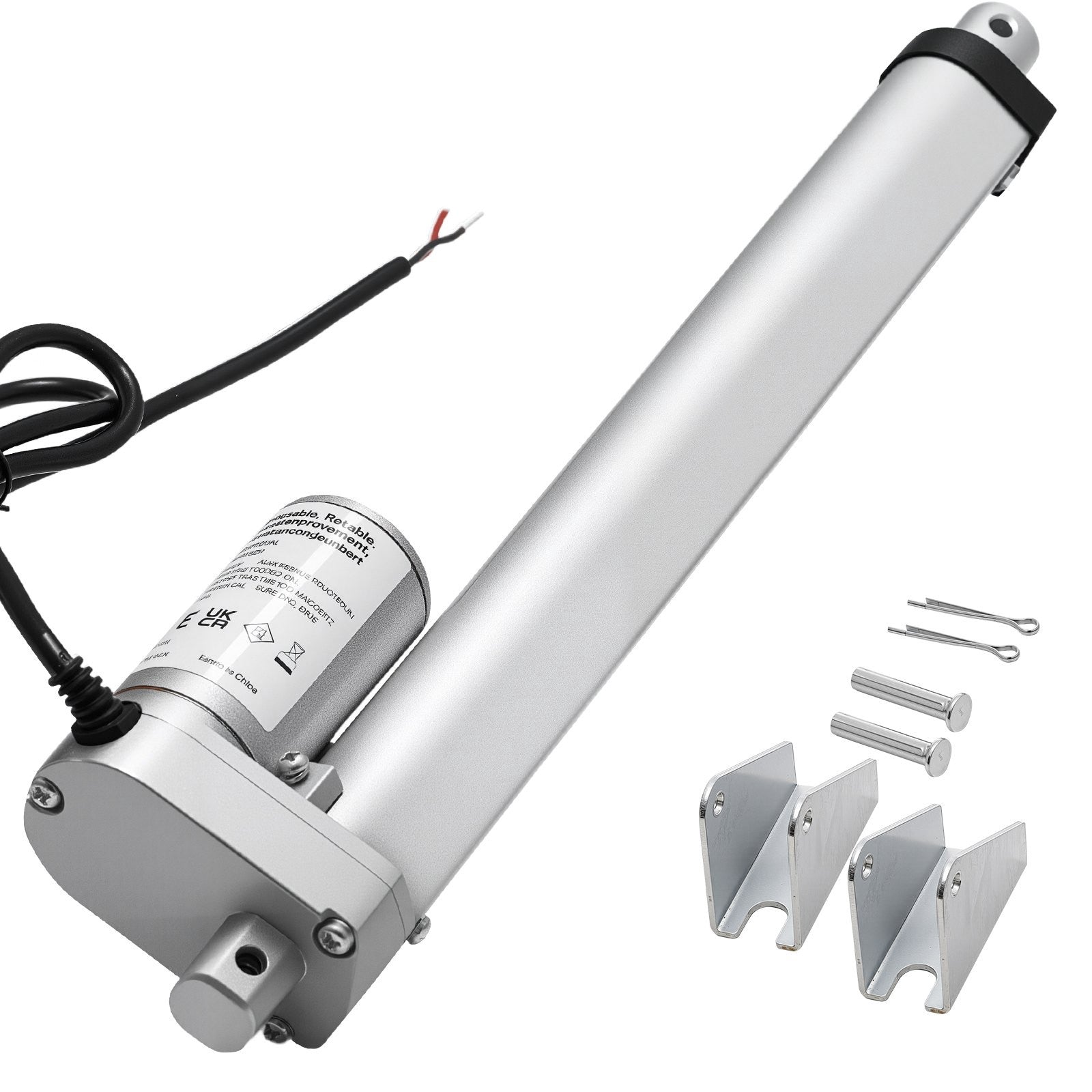

• Supports easy setup with a mounting bracket for common actuator mounting points

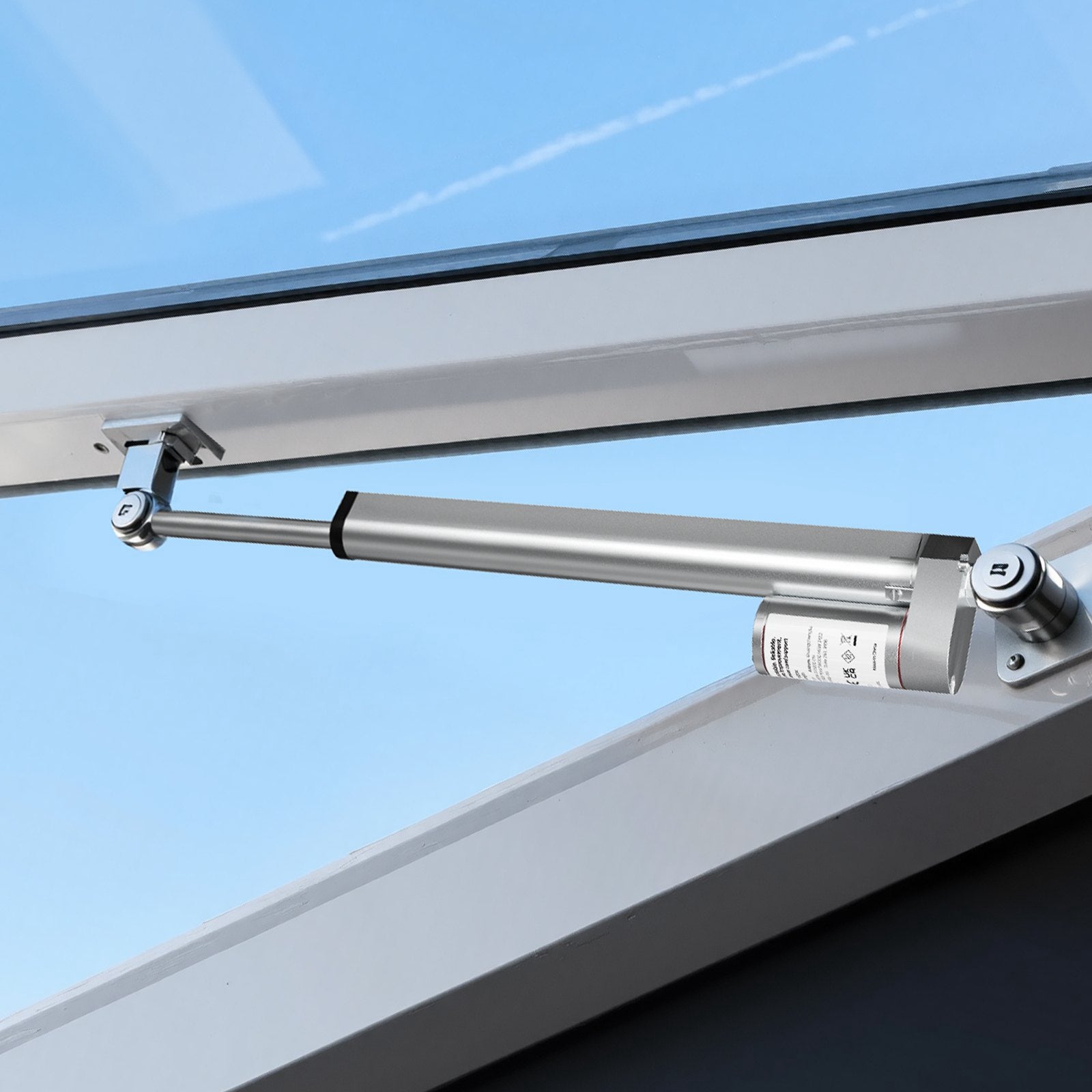

Designed for low-load, long-run applications, this DC 12V linear motion actuator helps automate daily movements with consistent push/pull performance. Use it for lift desks, recliner chairs, massage sofas, lifting tables, electric wheelchair mechanisms, or DIY automation projects where predictable stroke length and speed matter. For longevity, keep it indoors and avoid water ingress around the motor. Grab yours today and upgrade your next build with dependable linear motion control.

• Input voltage: DC 12V


• Max load/thrust: 1000N (225 lb)


• Stroke length: 250 mm (9.84 in)


• Travel speed: 15 mm/s (0.6 in/s)


• Extended length: 605 mm (23.82 in)


• Retracted length: 355 mm (13.98 in)


• Current draw: 5 A


• Duty cycle: 25%


• IP rating: IP54


• Main material: Aluminum alloy


• Noise: < 50 dB (no-load)


• Product dimensions: 370 x 75 x 40 mm (14.6 x 3 x 1.6 in)


• Net weight: 1.196 kg (2.6 lb)
