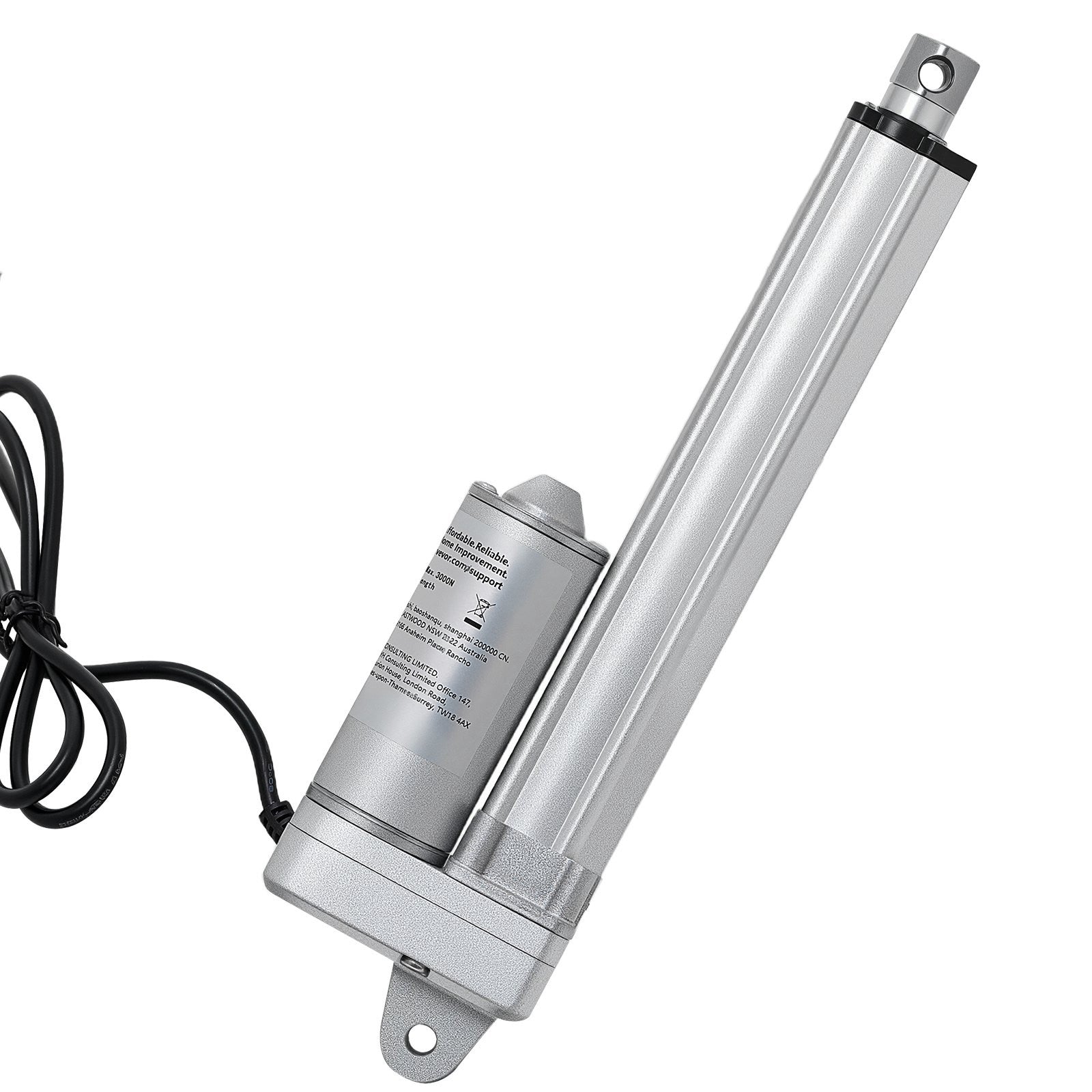

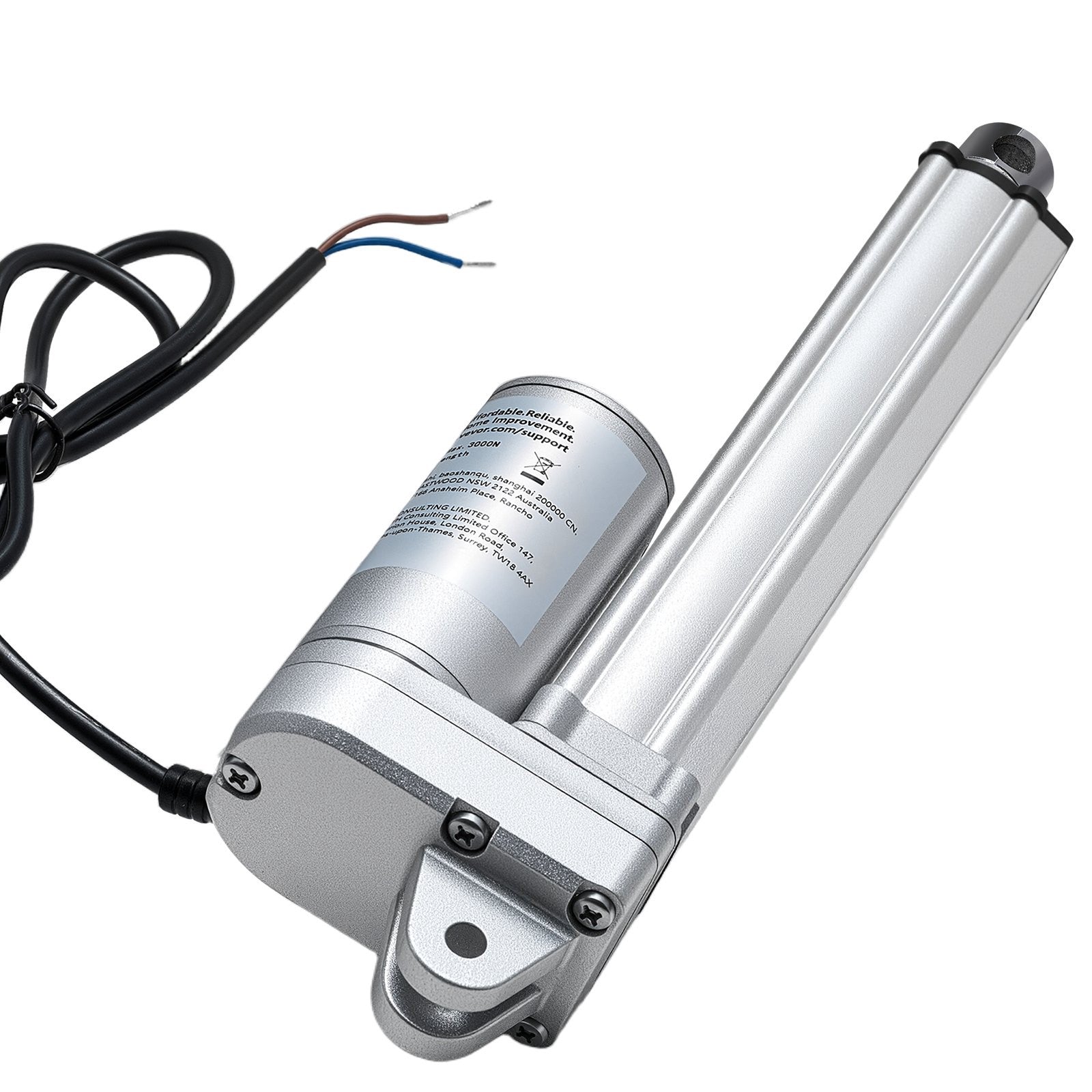

12V Linear Actuator, 6 in Stroke, 3000N, IP65

12V linear actuator delivers controlled 6-inch lift/adjustment for automation projects, with IP65-rated sealing for dusty, wet job sites. Built for medium-load motion in solar trackers, gates, hatches, equipment covers, and industrial mechanisms, it provides up to 3000N thrust at a steady 5 mm/s. The aluminum-alloy housing and precision screw drive support frequent cycling with reduced vibration and low no-load noise for smoother operation.

• Delivers up to 3000N (675 lb) thrust for reliable medium-load pushing and pulling


• Resists dust and water with IP65 protection for outdoor-capable installs


• Runs on DC 12V power for easy integration with vehicles, solar systems, and control boxes

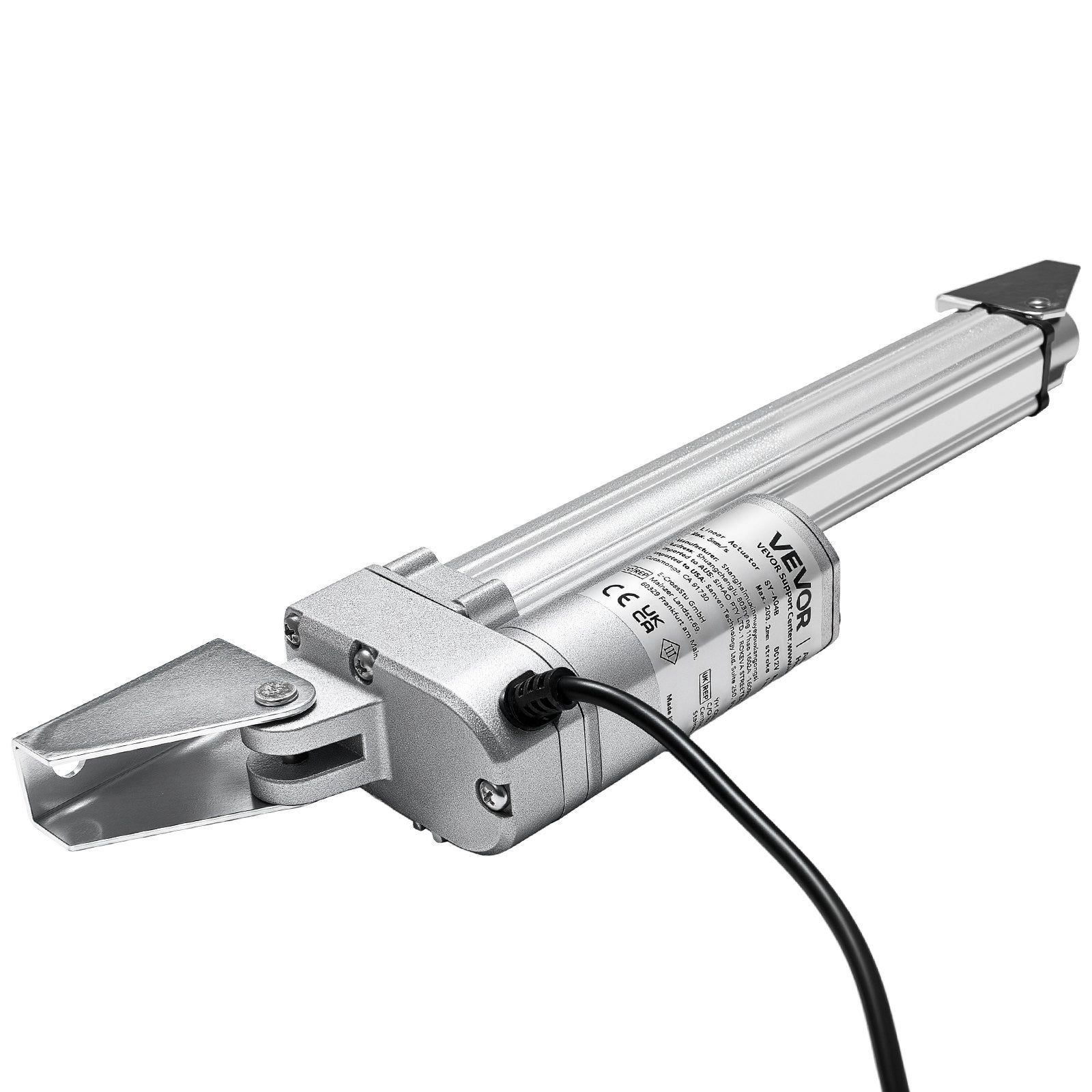

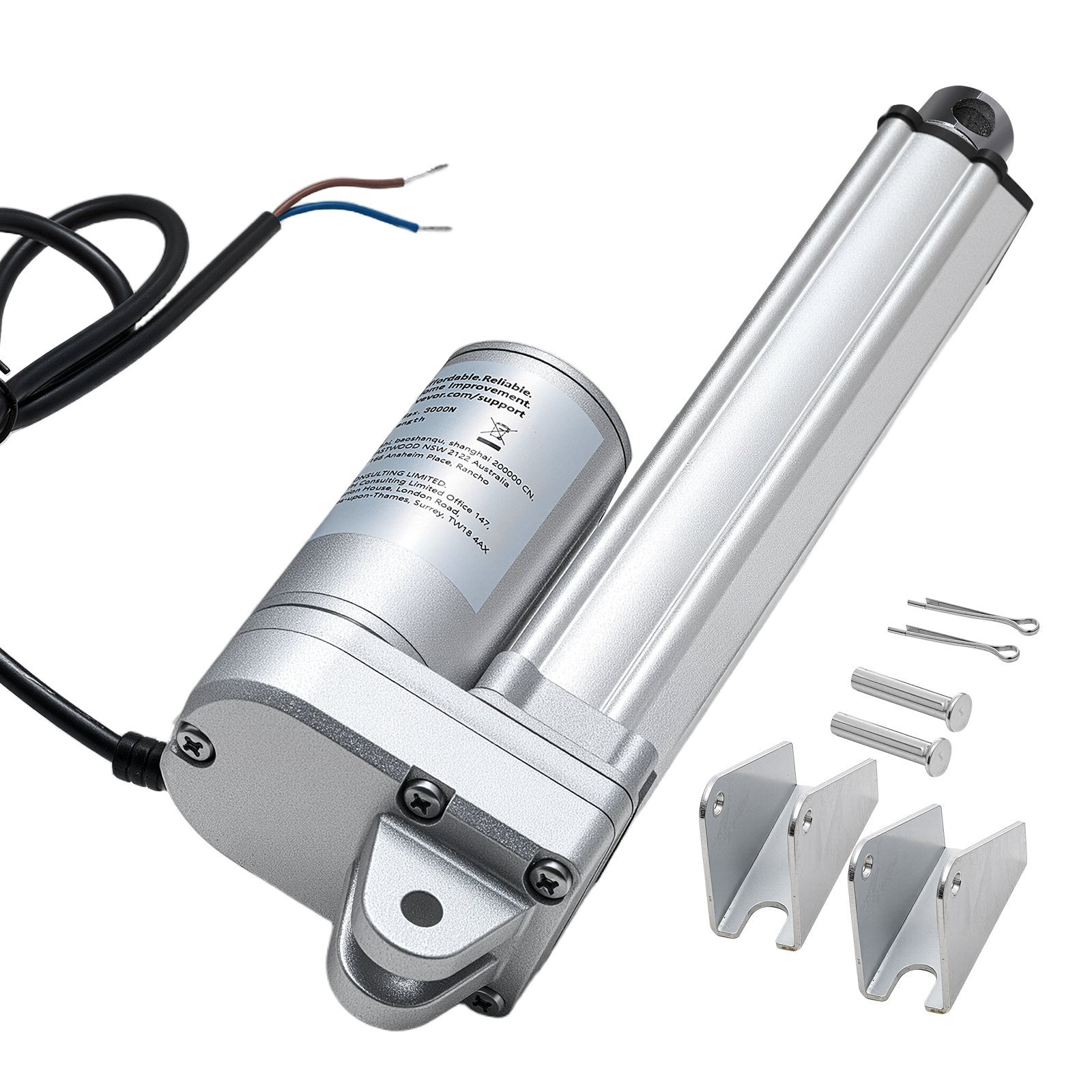

• Includes mounting brackets to simplify alignment and fast installation


• Operates at 5 mm/s travel speed with ≤65 dB no-load noise for smoother cycles

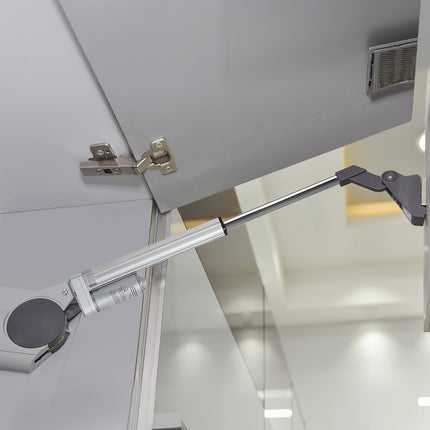

Designed for clean, repeatable linear motion where consistency matters—solar panel tracking, agricultural machinery, door and hatch opening, furniture automation, and industrial equipment. With a 25% duty cycle and 6A current draw, it’s suited to controlled intermittent operation in automation builds. Measure your required stroke and closed/open length before ordering to ensure proper fit and clearance. Grab yours today and upgrade your system with dependable 12V actuation.

• Rated voltage: DC 12V


• Max load / thrust: 3000N (675 lb)


• Stroke length: 152.4 mm (6 in)


• Travel speed: 5 mm/s (0.2 in/s)


• Retracted length: 254 mm (10 in)


• Extended length: 406.4 mm (16 in)


• IP rating: IP65


• Current draw: 6A


• Duty cycle: 25%


• Main material: Aluminum alloy


• No-load noise: ≤65 dB


• Net weight: 1.54 kg (3.4 lb)


• Product dimensions: 275 × 78 × 45 mm (10.8 × 3.1 × 1.8 in)
