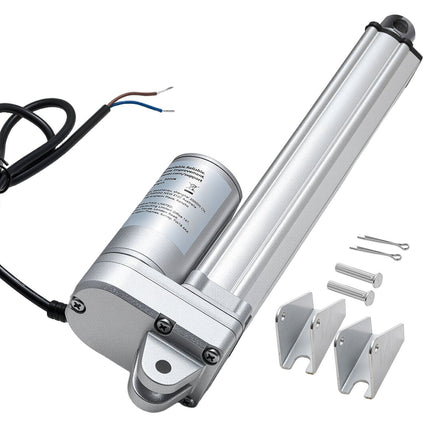

12V Linear Actuator, IP65, 8 In Stroke, 3000N Bracket

12V linear actuator delivers reliable push/pull motion for automation projects, with an 8-inch (203.2 mm) stroke and IP65-rated dust and water resistance for tougher environments. Built for medium-load applications up to 3000N (675 lbs), it supports smooth positioning for solar trackers, door openers, agricultural equipment, and industrial machinery. A precision screw drive and aluminum alloy housing help reduce wear through frequent cycles.

• Delivers up to 3000N (675 lbs) thrust for lifting, pushing, pulling, and positioning tasks


• Resists dust and water with an IP65 rating for workshops, farms, and outdoor installations


• Moves steadily at 0.2 in/s (5 mm/s) for controlled, repeatable linear motion


• Includes mounting bracket support for straightforward integration into frames and mechanisms


• Runs quieter under no-load (≤65 dB) to help reduce vibration and jamming in frequent cycles

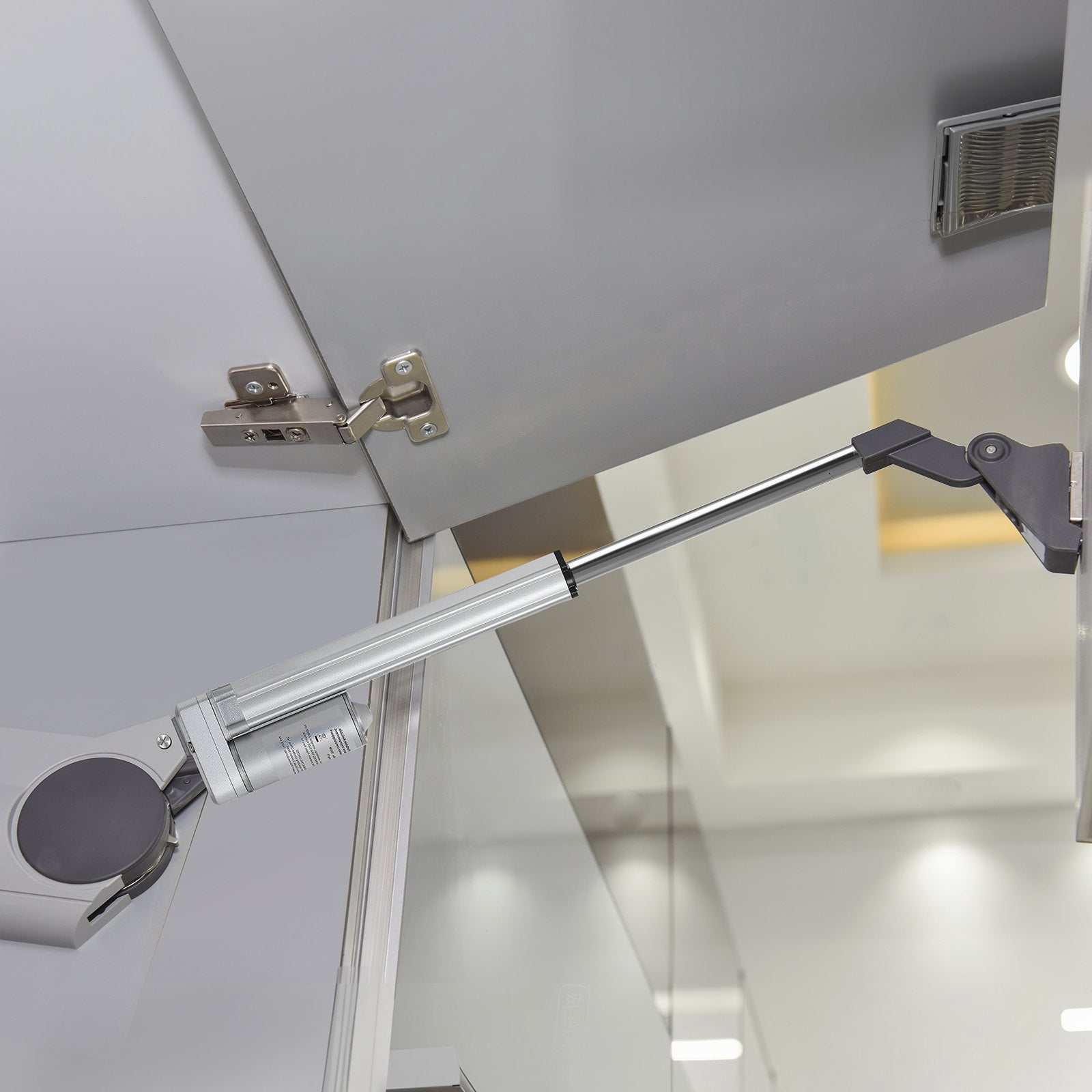

Designed for makers and maintenance teams who need dependable 12V DC actuation without complex setup, this linear motion actuator fits automation upgrades across equipment, furniture builds, access panels, and solar panel tracking systems. Use it where consistent travel and load handling matter, and plan mounting geometry around the 13-inch retracted and 21-inch extended lengths. For longer service life, avoid prolonged continuous outdoor exposure when possible. Grab yours today and keep your next motion project moving on schedule.

• Input voltage: DC 12V


• Max load/thrust: 3000N (675 lbs)


• Stroke length: 8 in (203.2 mm)


• Travel speed: 0.2 in/s (5 mm/s)


• Retracted length: 13 in (330.2 mm)


• Extended length: 21 in (533.4 mm)


• IP rating: IP65


• Current draw: 6A


• Duty cycle: 25%


• Main material: Aluminum alloy


• Net weight: 3.7 lb (1.66 kg)


• Product dimensions: 13.8 x 3.1 x 1.8 in (350 x 78 x 45 mm)
