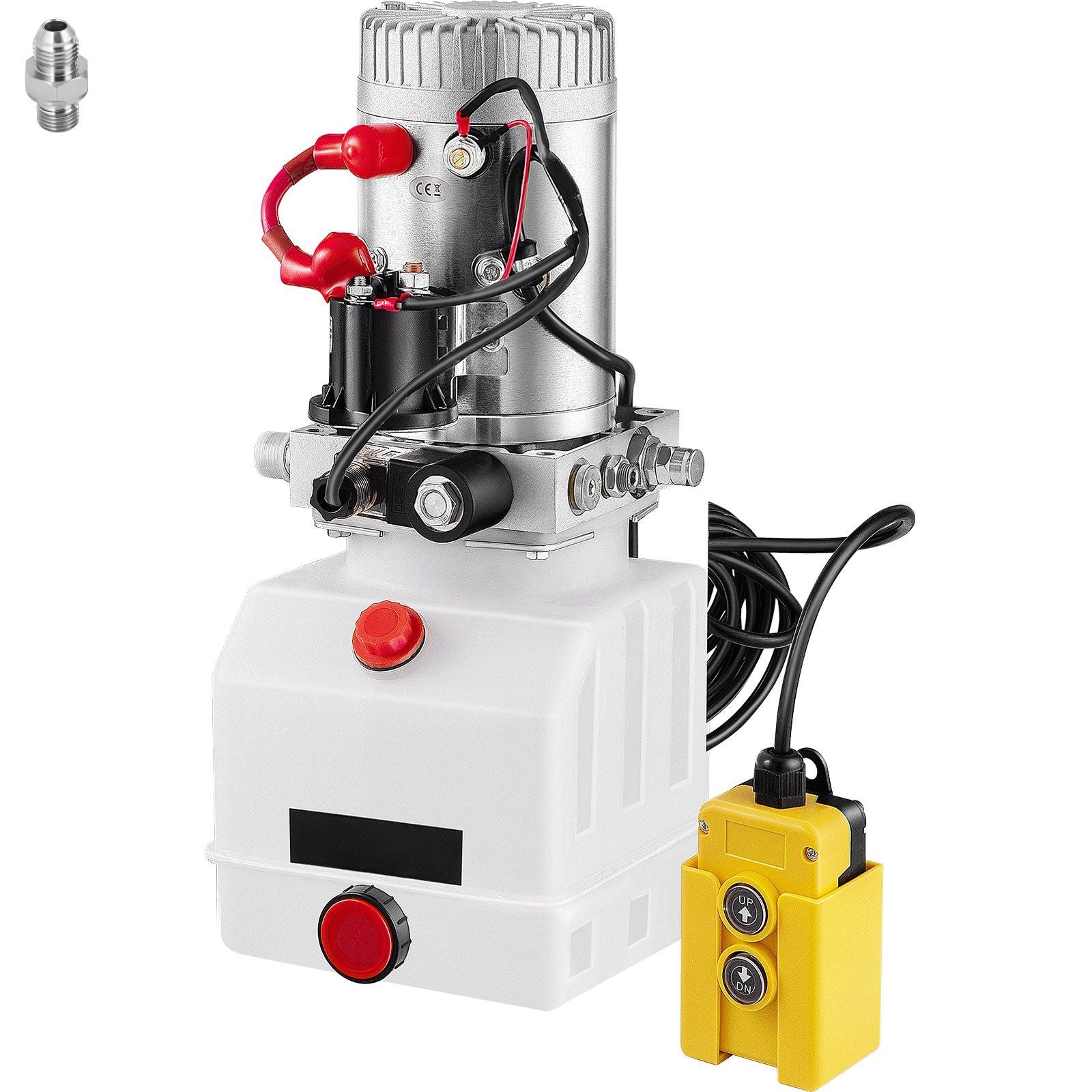

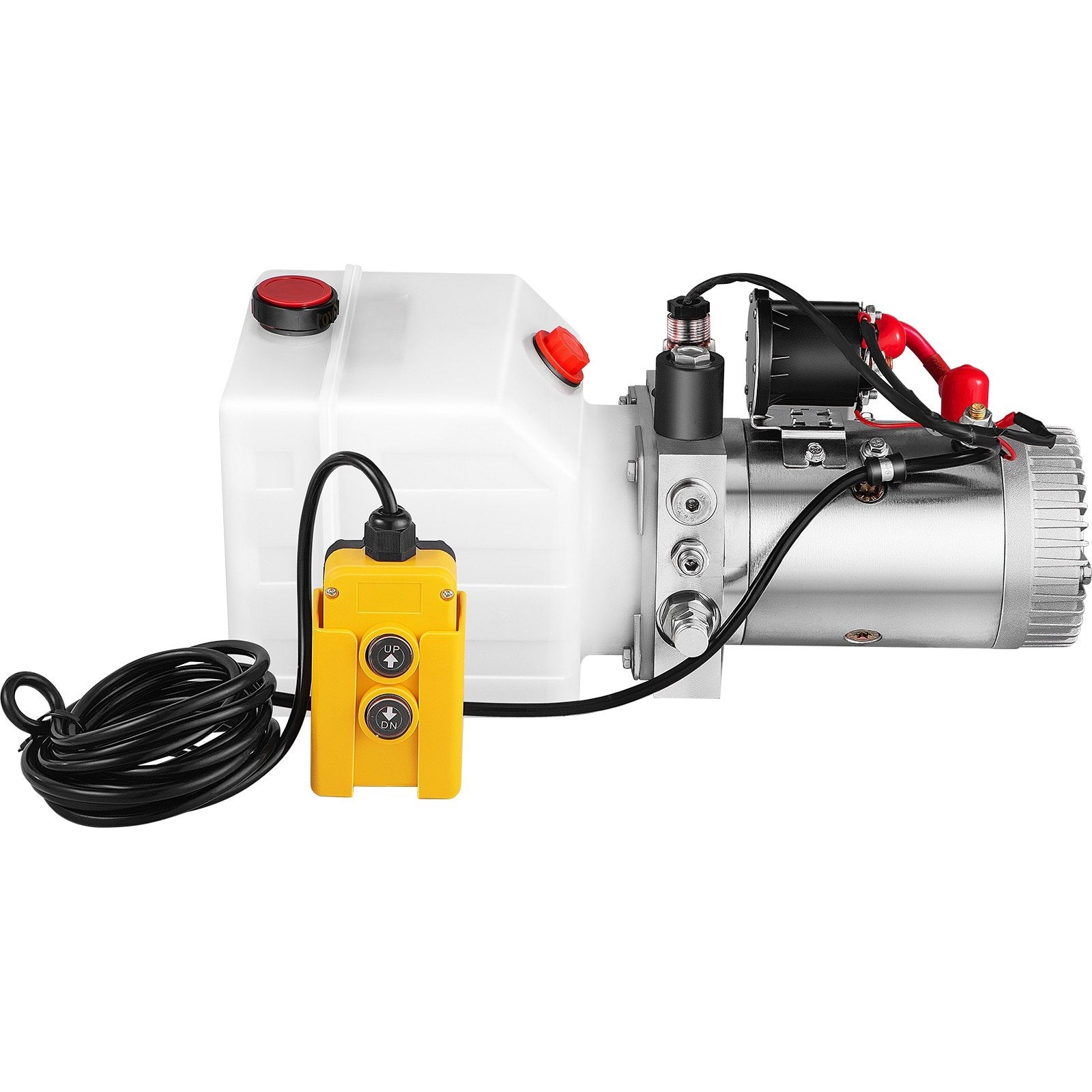

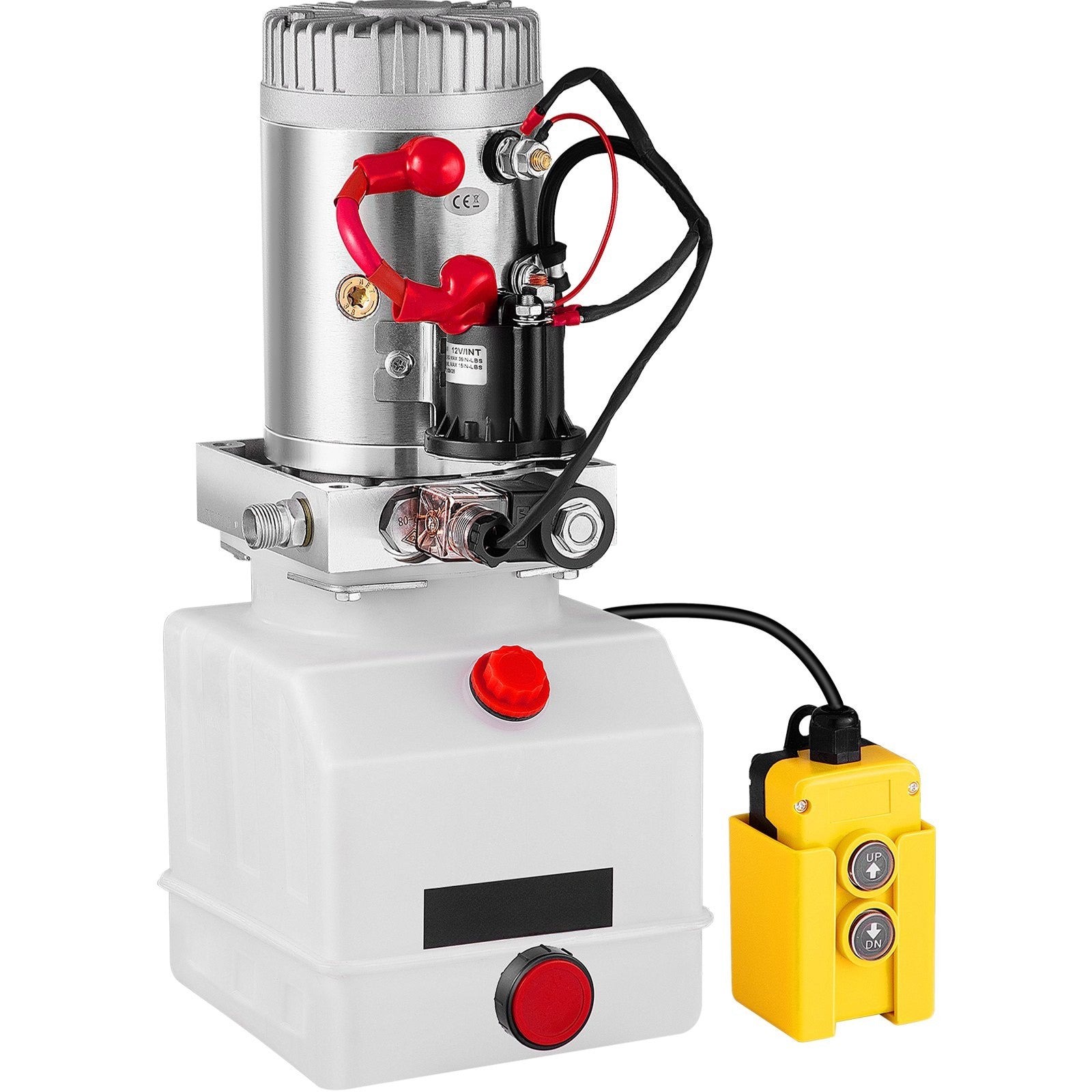

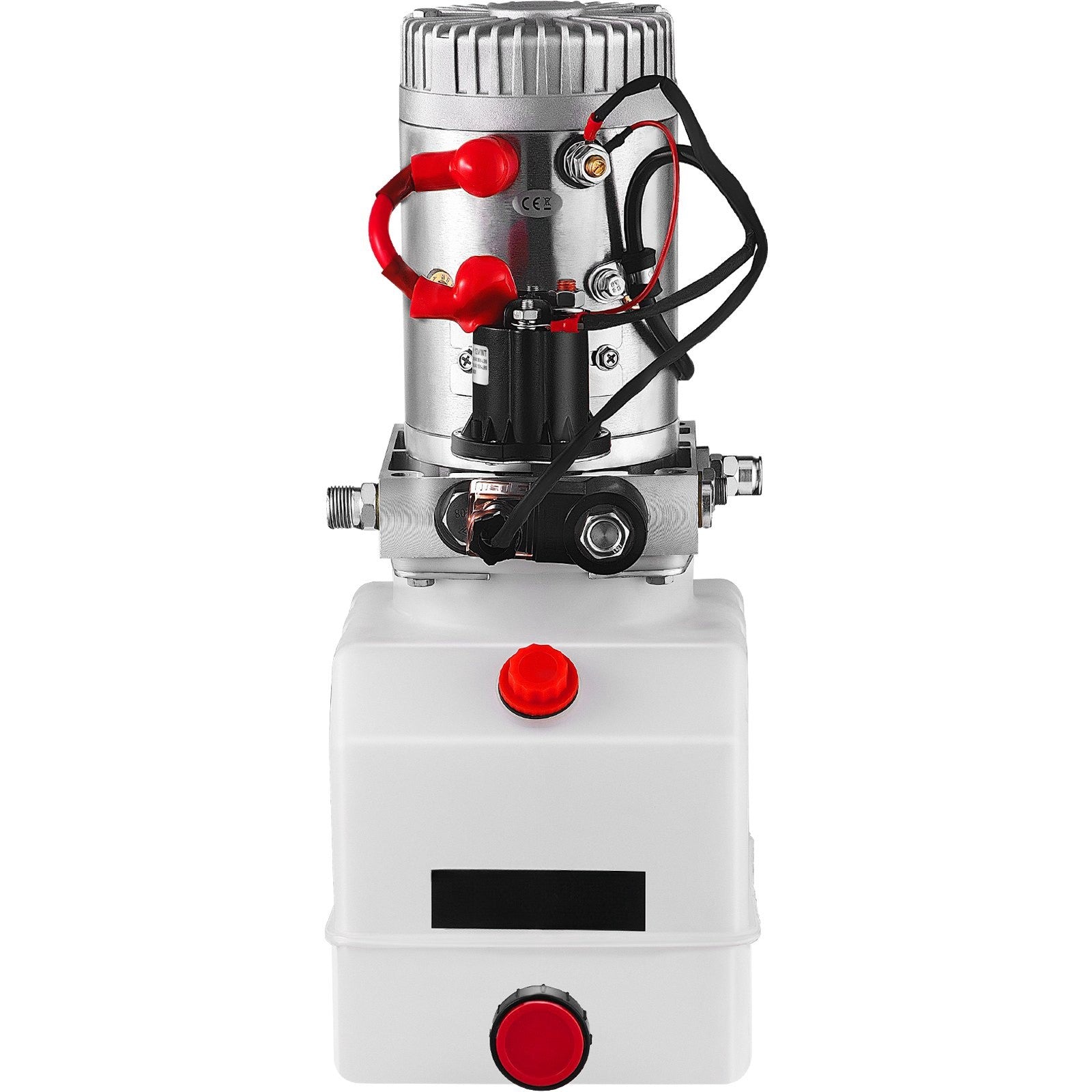

12V Single-Acting Hydraulic Power Unit, 4-Qt Tank, 15Ft Remote

12V single acting hydraulic power unit delivers fast power-up lifting for dump trailers, dump beds, and remote hydraulic systems. Fully assembled with a 4-quart translucent reservoir and a handheld pendant, it’s built for quick start, steady oil output, and straightforward wiring. Single-acting design provides power up and gravity down, while integrated relief valve settings help protect the system from overpressure during everyday lifting jobs.

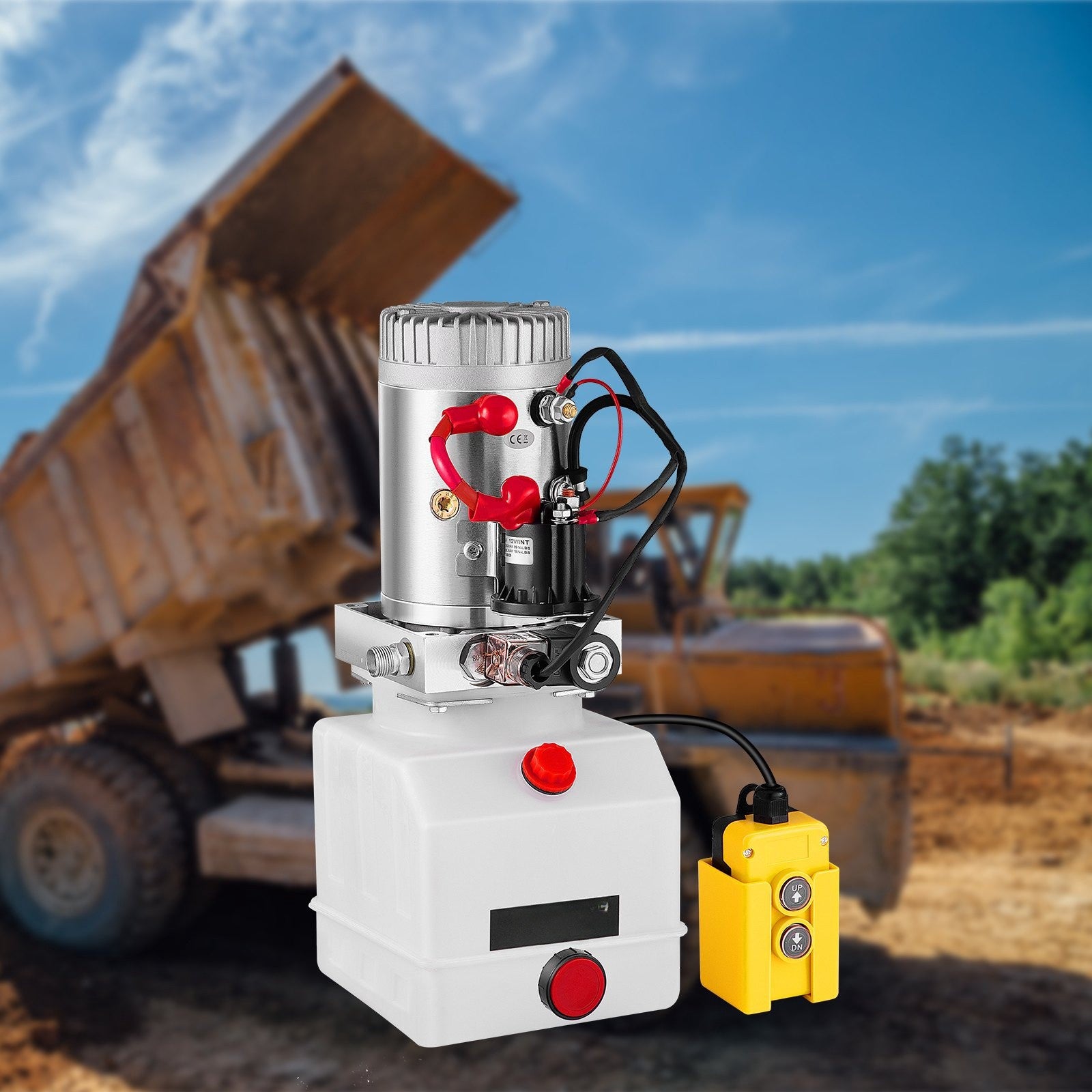

• Delivers power-up/gravity-down performance for dump trailers, movers, stackers, and lift platforms


• Includes a 15 ft (4.5 m) handheld pendant for safer long-distance control


• Supports quick starts with a DC 12V motor and 2 GPM flow for efficient lifting cycles


• Protects components with built-in relief valve settings on A and B ports to manage pressure


• Installs easily with simple wiring, operating instructions, and an extra SAE #6 connector

Designed as a replacement for many 12V remotely controlled hydraulic setups, this compact unit pairs a durable plastic tank with practical horizontal mounting and standard SAE #6 ports. The translucent reservoir makes fluid checks faster, reducing downtime between loads. Use it wherever a single-acting dump trailer pump is needed—power up to lift, then gravity down to return. Confirm port type and pressure requirements for your application, then grab yours today.

• System type: Single-acting (Power-Up / Gravity-Down)


• Motor: DC 12V, 1.6–3.0 kW


• Rated speed: 2850 RPM


• Flow rate: 2 GPM (displacement range stated: 0.562–4.350 GPM)


• Reservoir: 4 quart / 4 L translucent tank (plastic)


• Ports: SAE #6 (A port and B port)


• Relief settings: A port 3200 PSI (22 MPa); B port 1500 PSI


• Mounting: Horizontal


• Remote cord length: 15 ft (177 in / 4.5 m)
