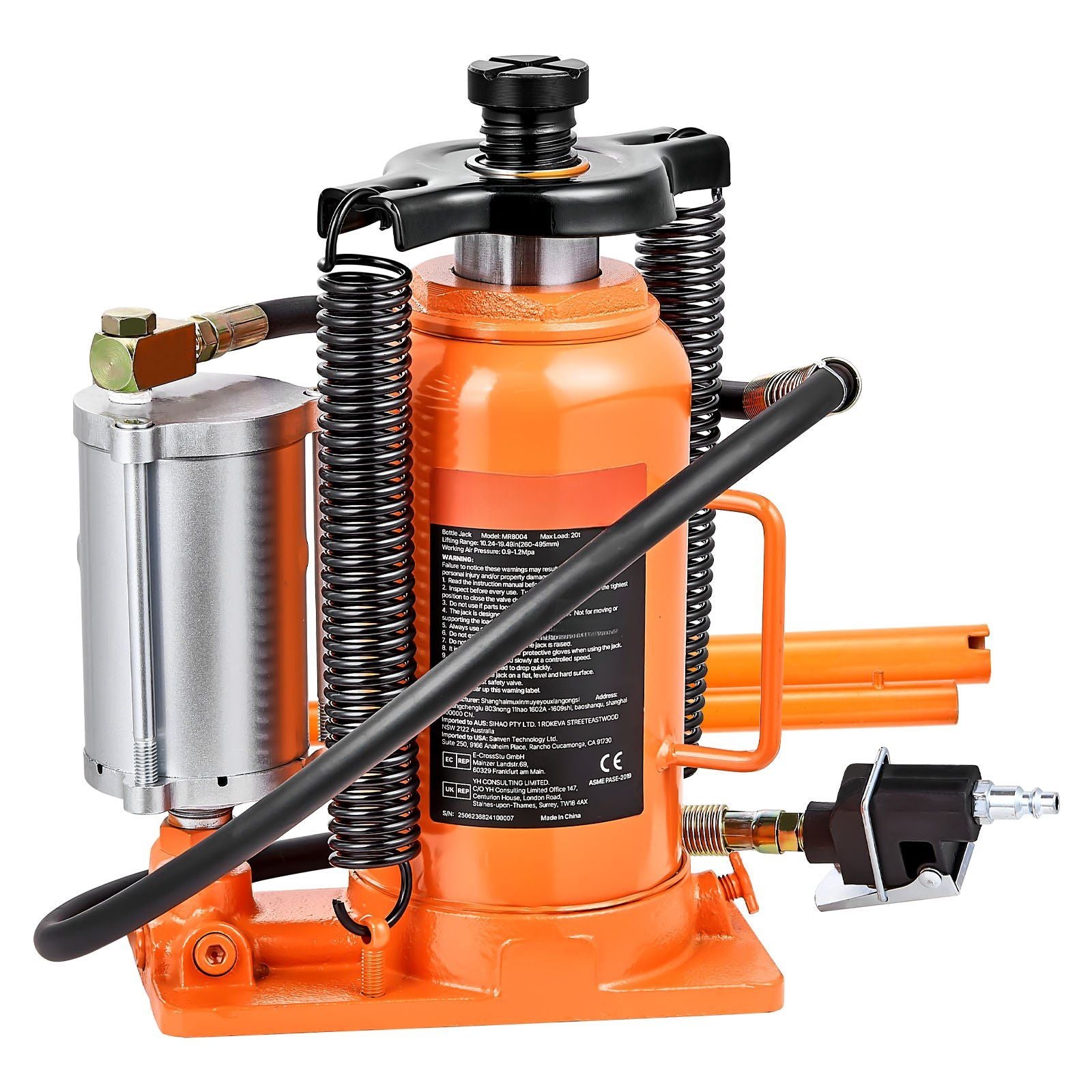

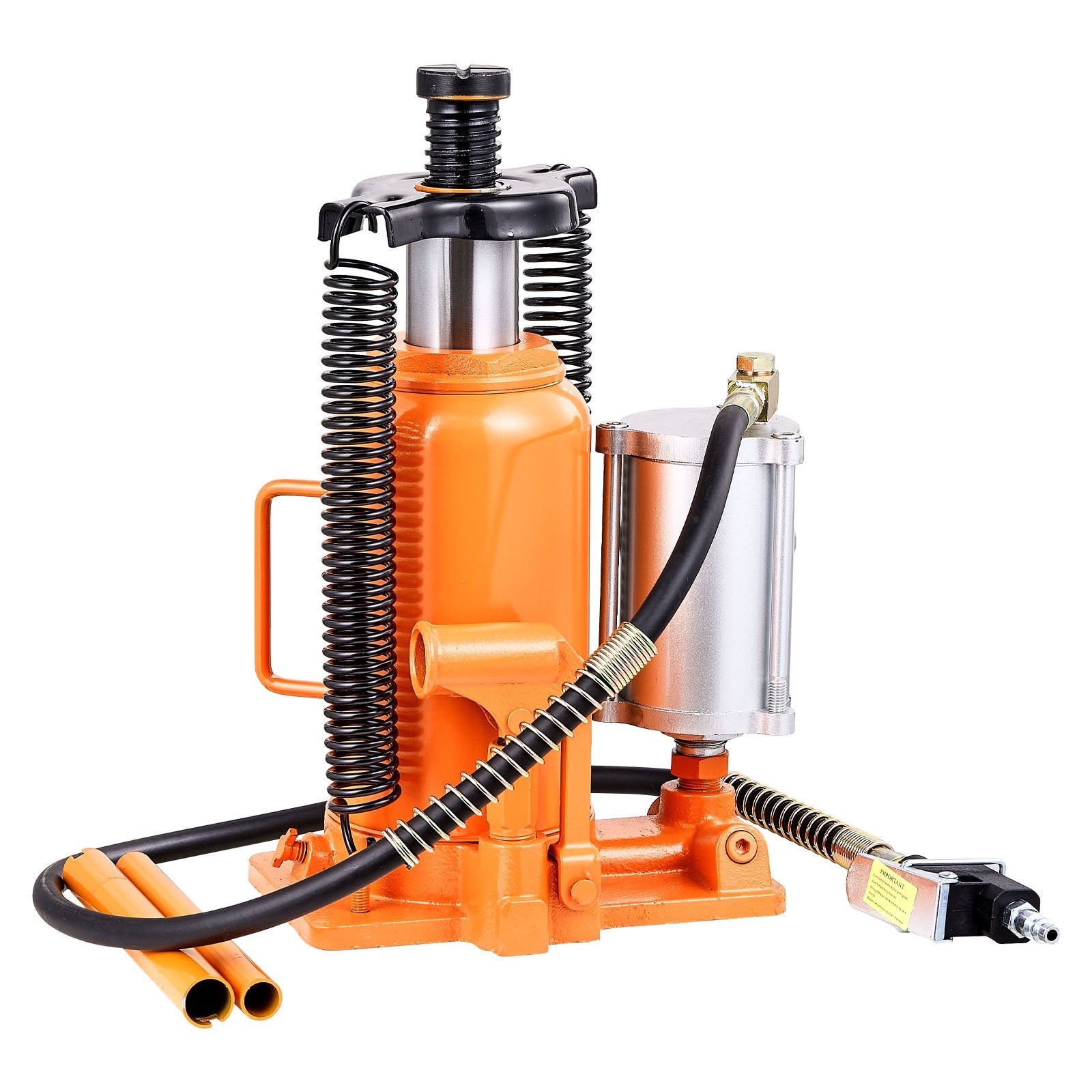

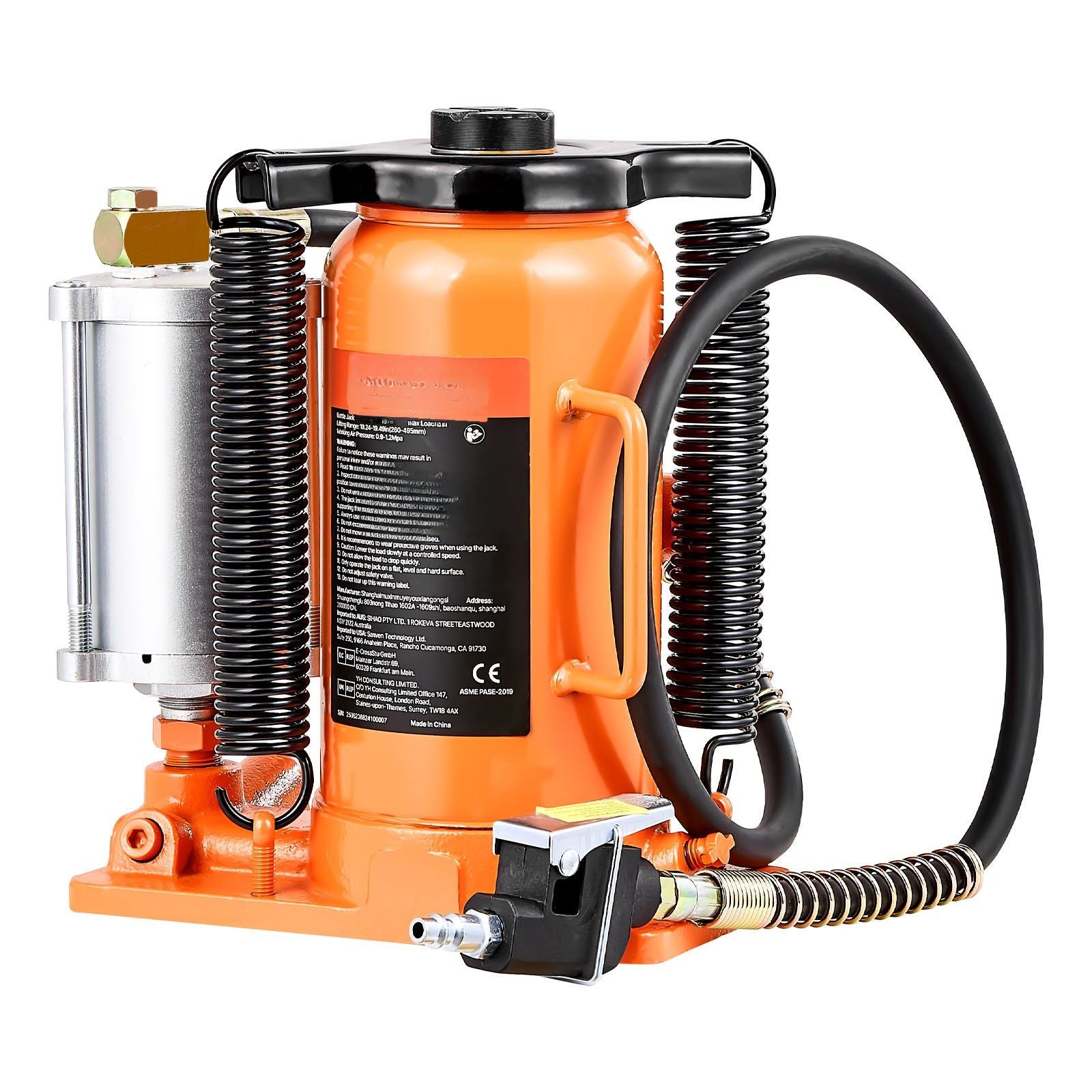

Air Hydraulic Bottle Jack, 20 Ton, 260-495 mm Lift

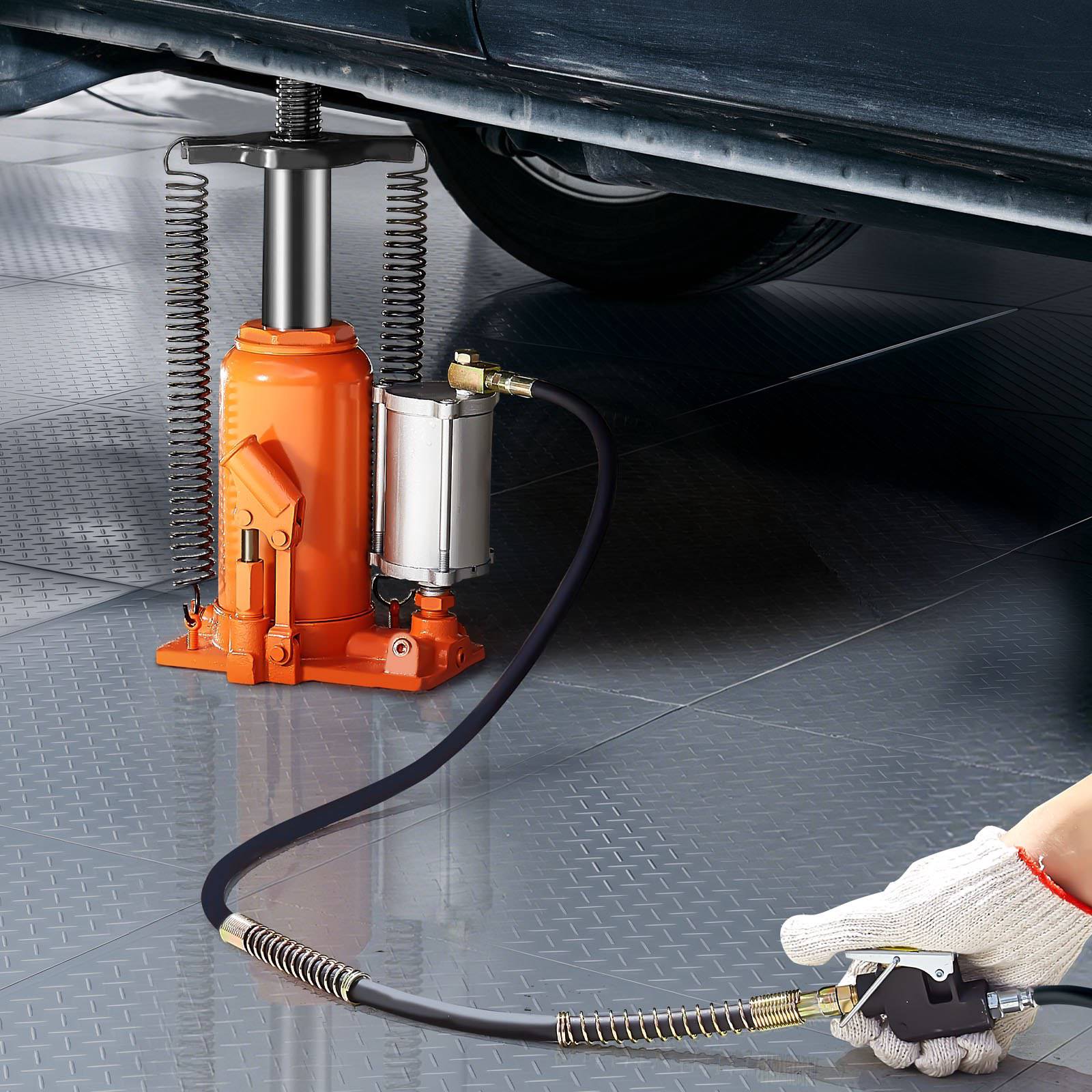

Air hydraulic bottle jack delivers fast, low-effort lifting for heavy vehicles, helping you raise trucks and RVs for tire changes and inspections. Built with a welded, heavy-duty body, it switches between pneumatic power (via quick-connect air fitting) and manual pumping when air isn’t available. A wide lifting range plus adjustable screw extension helps dial in height in tight spaces, while the anti-slip saddle and stable base support confident positioning in the shop or on the jobsite.

• Delivers 20-ton (44,092 lb) lifting power for SUV, pickup, truck, RV, and equipment service


• Switches between air-over-hydraulic and manual pumping to keep work moving anywhere

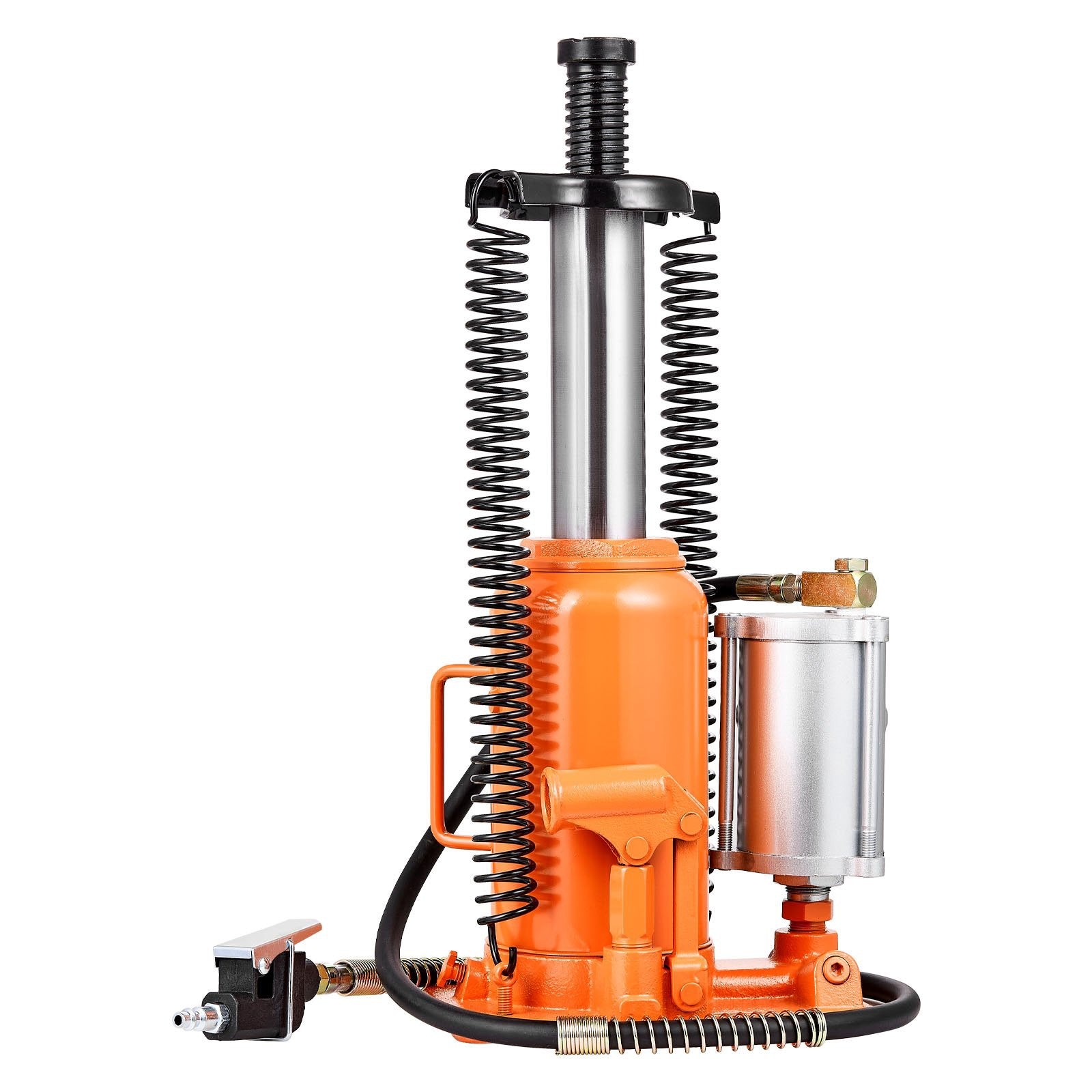

• Adjusts from 10.2–19.5 in lift range, plus 2.6 in screw extension for fine height control


• Stabilizes loads with a thick, wide base and anti-slip saddle for secure contact points


• Protects components with tight-sealing cylinder, overload protection valve, and quick-return dual springs

When time matters, this pneumatic/manual bottle jack gives you two ways to lift without changing tools—use compressed air for speed, or switch to hand pumping for dependable operation in the field. The compact footprint fits well under many vehicle frames, while the medium lift range covers common service tasks from wheel work to undercar checks. Built from cast iron and carbon steel for demanding use in garages, farms, and worksites. Grab yours today and keep a capable lifting solution ready for the next job.

• Rated load: 20 ton / 44,092 lb


• Lifting range: 10.2–19.5 in (260–495 mm)


• Adjustable screw height: 2.6 in (65 mm)


• Working air pressure: 0.9–1.2 MPa


• Materials: cast iron, carbon steel


• Product dimensions: 9.3 × 6.1 × 10.2 in (235 × 155 × 260 mm)


• Product weight: 29.8 lb (13.5 kg)
