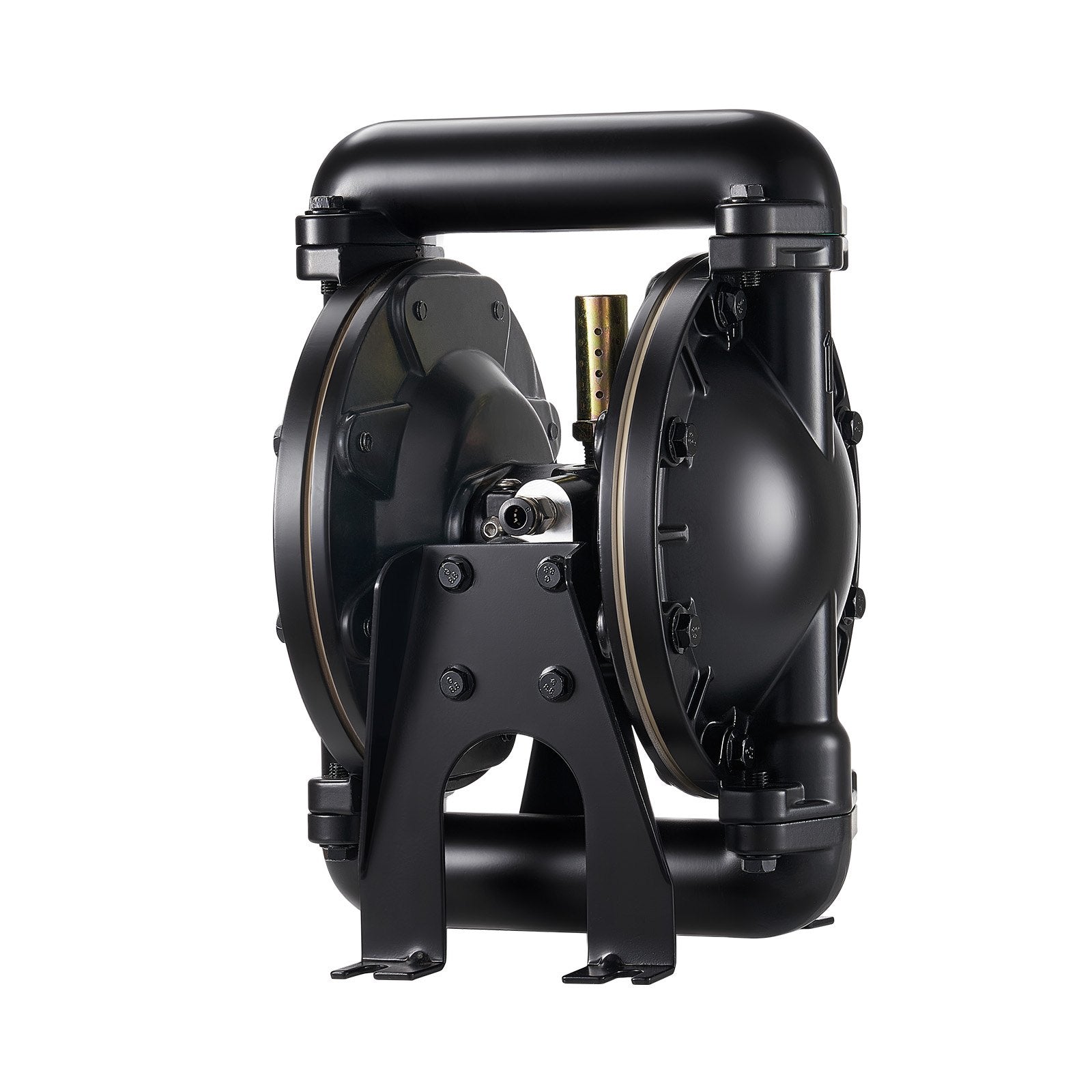

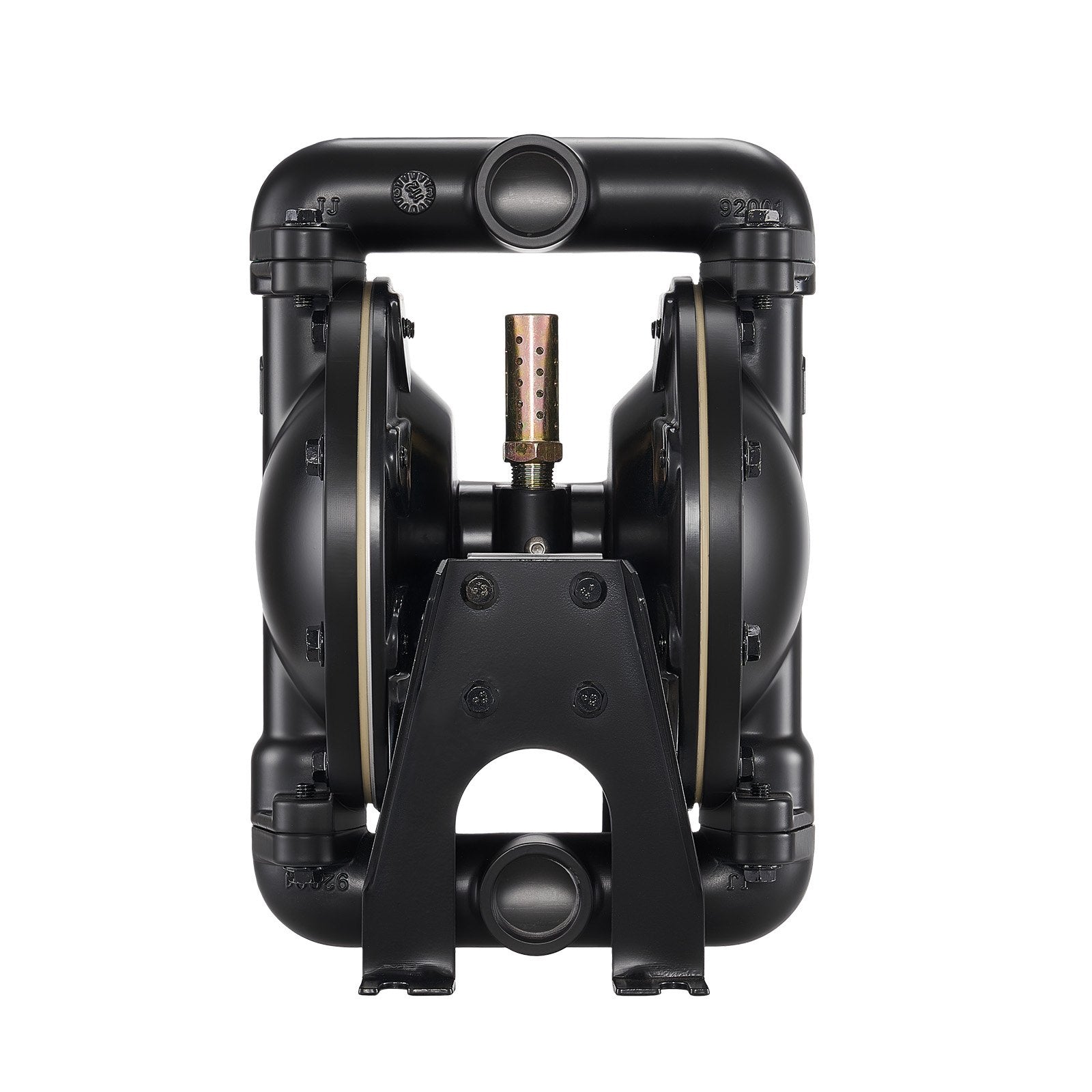

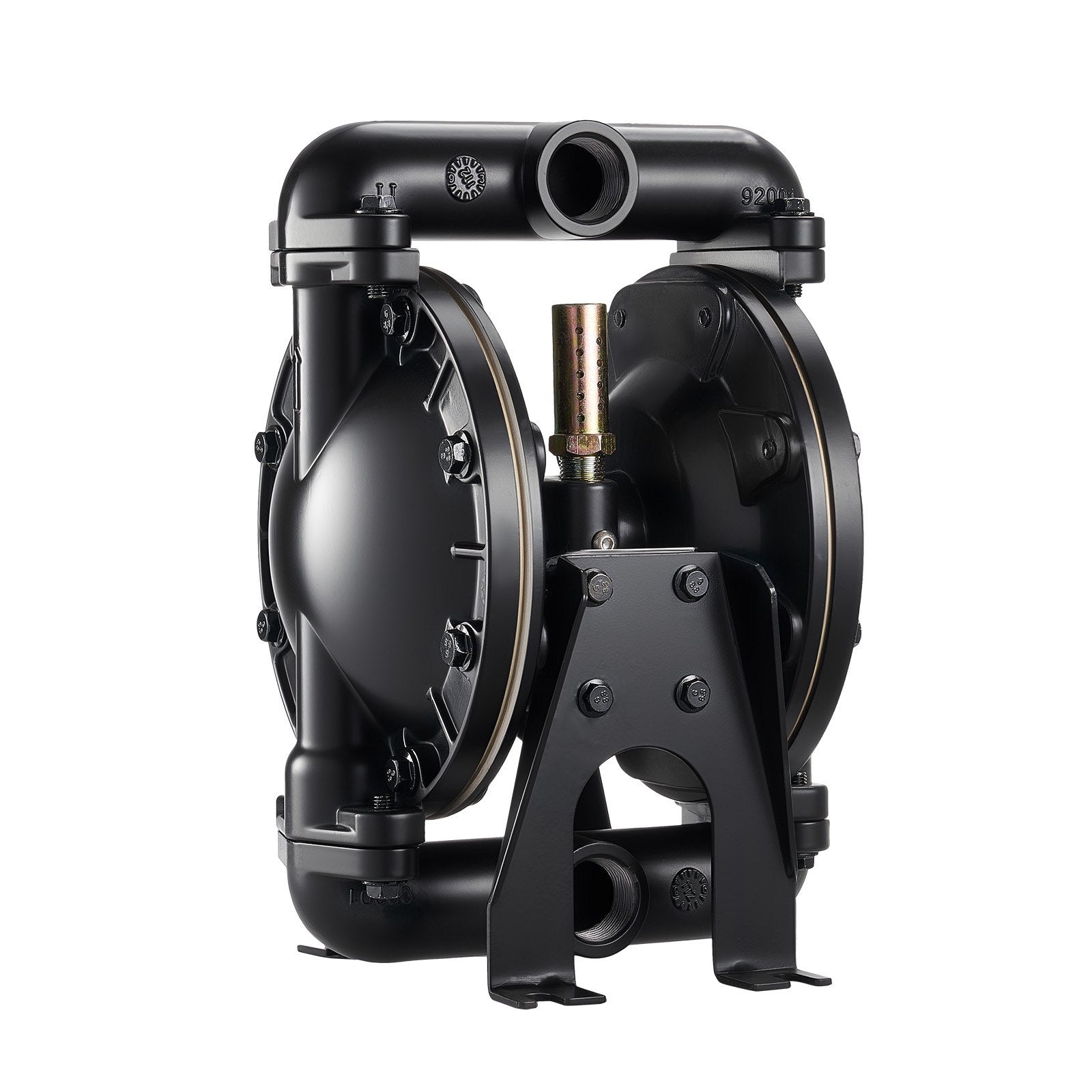

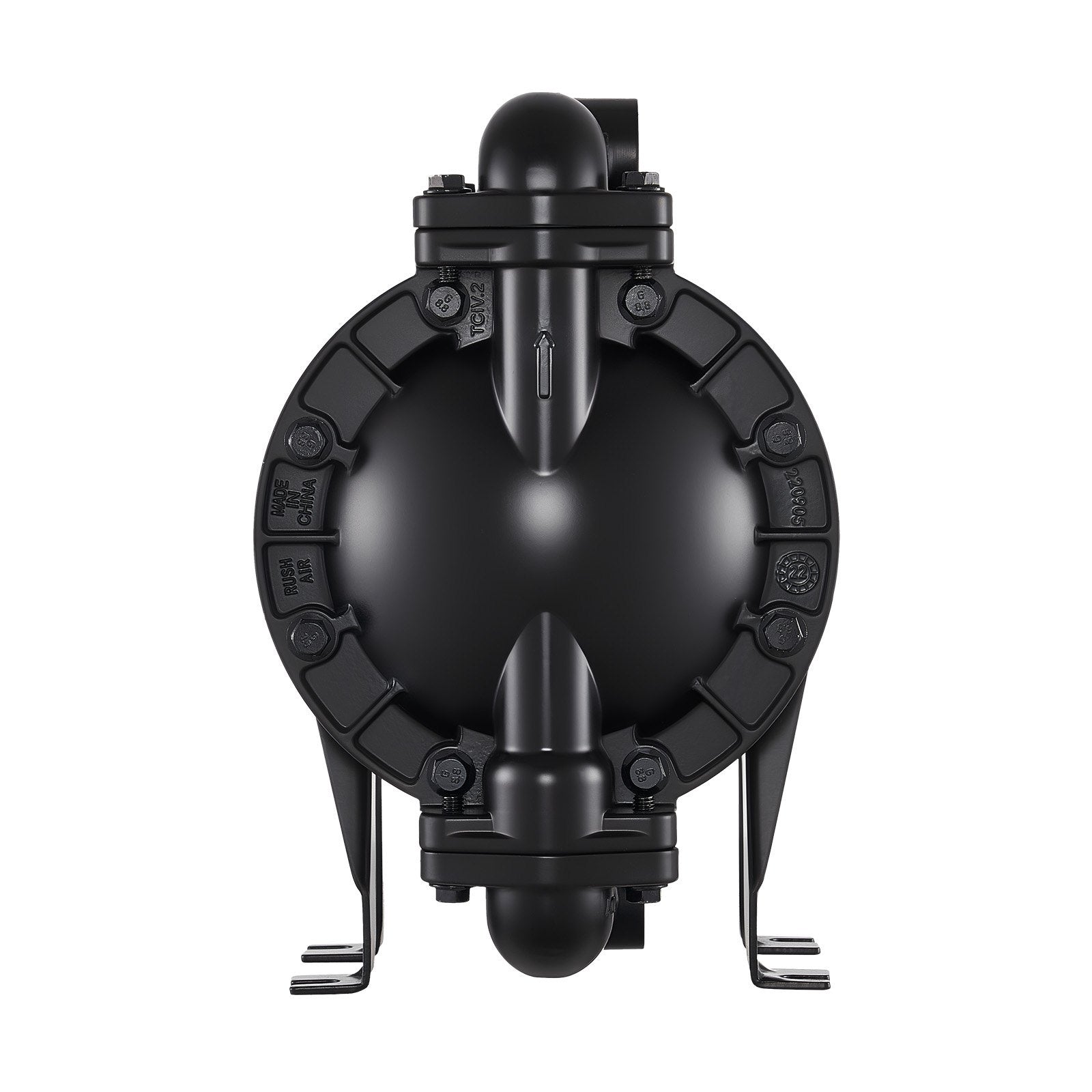

Air Operated Double Diaphragm Pump, 132 L/min, Aluminum

Air operated diaphragm pump delivers fast, controlled liquid transfer for waste oil, diesel, grease, and other shop fluids. The aluminum alloy body and triple-layer rubber diaphragms help reduce leaks and downtime, while the full-bolt construction supports a tight seal. Built to run dry without damage, this pneumatic transfer pump integrates easily with standard inlet and outlet ports for dependable operation in garages, plants, and job sites.

• Delivers up to 35 GPM (132 L/min) to move fluids quickly between tanks, drums, and containers.


• Handles suspended solids up to 0.1 in (2.5 mm) for waste oil and mixed-shop liquids.


• Resists wear with an aluminum alloy body and triple-layer rubber diaphragms for long service life.


• Integrates with standard ports to fit existing piping and fittings with stable airflow.


• Supports versatile use with oils, fuels, detergents, and beverages; not for corrosive acids/alkalis or liquids over 140°F/60°C.

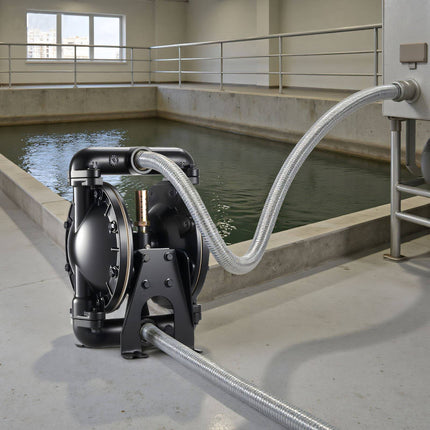

Designed for quick maintenance and consistent pneumatic performance, this double diaphragm pump is a practical choice for petroleum, printing, water treatment, automotive work, and contractor tasks like asphalt or paint transfer. Use it to streamline waste oil handling, speed up drum-to-tank transfer, or support utility systems such as rainwater collection where an air-driven solution makes sense. If you need a durable air pneumatic pump that can keep working through demanding cycles, grab yours today.

• Maximum flow rate: 35 GPM / 132 L/min


• Maximum pressure: 114 PSI


• Maximum head lift: 262 ft / 79.86 m


• Max suspended solids: 0.1 in / 2.5 mm


• Material: Aluminum alloy body; rubber diaphragms


• Max liquid temperature: 140°F / 60°C
