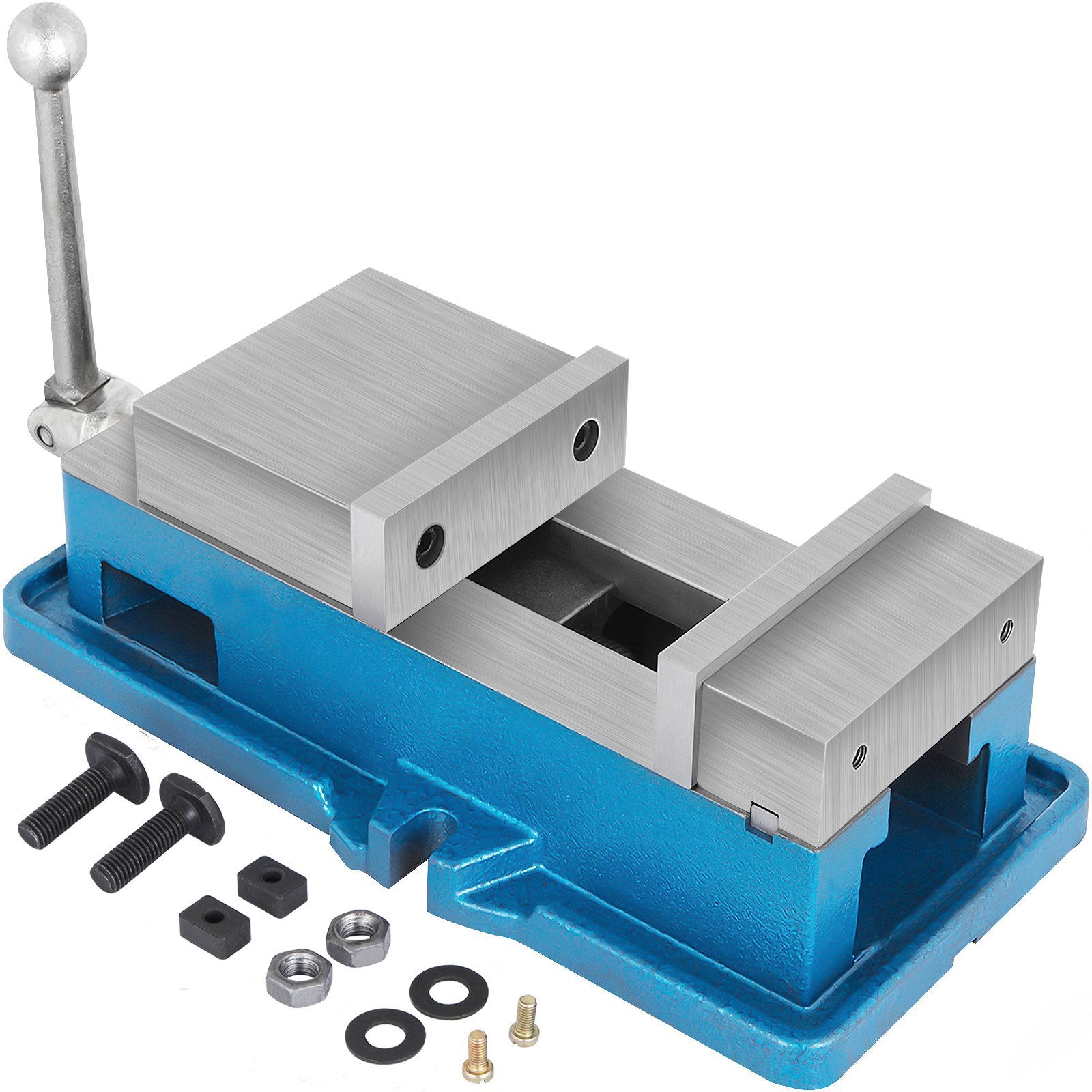

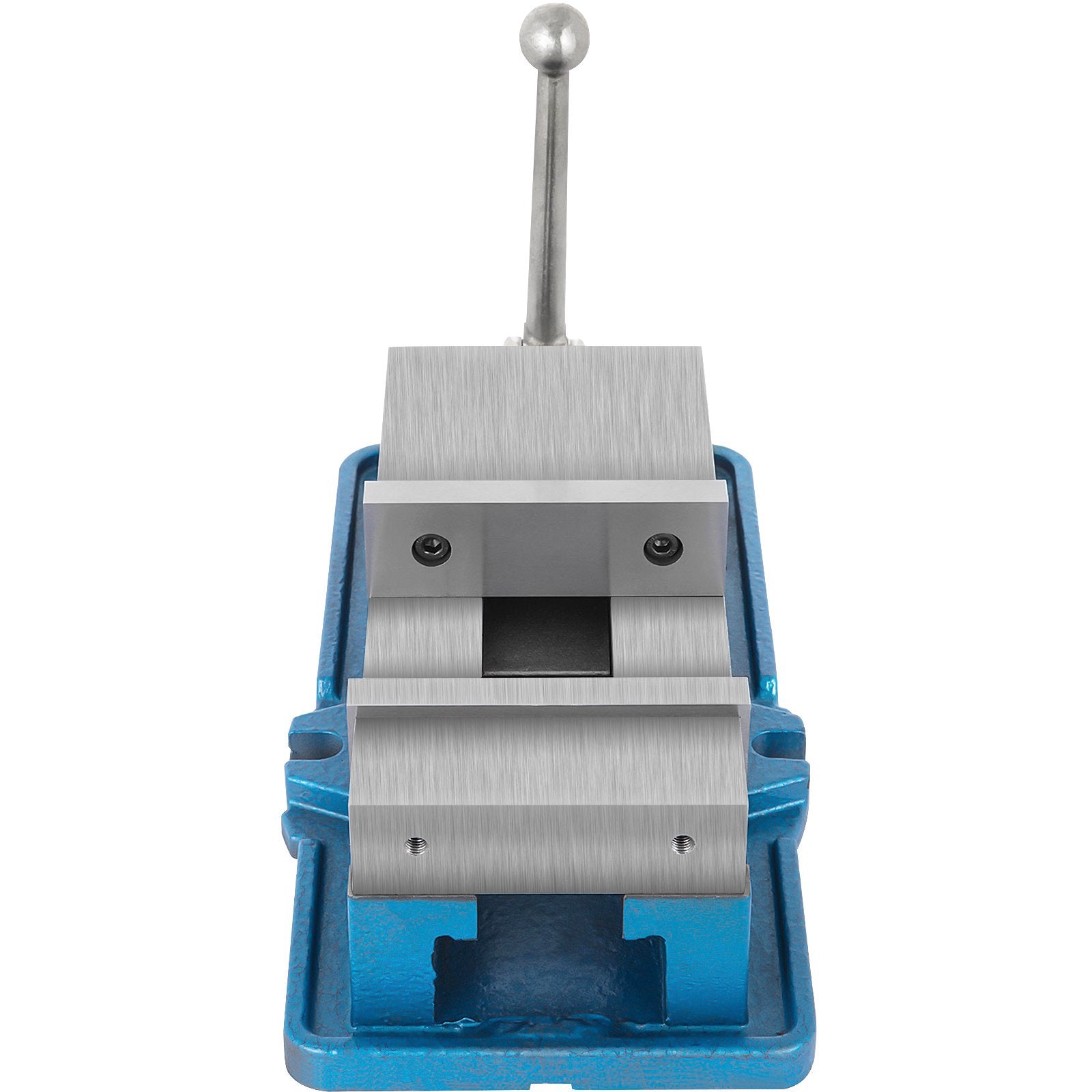

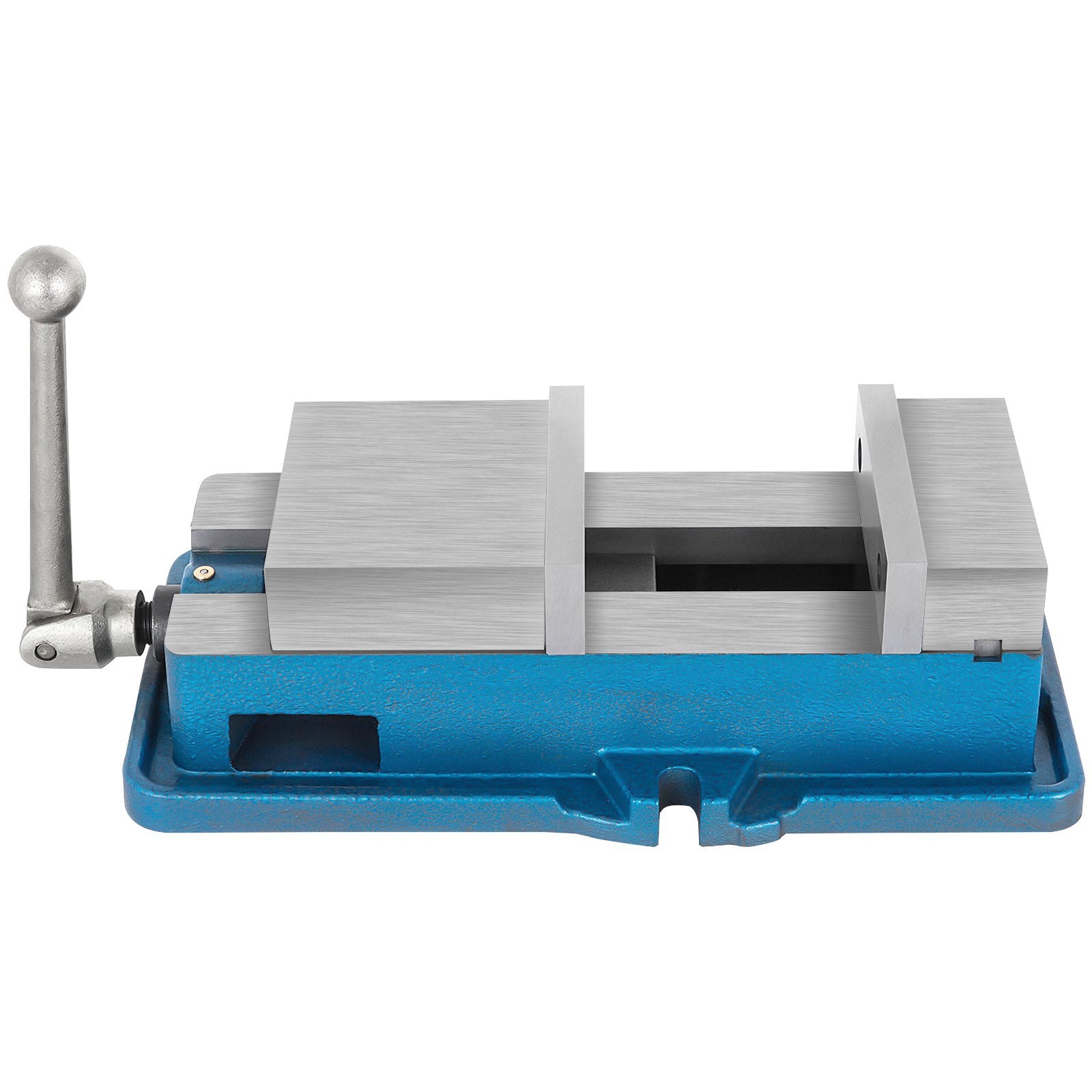

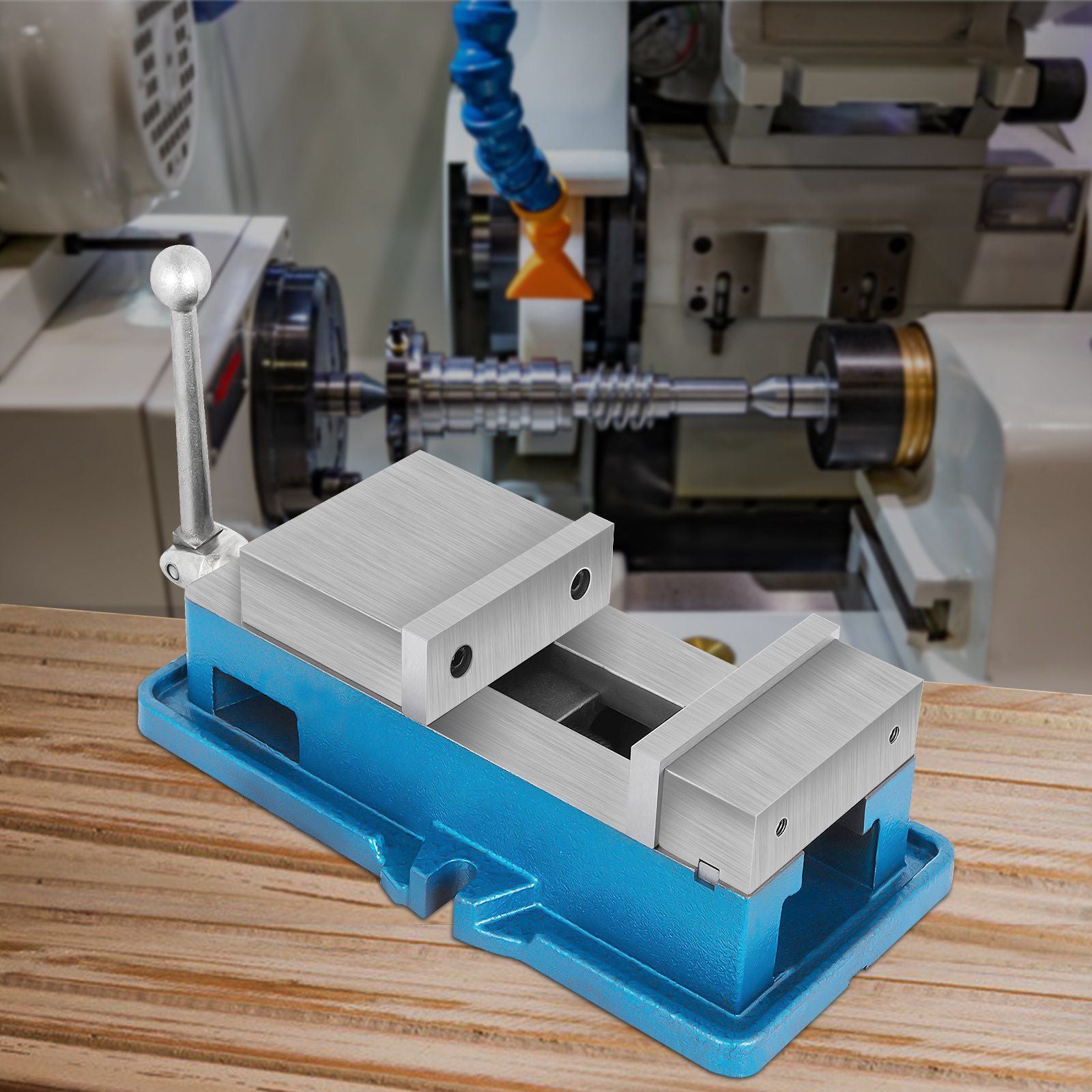

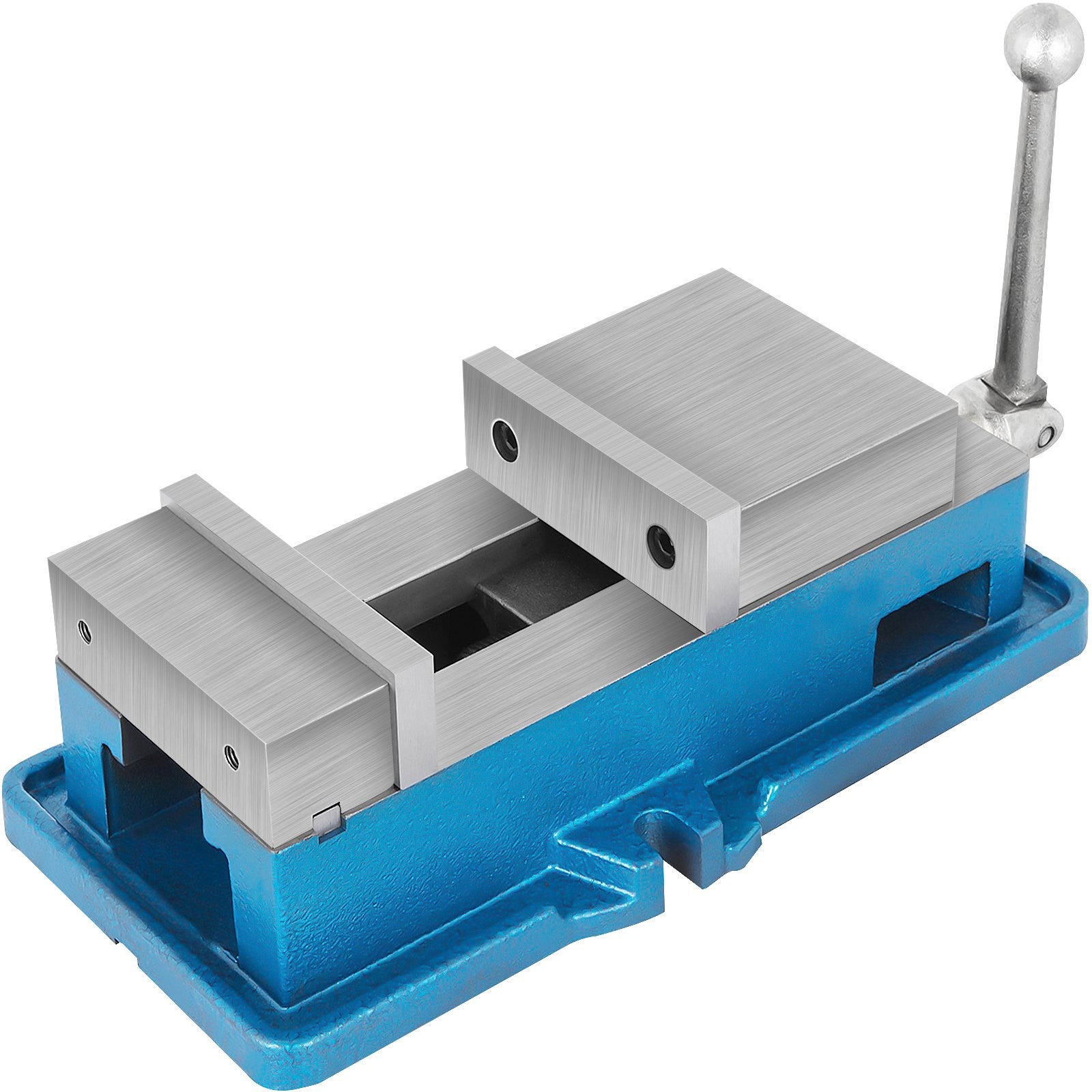

CNC Milling Vise, 5 Inch Jaw Width, 24 kN Clamp

5 inch CNC milling vise delivers stable, high-precision workholding to improve accuracy on drilling, milling, and machining setups. Built with a cast iron body and hardened 45# steel jaws, it’s designed to resist wear under heavy shop use. Smooth-polished guide surfaces and a protected lead screw help maintain consistent positioning, while the downward-pressure design reduces workpiece lift during clamping.

• Delivers up to 24 kN clamping force for secure holding on NC/CNC machines and bench setups


• Improves accuracy with 0.002" parallelism/perpendicularity for repeatable machining results


• Protects performance with a closed lead screw design that helps block chips and debris


• Reduces workpiece lift with downward-pressure clamping to limit float under load


• Simplifies operation with a hardened universal-joint handle and quick-detachable jaw design

Set up faster and cut with more confidence—this lockdown vise is built for demanding shop tasks like sawing, filing, chiseling, assembly, and precision machining. The hardened jaws and rigid body support consistent clamping pressure without constant readjustment, helping you keep parts aligned from roughing to finishing. Ideal for machinists and fitters who want dependable holding power with smooth travel and easy maintenance. Grab yours today and upgrade your workholding for cleaner, more controlled results.

• Type: Bench/CNC milling vise (lockdown style)


• Max clamping force: 24 kN


• Jaw width: 5 in / 12.5 cm


• Jaw opening: 5 in / 12.5 cm


• Jaw height: 1.6 in / 4 cm


• Vise height: 4.3 in / 11 cm


• Height with handle: 8 in / 20.3 cm


• Item dimensions (L×W×H): 15.5×7×4.5 in / 39.4×18×11.4 cm


• Package dimensions (L×W×H): 16×11×6 in / 41×27×15 cm


• Net weight: 40 lb / 18 kg


• Jaw material: 45# steel (hardened)


• Body material: HT250 gray cast iron


• Handle material: QT500 ductile iron


• Accuracy: 0.002" parallelism/perpendicularity
