Digital Hydraulic Pressure Test Kit – 700 Bar Gauge Set

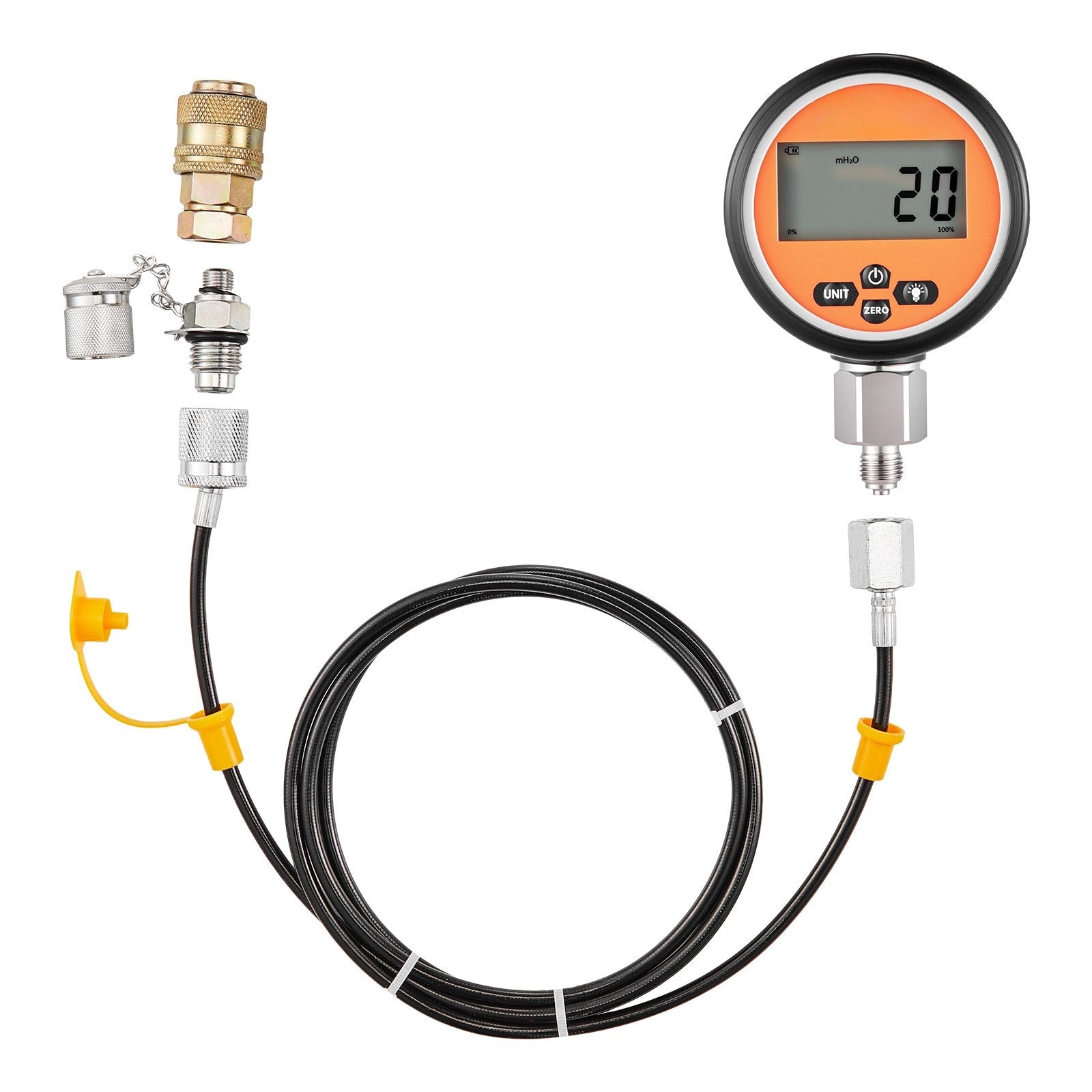

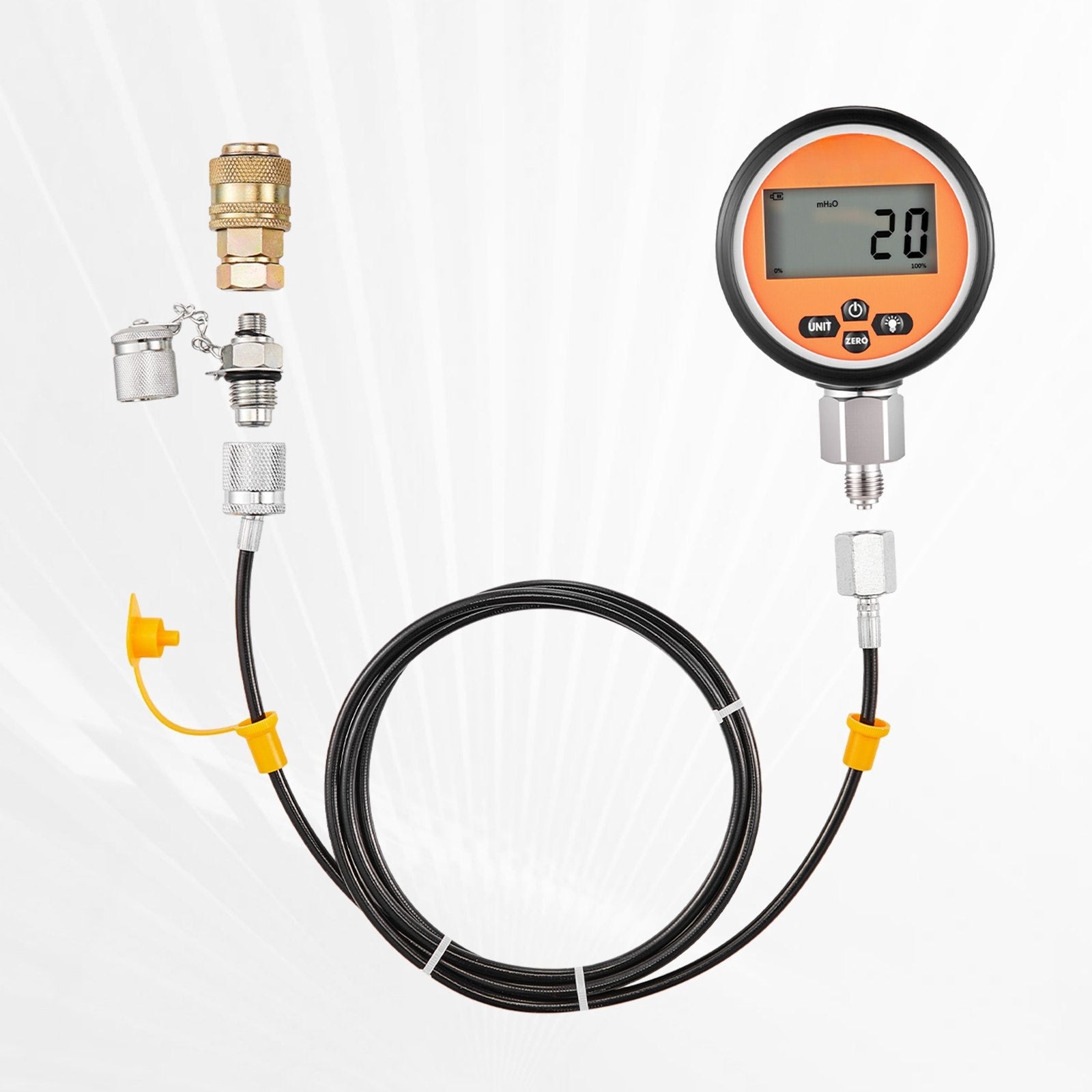

Hydraulic pressure test kit delivers fast, accurate diagnostics on excavators and other construction machinery with a clear digital readout up to 10,000 PSI / 700 bar. Designed for field adjustments and routine maintenance, it helps pinpoint pump, valve, and cylinder issues before downtime escalates. The compact set combines a digital pressure gauge, G1/8 test coupling, quick-release coupler, and flexible hose for quick connections in tight spaces.

• Delivers real-time pressure readings with ±0.2% sensor accuracy and interference-resistant smart chip.


• Switches units instantly between Bar, PSI, MPa, and kgf/cm² for multi-system troubleshooting.


• Includes backlight, zero calibration, and peak hold to capture spikes during load changes.


• Fits standard G1/8 test ports using a quick-release coupler for faster setup and fewer leaks.

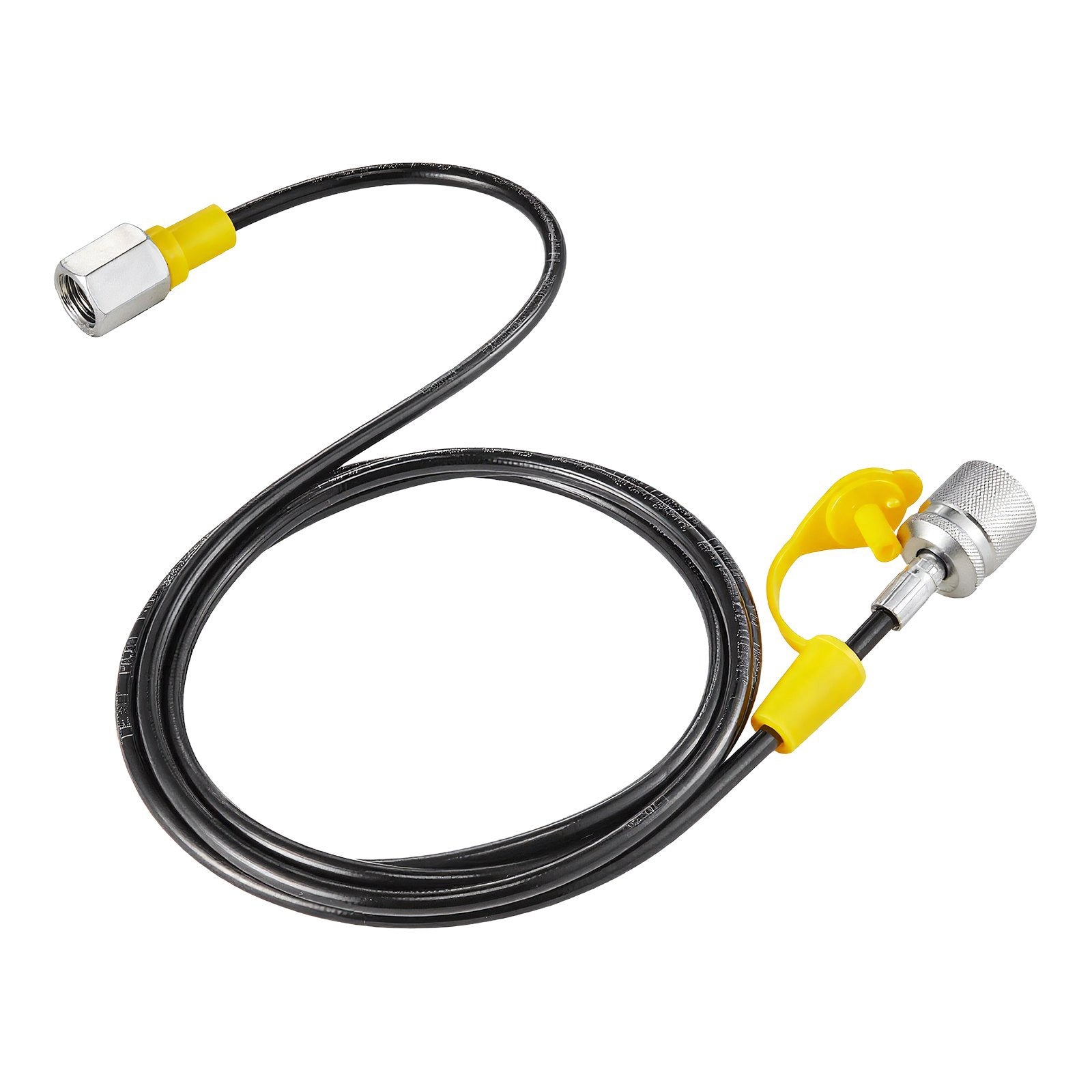

• Reaches hard points with a 5.2 ft / 1.6 m durable test hose for safer, cleaner checks.

Built for professional maintenance crews, this digital hydraulic pressure gauge set supports frequent inspections on excavators, loaders, and bulldozers—ideal for checking main pump pressure, cylinder sealing performance, and multi-way valve operation. A stainless steel gauge body with a silicone protective cover helps resist corrosion and jobsite impacts, while the sealed design supports dusty, wet environments. Keep it in your service kit for quicker fault isolation and more confident adjustments—grab yours today and stay ready for the next callout.

• Pressure range: 0–10,000 PSI / 0–700 bar


• Gauge units: Bar, PSI, MPa, kgf/cm²


• Accuracy: ±0.2%


• Port fitting: G1/8


• Hose length: 5.2 ft / 1.6 m

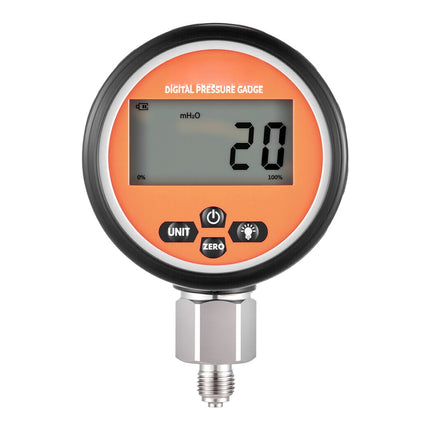

• Gauge material: SUS304 stainless steel


• Kit contents: digital gauge, test coupling, quick-release coupler, hose


• Weight: 1.4 lb / 0.62 kg
