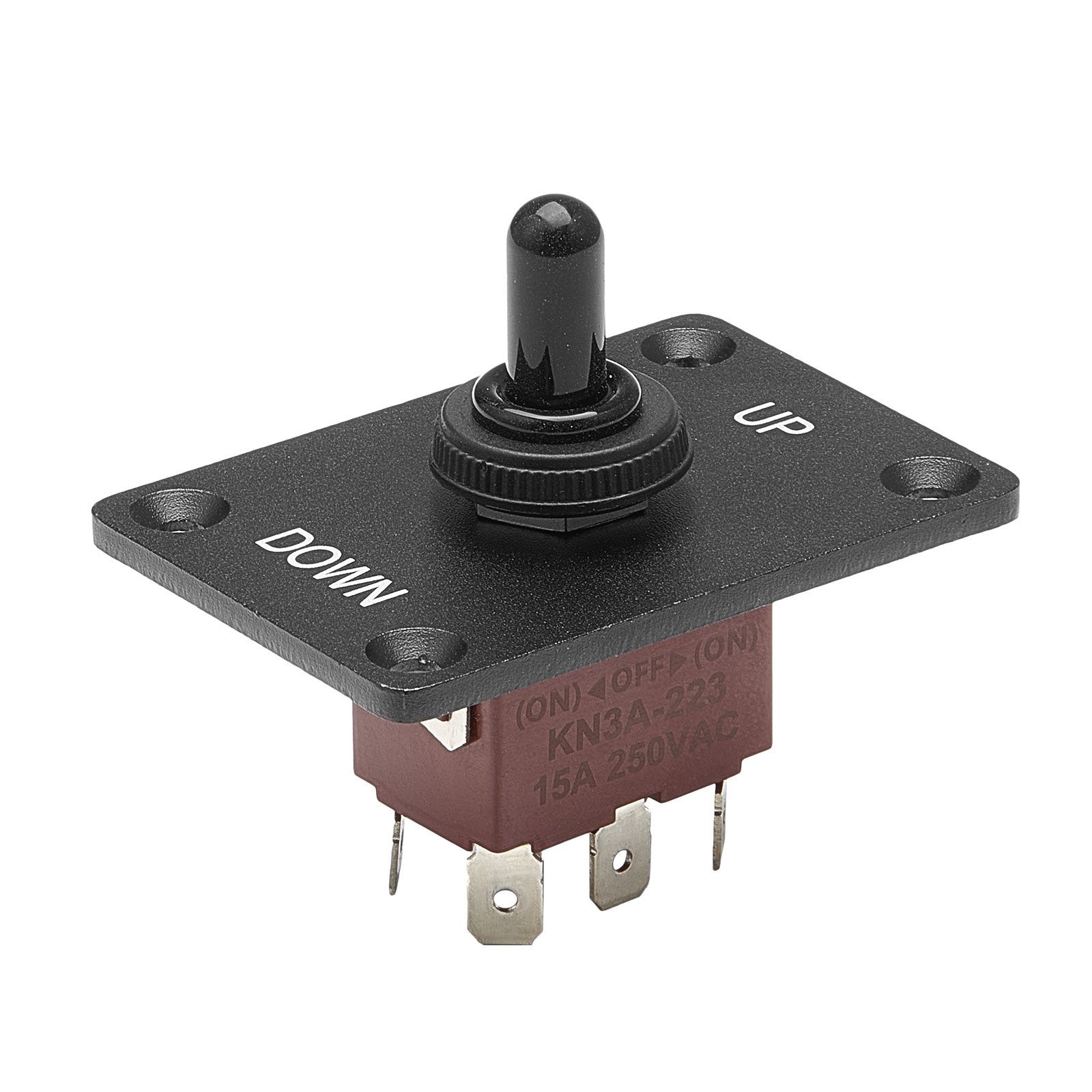

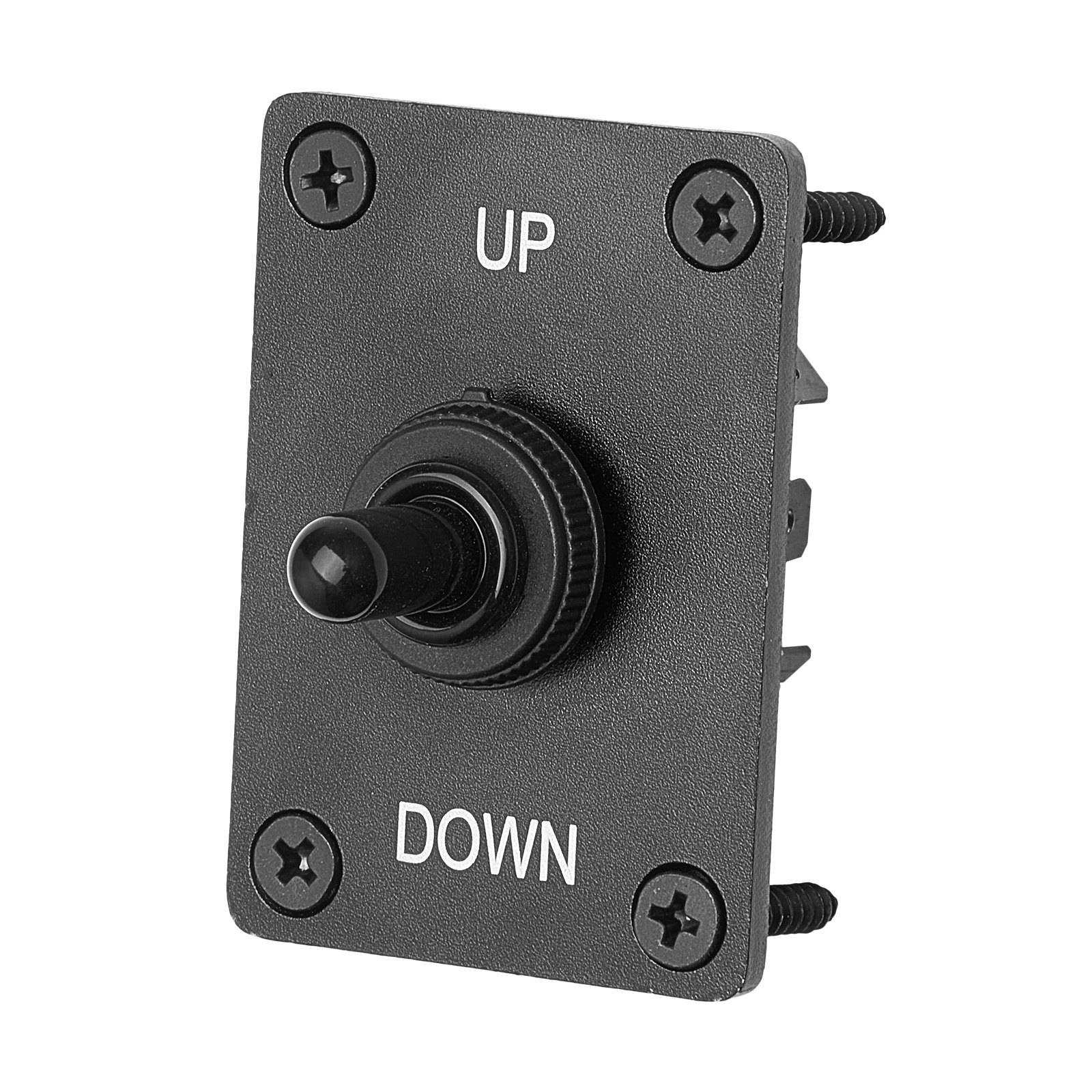

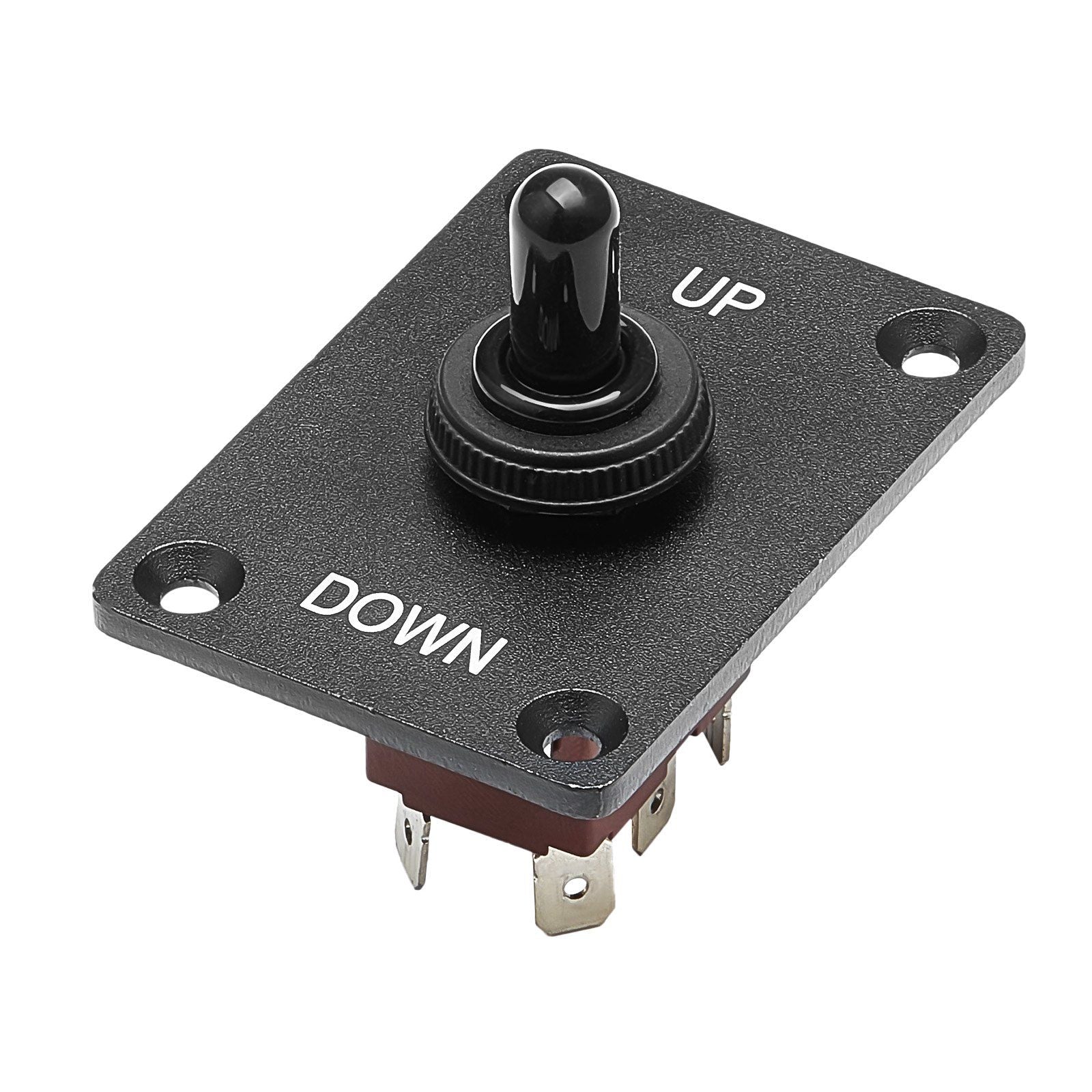

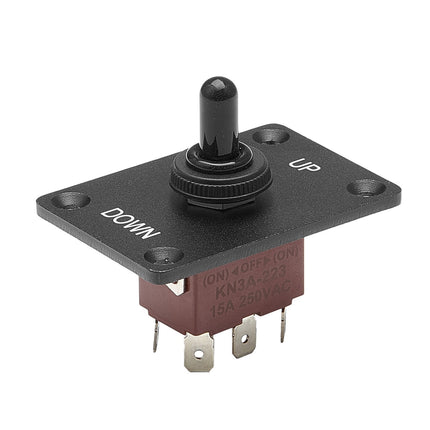

DPDT 6-Pin Momentary Toggle Switch, Waterproof Boot

Momentary polarity reversing toggle switch delivers fast up/down motor control for linear actuators and DC motors, helping you lift, lower, or reverse direction without rewiring. The DPDT 6-pin (ON)-OFF-(ON) design includes polarity-reversing jumpers for straightforward forward/reverse operation. Built for 12V systems and higher-load applications, it comes with a mounting panel and a protective boot to support cleaner, more reliable installs in automotive, marine, RV, and workshop setups.

• Delivers forward/reverse control with DPDT 6-pin polarity reversing jumpers—change direction without swapping wires


• Handles heavy loads up to 30A at 12V DC or 15A at 250V AC for actuators, winches, and DC motor circuits


• Includes a mounting panel and 12 mm (0.47") hole fit for dashboards, control boxes, and equipment panels


• Protects with an IP40-rated boot cap to help reduce dust intrusion in busy vehicle and shop environments


• Fits 3-position momentary (ON)-OFF-(ON) action for precise jog control—release to stop

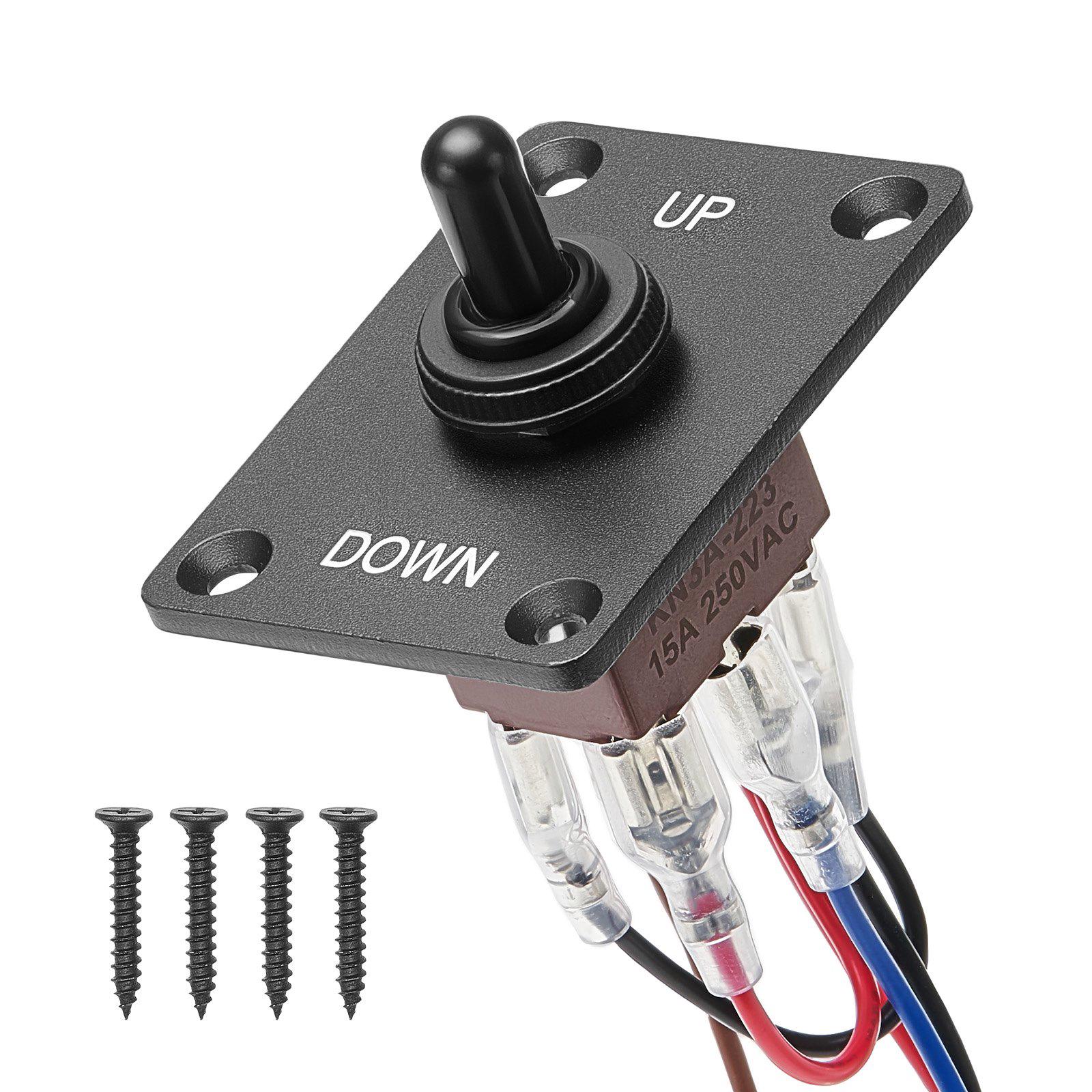

When your project needs reliable direction control, this 3-position momentary toggle switch keeps operation simple: press up or down to run the motor, release to stop, and reverse instantly when needed. Ideal for RV accessories, boats, trailers, forklifts, solar trackers, and automation builds where space is tight and wiring time matters. Install it in minutes using the included panel, route the prewired leads, and keep controls protected with the boot cap. Grab yours today and finish your control setup with confidence.

• Contact type: DPDT; pins: 6


• Switch action: Momentary; positions: (ON)-OFF-(ON)


• Electrical rating: 30A 12V DC / 15A 250V AC


• Mounting hole diameter: 12 mm (0.47")


• Wire length: 65 mm (2.56")


• Protection rating: IP40


• Dimensions: 63.5 x 44.8 x 60.2 mm (2.5 x 1.8 x 2.4 in)


• Net weight: 0.068 kg (0.15 lb)
