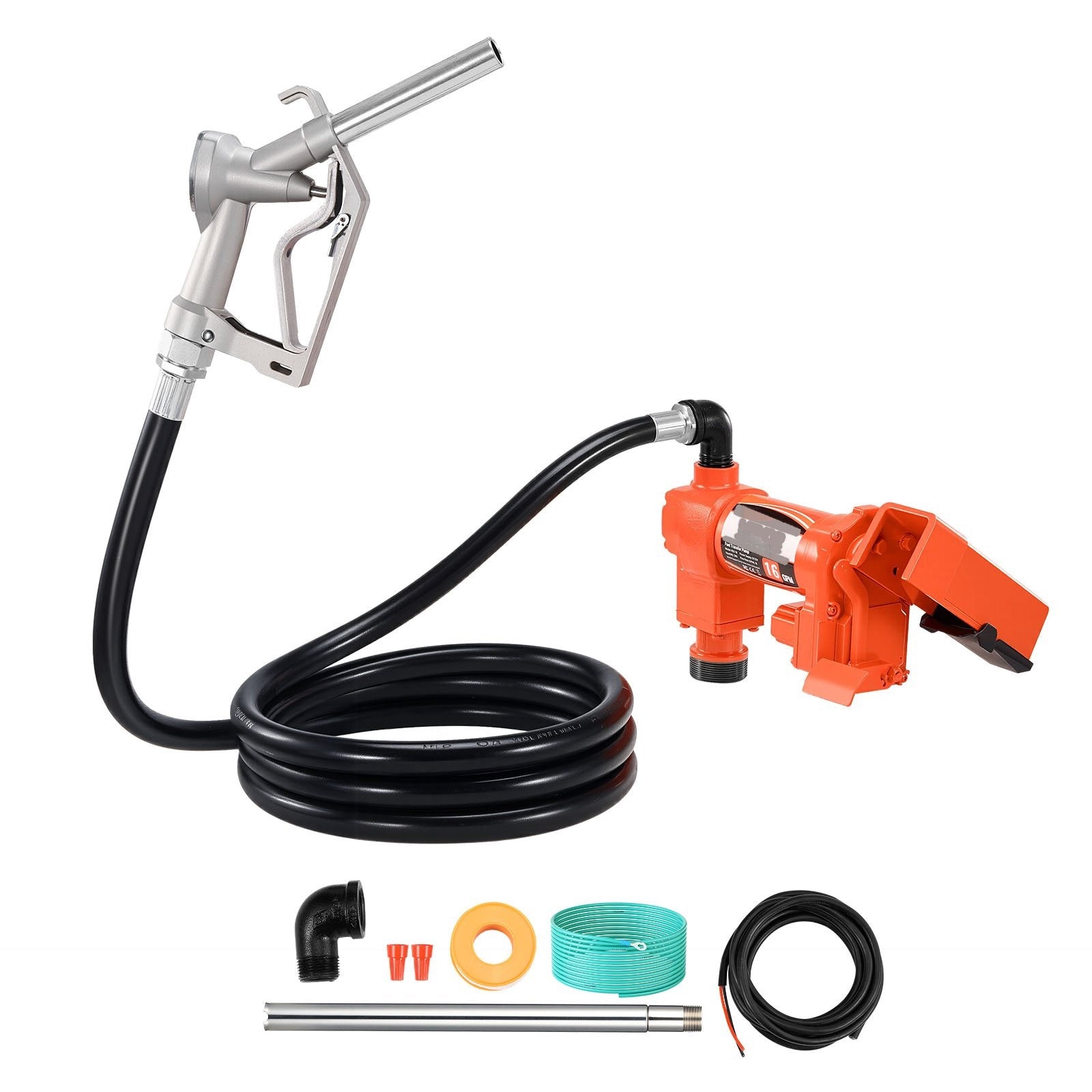

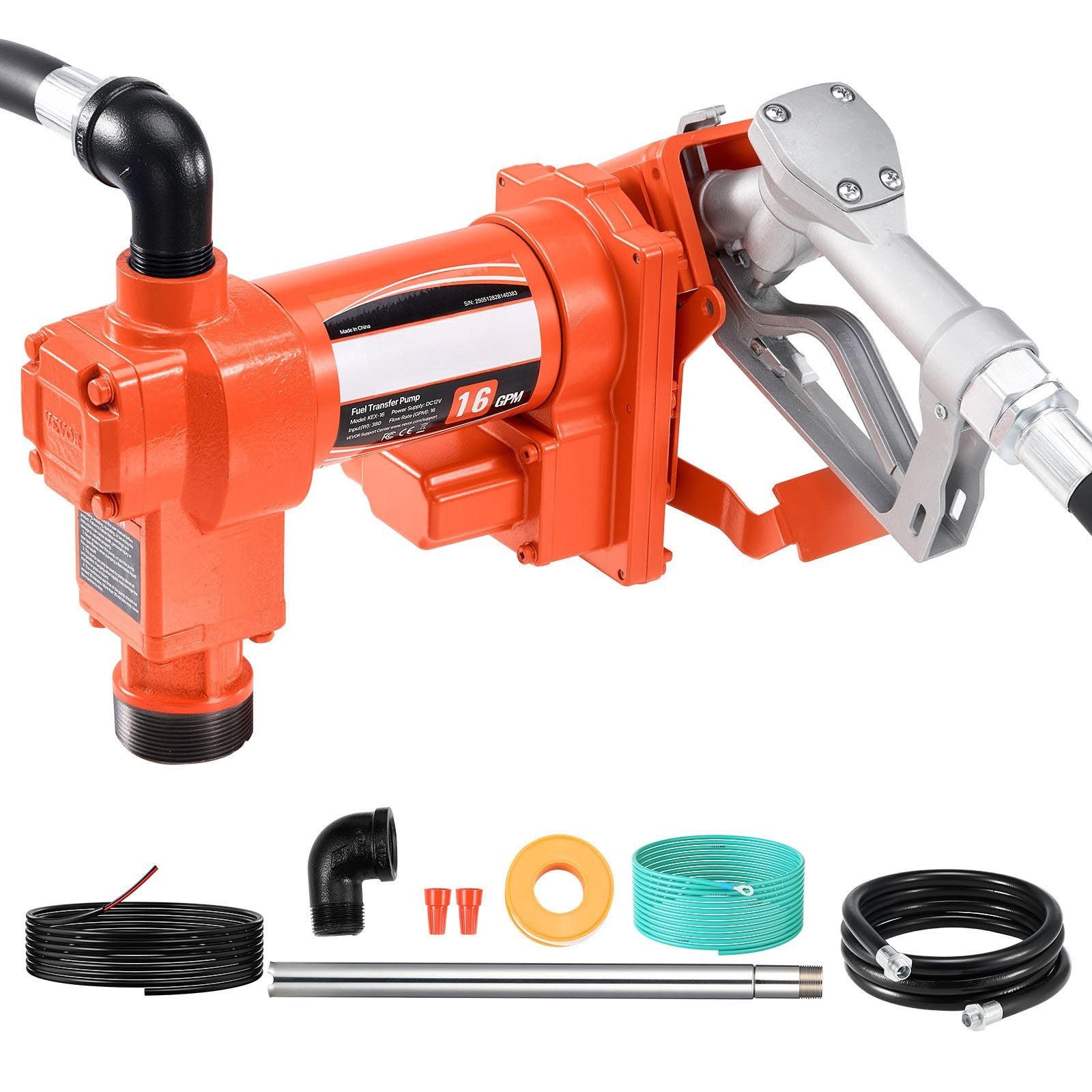

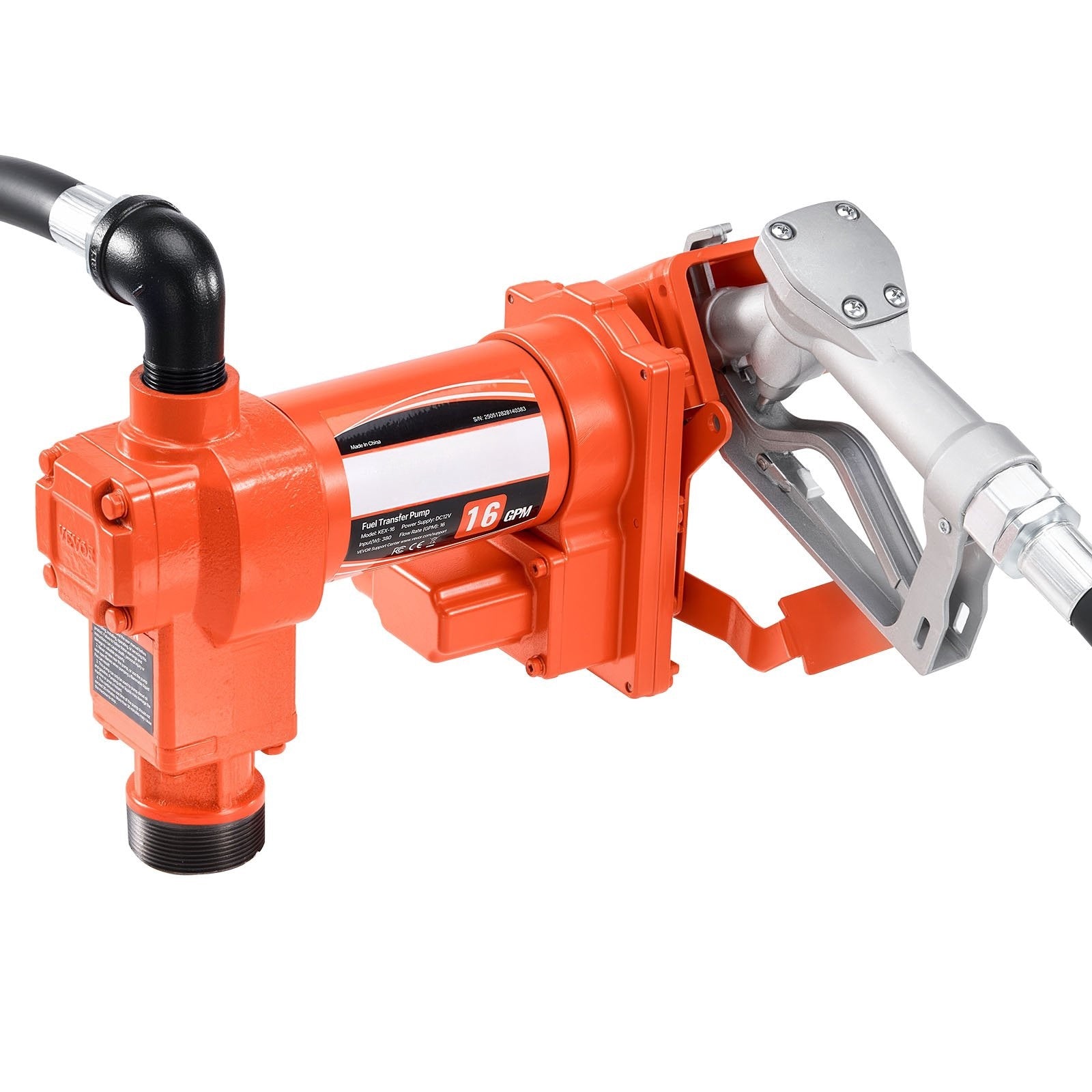

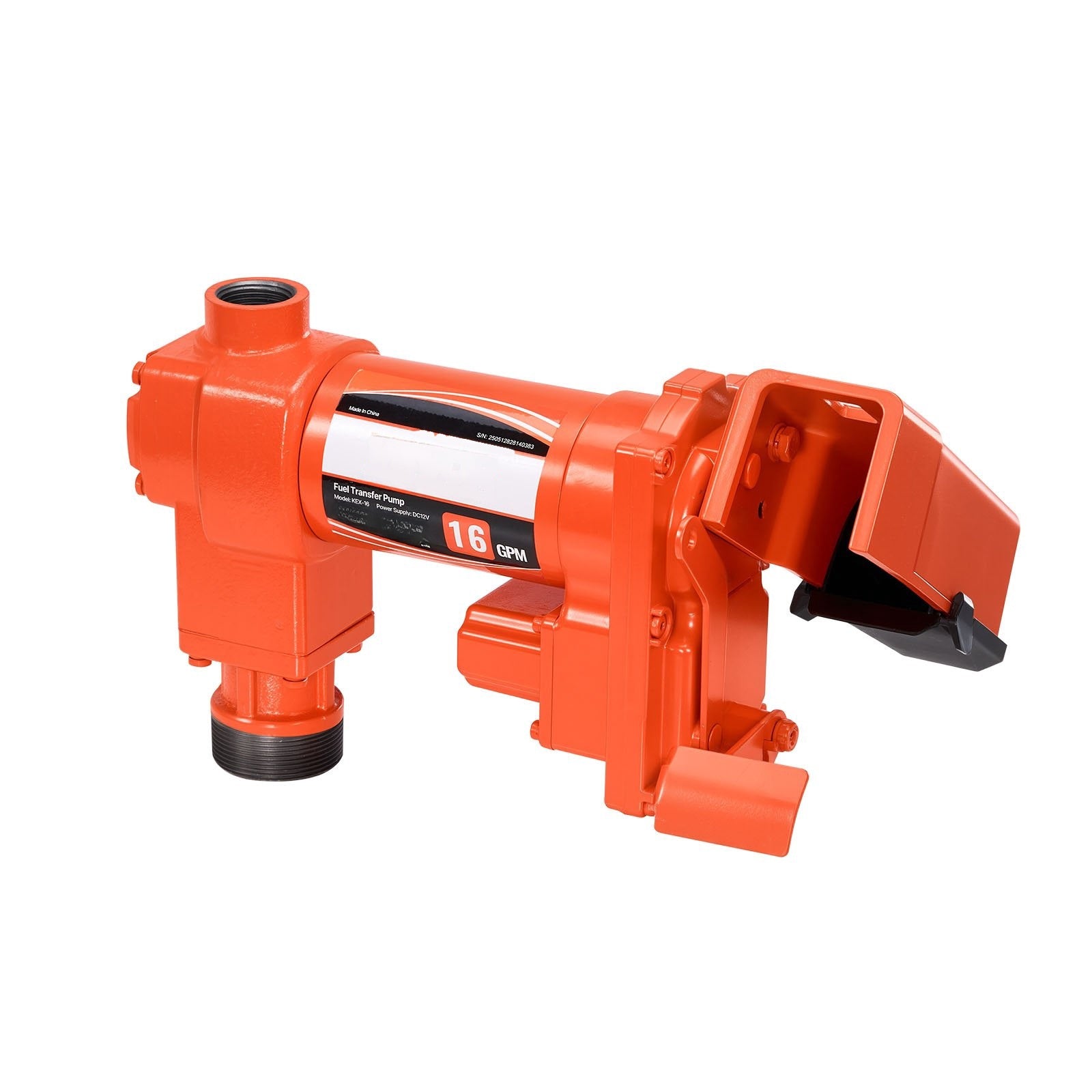

Fuel Transfer Pump, 12V DC 16 GPM With Manual Nozzle

12V fuel transfer pump moves gasoline, diesel, and kerosene fast with a 16 GPM flow rate for quicker refueling on farms, fleets, and job sites. The 186W (1/4 HP) DC motor delivers steady transfer with up to 26.2 ft head lift and ≥9.8 ft suction lift, while the manual aluminum nozzle gives controlled dispensing. Built for practical cleanup, it includes an integrated oil catch box to reduce drips and keep storage tidy.

• Delivers up to 16 GPM with a 12V DC motor for rapid fuel transfer and fewer fill-up stops


• Handles gasoline, diesel, kerosene, plus ethanol-methanol blends and biodiesel for versatile use


• Includes a manual aluminum nozzle for controlled dispensing and corrosion resistance


• Reduces mess with an integrated oil catch box and onboard nozzle storage to help prevent drips


• Protects the motor with thermal overload protection during extended pumping sessions

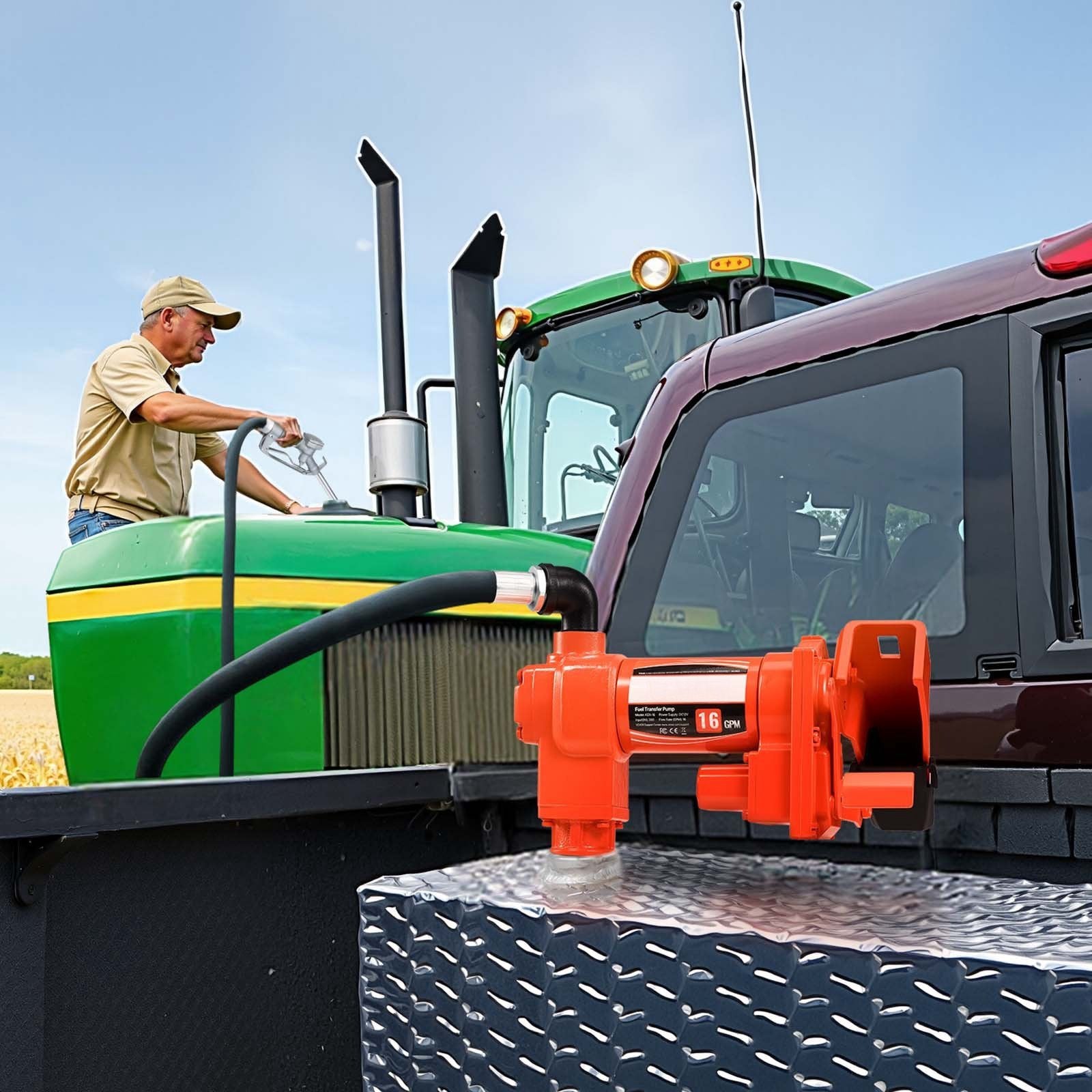

Set up a reliable fuel transfer station wherever you need it—work trucks, tractors, generators, or remote tanks. The cast iron construction with electrophoresis finish helps resist rust in demanding environments, and the included discharge hose and adjustable suction pipe make it easier to reach awkward fill points. Keep your fueling workflow consistent, cut down on spills, and move from tank to tank with less downtime. Grab yours today and streamline refueling with a complete, ready-to-use kit.

• Power: DC 12V, 186W (1/4 HP), 2200 r/min


• Max flow rate: 16 GPM (61 L/min)


• Head lift: ≥26.2 ft


• Suction lift: ≥9.8 ft


• Outlet diameter: 3/4 in


• Inlet diameter: 1 in


• Outlet hose length: 13.1 ft / 4 m


• Inlet hose length: 20.87–37.79 in / 0.53–0.96 m


• Materials: aluminum alloy / cast iron


• Dimensions: 13 x 8.86 x 9.65 in (330 x 225 x 245 mm)


• Net weight: 15.74 kg
