Hydraulic Log Splitter Pump Kit, 16 GPM 2-Stage, Valve

Hydraulic log splitter pump kit delivers fast cycle times and strong splitting force with a 2-stage hydraulic gear pump designed for small-engine mounting. The 16 GPM flow supports quick return speeds, while the high-pressure stage boosts power when the wedge meets resistance. Standard port sizes help simplify hookups, and the included directional control valve gives you precise control for builds, repairs, and upgrades.

• Delivers 2-stage performance: high flow for speed, high pressure for tough logs and consistent splitting power

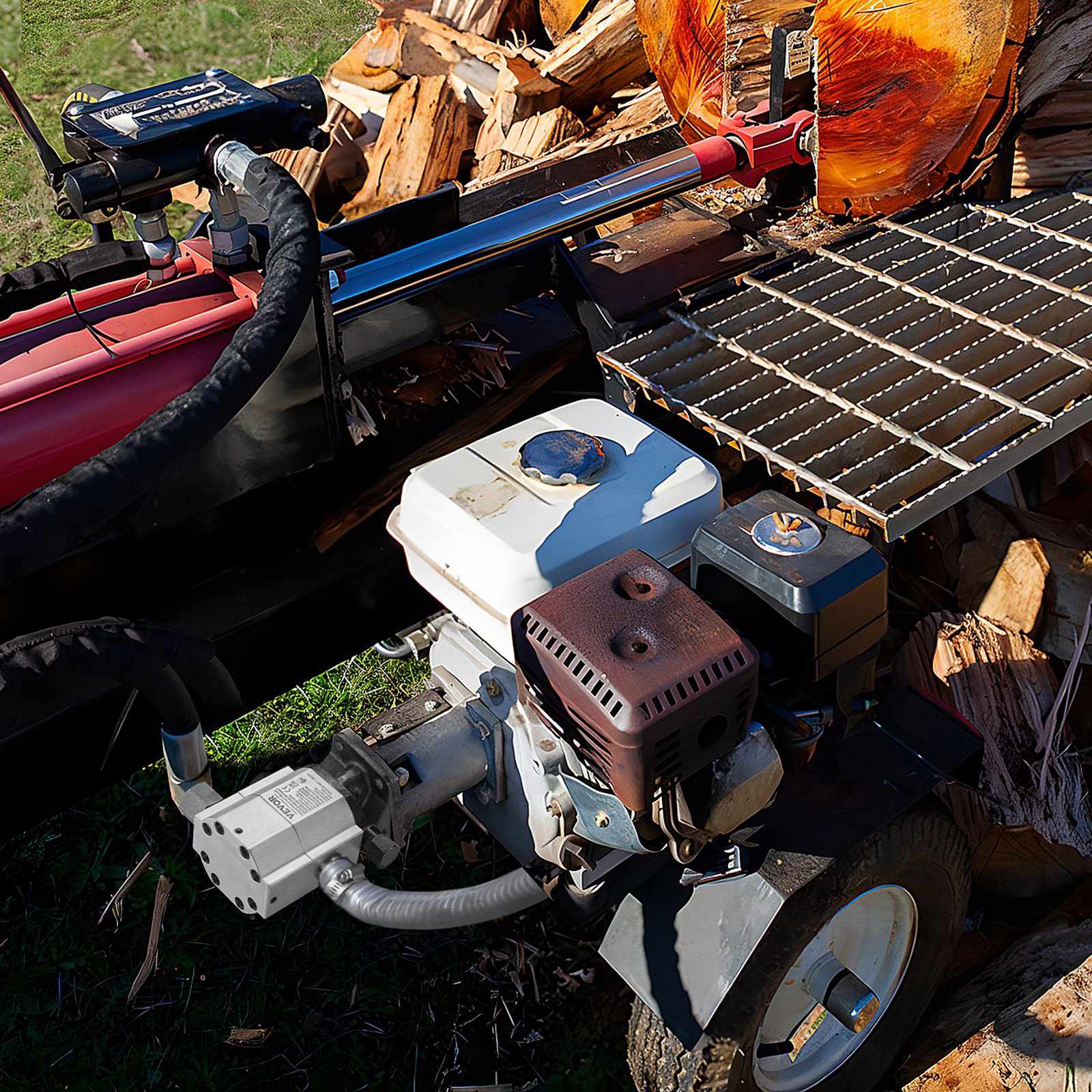

• Fits small-engine log splitters with a 1/2" shaft and 2.83" bolt circle (4 holes, 2" spacing)

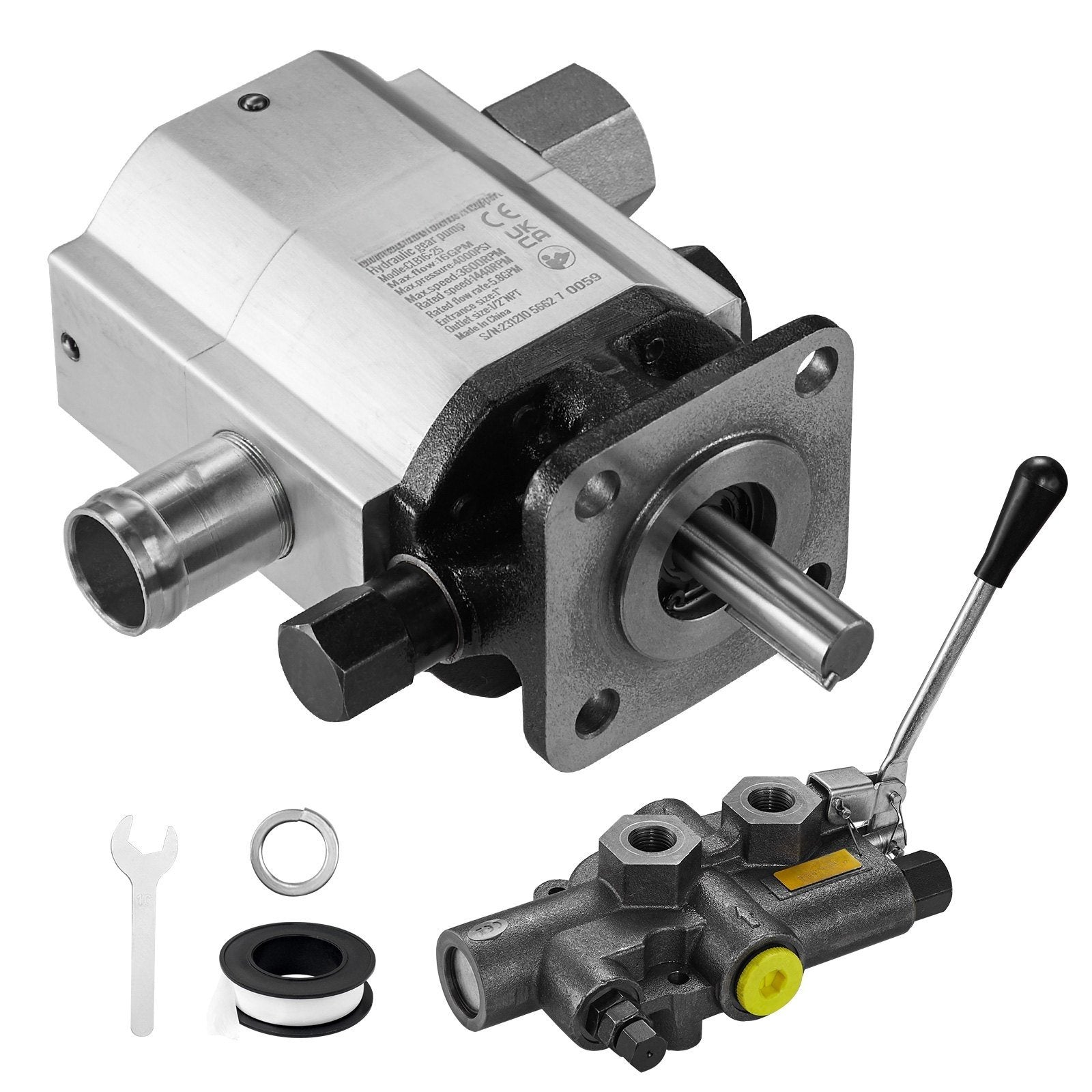

• Includes a hydraulic directional control valve plus wrench, flat key, and thread seal tape for install support


• Supports quieter work with operating noise below 75 dB to reduce distraction in the shop or yard


• Powers more than splitters—use for presses, machine tools, and snowplow-style hydraulic systems

Built for dependable sealing and stable operation, this pump kit uses common inlet/outlet sizing to reduce guesswork during replacement or DIY assembly. Match it to an engine rated at least 8 HP and use a suction-side filter of 150 microns or finer for cleaner fluid and smoother performance. Whether you’re refreshing a worn pump or building a splitter from the ground up, this kit keeps your hydraulic system responsive—grab yours today.

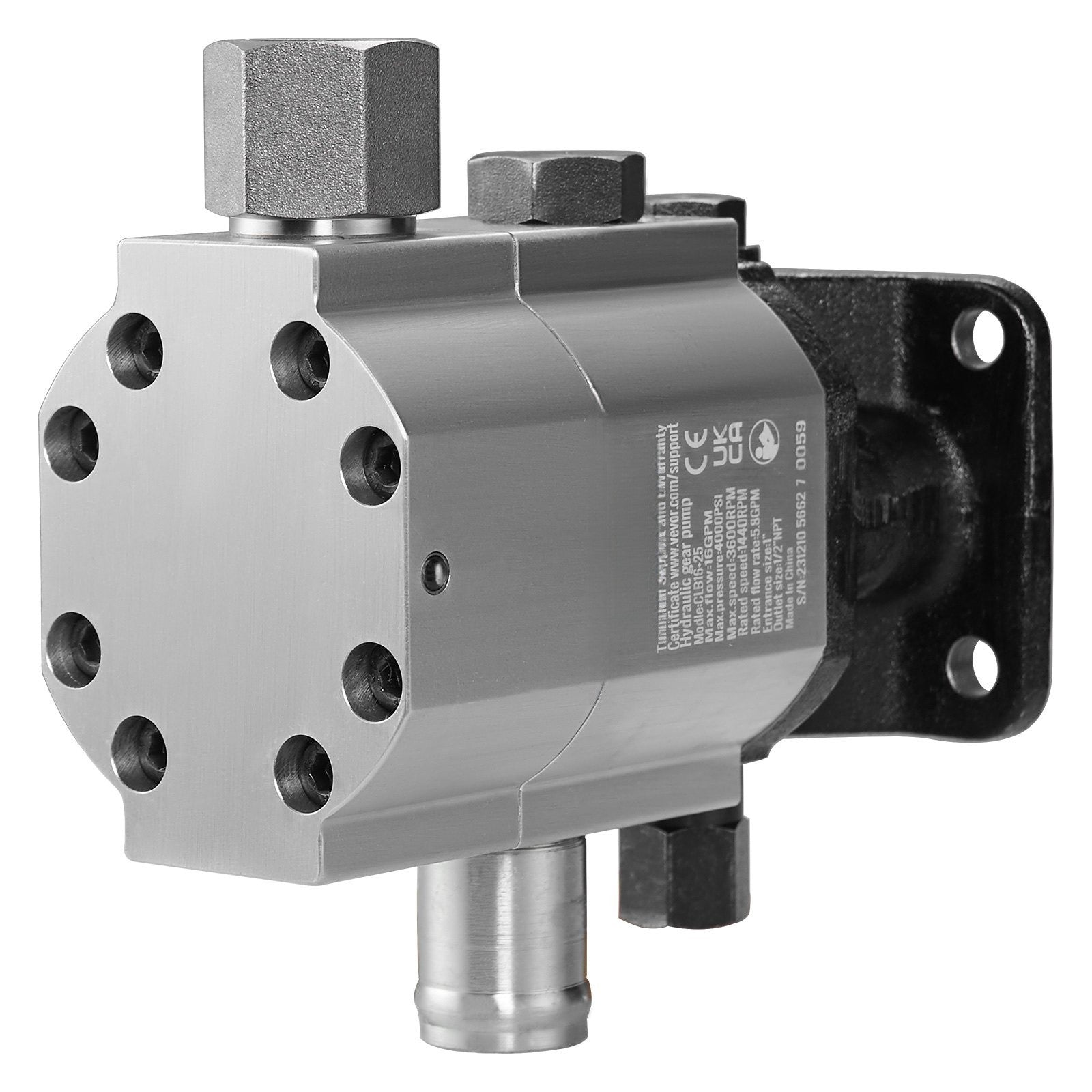

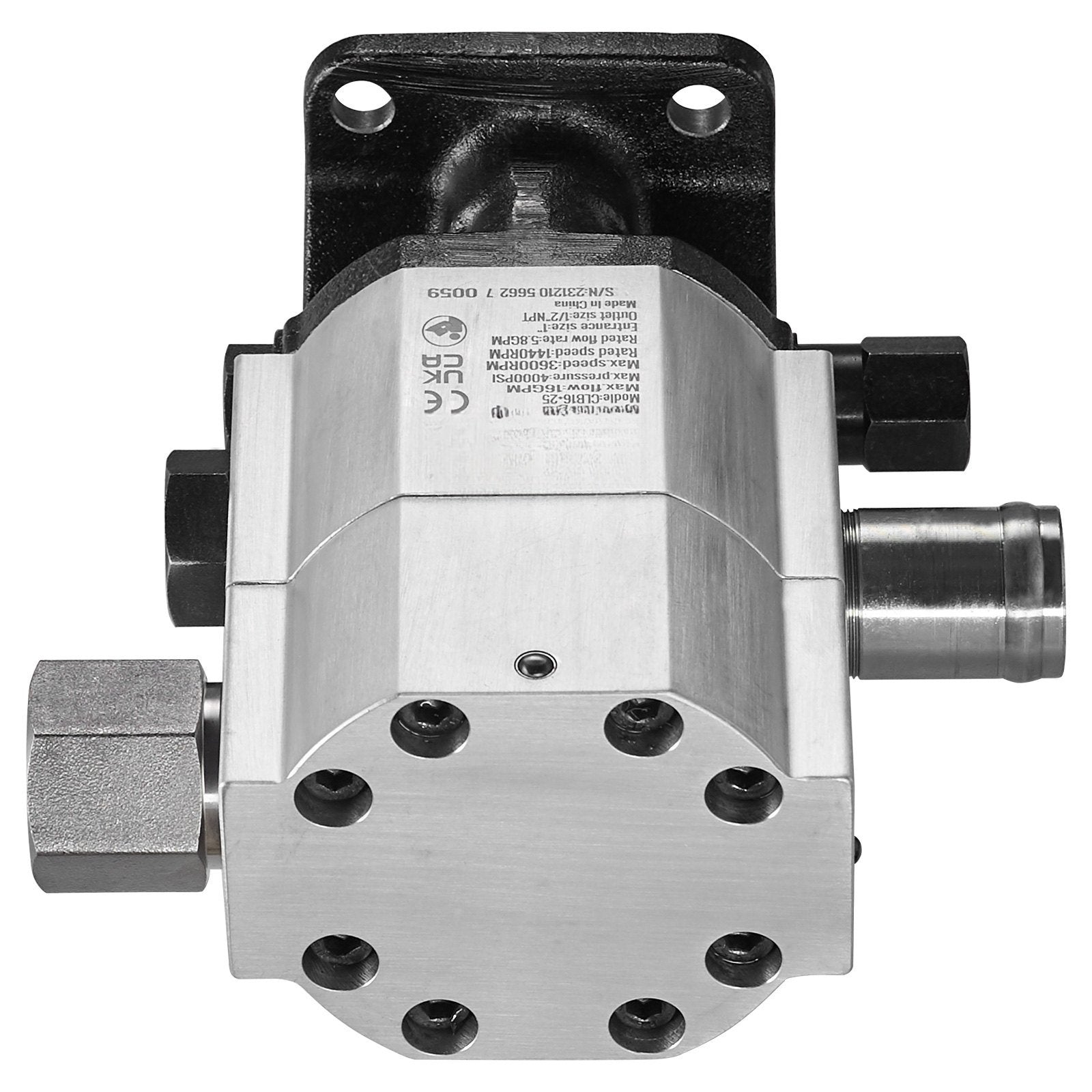

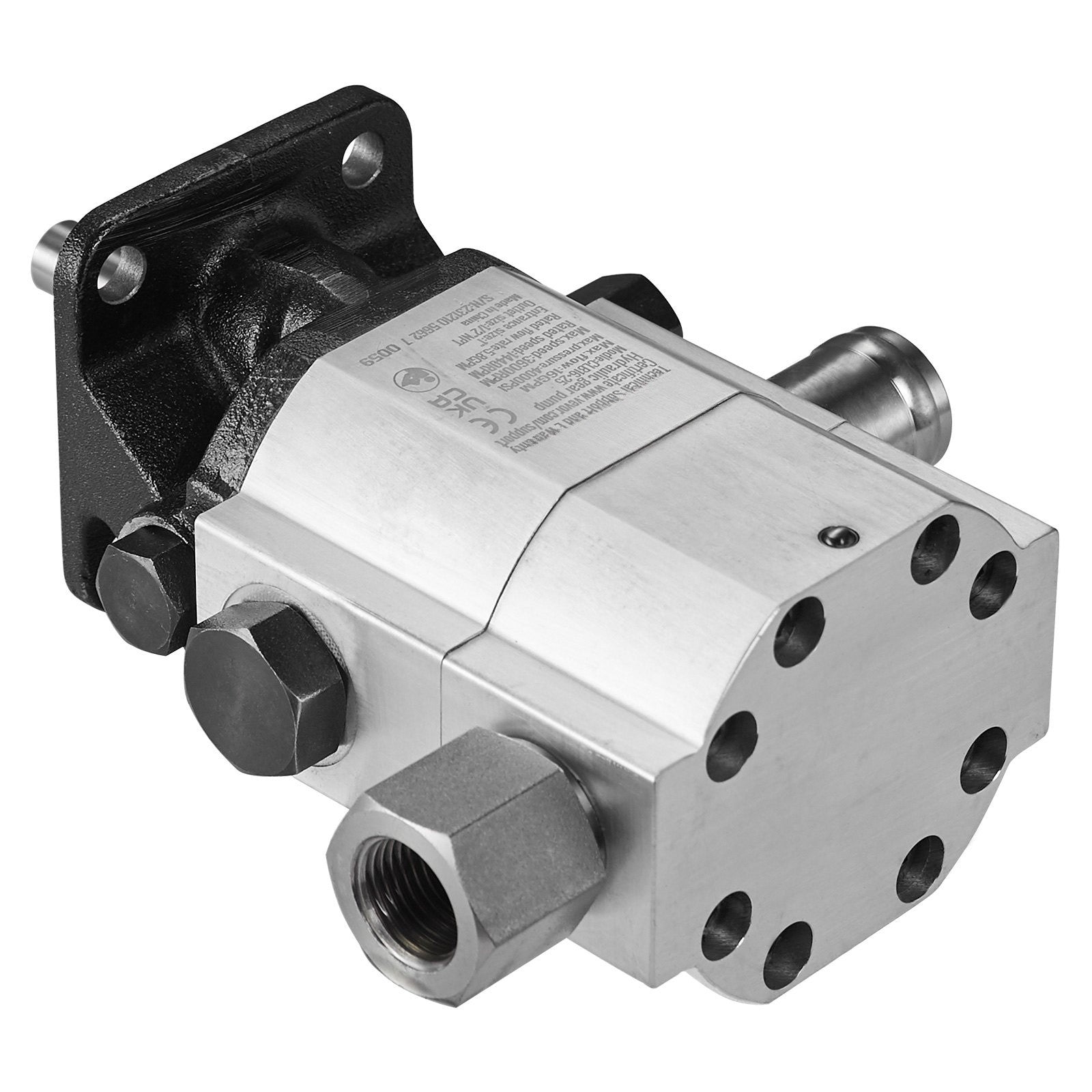

• Type: 2-stage aluminum hydraulic gear pump kit with directional control valve


• Flow rate: 16 GPM (60.6 L/min)


• Speed: up to 3600 RPM


• Max pressure: up to 4000 PSI


• Stage output: 16 GPM @ 650 PSI (1st stage); 3.5 GPM @ 2500 PSI (2nd stage)


• Brake release pressure: 1400 PSI


• Safety valve setting: 2250 PSI


• Ports: 1" inlet; outlet 1/2" NPT; input/output port 3/4" NPT; working port 1/2" NPT


• Shaft: 1/2" diameter; 1.5" length


• Bolt circle: 2.83"; 4 holes spaced 2" apart


• Max operating temperature: 180°F


• Noise: < 75 dB


• Recommended engine: minimum 8 HP


• Suction-side filtration: not less than 150 microns


• Weight: 8.64 kg / 19.05 lb
