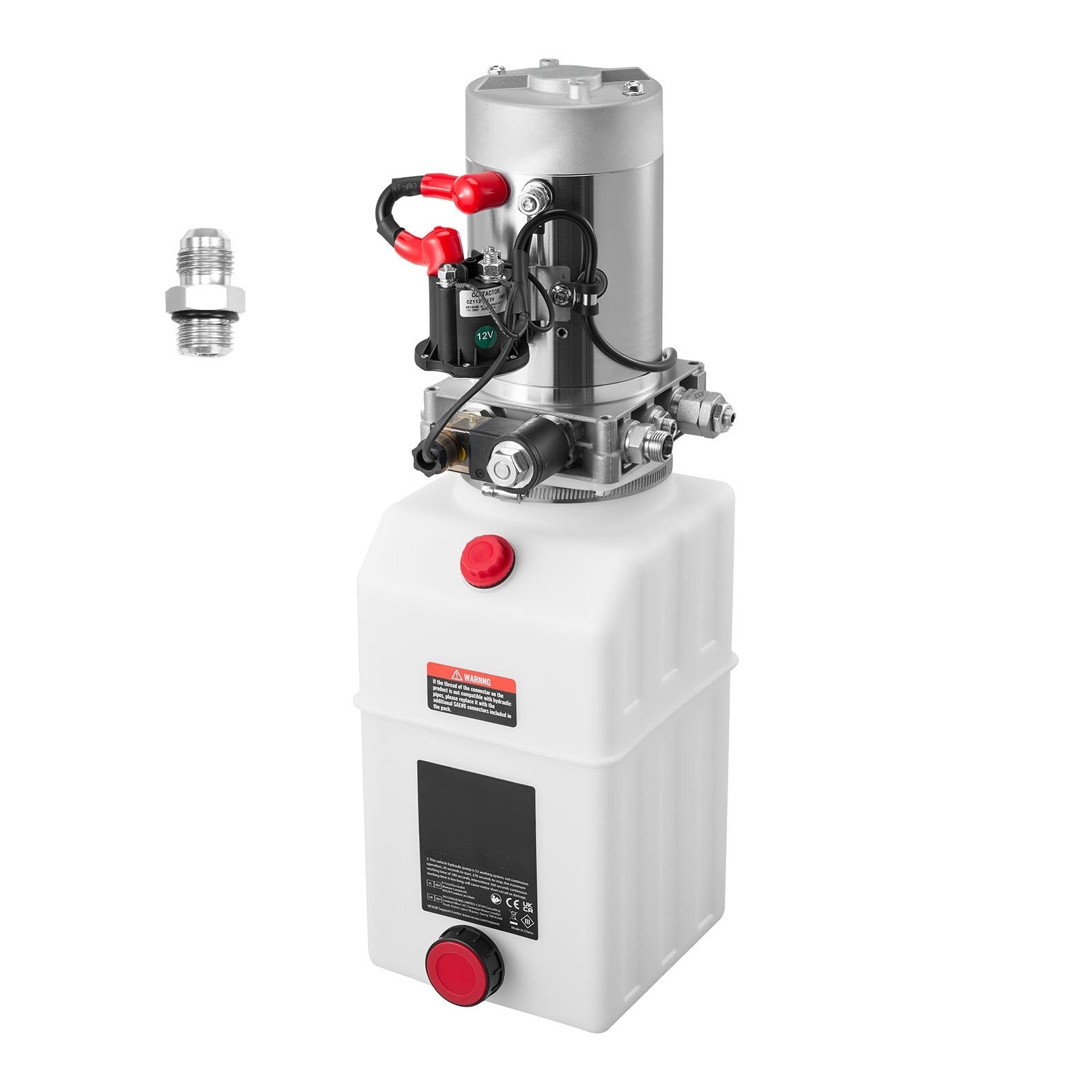

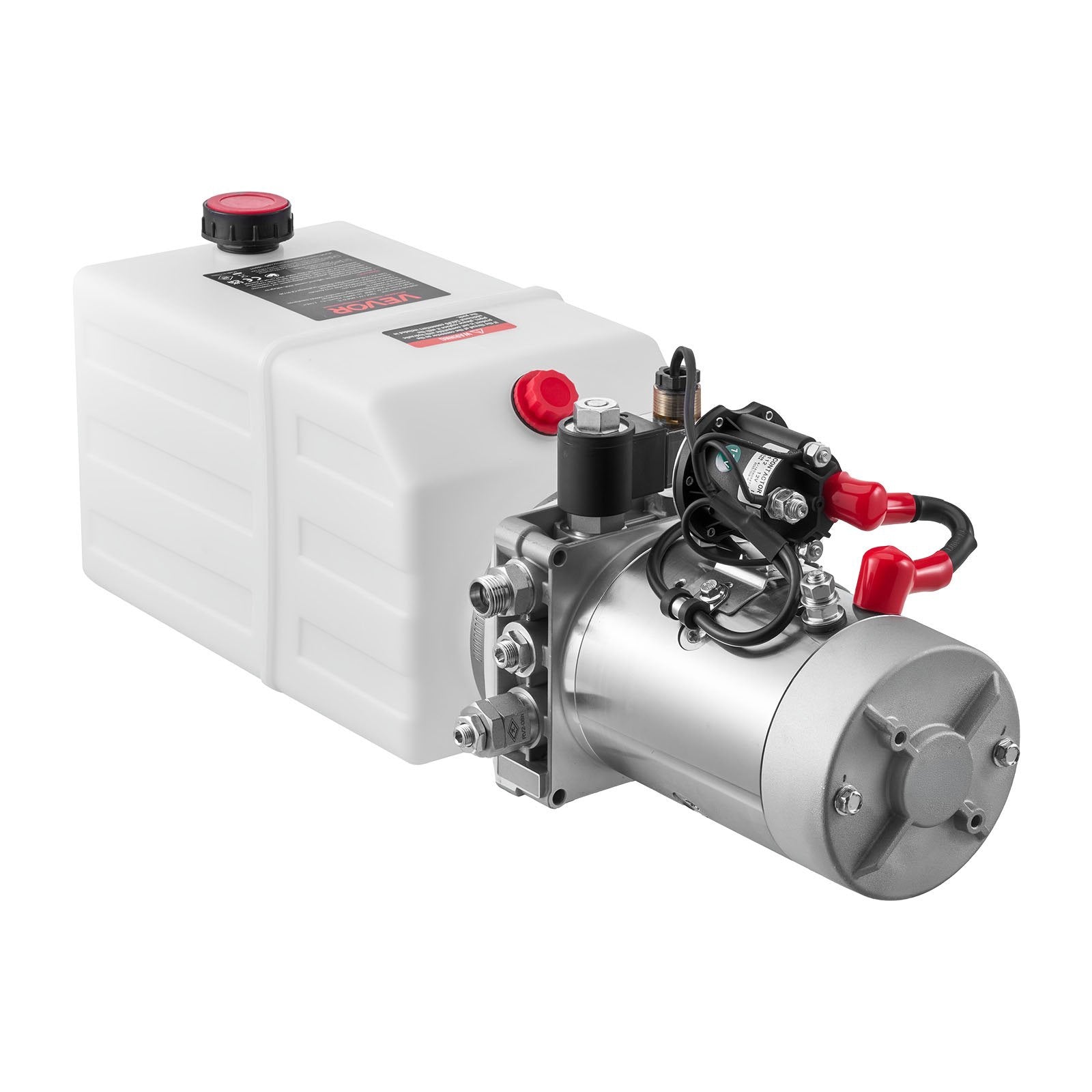

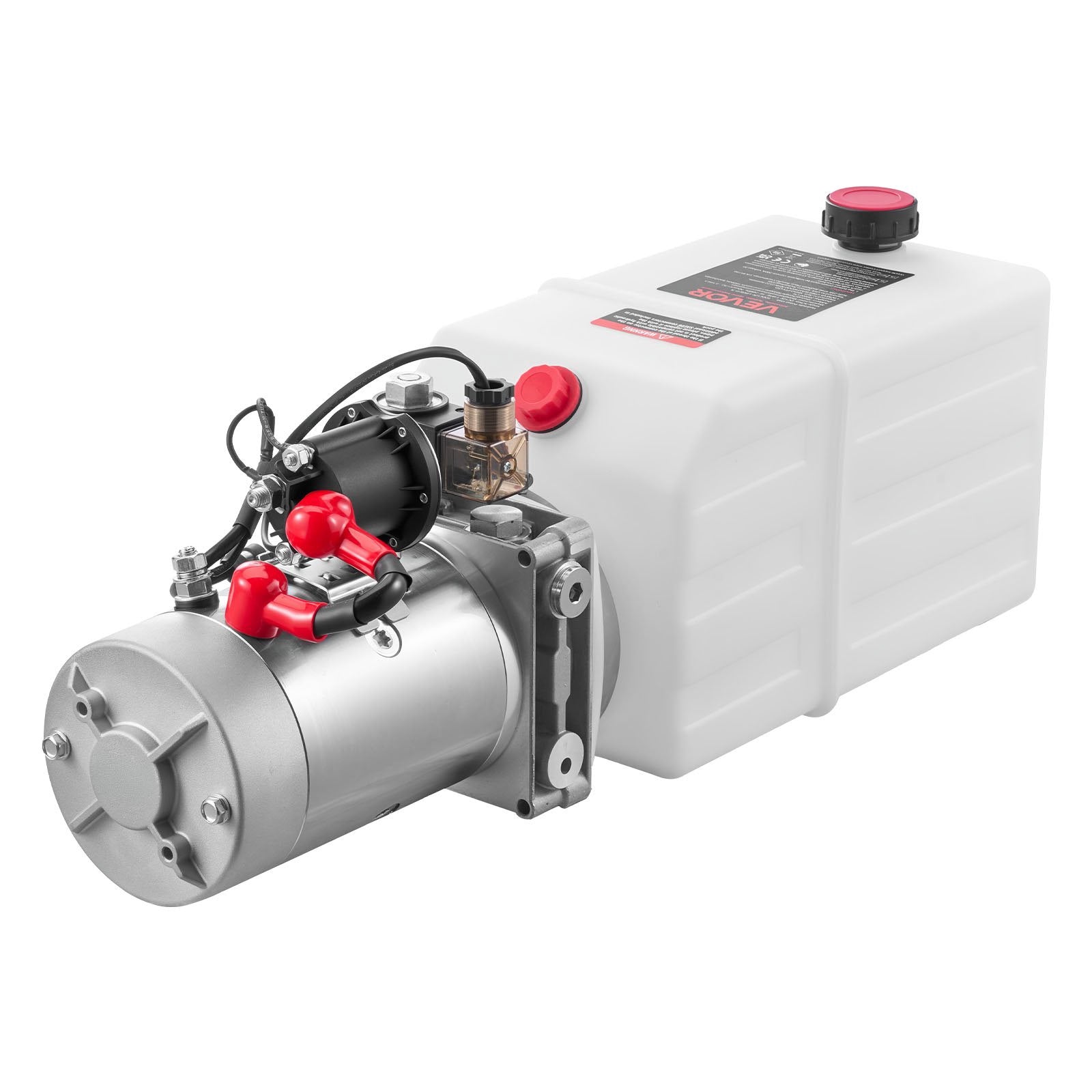

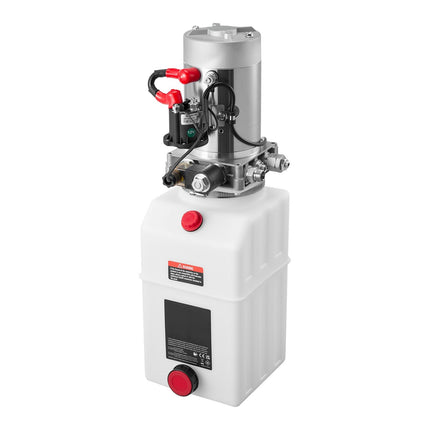

Hydraulic Power Unit Pump, 12V DC, Single-Acting, 7 Quart

12V hydraulic power unit delivers fast, smooth lifting for dump trailers and other single-acting hydraulic systems, combining a 7-quart reservoir with steady 3.4 L/min flow for reliable lift performance. Designed for quick installs and dependable pressure control, it helps reduce downtime on the jobsite or in the shop. Single-acting operation raises under power and lowers by gravity for simple, predictable control.

• Delivers 3.4 L/min (0.91 GPM) flow for responsive lifts and consistent cycle times


• Supports single-acting setups: power up, gravity down for stable, straightforward operation


• Protects with a built-in relief valve up to 22 MPa (3,200 psi) to help prevent overpressure


• Installs quickly with pre-assembled unit and SAE #6 ports for common hydraulic lines

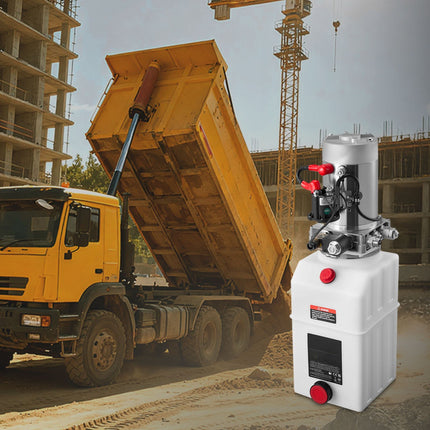

• Powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and conveyors

Built for daily use, this DC hydraulic pump features a tough, leak-resistant design and a compact footprint that’s easy to mount where space is limited. Add hydraulic oil, connect the power leads and hoses, and you’re ready to run—ideal when you need a dependable replacement pump or a complete power pack for a new build. If you’re upgrading a dump trailer pump or adding electric hydraulic power to equipment, grab yours today and get your system moving with controlled, steady force.

• Type: Single acting (power up / gravity down)


• Voltage: DC 12V


• Power: 1.6 kW


• Flow rate: 3.4 L/min (0.91 GPM)


• Max relief pressure: 22 MPa (3,200 psi)


• Working pressure: 16–20 MPa


• Motor speed: 2600 r/min


• Reservoir capacity: 7 qt (1.75 gal)


• Ports: SAE #6


• Dimensions: 21.7 x 7.5 x 7.9 in (550 x 190 x 200 mm)


• Net weight: 25.2 lb (11.45 kg), accessories included
