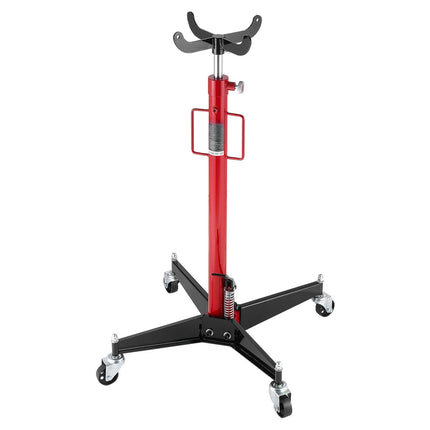

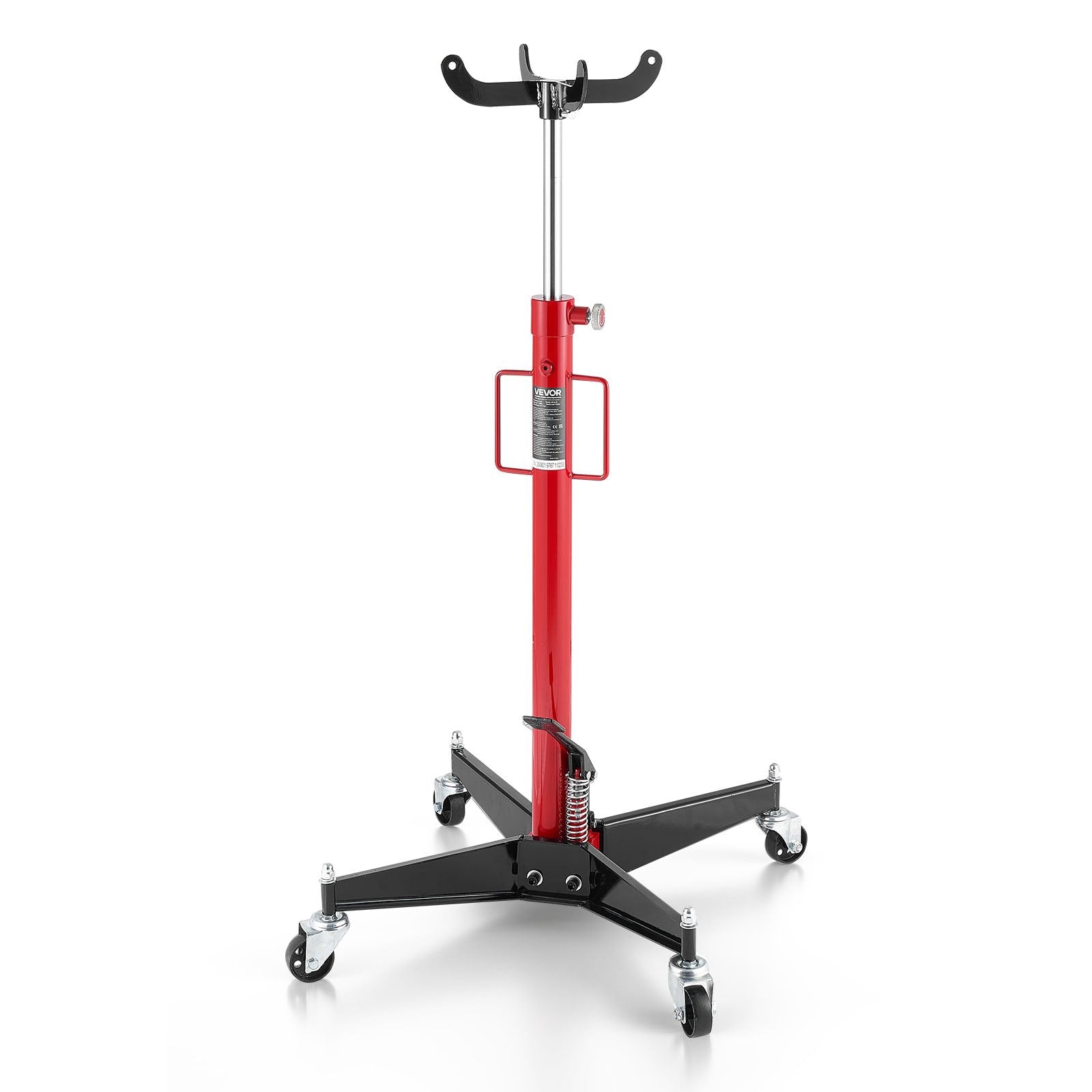

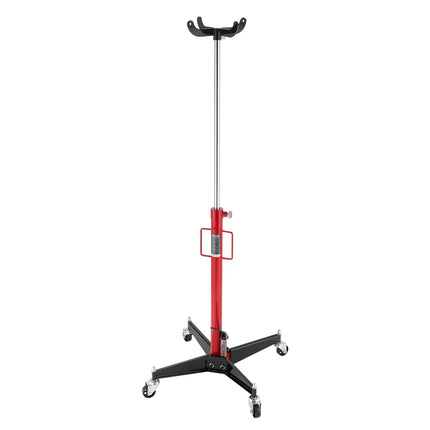

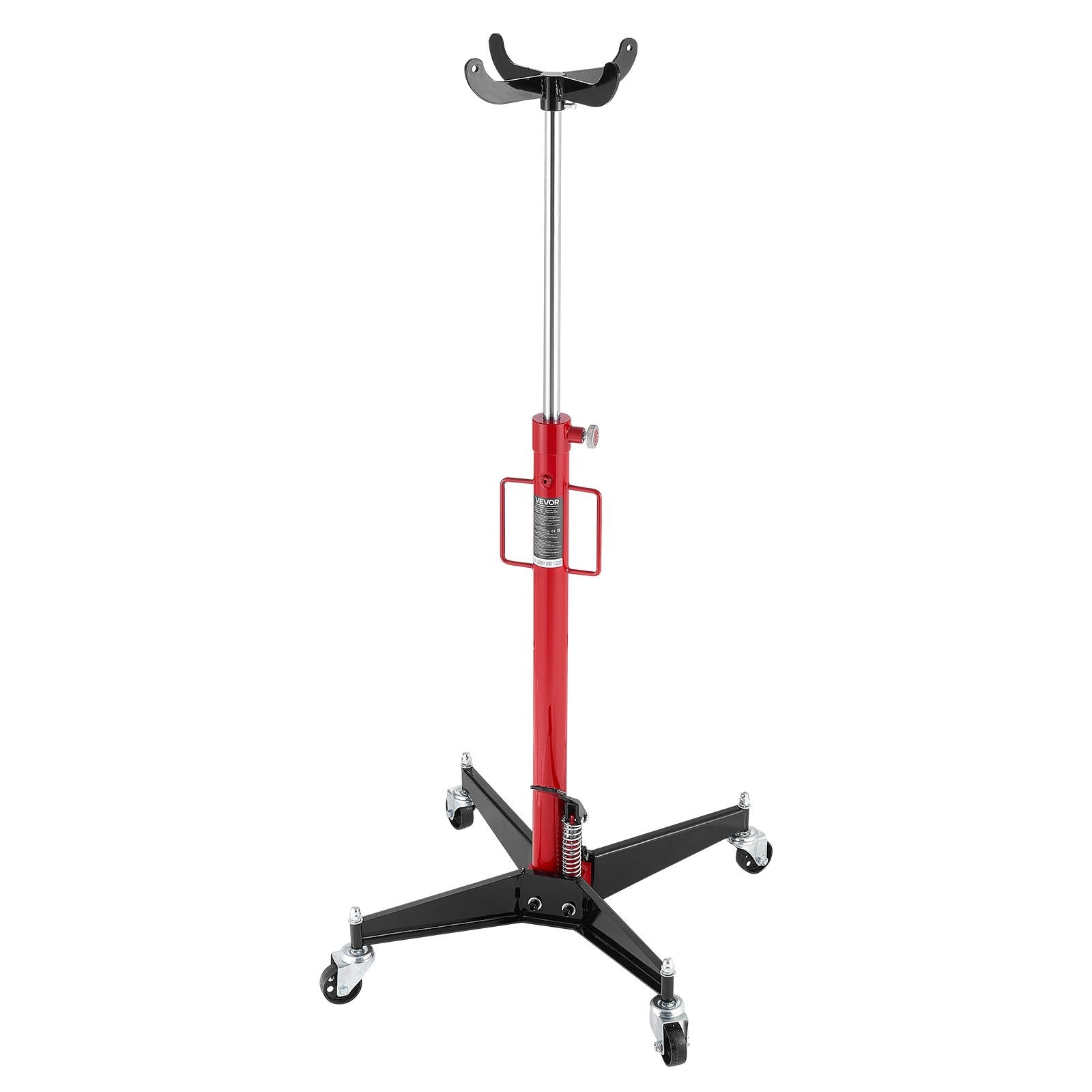

Hydraulic Transmission Jack, 1100 lb, 44–74 in Lift

Hydraulic transmission jack delivers controlled lifting and positioning of transmissions and drivetrain components up to 1100 lb, helping you align parts at vehicle height with less strain. The telescoping hydraulic design adjusts from 44–73.6 in for work on lifts, while the foot pedal raises smoothly and the release valve lowers with control. Built with a heavy-duty steel frame, an X-shaped base, and 360° swivel casters for stable, shop-friendly mobility.

• Delivers 1100 lb (0.5 ton/500 kg) lift capacity for transmissions, drive shafts, axles, hubs, and brackets


• Adjusts 44–73.6 in (1120–1870 mm) to match lift heights and create working clearance


• Includes a thick steel four-arm tray to cradle components; add straps to secure loads during service


• Operates via foot pedal for smooth raising; use the knob release valve for controlled lowering


• Moves easily on 360° swivel wheels with an X-base for steady positioning in garage or shop bays

Designed for fast transmission swaps and drivetrain service where stable height control matters. The single-piston hydraulic system helps reduce manual effort, while the wide lifting range makes it easier to dial in alignment during installation. For safe operation, support the vehicle on a lift before positioning the jack, and secure the load with straps when needed. Keep one in your garage or shop for routine service and time-saving positioning—grab yours today.

• Lifting capacity: 1100 lb / 500 kg (0.5 ton)


• Transport capacity: 550 lb / 250 kg


• Lift height range (surface to ground): 44–73.6 in / 1120–1870 mm


• Lifting stroke: 29.5 in / 750 mm


• Tray type: European-style four-arm clamp


• Hydraulics: Foot pedal operation, single piston, knob-type release valve


• Mobility: 4 swivel casters, 360° movement, X-shaped base


• Dimensions: 25.2 x 22.6 x 44.9–74.4 in (640 x 575 x 1140–1890 mm)


• Net weight: 53.1 lb / 24.1 kg


• Materials: Frame Q235B steel; piston rod 45# steel
