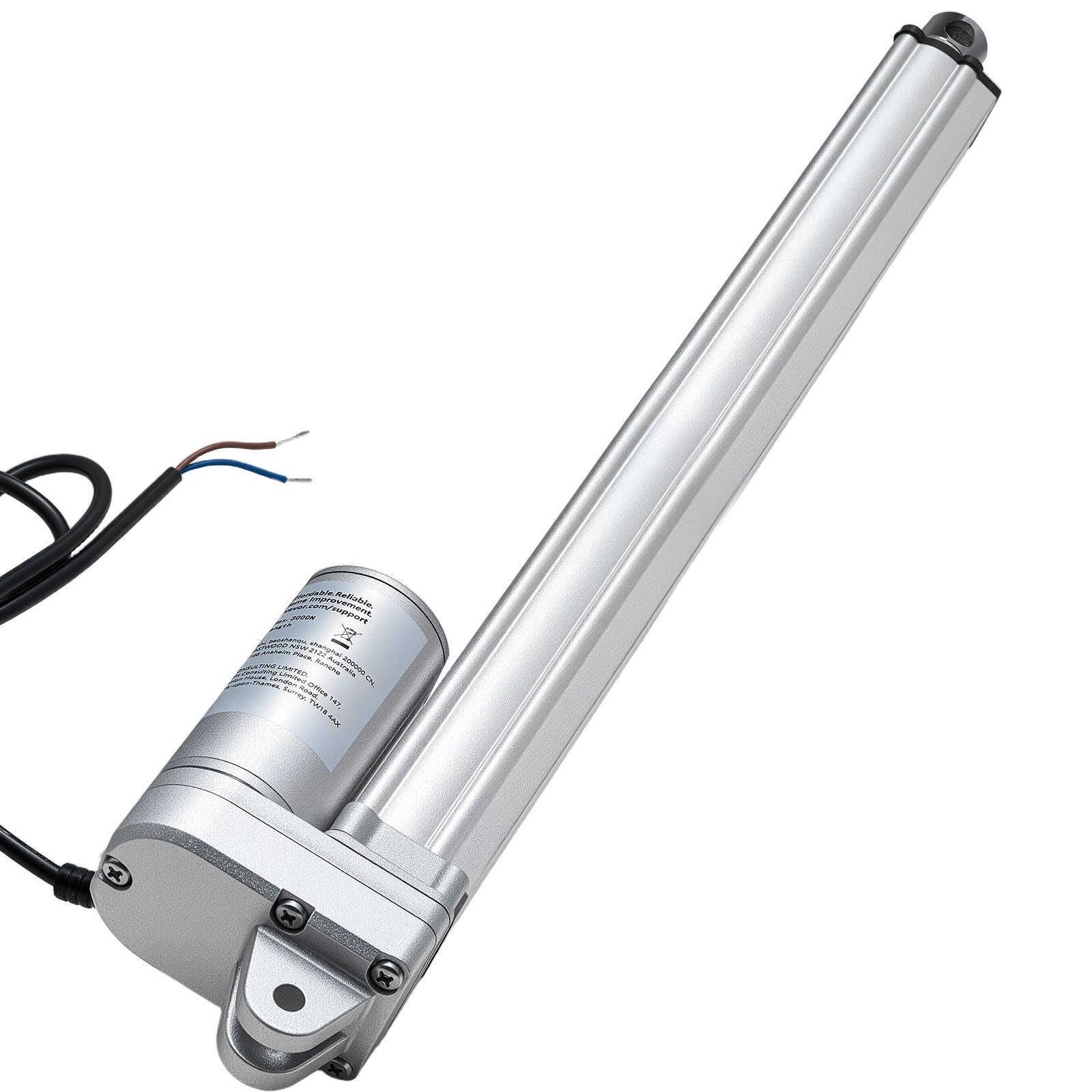

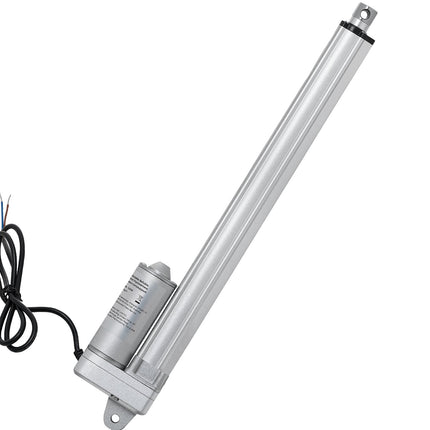

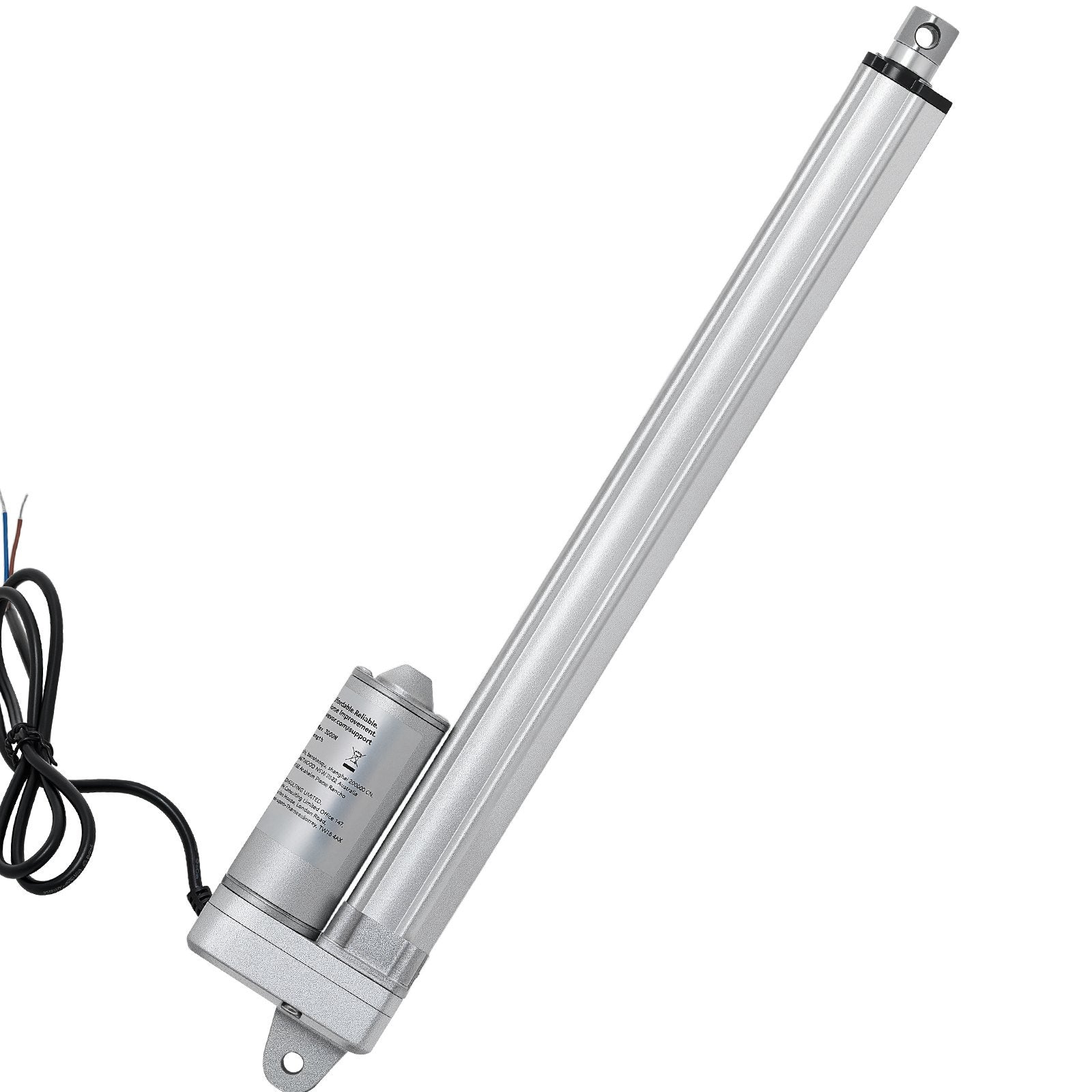

Linear Actuator 12V, 12-Inch Stroke, 3000N IP65

12V linear actuator delivers reliable push/pull motion for automation projects, with IP65-rated sealing to handle dusty, wet job sites. Built for medium-load applications, it provides up to 3000N thrust in a compact aluminum-alloy body, helping you drive doors, solar tracker positioning, machinery linkages, and custom equipment with consistent linear travel. Precision screw drive supports smooth movement at 5 mm/s for controlled, repeatable actuation.

• Delivers up to 3000N (675 lb) thrust for medium-load lifting, pushing, and pulling tasks


• Handles outdoor splashes and dust with IP65 protection for rugged installations


• Moves smoothly at 5 mm/s (0.2 in/s) to reduce jolts in automation and positioning

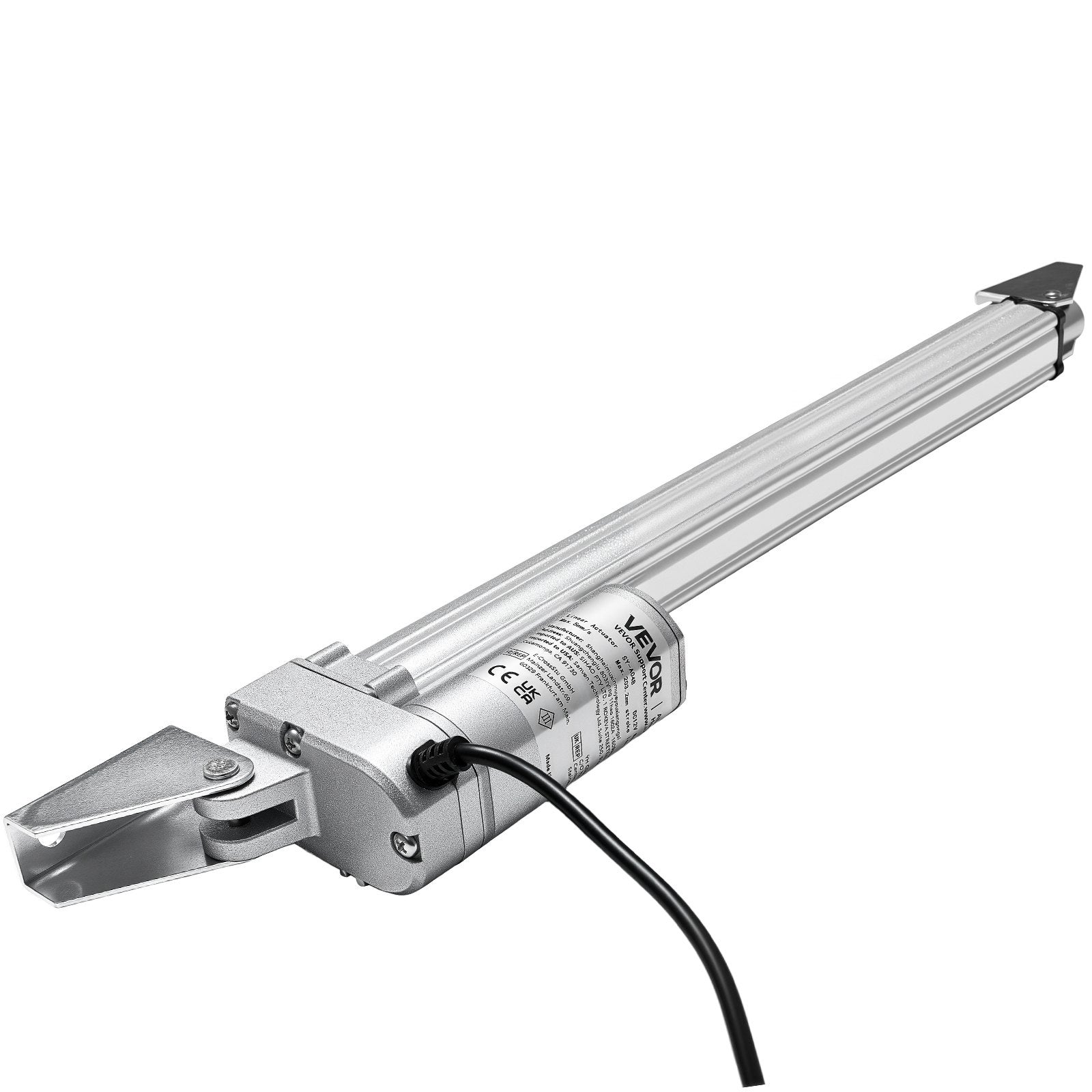

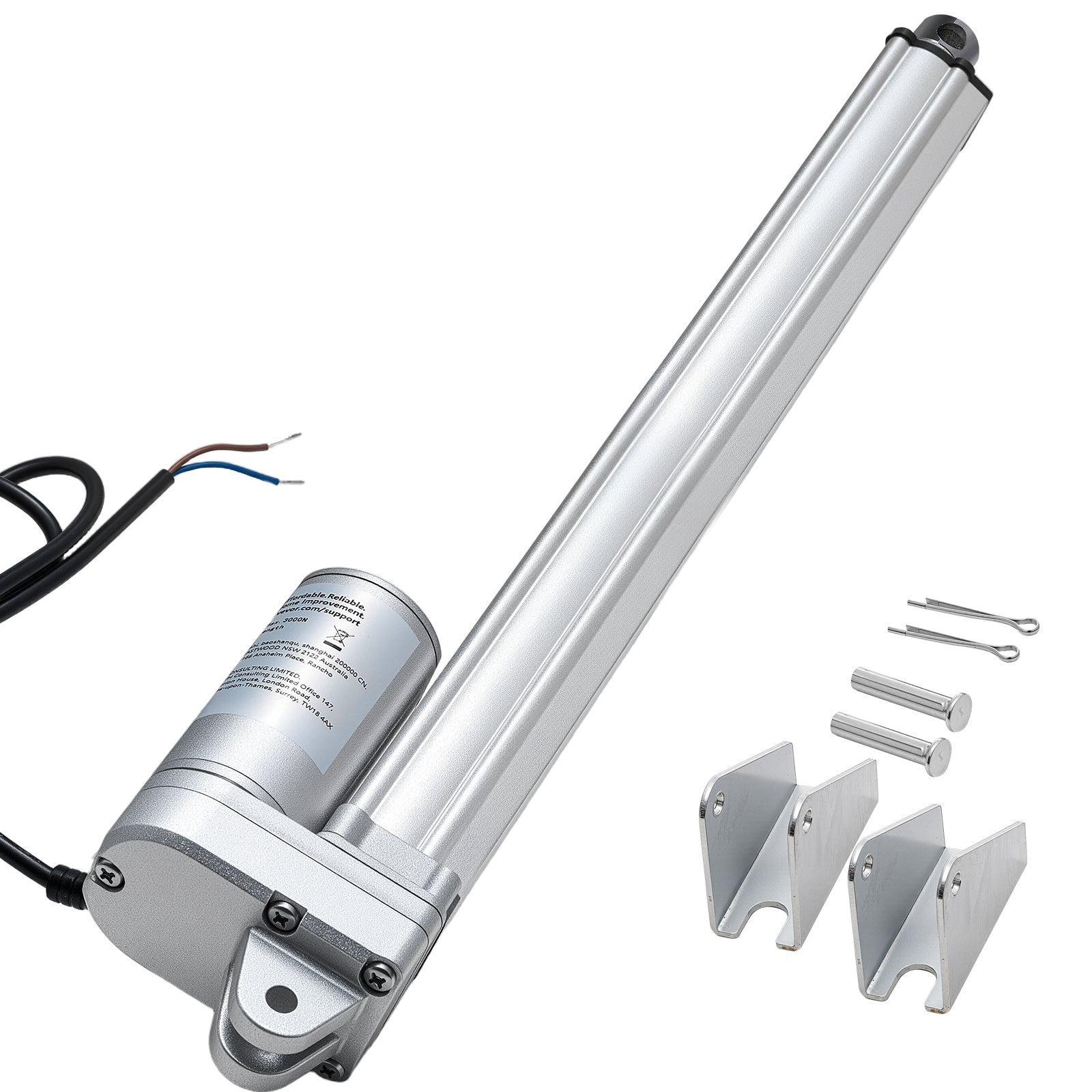

• Includes mounting bracket for faster alignment on frames, gates, solar trackers, and machines


• Reduces noise with ≤65 dB no-load operation for cleaner cycles in home or industrial setups

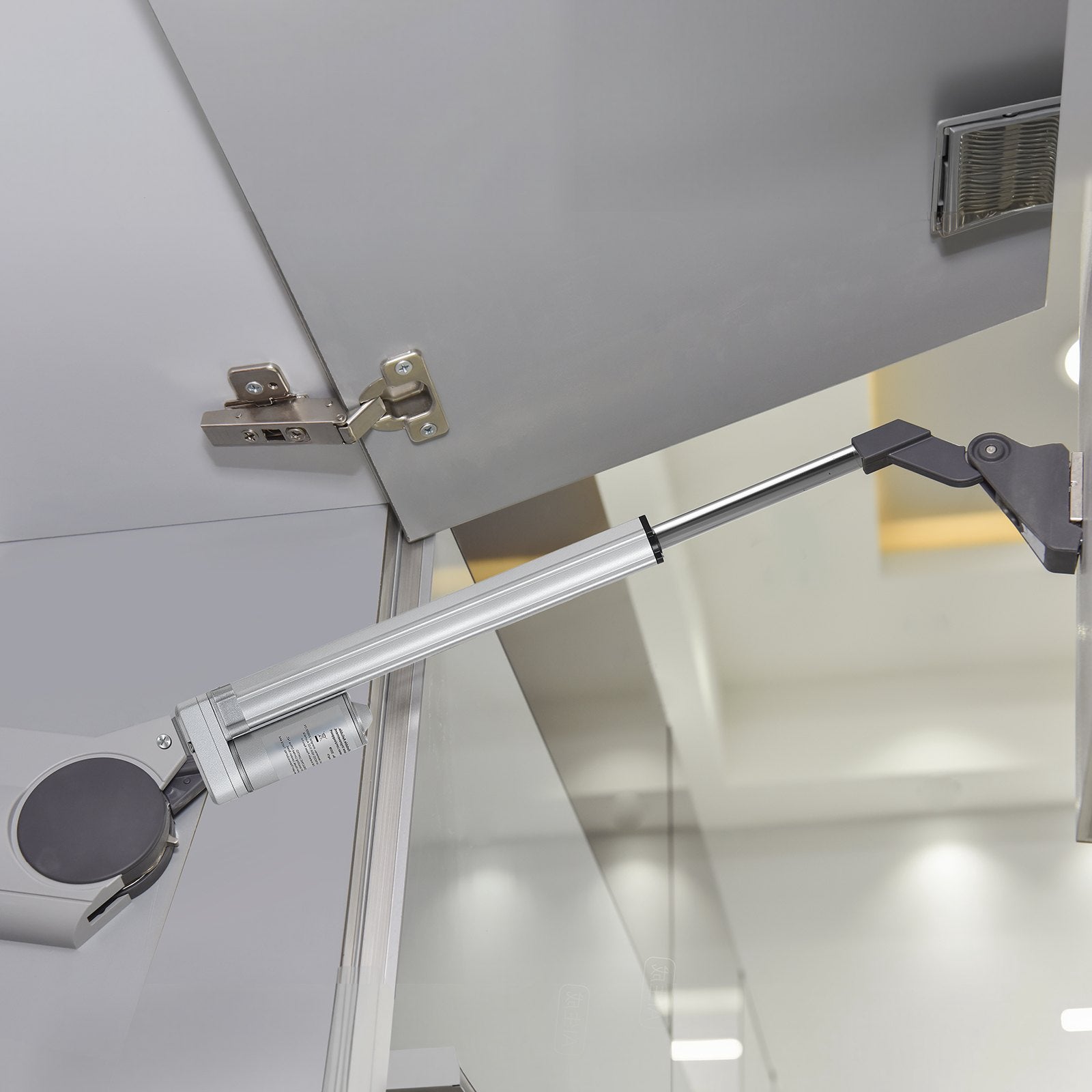

Use this DC 12V motion actuator to add dependable linear movement to doors, hatches, equipment covers, furniture mechanisms, irrigation systems, and industrial automation. The aluminum alloy housing is designed for frequent cycling, while the 25% duty cycle supports controlled operation in demanding environments. For longer service life, avoid prolonged, continuous outdoor exposure and follow duty-cycle limits during high-load use. Grab yours today and get your next automation build moving.

• Input voltage: DC 12V


• Max load/thrust: 3000N (675 lb)


• IP rating: IP65


• Stroke length: 12 in (304.8 mm)


• Travel speed: 0.2 in/s (5 mm/s)


• Retracted length: 17 in (431.8 mm)


• Extended length: 29 in (736.6 mm)


• Current draw: 6 A


• Duty cycle: 25%


• Main material: Aluminum alloy


• No-load noise: ≤65 dB


• Net weight: 4.0 lb (1.82 kg)


• Product dimensions: 17.7 x 3.1 x 1.8 in (450 x 78 x 45 mm)
