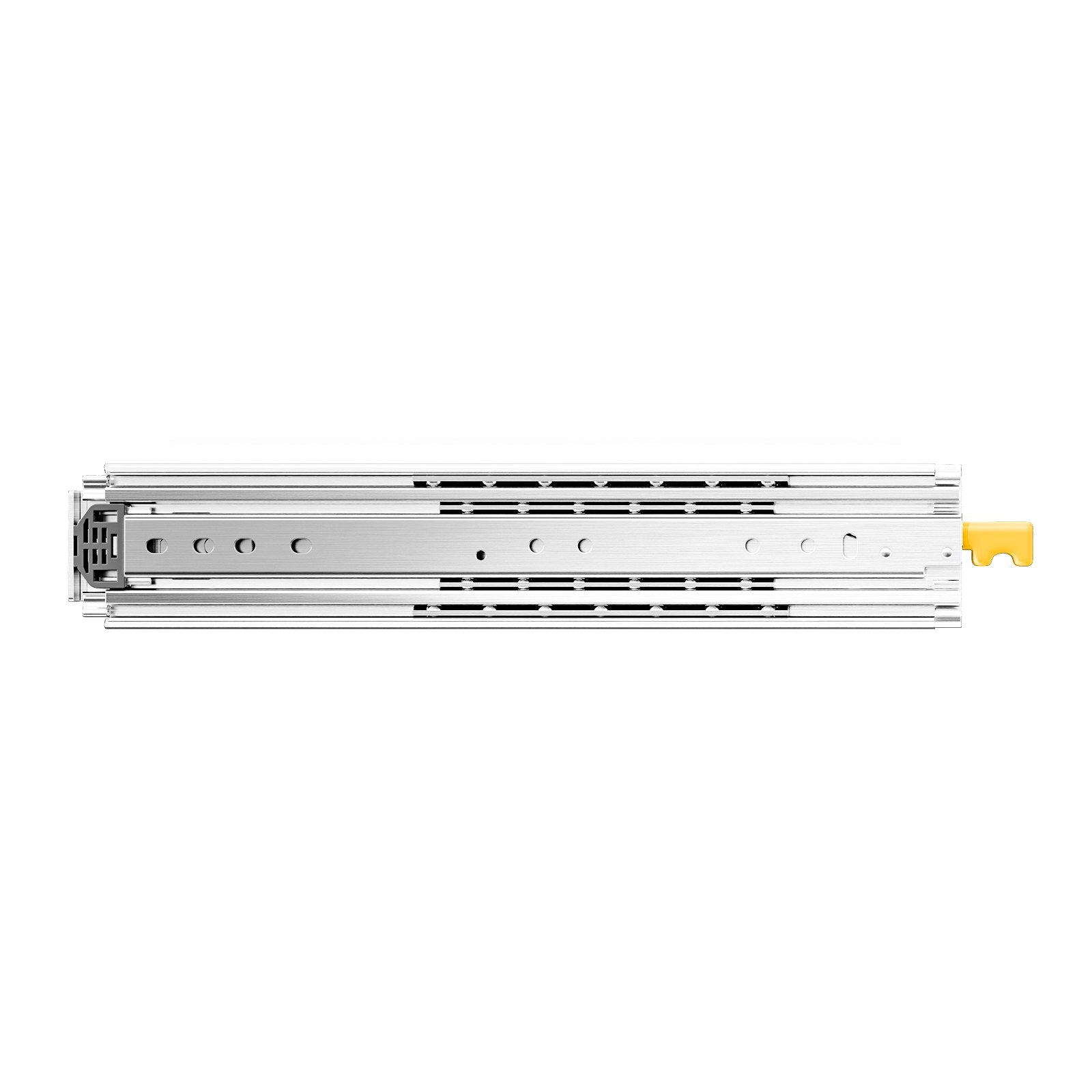

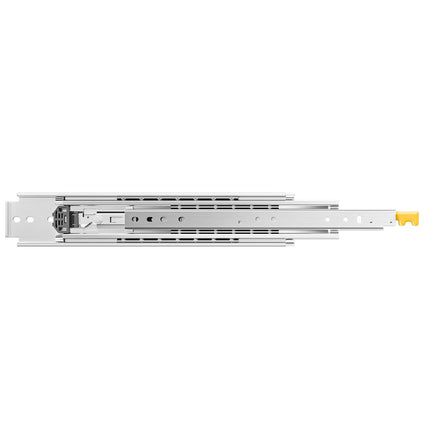

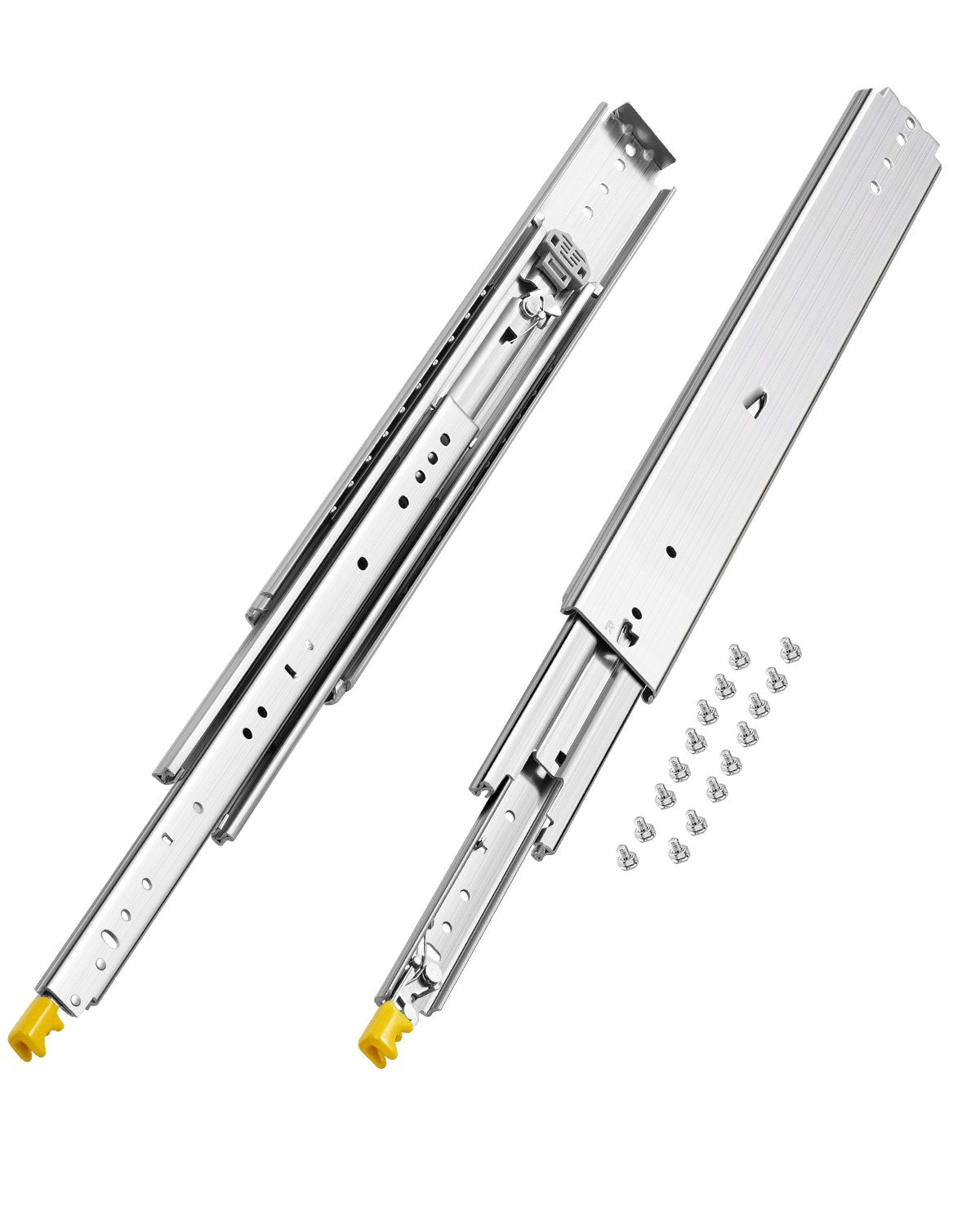

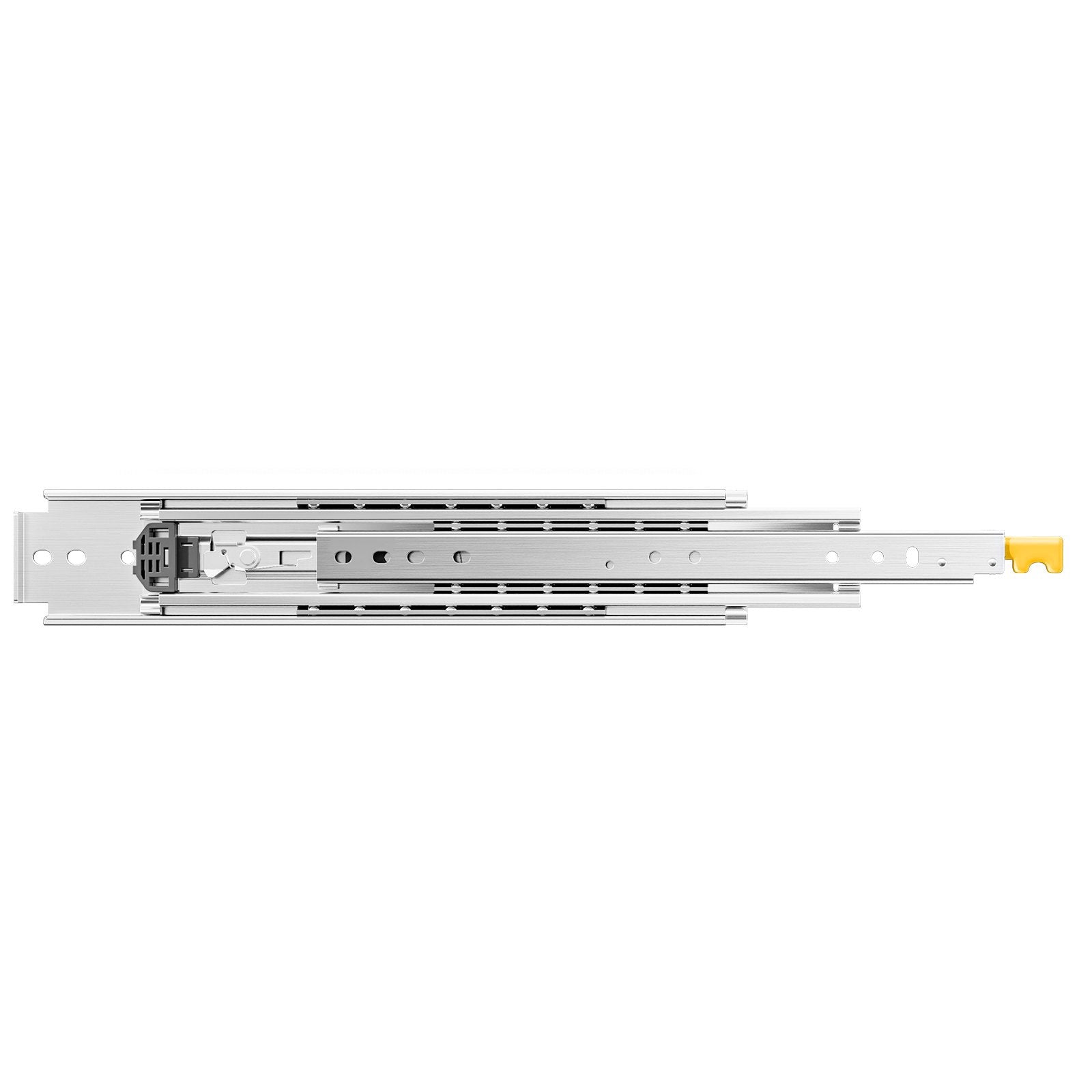

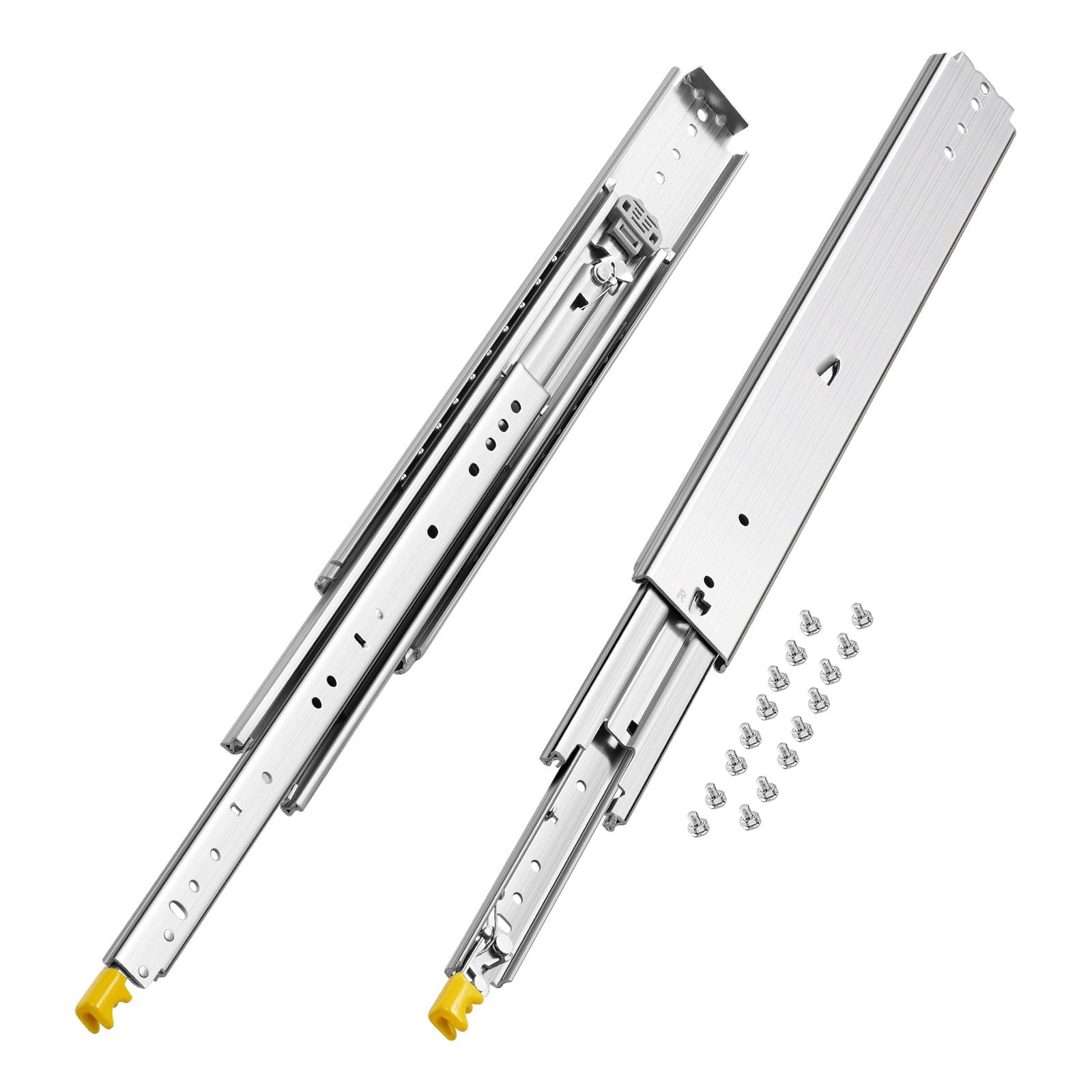

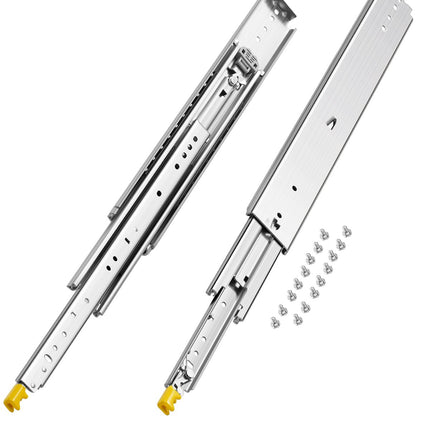

Locking Drawer Slides, 22 In, 500 Lb, Side Mount Pair

Locking drawer slides keep heavy drawers stable and secure with a dual side-lock that prevents roll-out during movement. Built from thick, high-hardness steel with a galvanized finish, this full-extension, side-mount slide pair supports demanding installs in cabinets, tool storage, industrial drawers, RVs, trucks, and equipment bays. Double-row ball bearings deliver smooth travel, while nylon cushioning helps reduce noise and rebound.

• Delivers up to 500 lb load capacity for heavy-duty drawers, equipment trays, and storage builds


• Locks with a press using a double-lock design to help prevent slide-out on bumpy roads or vibration


• Glides smoothly on double-row ball bearings for controlled opening and closing


• Extends fully with a 3-fold full-extension design so you can reach the entire drawer


• Fits side-mount installs; measure drawer/cabinet depth first—slide length must be less than drawer depth

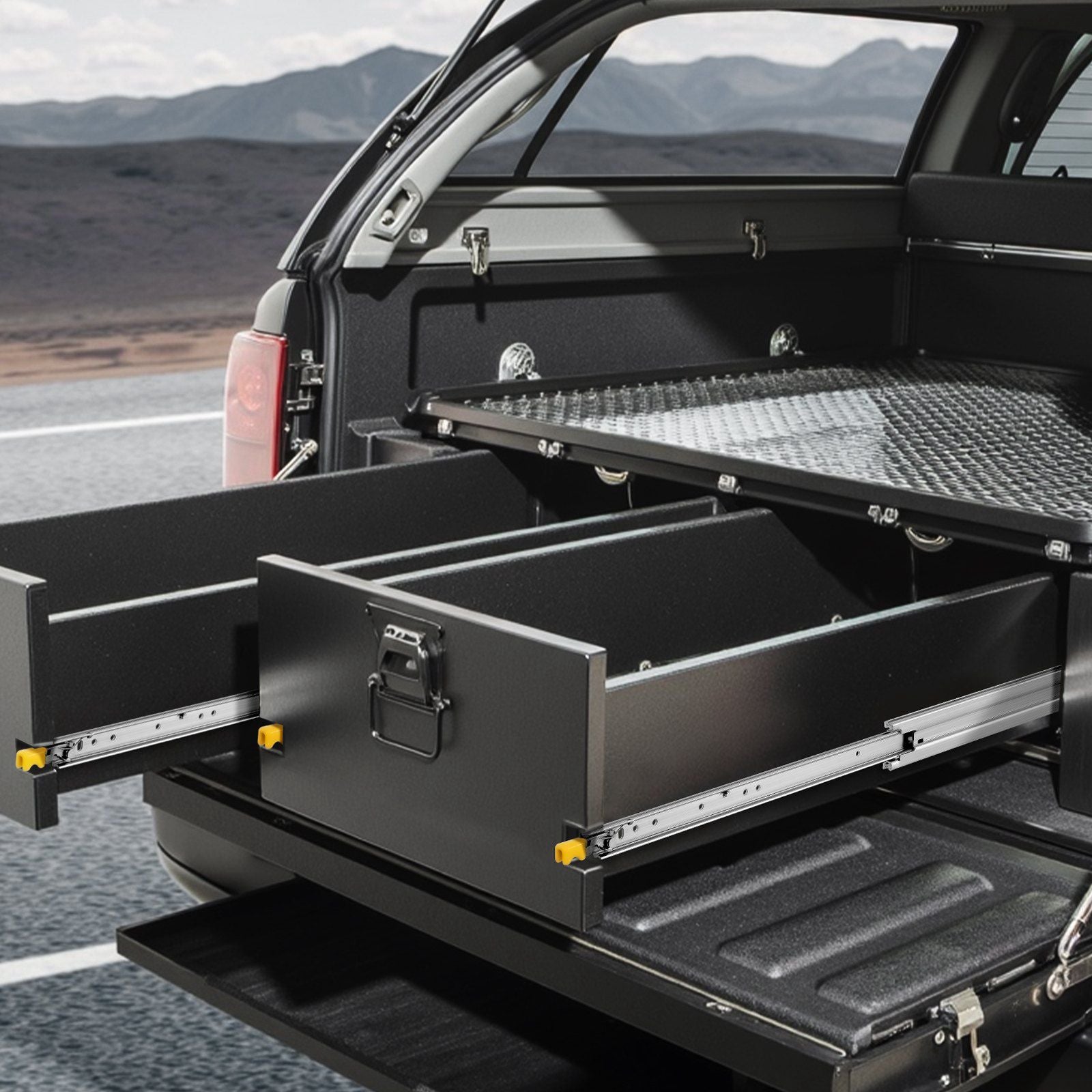

When drawers carry real weight, standard slide rails can flex, chatter, or drift open. These heavy-duty telescoping drawer slides are designed to stay aligned under load, travel smoothly, and lock reliably for safer transport and daily use. Ideal for shop cabinets, service vehicles, RV storage, vending machines, and custom builds where access and stability matter. Choose the correct length for your drawer box (excluding face frame) and install with confidence. Grab yours today.

• Type: Side-mount, full-extension locking slide (1 pair)


• Material/finish: High-hardness steel, galvanized


• Overall length: 23 in (590 mm)


• Extension length: 22 in (558 mm)


• Recommended drawer length: 22.5 in (571 mm)


• Width: 3 in (76 mm)


• Thickness: 0.77 in (19.5 mm)


• Load capacity: 500 lb (226.8 kg); 413 lb (187 kg) when fully extended


• Net weight: 12.13 lb (5.5 kg)
