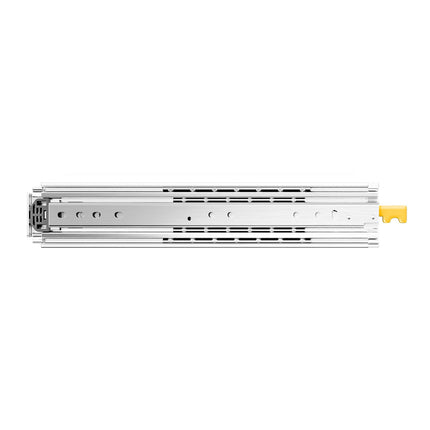

Locking Full-Extension Drawer Slides, 32 In, 500 lb

Heavy duty locking drawer slides keep large drawers stable and secure while delivering full-extension access for tools, gear, and equipment. Built from thick, high-hardness steel with a galvanized finish, these side-mount ball bearing rails are designed for smooth travel and reduced rattle. The press-to-lock feature helps prevent unwanted movement in RVs, trucks, and mobile workstations, while the 3-fold telescoping design lets you reach the entire drawer without fighting tight clearances.

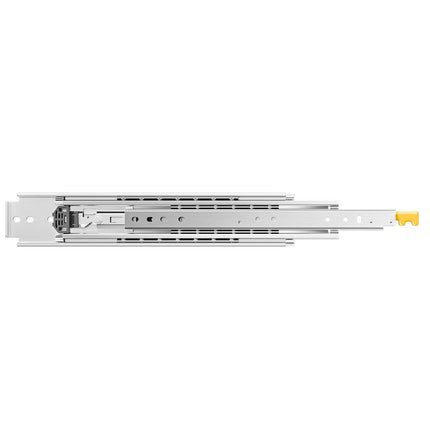

• Delivers 3-fold full extension so you can access the back of deep drawers fast


• Supports up to 500 lb load capacity for heavy storage, shop drawers, and equipment bays


• Locks with a simple press to help prevent slide-out during transport and bumps


• Glides on double-row ball bearings for smooth opening/closing with less chatter

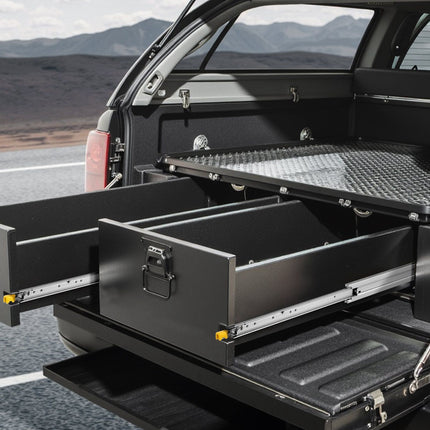

• Fits side-mount installs in cabinets, shelving, industrial drawers, RVs, trucks, and vending machines

Upgrade worn rails or build a new heavy-duty drawer system with slides that prioritize security and control. The locking latch helps keep contents in place when parked on inclines or driving over rough roads, and nylon cushioning reduces bounce at the center section. To select the right length, measure your drawer and cabinet depth (excluding face frame/boards) and choose a slide length that is less than the drawer depth. Grab yours today and build drawers that move smoothly and stay put when you need them to.

• Type: Side-mount, ball bearing, 3-fold full extension, locking


• Suitable drawer length: 32.5 in / 825.5 mm


• Extension length: 32 in / 812 mm


• Load capacity: 500 lb / 226.8 kg


• Load capacity (fully extended): 332 lb / 150.59 kg


• Dimensions (without lock): 32 x 3 x 0.77 in (812 x 76 x 19.5 mm)


• Dimensions (with lock): 33 x 3 x 0.77 in (843 x 76 x 19.5 mm)


• Material/finish: High-hardness steel, galvanized


• Net weight: 17.64 lb / 8 kg

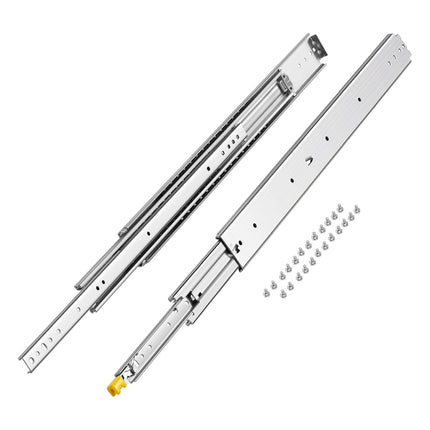

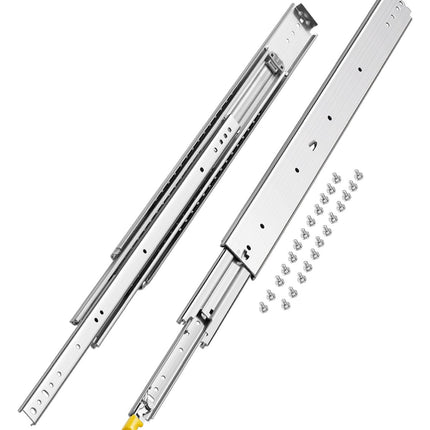

• Package: 1 pair of locking drawer slides
