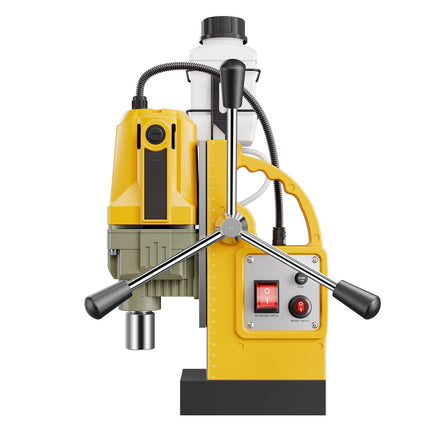

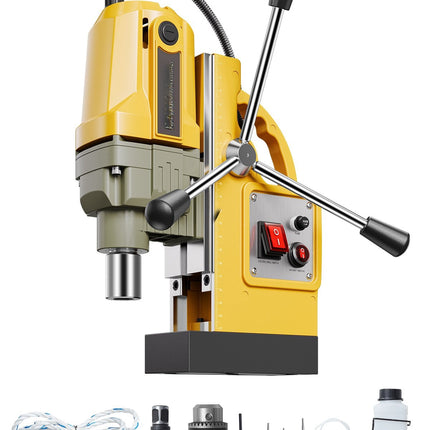

Magnetic Drill Press, 1400W, 1.6 In, 2810 Lbf

Magnetic drill press delivers secure, accurate metal drilling with a 1400W motor and a strong 2810 lbf electromagnetic base to reduce slipping on steel surfaces. Designed for jobsite mobility, this portable mag drill supports core drilling up to 1.6 in (40 mm) and twist drilling up to 16 mm, with an 800 rpm no-load speed for clean, controlled cutting. Built-in depth scale and stable dovetail guide rails help you align holes faster and work more confidently.

• Delivers 1400W copper-motor power with 800 rpm no-load speed for controlled drilling in steel


• Holds tight with 2810 lbf / 12,500 N magnetic force for stable vertical, horizontal, or overhead work


• Drills clean holes with up to 1.6 in (40 mm) core capacity and up to 16 mm twist-drill capacity


• Improves accuracy with integrated metric depth scale and durable dovetail guide rails


• Protects operation with overload protection and fast-cooling heat dissipation design

Built for fabrication, installation, and maintenance work, this electric magnetic drill press helps you bore repeatable holes where a bench drill can’t reach—on beams, plates, and structural steel. Ergonomic handles and three extended cranks provide better leverage for smoother feed control and easier positioning. For optimal holding strength, use on steel plate thickness ≥ 0.39 in (10 mm). Not suitable for stainless steel or cast iron; use a safety rope for inverted or horizontal drilling. Grab yours today and keep your metalworking workflow moving.

• Motor power: 1400W


• No-load speed: 800 rpm


• Maximum magnetic force: 2810 lbf / 12,500 N


• Max core drilling diameter: 1.6 in / 40 mm


• Max core drilling depth: 2 in / 50 mm


• Max twist drilling diameter: 0.1–0.6 in / 3–16 mm


• Max twist drilling depth: 3.9 in / 100 mm


• Max travel distance: 6.3 in / 160 mm


• Shank type: 3/4 in (19.05 mm) Weldon shank


• Net weight (with accessories): 24.9 lb / 11.3 kg


• Recommended work surface: steel plate thickness ≥ 0.39 in / 10 mm
