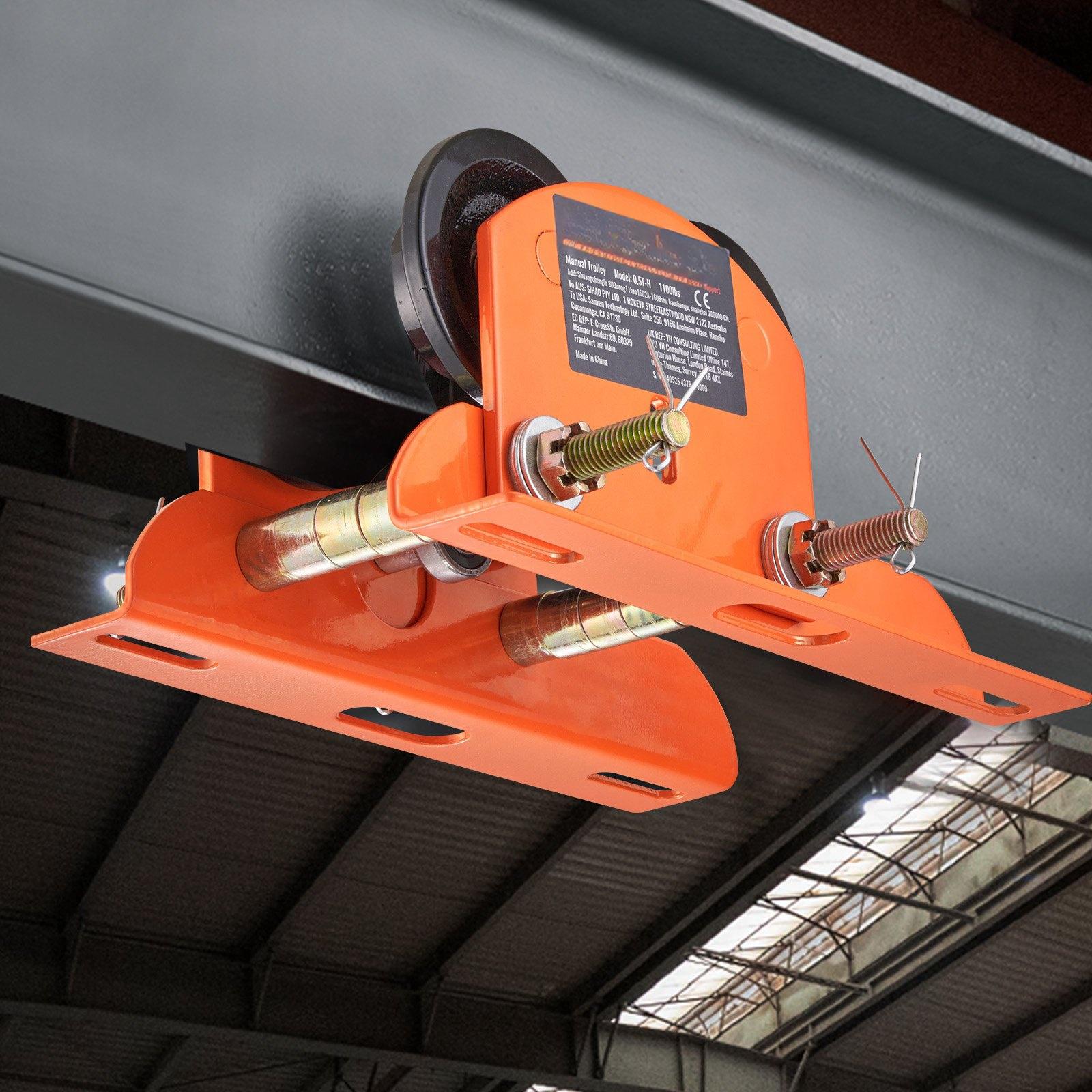

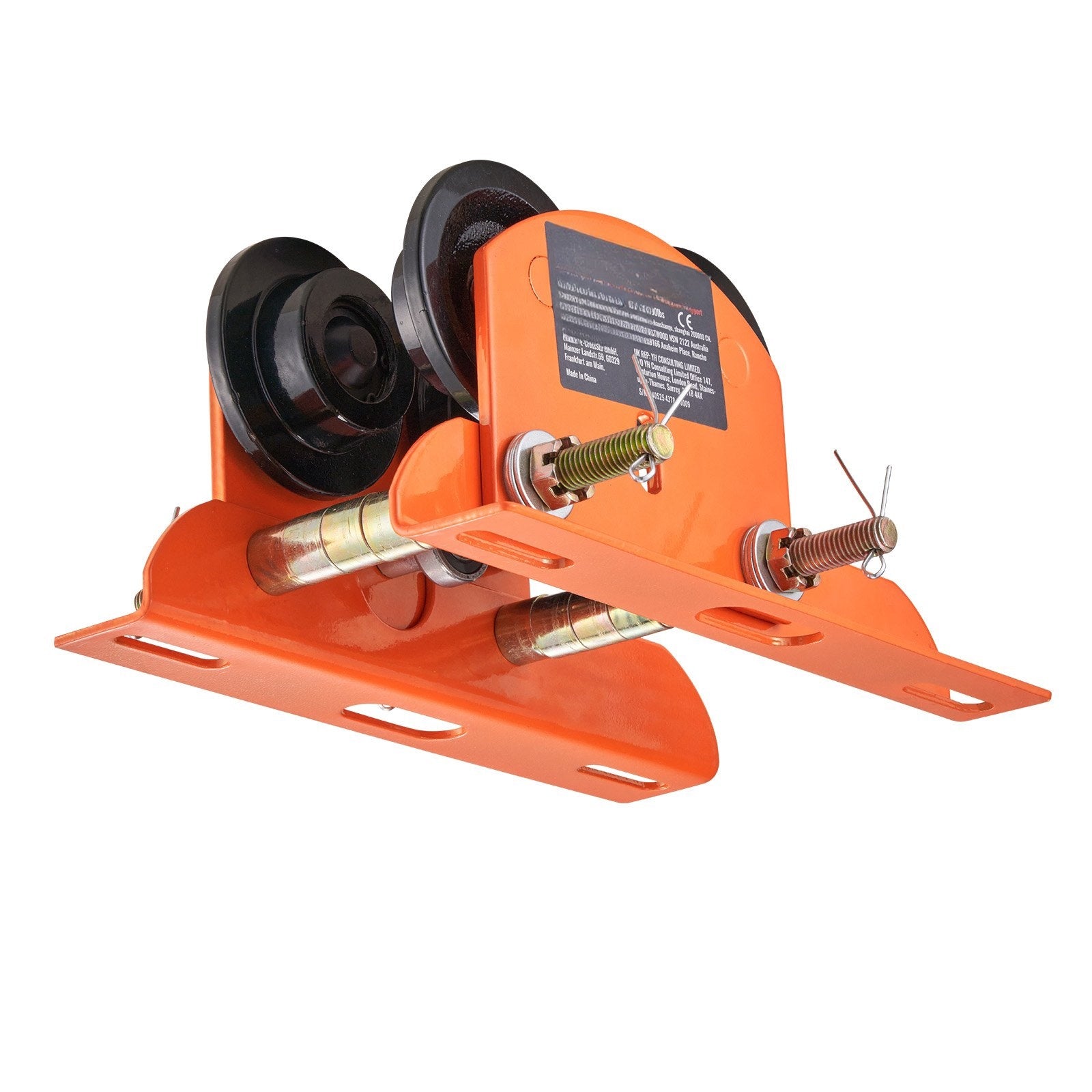

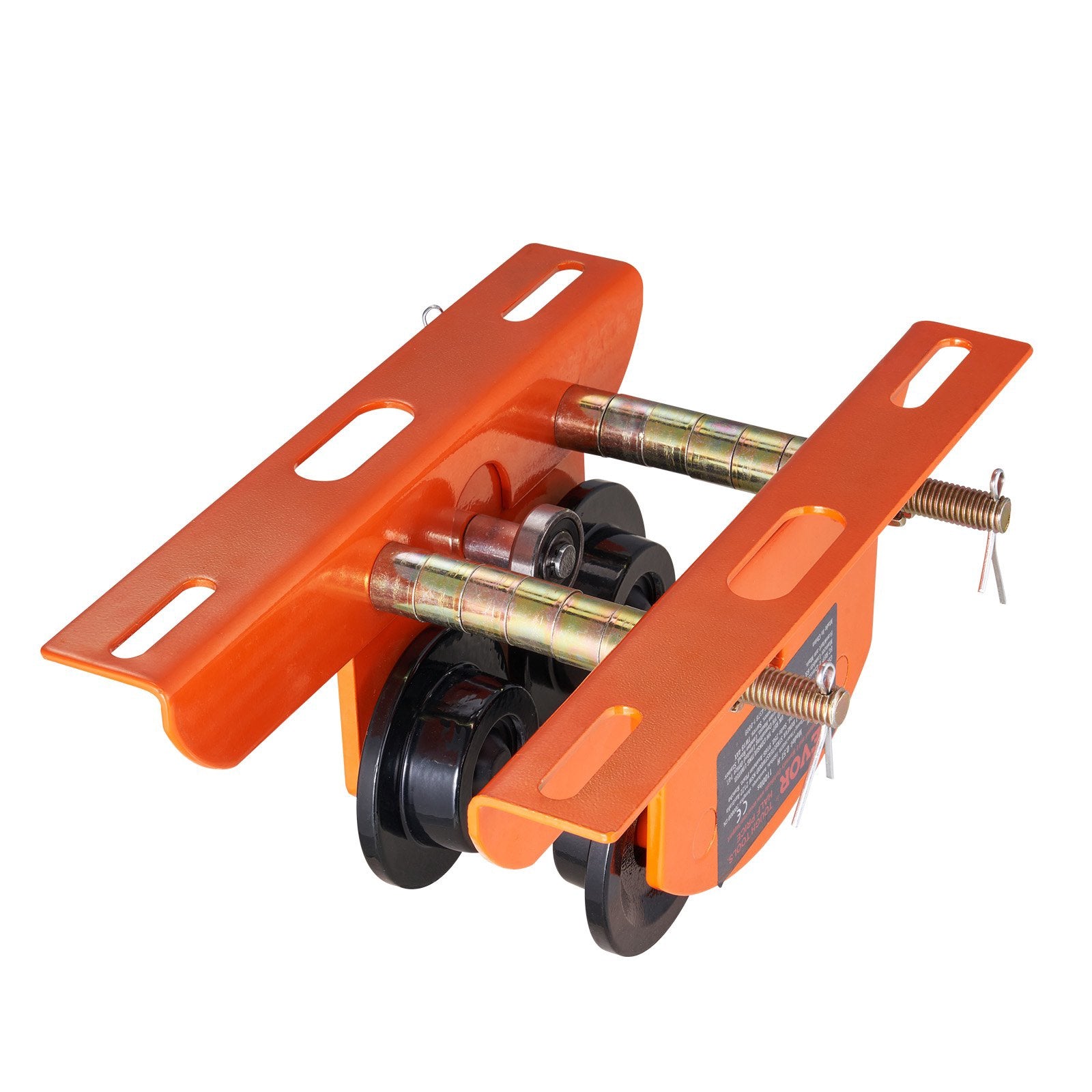

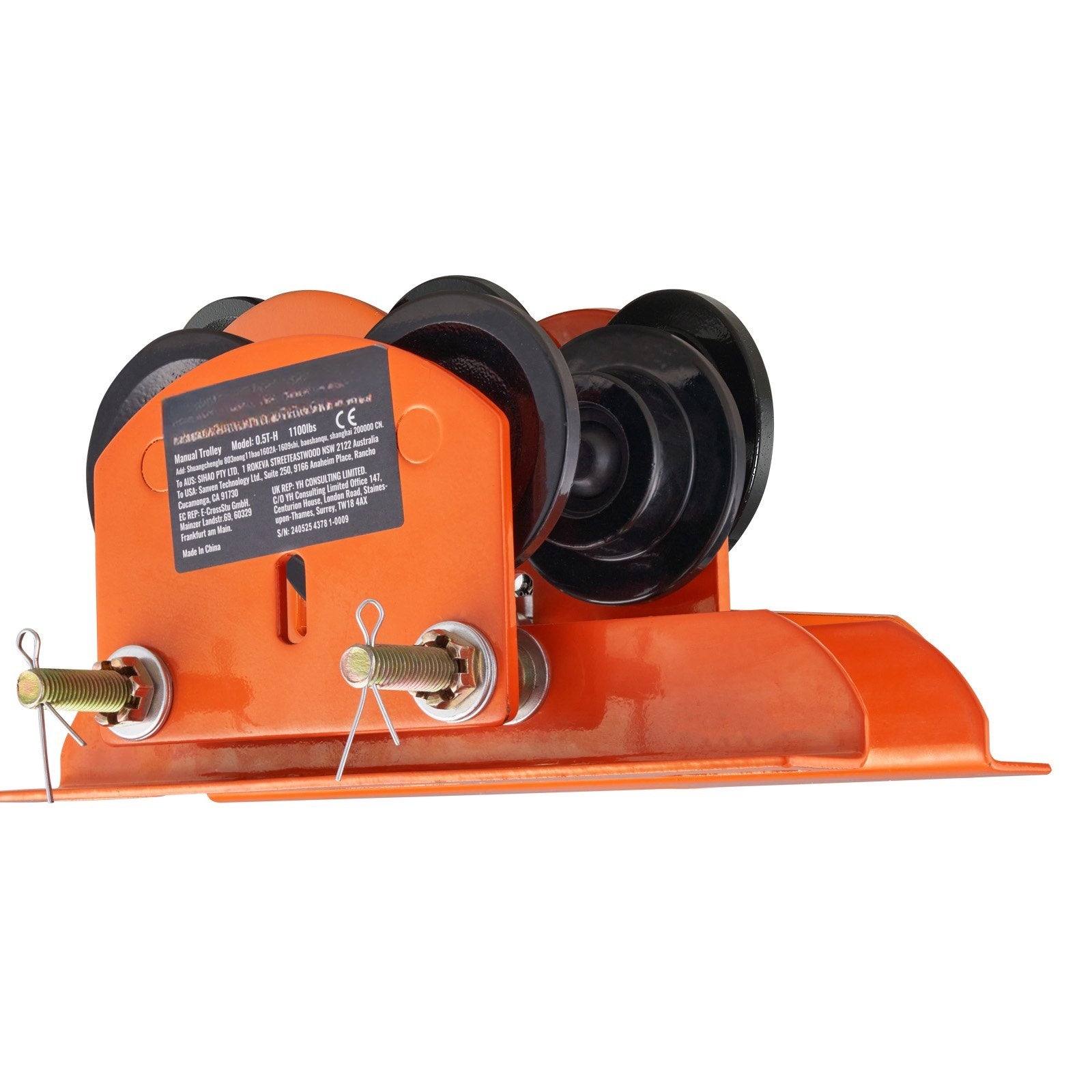

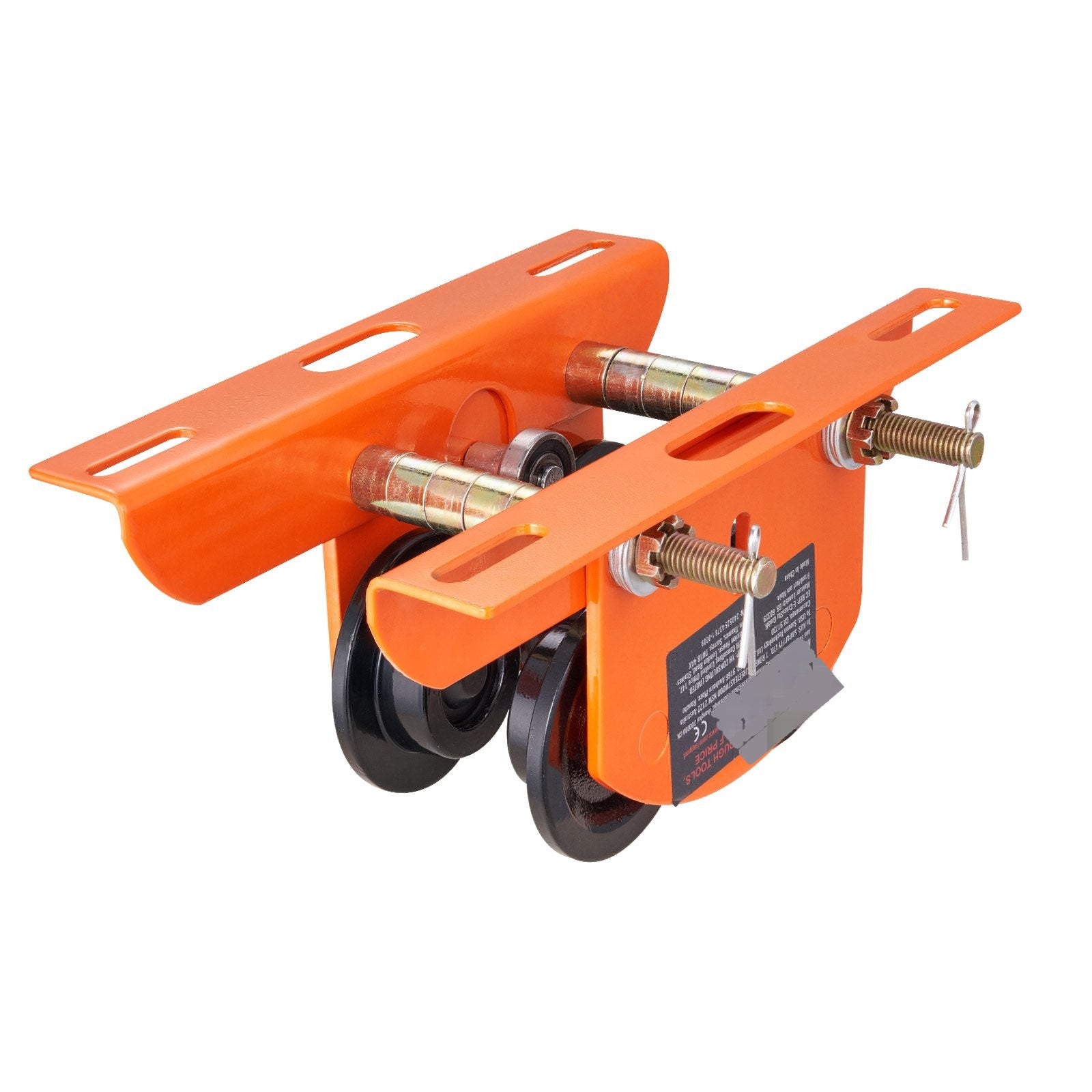

Manual Beam Trolley for Electric Hoist, 0.5 Ton, 60-120 mm

Manual beam trolley delivers smooth, controlled hoist travel along I-beams and H-beams, helping you position loads accurately without lifting strain. Rated for 0.5 ton (1100 lb/499 kg), this push trolley uses dual-wheel, dual-axle design and sealed bearings to roll steadily on straight or curved beams. Adjustable flange width (60–120 mm) lets you dial in a secure fit for common steel beam sizes, making it a practical match for PA-series electric wire rope hoists in workshops, warehouses, and job sites.

• Fits adjustable I-beams/H-beams with 60–120 mm (2.36–4.72 in) flange width for a snug, stable setup


• Supports up to 1100 lb / 0.5 ton (499 kg) capacity for everyday lifting, positioning, and load transfer


• Delivers smoother travel with dual-axle wheels and sealed bearings for consistent rolling on straight/curved beams


• Includes washers and gaskets to fine-tune spacing and reduce beam play during installation


• Works with compatible electric hoists including PA200, PA250, PA300, PA400, and PA500

When your lift needs to move where the work is, a properly fitted push beam trolley keeps your hoist aligned and your load tracking predictably along the beam. The alloy-steel build is designed for jobsite wear, while the wide adjustment range helps you standardize one trolley across multiple beam sizes. Install by setting the beam width with the supplied spacers, mount the hoist, then lock it down with the nut and wire pin. Grab yours today and keep lifts moving with less repositioning time.

• Load capacity: 1100 lb / 0.5 ton (499 kg)


• Adjustable flange width: 60–120 mm (2.36–4.72 in)


• Product size: 268 × 227 × 108 mm (10.55 × 8.93 × 4.25 in)


• Product weight: 4.5 kg (9.92 lb)


• Material: Alloy steel


• Wheel design: Dual wheels, dual-axle; sealed bearings
