NEMA 4X Steel Electrical Enclosure 50x40x20cm IP66

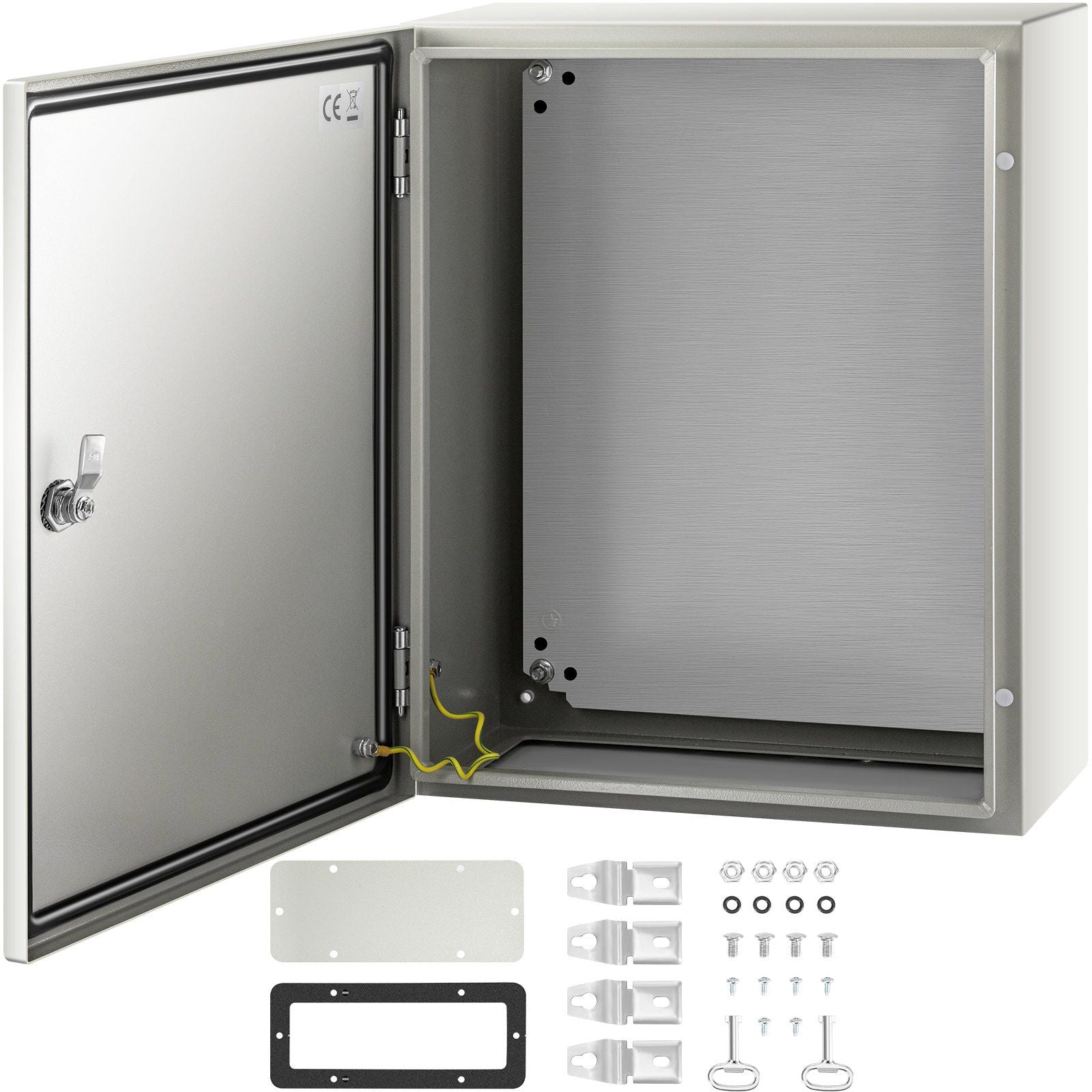

NEMA 4X steel electrical enclosure protects controls and wiring from water, dust, and impact for dependable indoor/outdoor installations. Built from 1.5 mm cold-rolled carbon steel with a durable epoxy polyester powder coat, it’s designed to meet IP66 and multiple NEMA ratings for harsh environments. A hinged, lockable door speeds access while helping prevent tampering, and the detachable galvanized backplate simplifies component mounting for cleaner, faster builds.

• Delivers IP66 sealing to help block dust and water intrusion in outdoor or washdown-prone areas


• Protects equipment with 1.5 mm carbon steel construction and powder-coated corrosion resistance


• Includes a detachable 2 mm galvanized mounting plate for easier component layout and install

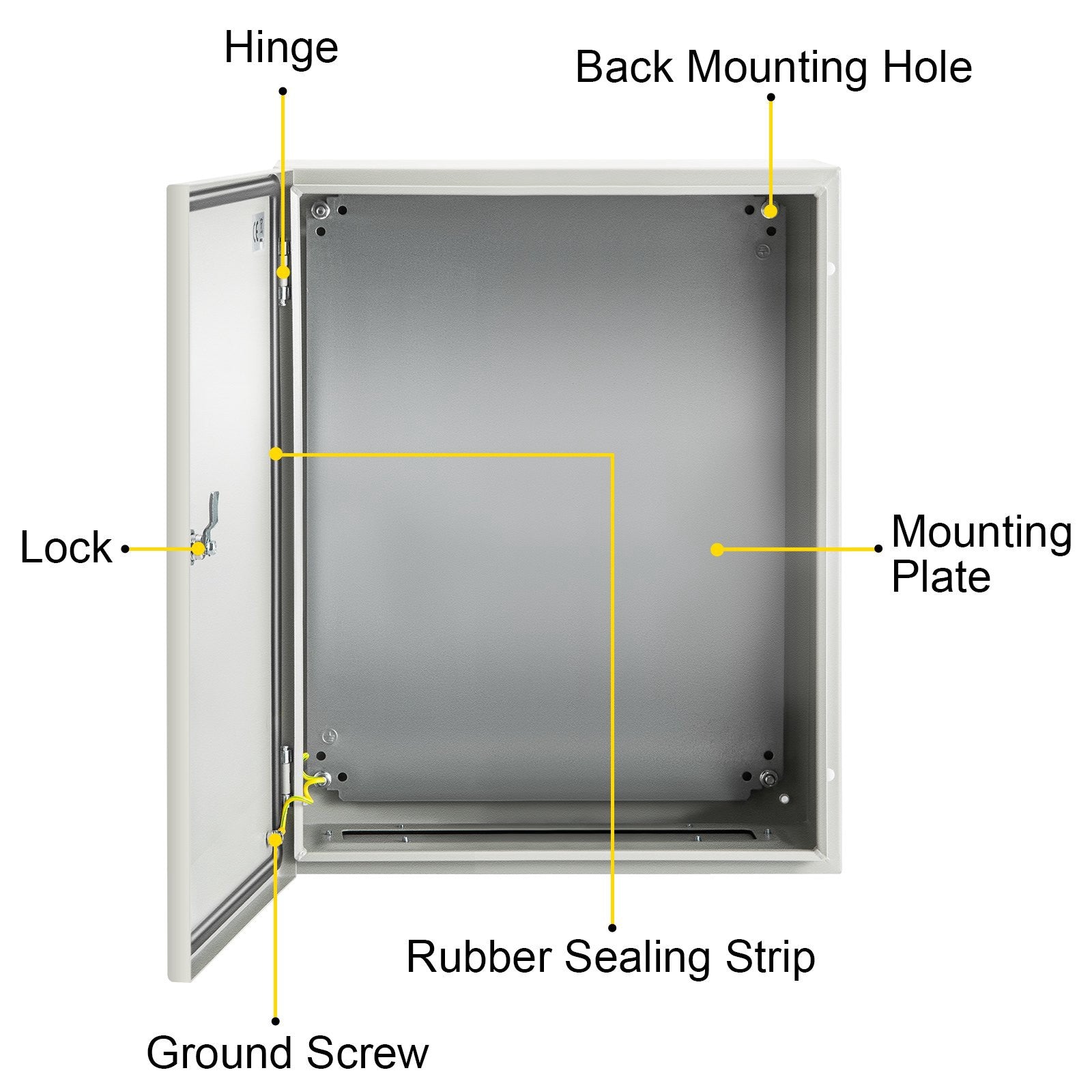

• Secures access with a reinforced hinge and lockable door for added safety and control


• Speeds setup with rear wall-mount holes, smooth cable entry cutouts, and pre-installed grounding screws

Use this lockable electrical junction box to organize breakers, relays, power supplies, networking gear, and automation controls in factories, construction sites, courtyards, and commercial spaces. The foam sealing strip supports consistent closure, while the hinged design makes servicing faster without fighting a loose cover. If you need a clean, professional enclosure that helps protect sensitive components from the elements and everyday abuse, grab yours today and finish your panel build with confidence.

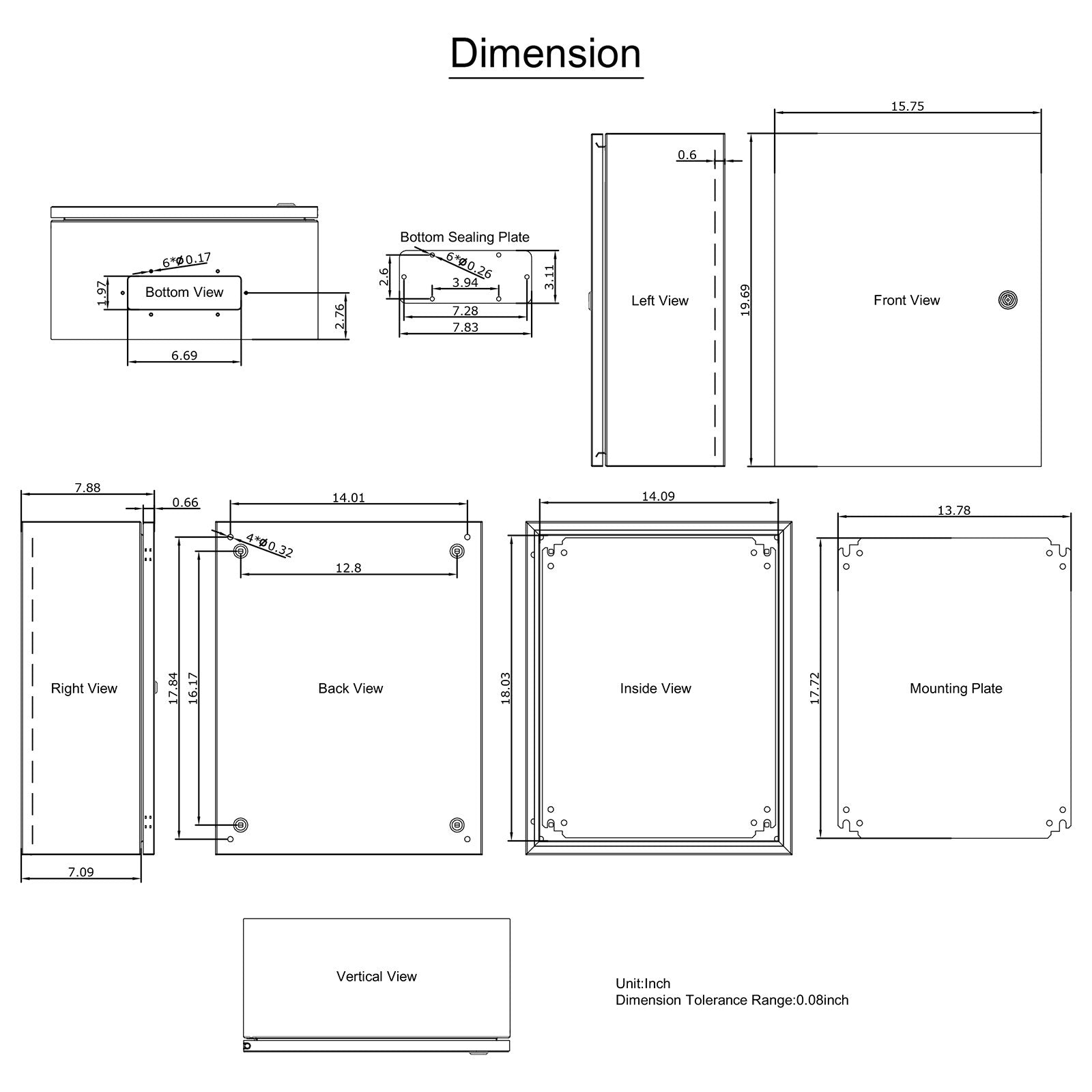

• Outer dimensions (H×W×D): 20" × 16" × 8" (50 × 40 × 20 cm)


• Inner dimensions (H×W×D): 19.6" × 15.6" × 6.6" (49.7 × 39.7 × 16.65 cm)


• Material: 0.059" (1.5 mm) carbon steel, cold-rolled


• Mounting plate: 0.079" (2 mm) detachable galvanized backplate; 17.7" × 13.8" (45 × 35 cm)


• Protection ratings: IP66; designed to meet NEMA 1, 2, 4, 4X, 12


• Finish: epoxy polyester powder coating


• Color: gray white (RAL7035)


• Door: hinged, lockable


• Certifications: CE, RoHS


• Product weight: 29.32 lb (13.3 kg)
