Queen Vertical Murphy Bed Hardware Kit, Gas Strut DIY

Queen size murphy bed hardware kit for a vertical wall bed build that frees up floor space while keeping a full queen sleeping area ready for guests. This heavy-duty mechanical hardware set uses carbon steel framing and smooth gas struts for controlled, quiet folding and lift. Precision hole positioning and an integrated pivot board help reduce measuring errors, making DIY installation more straightforward for bedroom, studio, or guestroom cabinet bed projects.

• Delivers smooth open/close with gas struts for controlled lifting and quiet folding


• Supports up to 68 lb mattress weight capacity with robust carbon steel construction


• Reduces alignment guesswork using an integrated pivot board and precision hole layout


• Protects floors with thick square-tube legs designed for stable, solid support


• Fits vertical queen mattresses to maximize wall-to-floor space in compact rooms

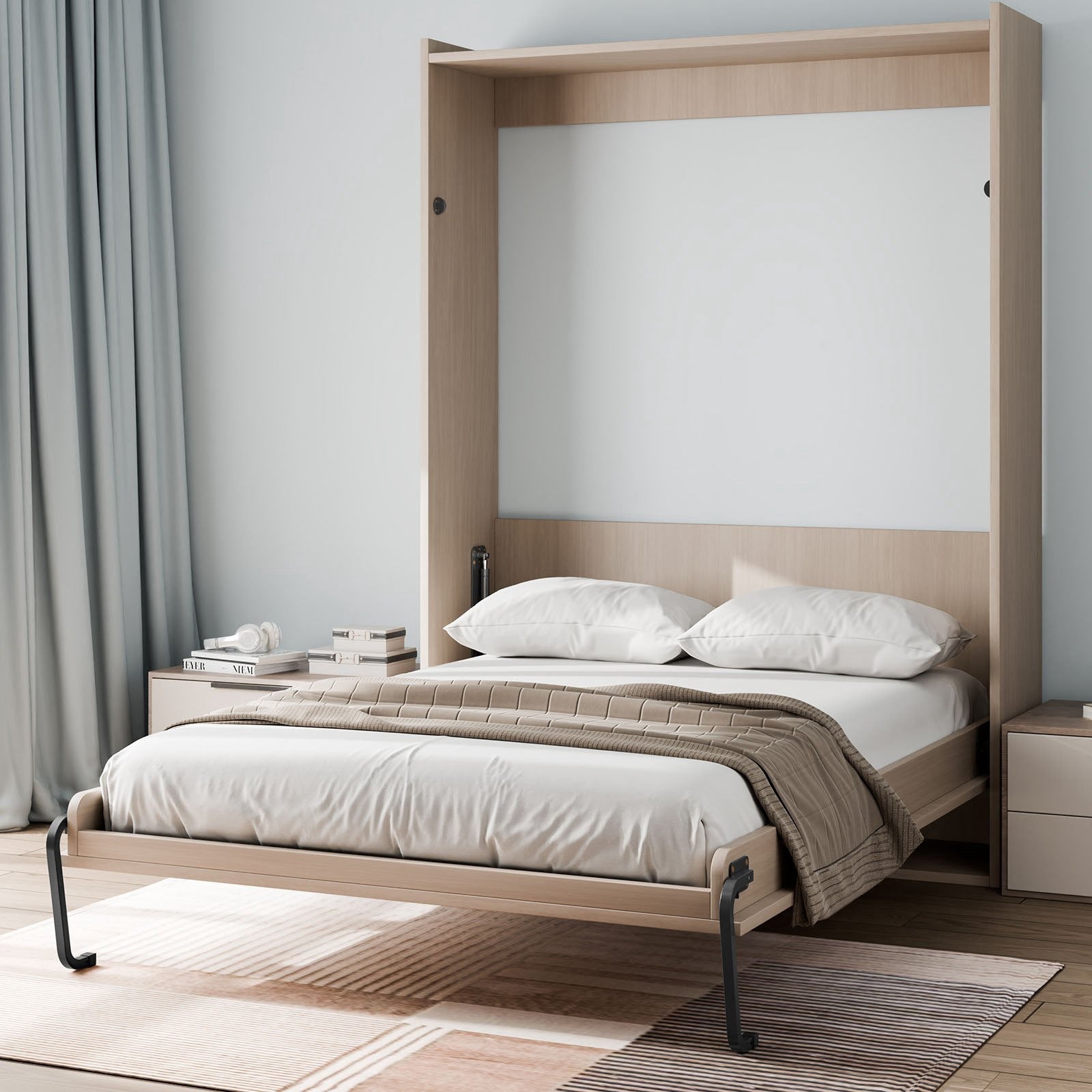

Build a space-saving wall bed that looks clean when stored and feels stable when in use. The black-coated, waterproof and rust-resistant finish is suited for long-term everyday operation, while the welded frame hardware is built for consistent support. Ideal for DIY cabinet bed projects in apartments, home offices, and guest rooms where every inch matters. Set up your vertical queen wall bed system and reclaim usable room—grab yours today.

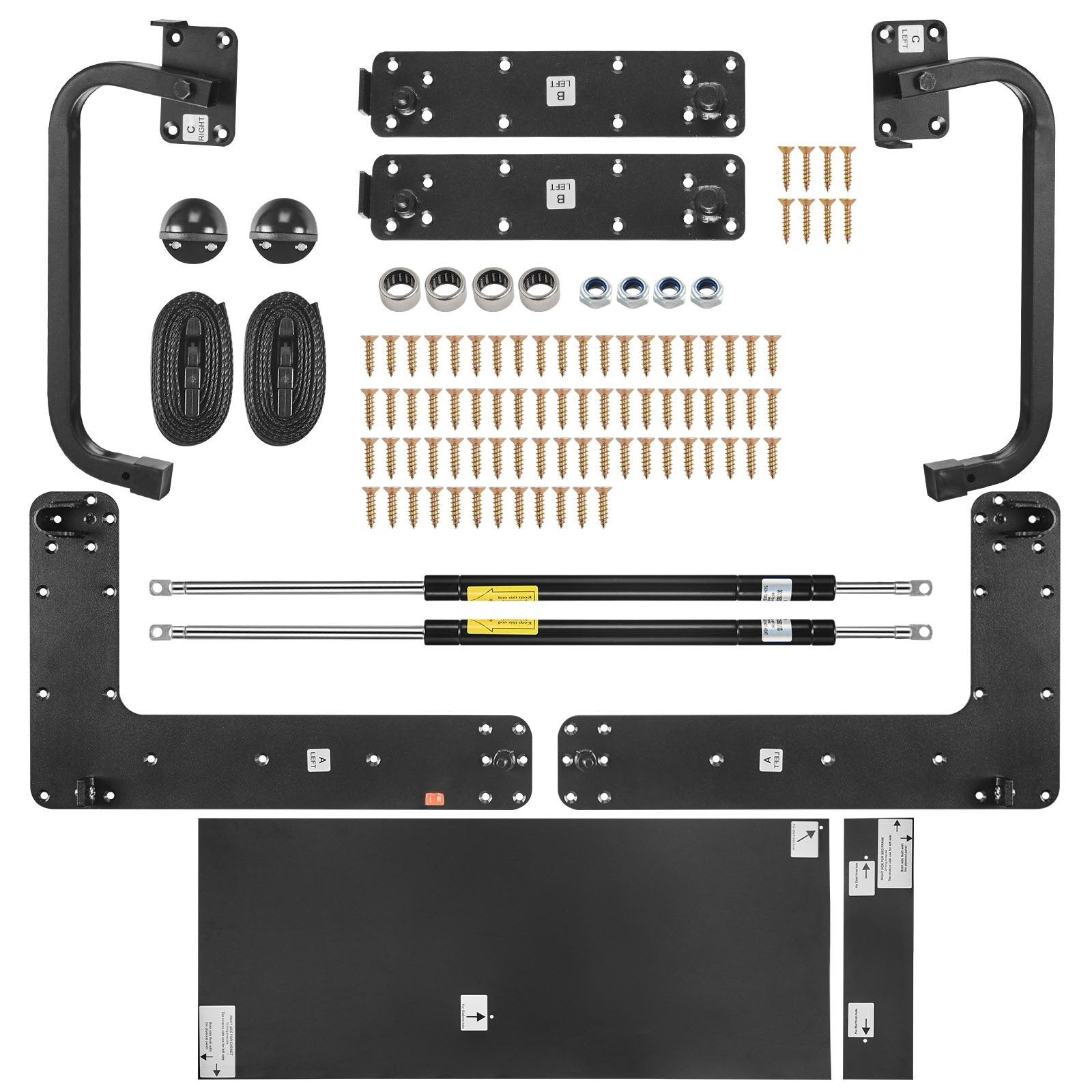

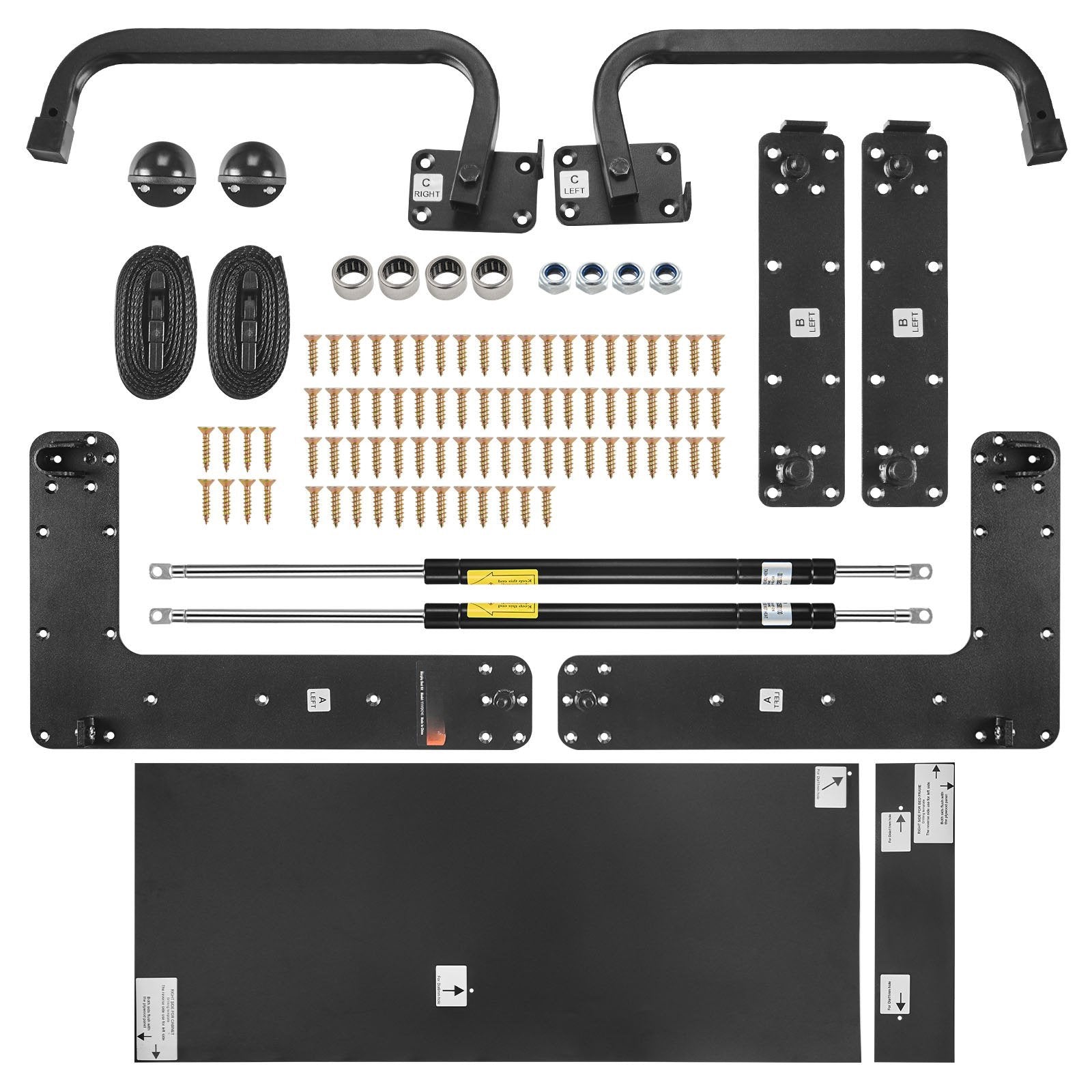

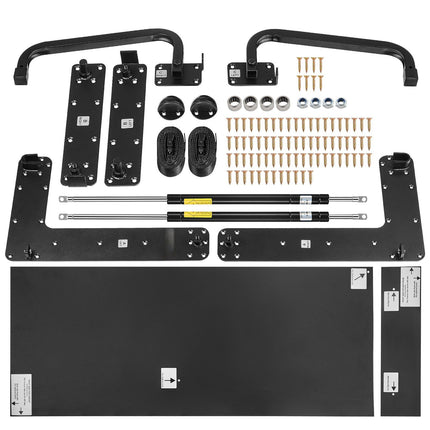

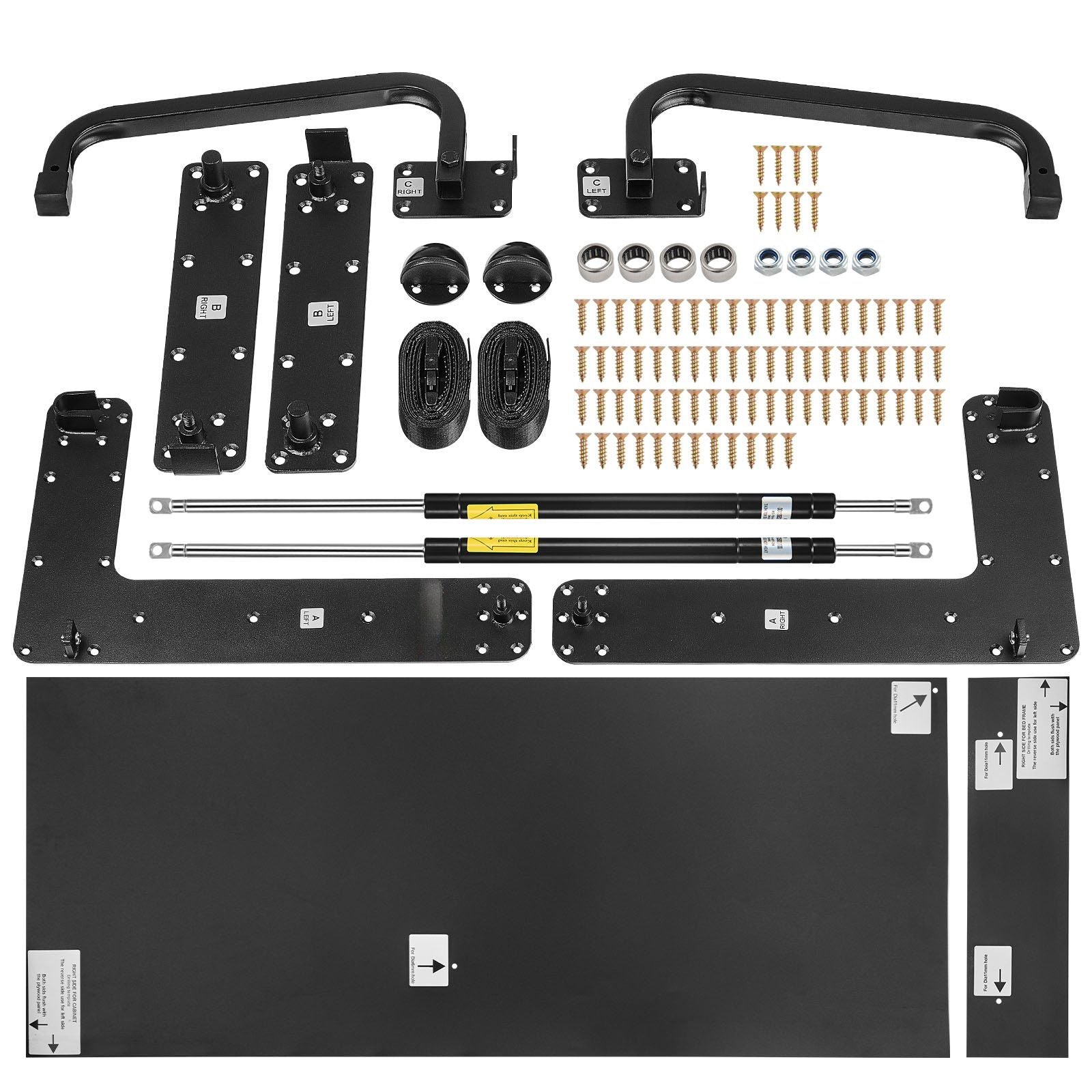

• Type: Vertical (upright) queen wall bed mechanical hardware kit


• Material/Finish: Carbon steel; black coated; waterproof and rust-resistant


• Installed dimensions (L×W×H): 86×67×87 in (2185×1700×2210 mm)


• Storage size (L×W×H): 16×67×87 in (405×1700×2210 mm)


• Compatible mattress size (L×W×H): 80×60×(6–10) in (2032×1524×152–254 mm)


• Max mattress weight capacity: 68 lb (31 kg)


• Cycle rating: 50,000 open/close cycles


• Net weight: 14.8 lb (6.7 kg)
