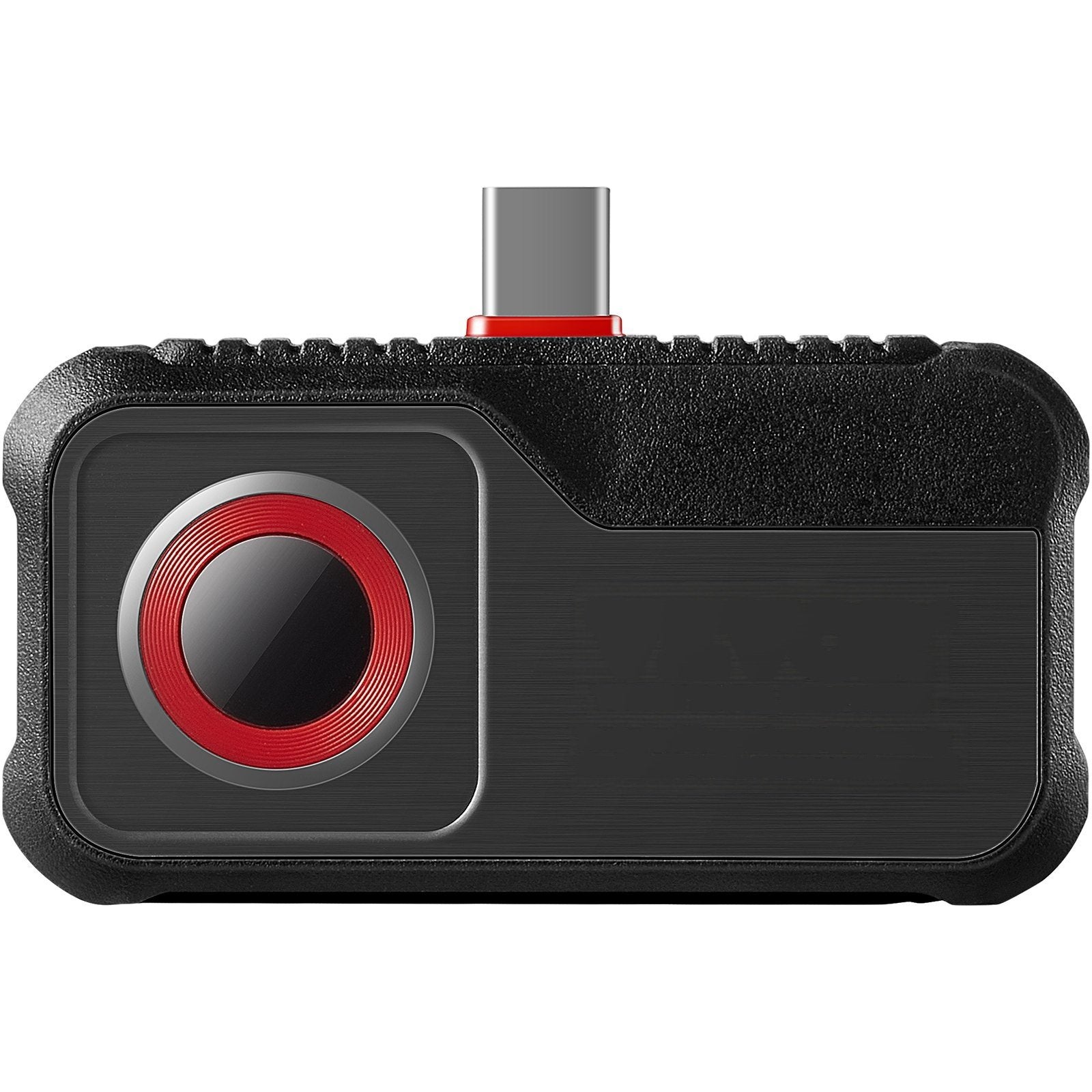

Thermal Imaging Camera for Android, 256x192, 25Hz, Type-C

Thermal imaging camera for Android helps you spot heat loss, electrical hot spots, and mechanical issues fast—right from your phone. Plug the compact USB-C module into a compatible Android smartphone or tablet to view sharp 256 x 192 thermal images, overlay them with the visible camera, and track temperature changes in real time at 25Hz. Wide temperature coverage supports troubleshooting from cold drafts to overheating components.

• Delivers 256 x 192 IR resolution plus visible-light overlay for clearer target identification.


• Connects via USB-C for plug-and-play use with Android phones/tablets using the companion app.


• Captures smooth 25Hz video to follow fast-changing hot spots without lag.


• Tracks hotspots and records images/video (JPG/MP4) for reports, repairs, and documentation.


• Protects with IP54-rated housing and durable aluminum alloy build for jobsite use.

Use this infrared thermal imager to quickly confirm insulation gaps, HVAC airflow issues, overloaded circuits, and overheating bearings—without disassembly. Adjustable emissivity helps match different surfaces for more reliable readings, while the wide field of view makes scanning rooms and panels faster. Keep it in your kit for maintenance checks, home inspections, and DIY diagnostics, then save and share results straight from your device. Grab yours today and start seeing temperature patterns you’d normally miss.

• Thermal resolution: 256 x 192 pixels


• Refresh rate: 25Hz


• Temperature range: -4°F to 1022°F (-20°C to 550°C)


• Thermal sensitivity: 0.1°C


• Emissivity: adjustable 0.01–1.00


• Field of view: 50.0° x 37.2°


• Wavelength: 8–14 μm


• Interface: USB Type-C


• Protection rating: IP54


• Material: aluminum alloy


• Dimensions: 2.76 x 1.77 x 0.59 in (70 x 45 x 15 mm)


• Net weight: 0.183 lb (0.083 kg)


• Operating temp: 50°F to 122°F (-10°C to 50°C)


• Storage temp: -4°F to 140°F (-20°C to 60°C)


• Measurement accuracy: -15°C–300°C ±2°C or ±2%; 300°C–550°C ±4%; -20°C–-15°C ±4%
