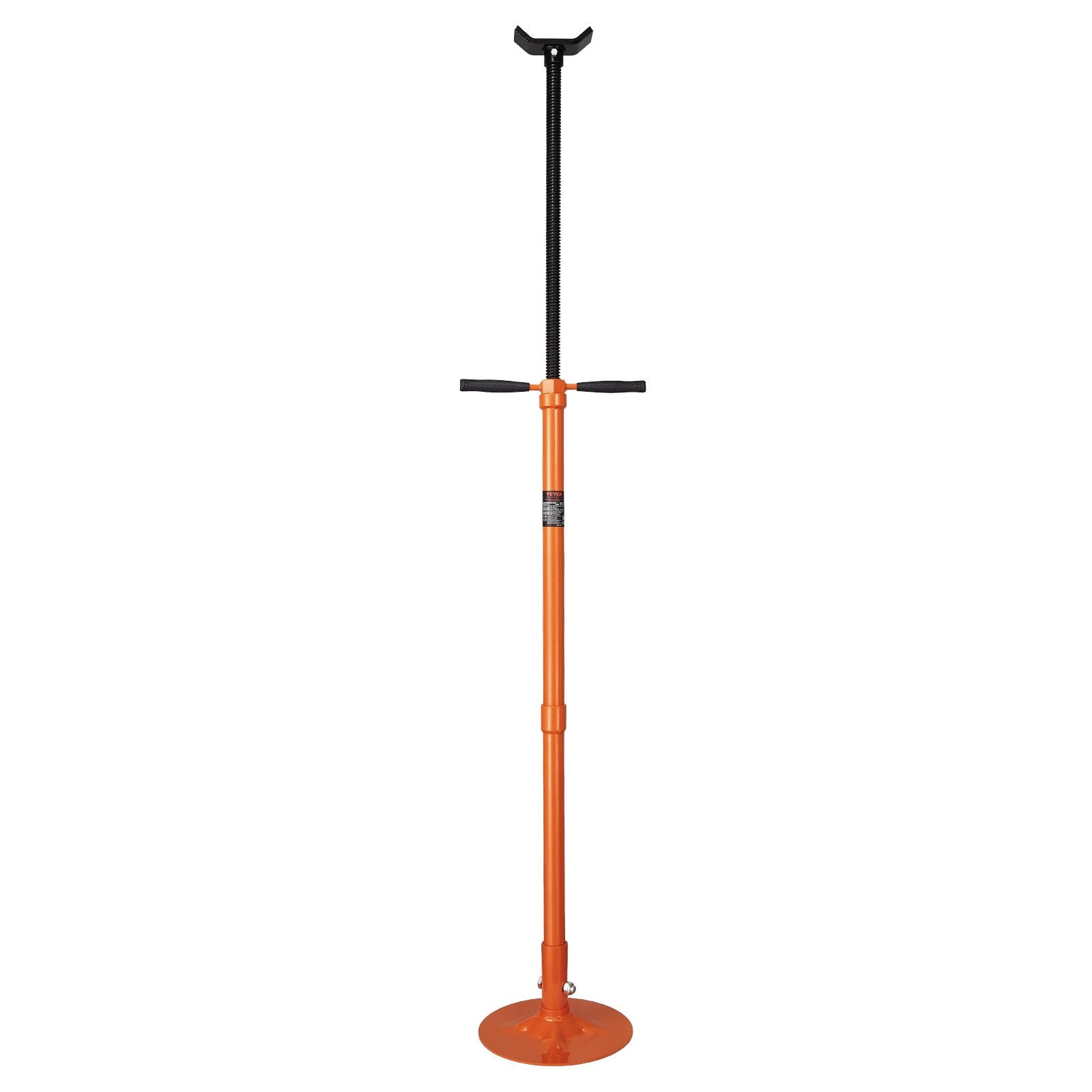

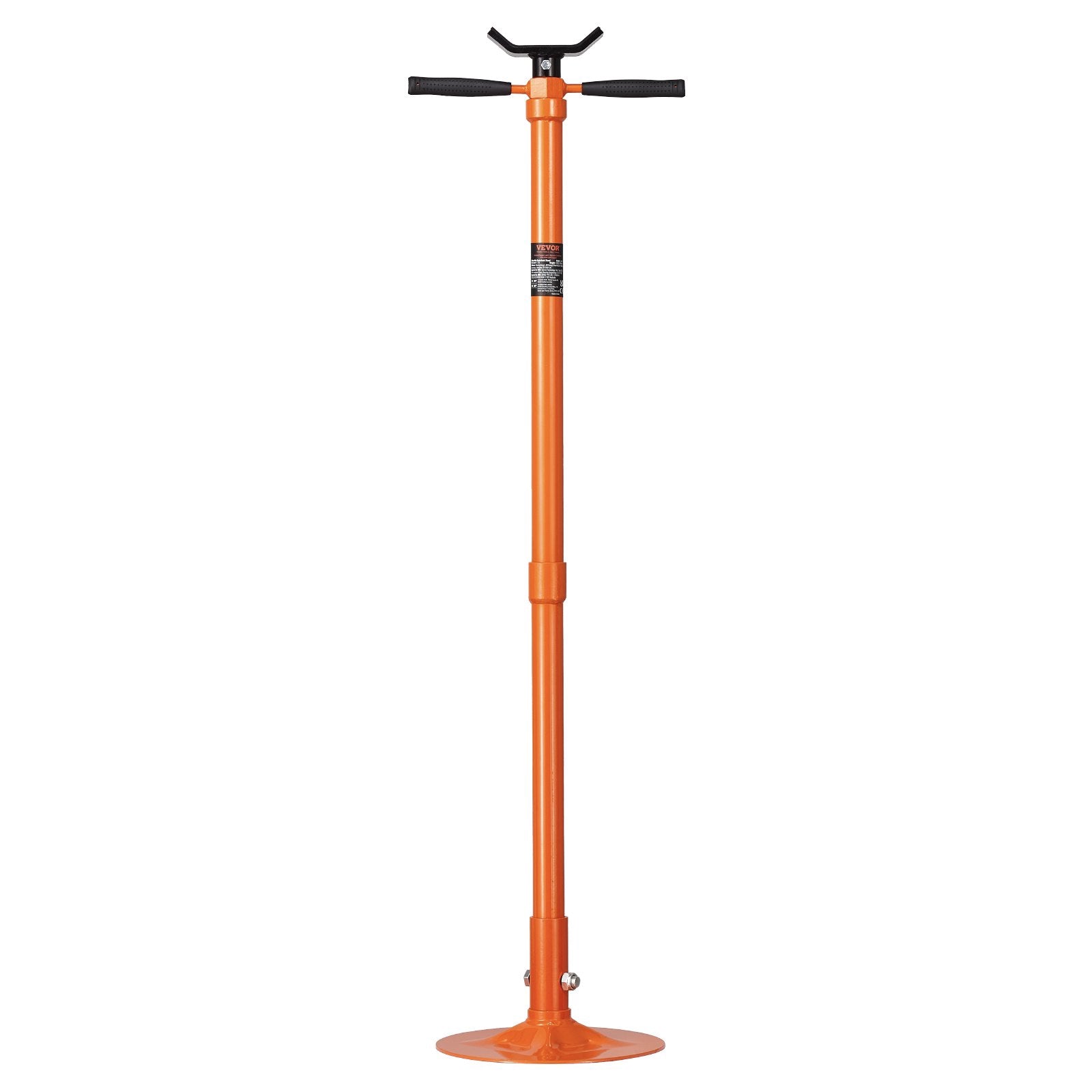

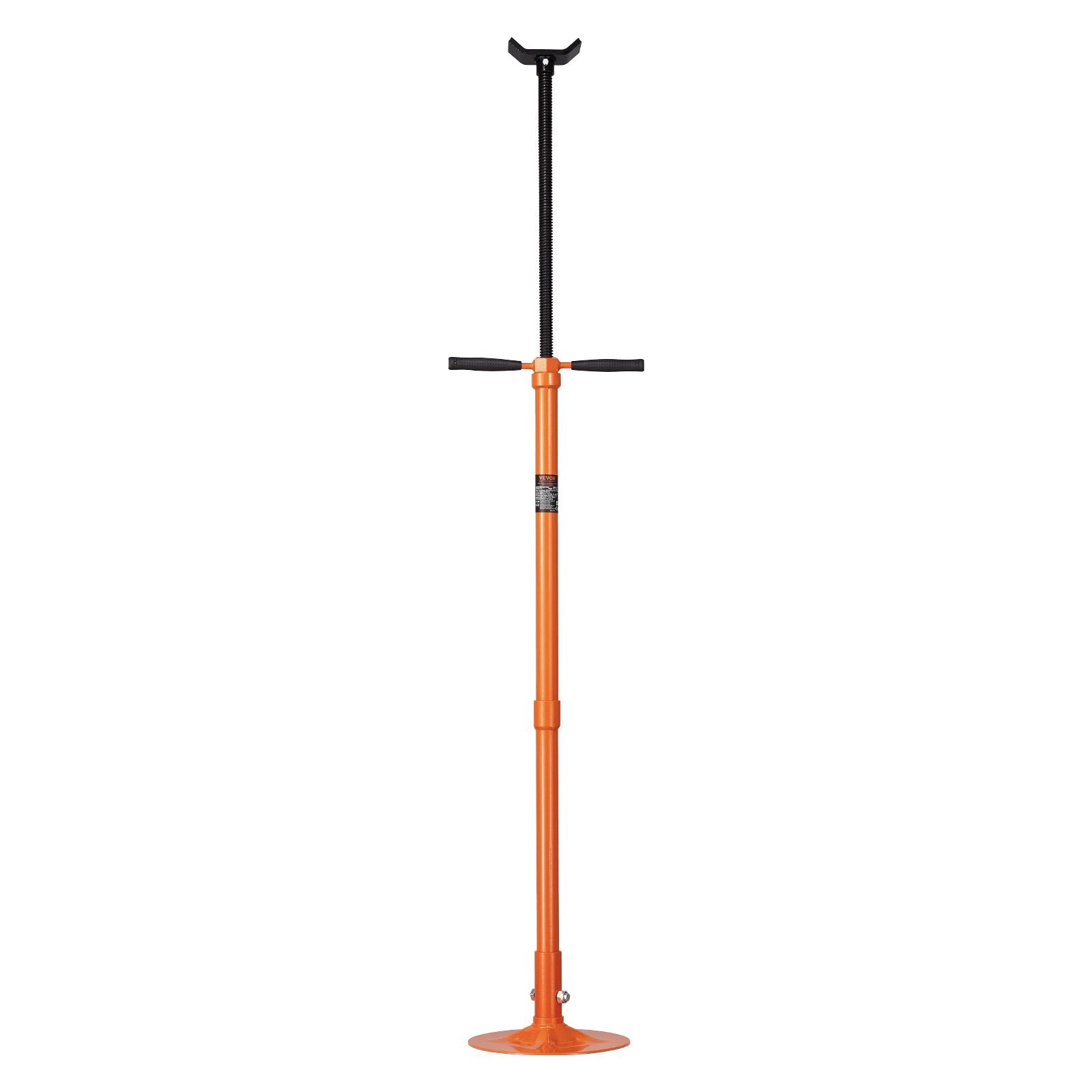

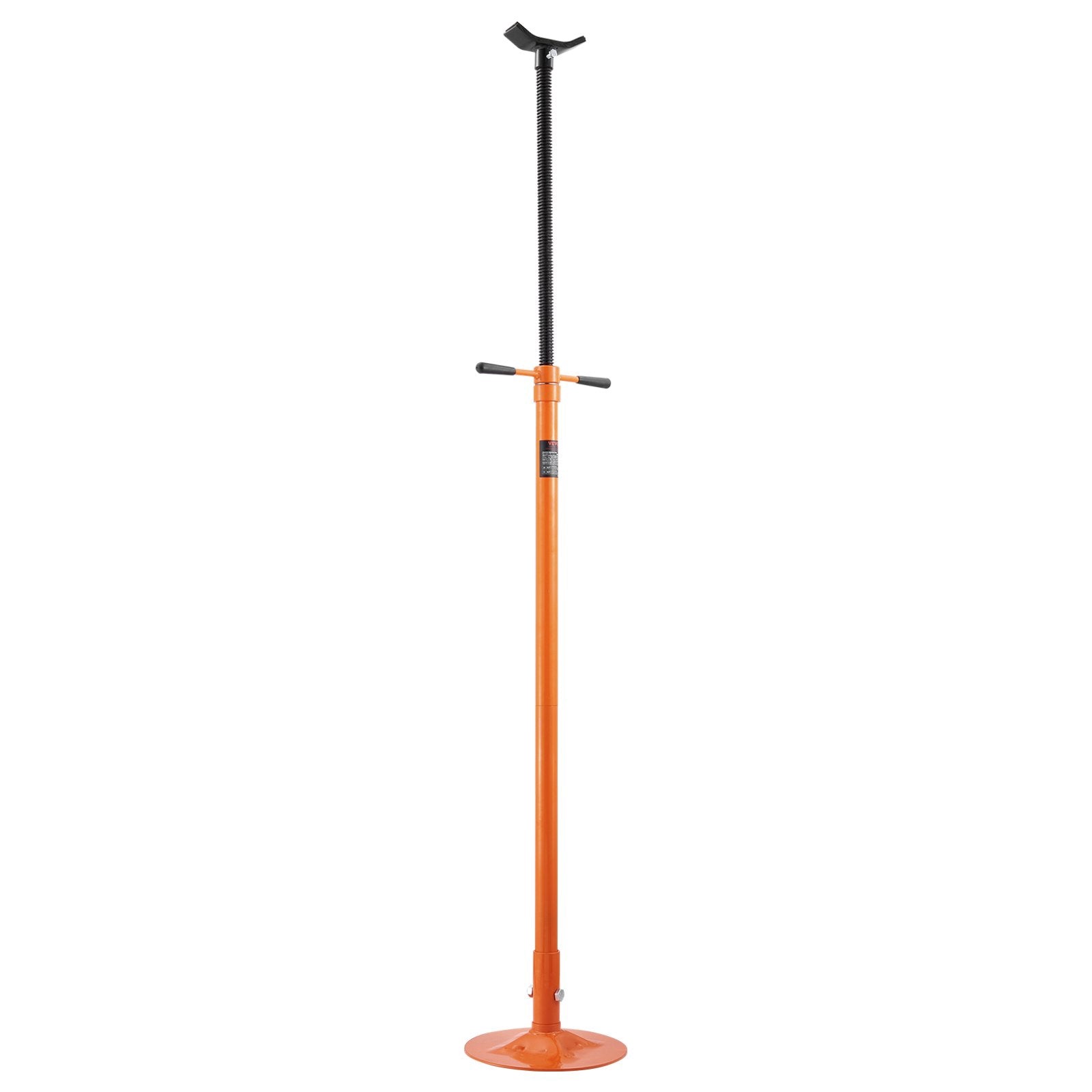

Underhoist Support Stand, 3/4 Ton, 52.8–76 In Lift

Underhoist support stand stabilizes heavy vehicle components under a lift, helping you hold transmissions, exhaust parts, and driveline assemblies at the height you need. Rated to 0.75 ton (1653.5 lb) and built from tubular steel, it’s designed for controlled, top-down support during installs and removals. The bearing-mounted spin handle and self-locking threaded screw deliver smoother adjustment from 52.8" to 76.0" for common automotive maintenance tasks.

• Delivers 1653.5 lb / 0.75 ton support capacity for holding vehicle components under a hoist


• Adjusts height from 52.8" to 76.0" with a bearing-mounted spin handle for easier raising/lowering


• Prevents drop with a self-locking threaded screw that stays put without unwanted lowering


• Stabilizes loads with a thick circular base and a U-shaped tray for steady top-down support


• Protects contact points with rubber-padded tray and a rubber-grip handle for controlled positioning

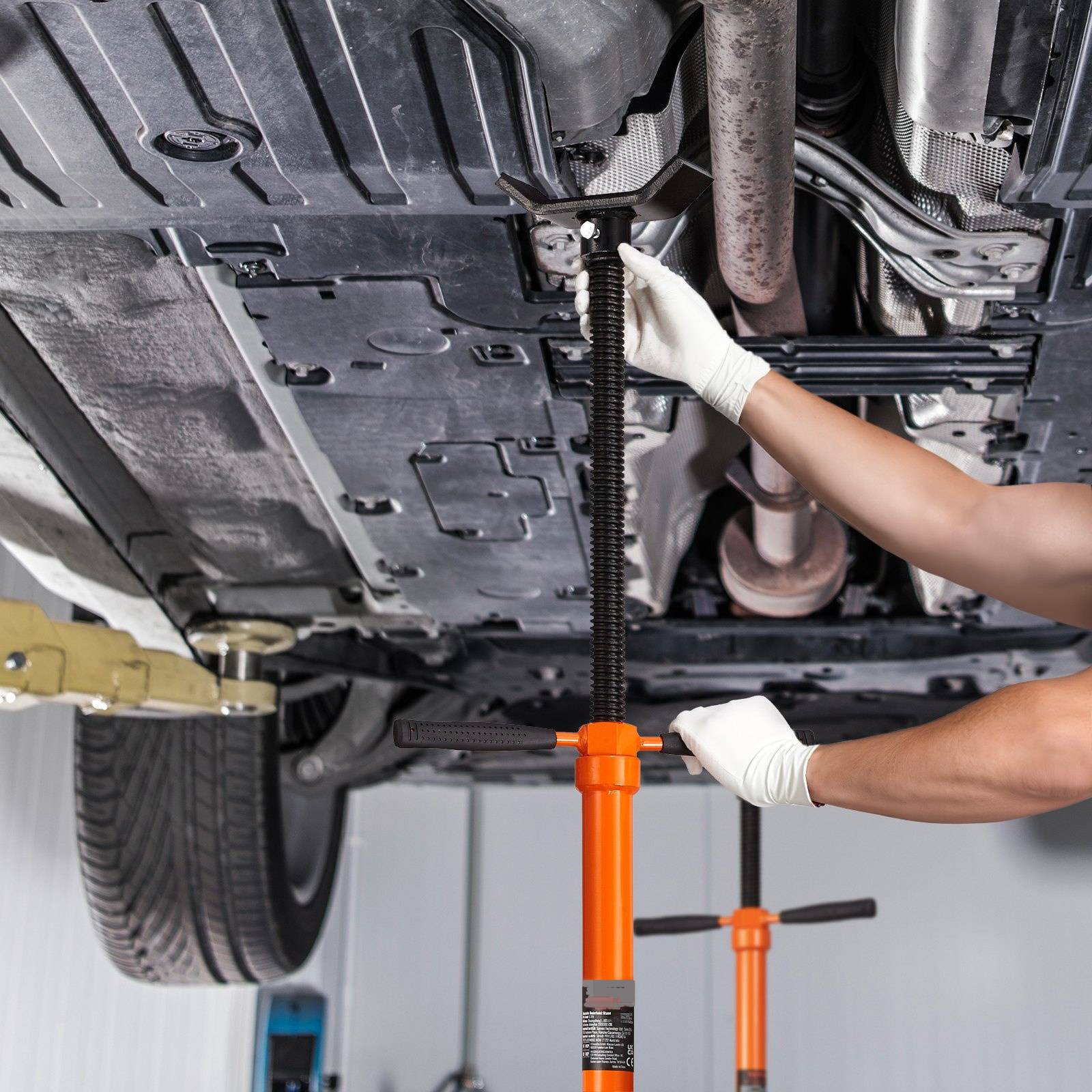

Use this hoist stand to provide partial support and precise alignment when removing or installing transmissions, CV joints, radiators, drive shafts, exhaust systems, and catalytic converters. The wide base helps reduce wobble while the smooth screw adjustment lets you fine-tune height under load. For safe, balanced support, plan on using at least two stands as required for typical setups. Grab yours today and keep critical components steady while you work.

• Capacity: 1653.5 lb (0.75 ton)


• Height range: 52.8"–76.0" (1340–1930 mm)


• Material: Q235B steel


• Product weight: 25.6 lb (11.7 kg)


• Base footprint / dimensions: 11.8" x 11.8" x 52.8" (300 x 300 x 1340 mm)


• Handle length: 14.6" (370 mm)


• Lead screw length: 27.6" (705 mm)


• Top head thickness: 0.4" (10 mm)
