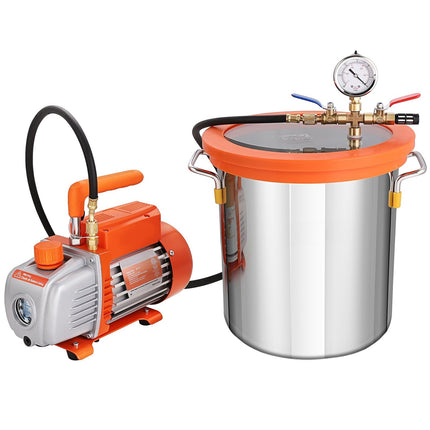

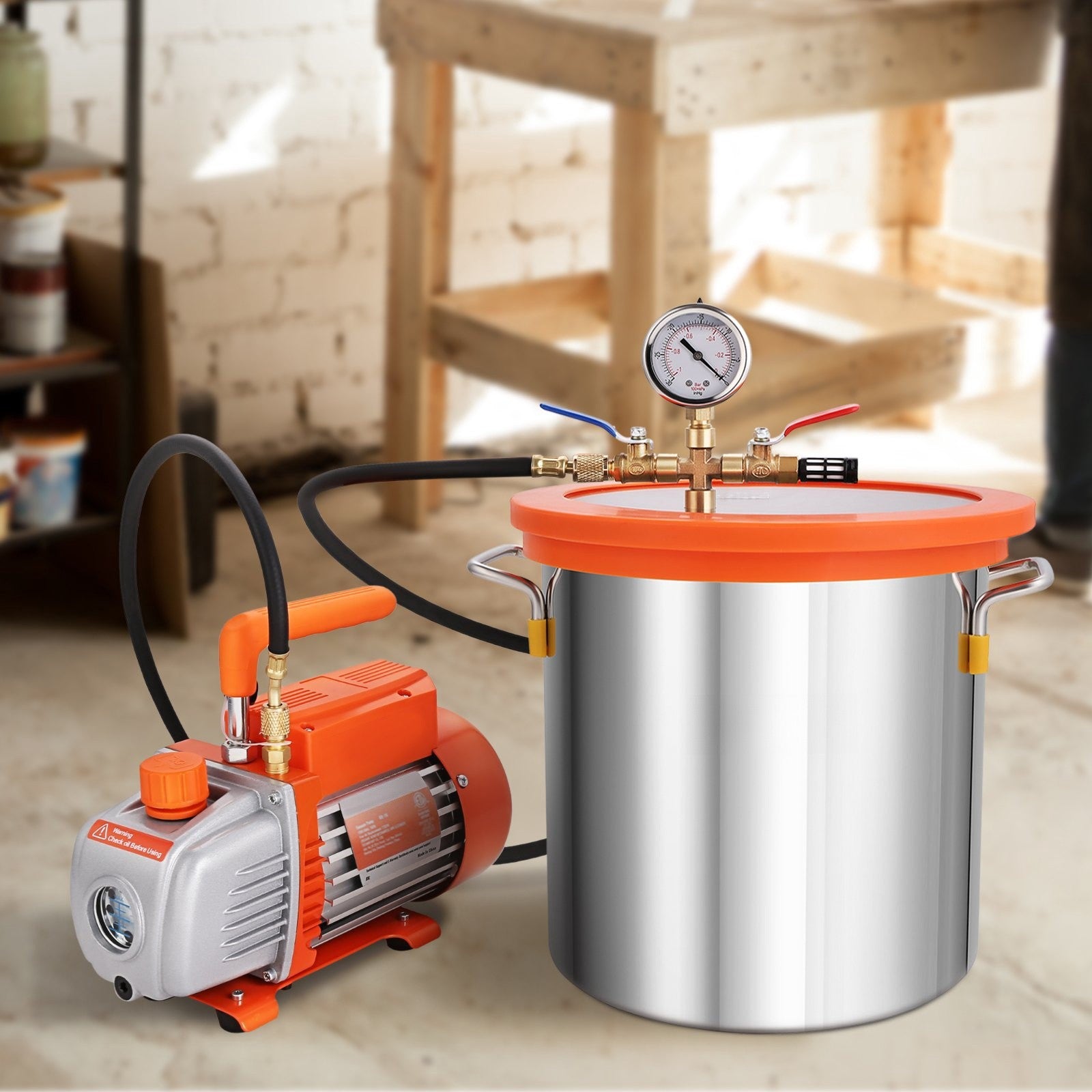

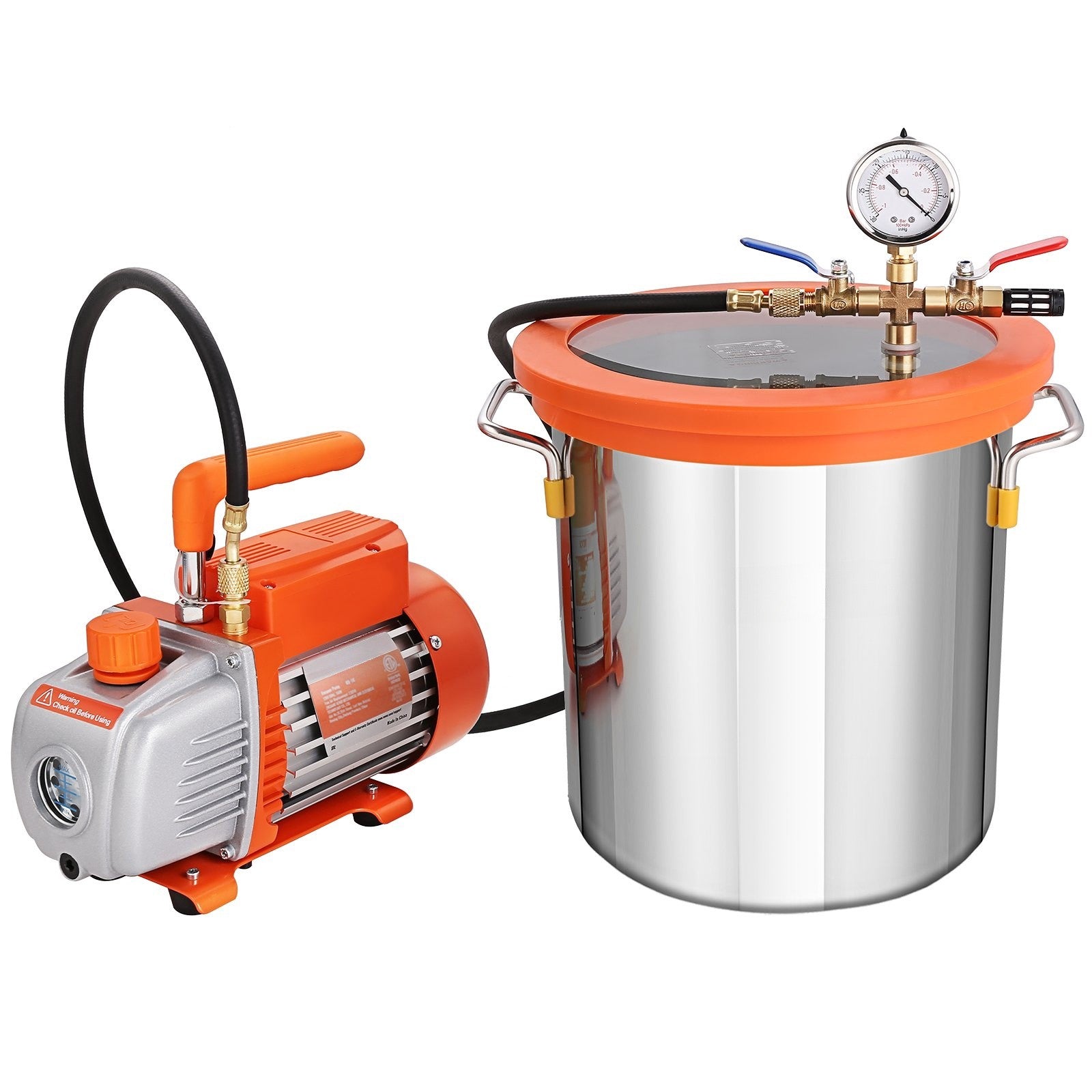

Vacuum Chamber Kit 18.9 L, 3.5 CFM Pump, Glass Lid

Vacuum degassing chamber kit delivers faster bubble removal for epoxy resin, silicone, and wood stabilization with a matched 18.9 L chamber and 3.5 CFM single-stage pump. The tempered glass lid and thick rubber seal help maintain airtight vacuum, while the 30 inHg gauge and shut-off valves give you precise control during degassing. Built for steady performance, the copper motor, cooling fan, and heat-sink design support longer runs for workshop use.

• Delivers stable vacuum for degassing epoxy, silicone molds, casting resin, and stabilizing wood blanks

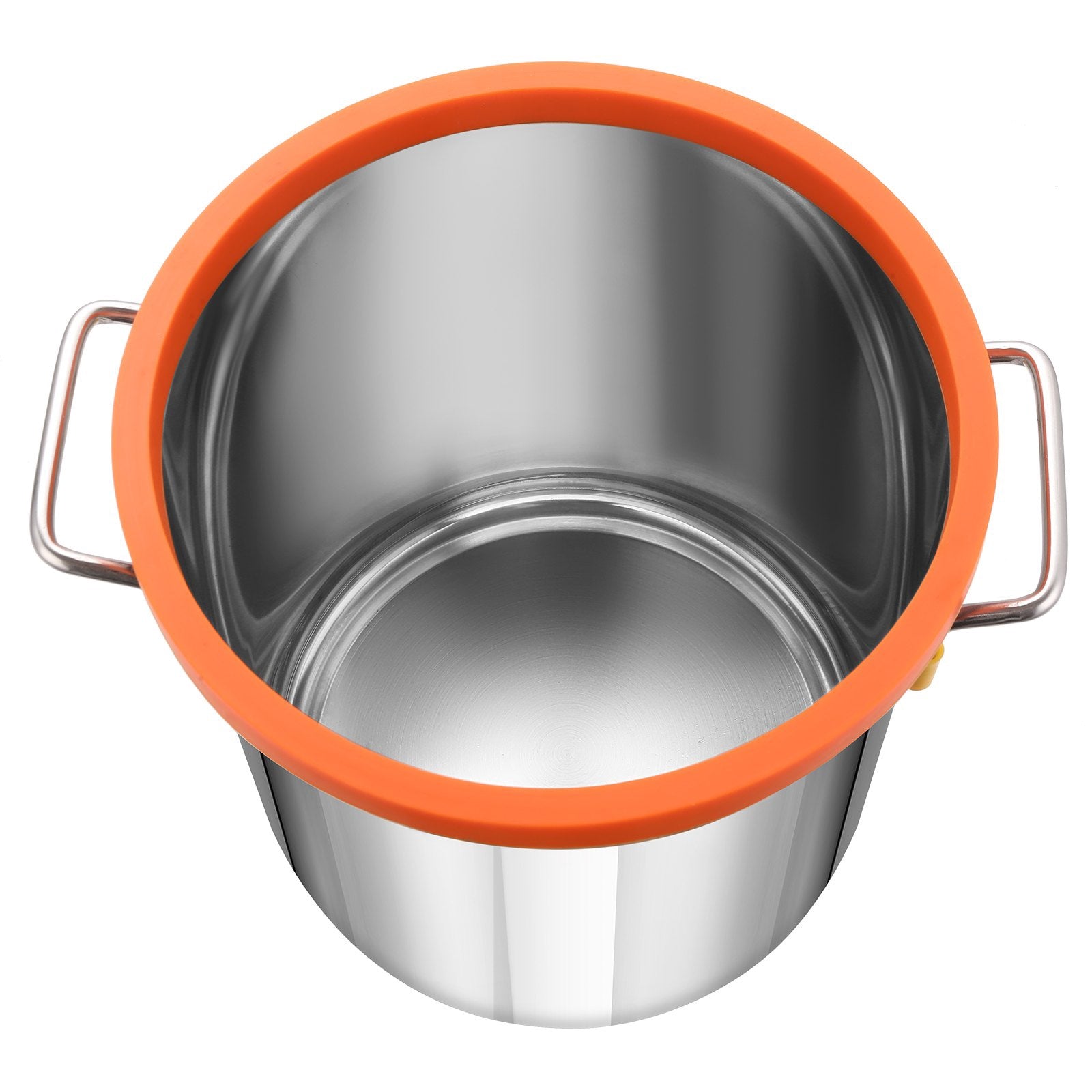

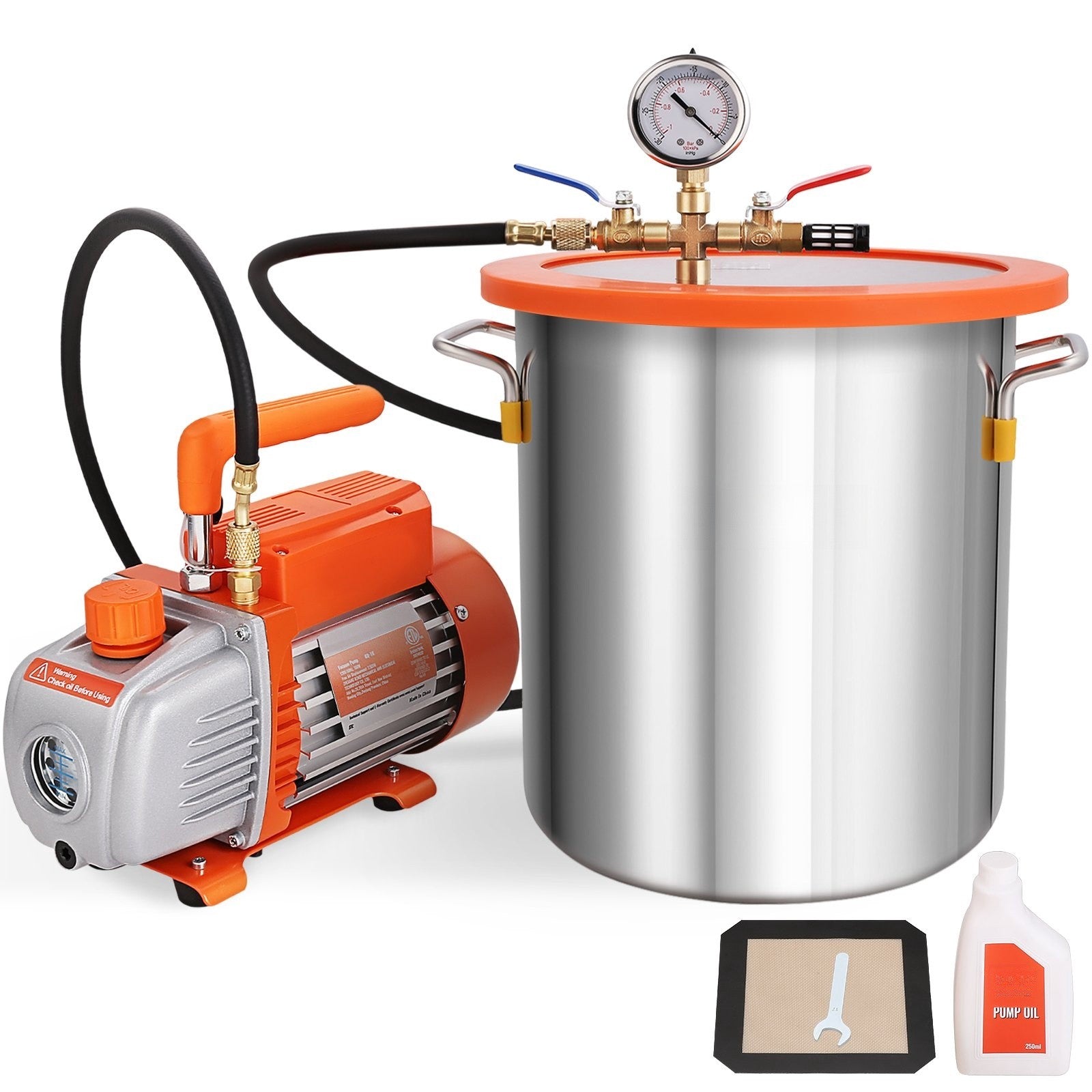

• Includes 18.9 L (5-gallon) stainless chamber, tempered glass lid, gauge, valves, filters, pad, hose, and 250 ml pump oil


• Controls flow with manual shut-off valves, vacuum gauge, and sealed fittings for cleaner, more repeatable cycles


• Runs cooler with pure copper motor, fan cooling, heat-sink design, and overheat protection for extended operation


• Handles easily with ergonomic grip, chamber handle, and oil sight glass/level scale for quick maintenance checks

Set up a more predictable degassing workflow without chasing leaks or inconsistent vacuum. The stainless chamber body pairs with a toughened glass lid so you can monitor foam rise and bubble release at a glance, while the included hose and fittings connect quickly to the 1/4" SAE intake. From resin casting and silicone mixing to wood stabilization, this kit is built for makers who want clean pours and fewer voids. Grab yours today and keep your next batch moving on schedule.

• Chamber capacity: 18.9 L (5 gallon)


• Chamber size (Dia. x H): 11.8 x 12 in / 300 x 305 mm

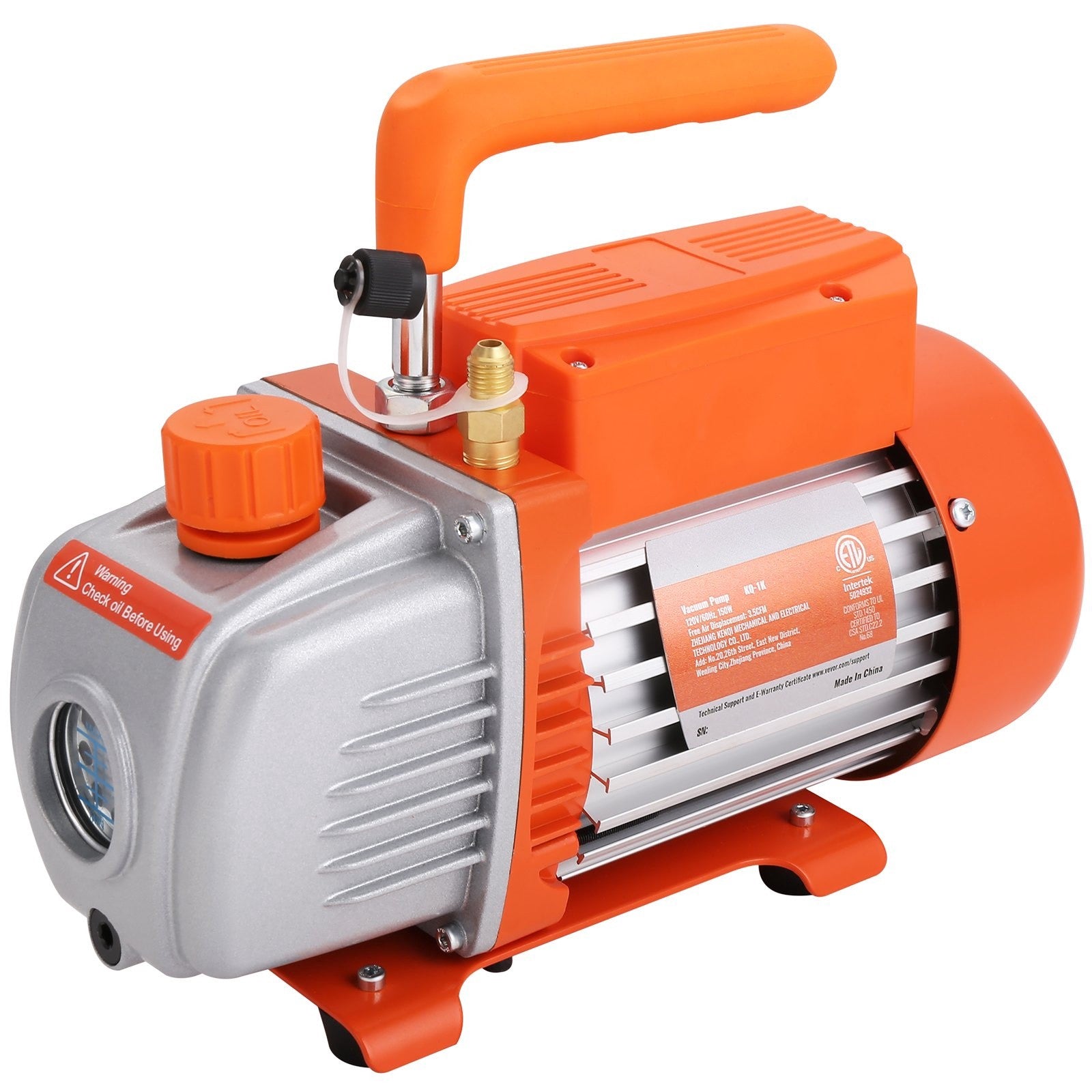

• Pump type: Single-stage vacuum pump


• Free air displacement: 100 LPM (3.5 CFM)


• Ultimate vacuum: 5 Pa


• Gauge range: up to 30 inHg


• Intake fitting: 1/4" SAE male


• Power: 150 W (1/5 HP)


• Voltage/Frequency: 220–240 V / 50 Hz


• Speed: 1440 RPM


• Oil capacity: 250 ml


• Hose: 1.5 m rubber hose, 1/4" SAE female both ends


• Silicone pad: 20 x 20 cm


• Pump size: 11.4 x 4.7 x 8.7 in / 290 x 120 x 220 mm


• Net weight: 25.4 lb / 11.54 kg
