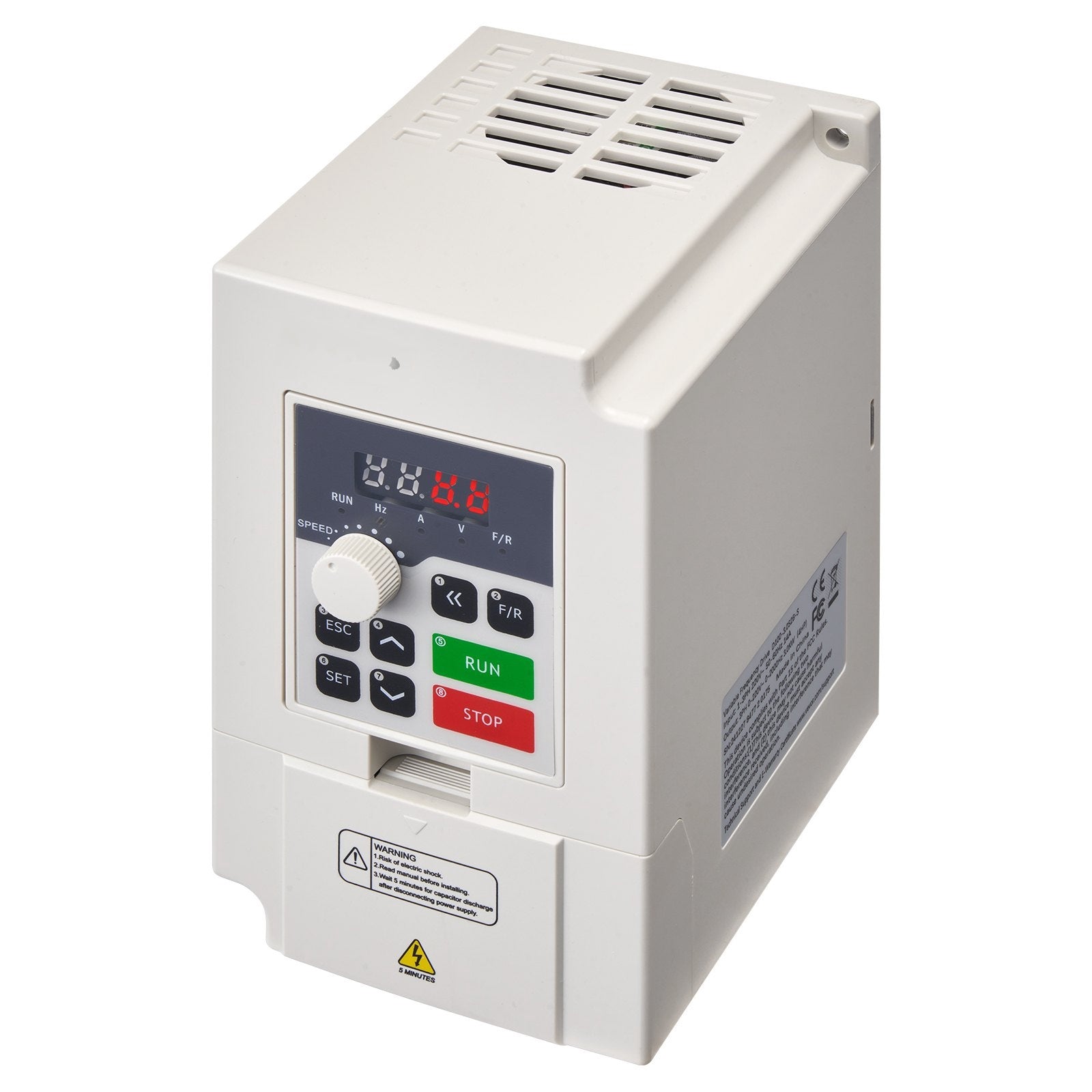

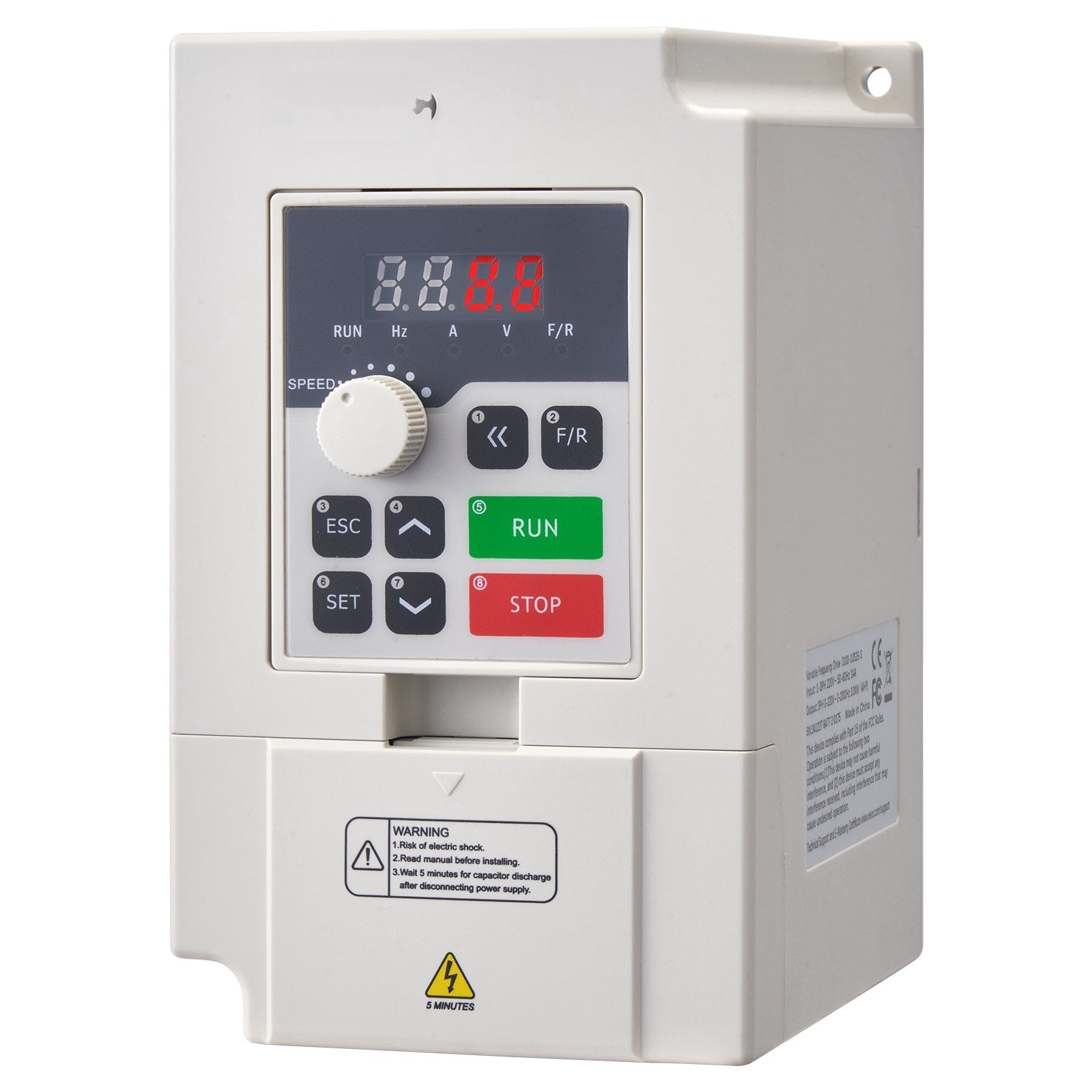

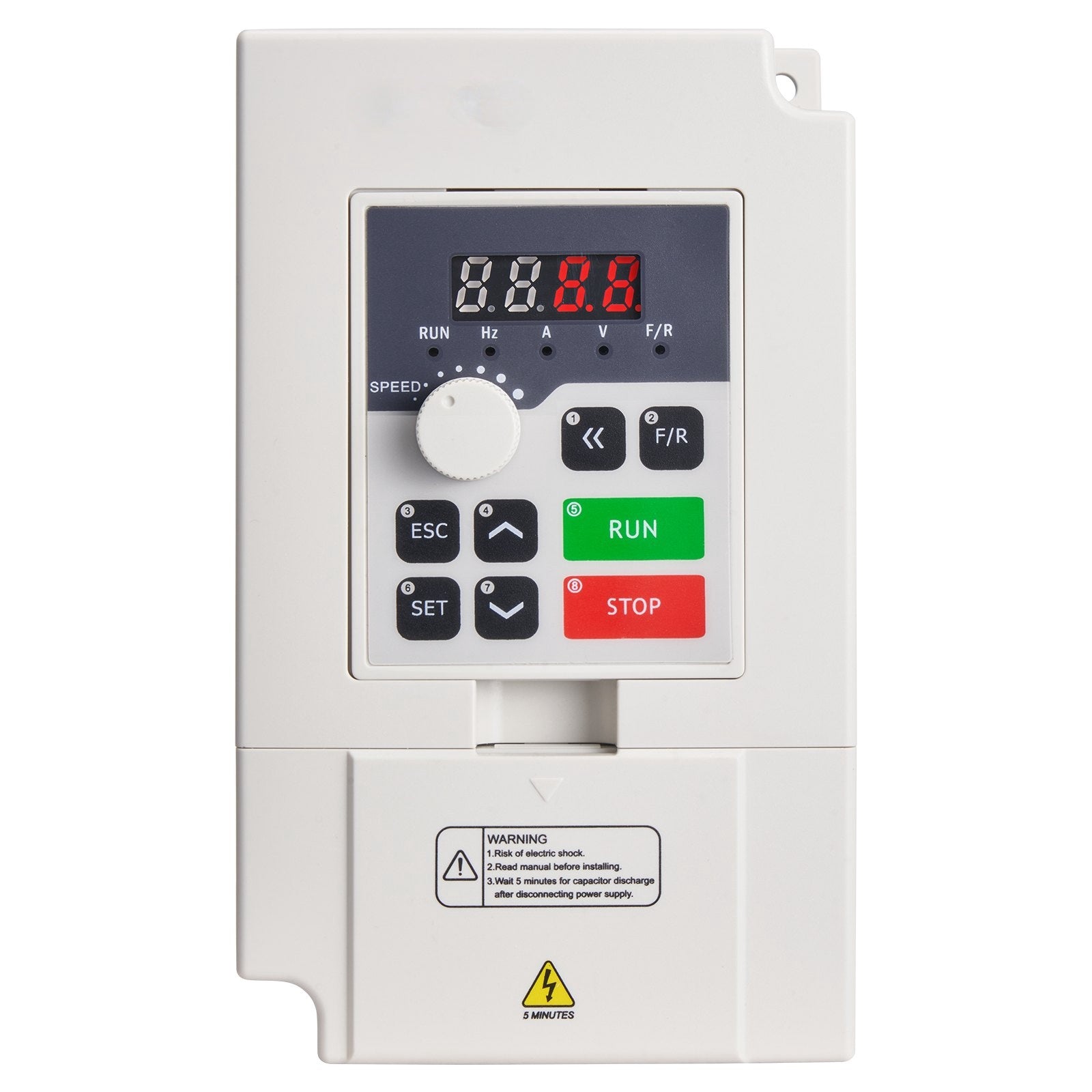

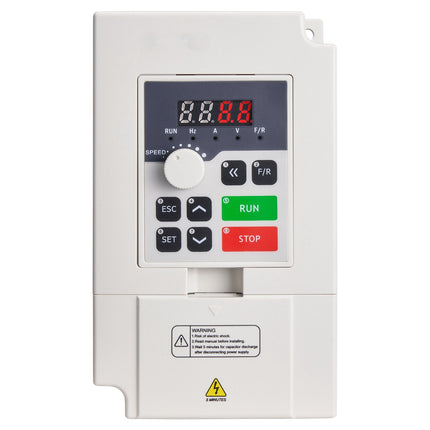

Variable Frequency Drive, 3kW 4HP 14A, 220V In 3-Phase Out

Variable frequency drive 4HP 3kW delivers precise spindle motor speed control from a 220V single- or three-phase input, converting to 3-phase 0–220V output for smooth, adjustable performance. Designed for CNC and industrial machines, it offers a wide 0–2000Hz output range, an intuitive display with responsive buttons, and a detachable control panel option for flexible operation and placement.

• Delivers adjustable motor speed via 0–2000Hz output for fine tuning and stable control


• Supports 220V input in 1-phase or 3-phase systems; outputs 3-phase 0–220V


• Protects equipment with multi-level safeguards against overload, overcurrent, overvoltage, phase loss, and more


• Improves uptime with efficient cooling fan and ventilated housing for lower-noise heat dissipation


• Fits CNC routers, milling/drilling machines, pumps, compressors, grinders, and other 3-phase motor applications

Set up your machine with a VFD built for quick parameter changes and dependable daily operation. The clear screen and button layout help reduce setup time, while the wide frequency range supports everything from gentle ramp-ups to higher-speed applications. Use the detachable panel interface when you need control access away from the drive body. For heavier loads or high-inertia equipment, size up to a higher-power drive to maintain stable performance. Grab yours today and keep your motor speed exactly where your work needs it.

• Power: 3kW (4HP)


• Input voltage: AC 220V, 1-phase or 3-phase


• Output voltage: 3-phase AC 0–220V


• Input frequency: 50/60Hz


• Output frequency: 0–2000Hz


• Input current: 14A


• Dimensions: 5.91 × 3.54 × 4.63 in (150 × 90 × 117.6 mm)


• Net weight: 2.8 lb (1.25 kg)
